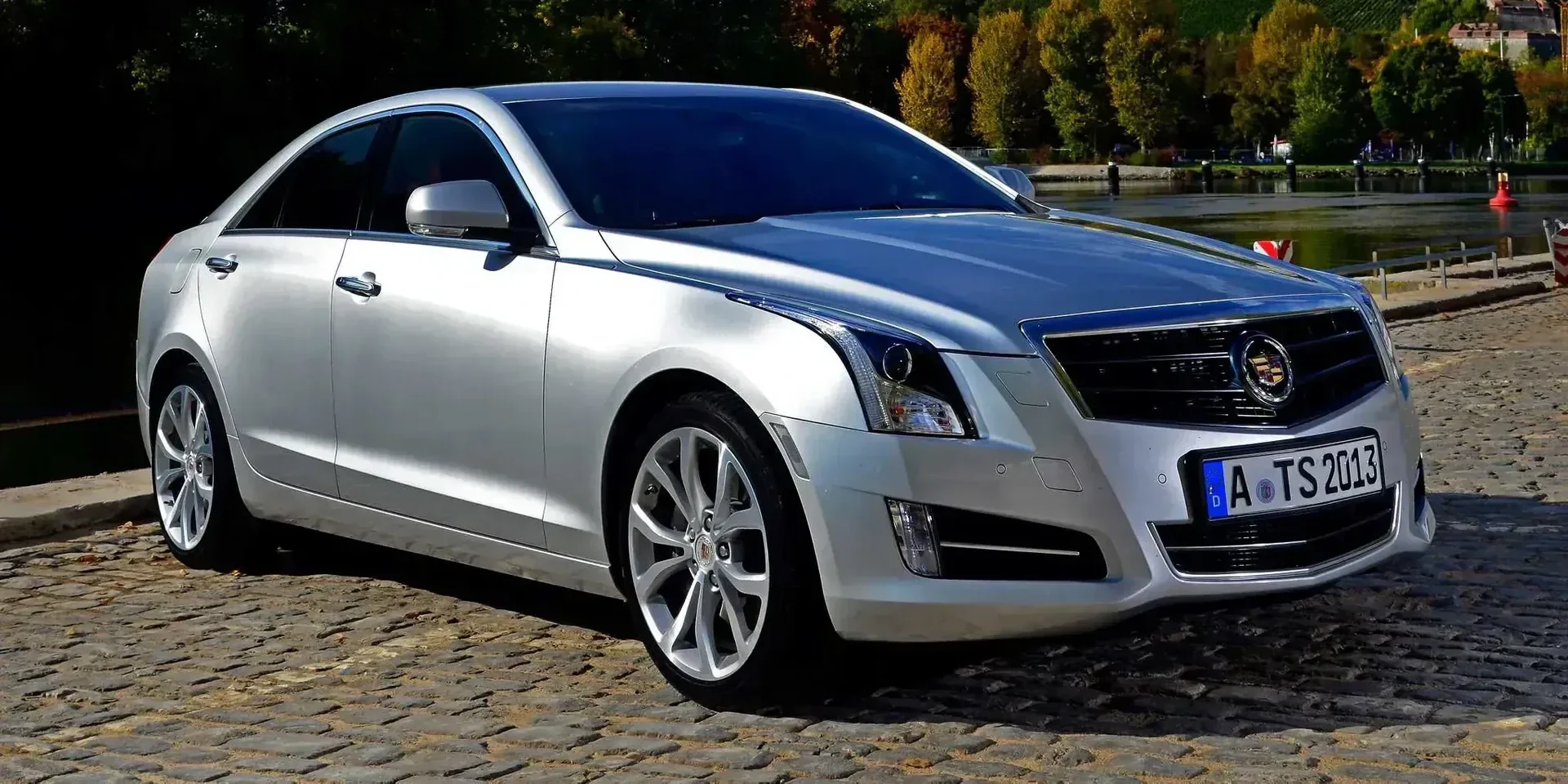

2013 Cadillac ATS

United StatesGasolineRWDSedan

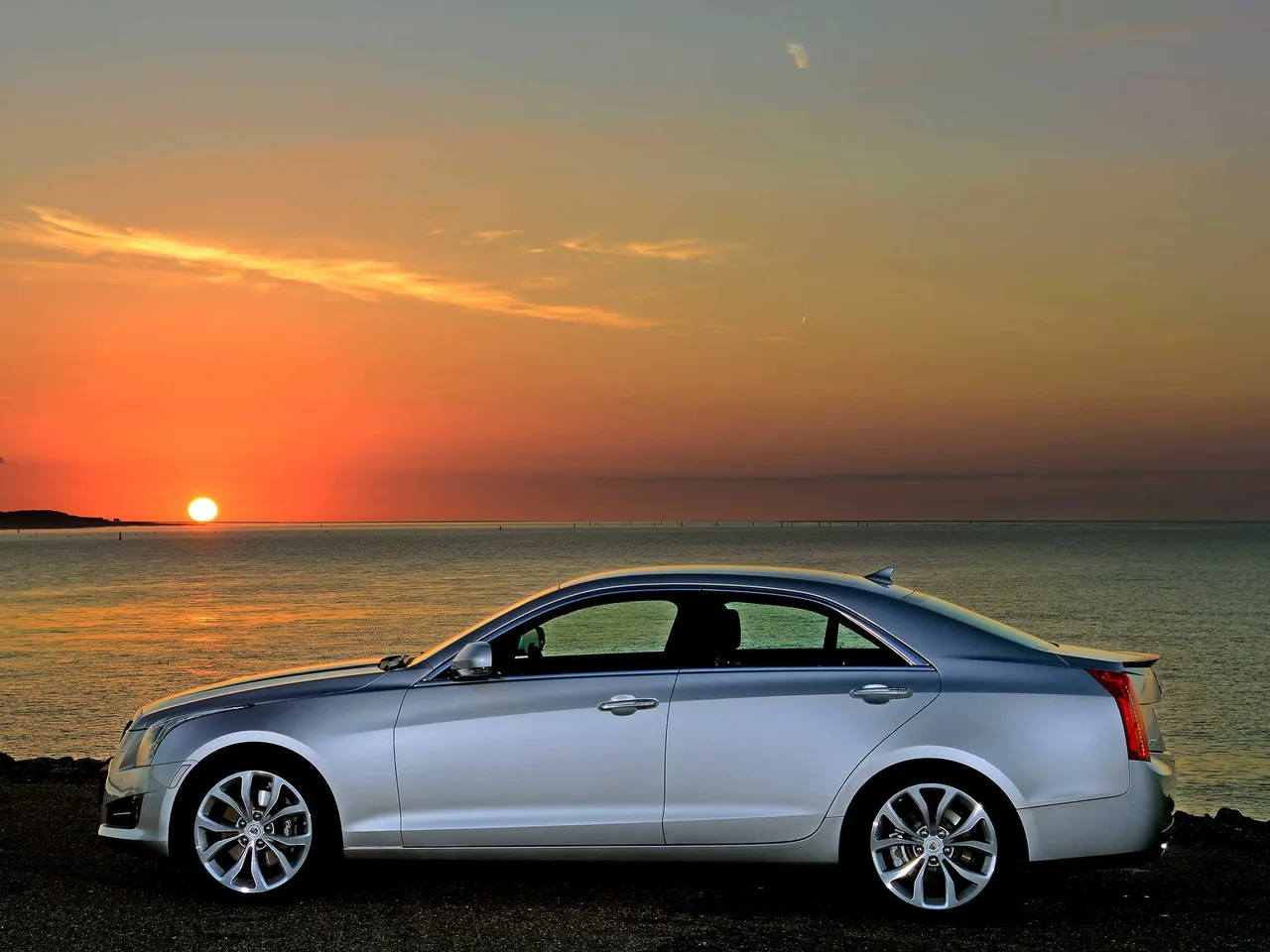

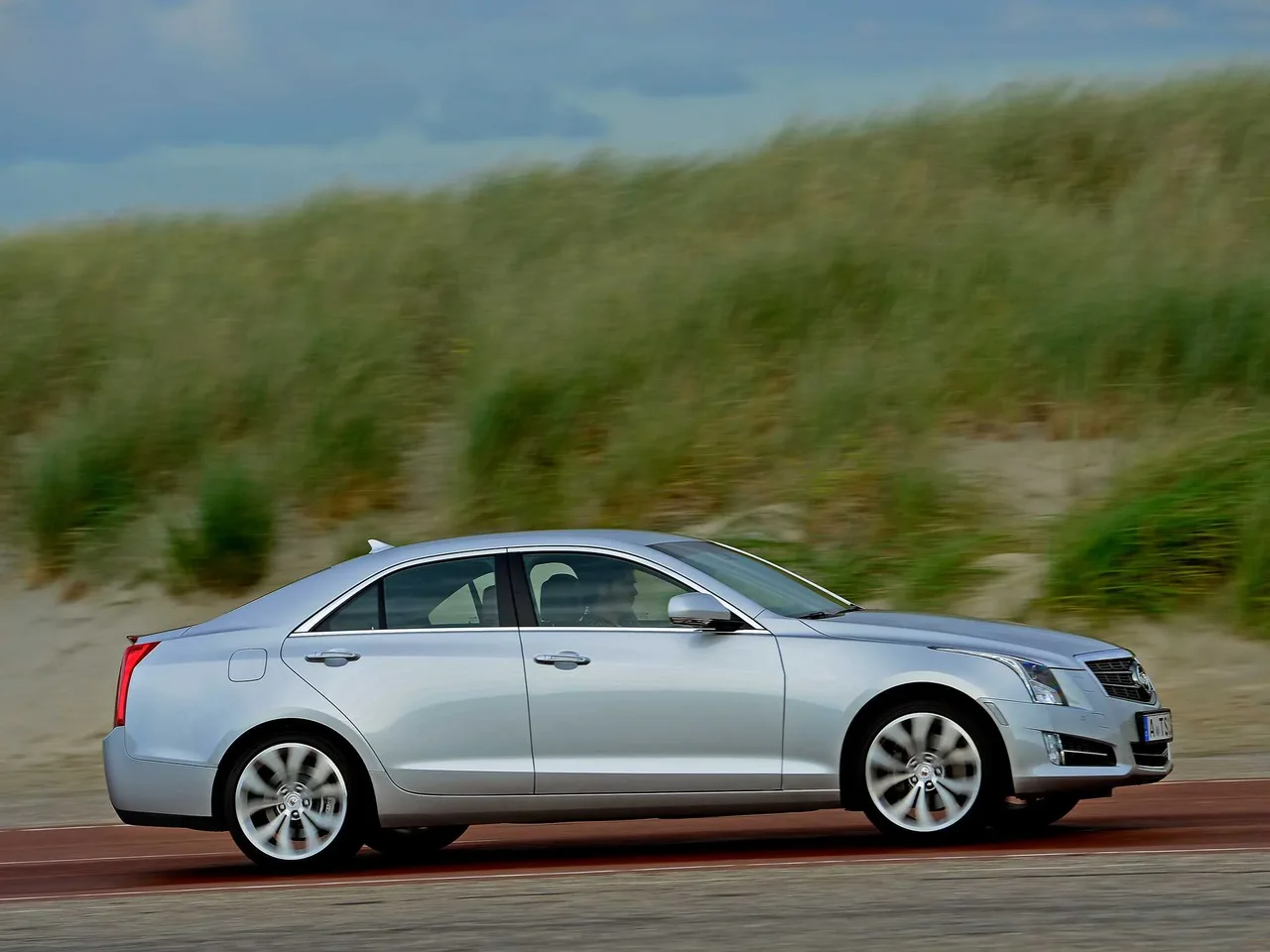

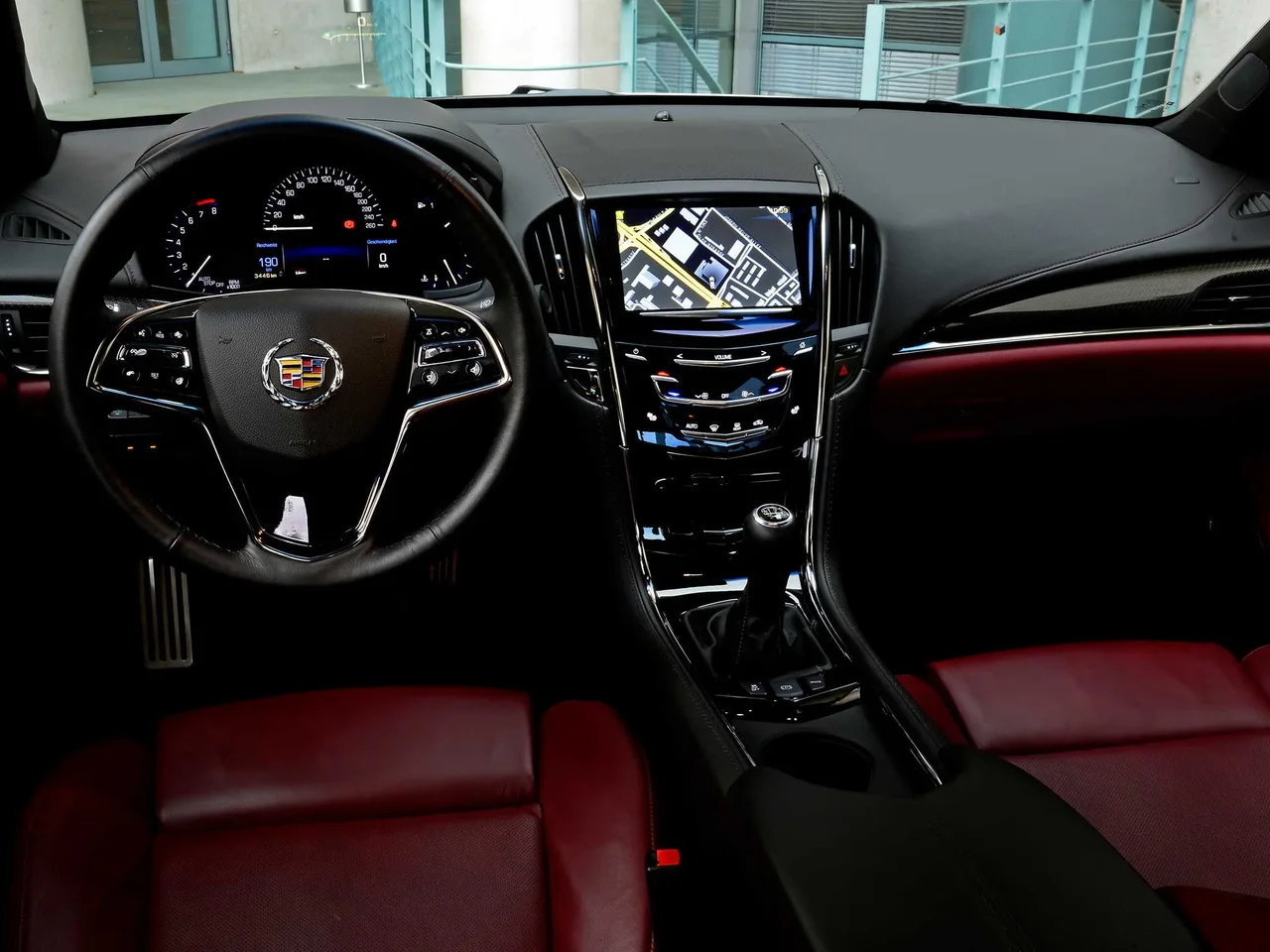

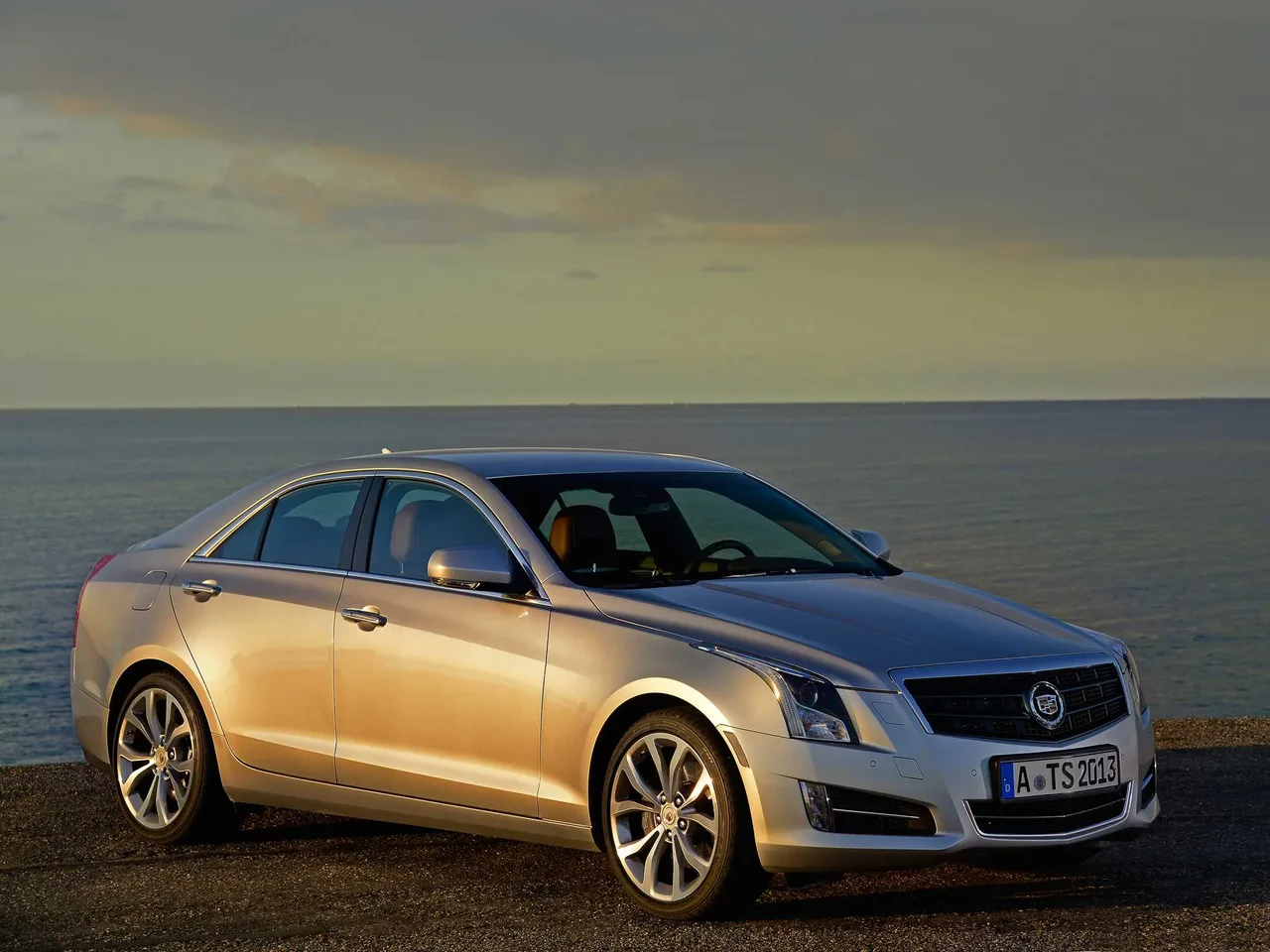

Photos

Specifications

Vehicle Details

Year
2013
Make
Cadillac
Model
ATS
Body Style
Sedan
Generation
1st Generation
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic Electrohydraulic
  • Manual, 6-speed

Powertrain

Engine Name
2.0 T
Engine Configuration
Inline
Power (hp)
276 hp
Power (kW)
203 kW
Torque
353 Nm (260 lb-ft)
Displacement
1,998 cc

Dimensions

Length
4,643 mm (182.8 in)
Width
1,805 mm (71.1 in)
Height
1,421 mm (55.9 in)
Wheelbase
2,775 mm (109.3 in)
Curb weight
1,530 kg (3,373 lb)

Engine & Performance

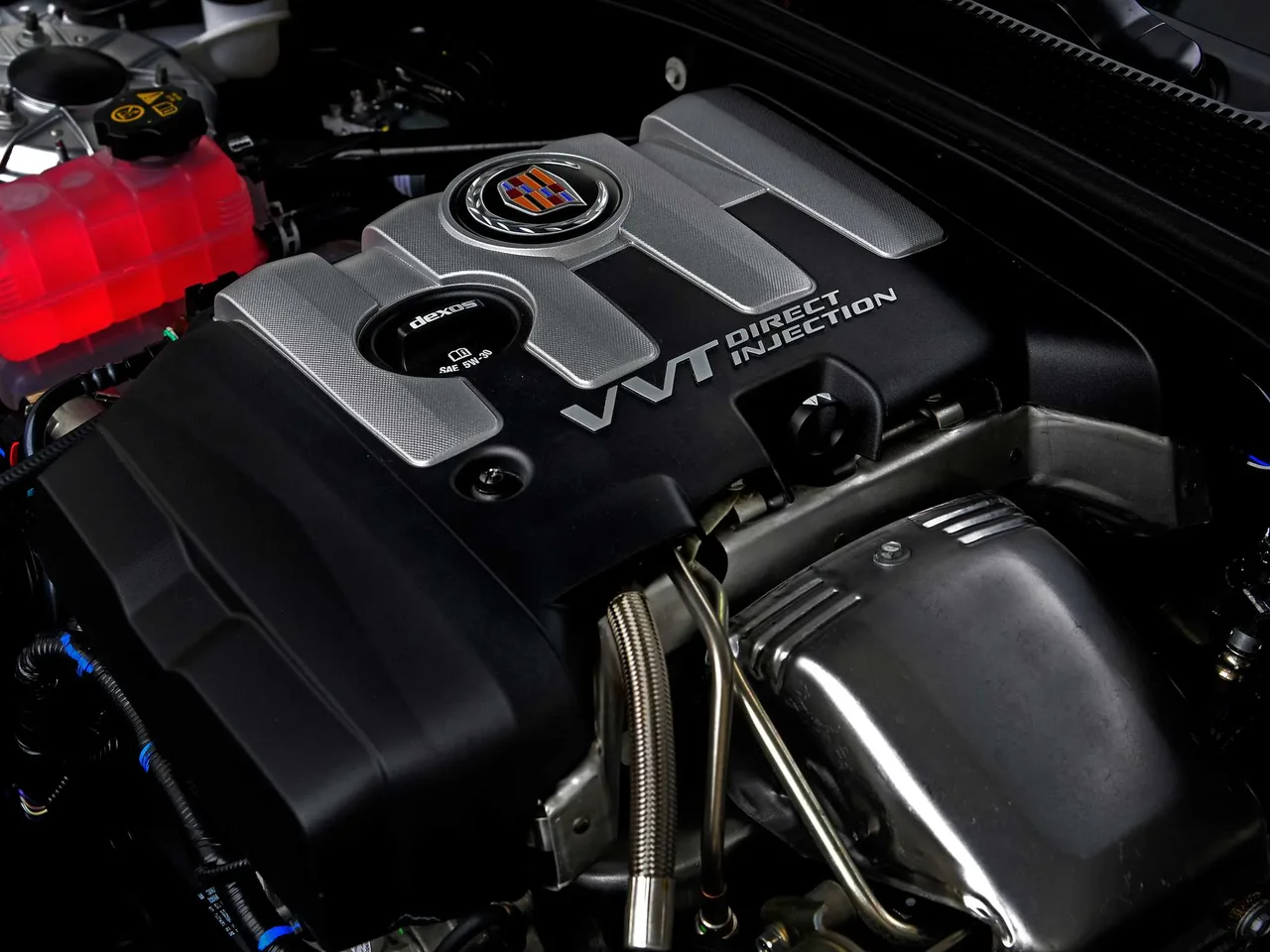

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,700 - 5,500 rpm
Redline
7,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
4.7 litres
Engine Coolant, Volume
7.6 litres
Engine Configuration
Bore
86 mm (3.4 in)
Stroke
86 mm (3.4 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
96,000 km (59,652 mi)
Brake Fluid
240,000 km / 10 years
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Transmission, Fluid
156,000 km (96,934 mi)
Transmission, Fluid Filter
156,000 km (96,934 mi)
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Electrohydraulic
  • Manual, 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.06 – 4.12 :1
2nd Gear
2.37 – 2.62 :1
3rd Gear
1.55 – 1.81 :1
4th Gear
1.16 – 1.3 :1
5th Gear
0.85 – 1 :1
6th Gear
0.67 – 0.8 :1
Final Drive
3.27 :1
Reverse
3.2 – 3.75 :1

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
300 - 321 mm (11.8 - 12.6 in)
Width
26 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Width
23 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Electronic Damper Control (EDC)
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
60.5 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
19 – 21 MPG
Highway
30 – 31 MPG

Dimensions & Weight

Exterior

Track, Front
1,512 mm (59.5 in)
Track, Rear
1,548 mm (60.9 in)
Turning Circle
11 - 11.1 m
Ground Clearance
145 mm (5.7 in)

Interior

Head Room, Front
980 mm (38.6 in)
Head Room, Rear
935 mm (36.8 in)
Leg Room, Front
1,079 mm (42.5 in)
Leg Room, Rear
851 mm (33.5 in)
Hip Room, Front
1,345 mm (53.0 in)
Hip Room, Rear
1,328 mm (52.3 in)
Shoulder Room, Front
1,345 mm (53.0 in)
Shoulder Room, Rear
1,369 mm (53.9 in)

Weight

Weight Distribution, front
52 %
Weight Distribution, rear
48 %

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Alpha Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Turning Signal
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Antenna
Shark Fin

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
115
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
70.3
Fastening Type
Lug Nuts
Tightening Torque
140 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Lights
Read Light
Front
Guide Light
Yes
Connectivity
Radio
Yes
Media Format
Memory Card Reader
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Format
CD
Optional
MP3
Optional
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
294 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Manual
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Cruise Control
Rear
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Awards

North American
Car of the Year
2013
