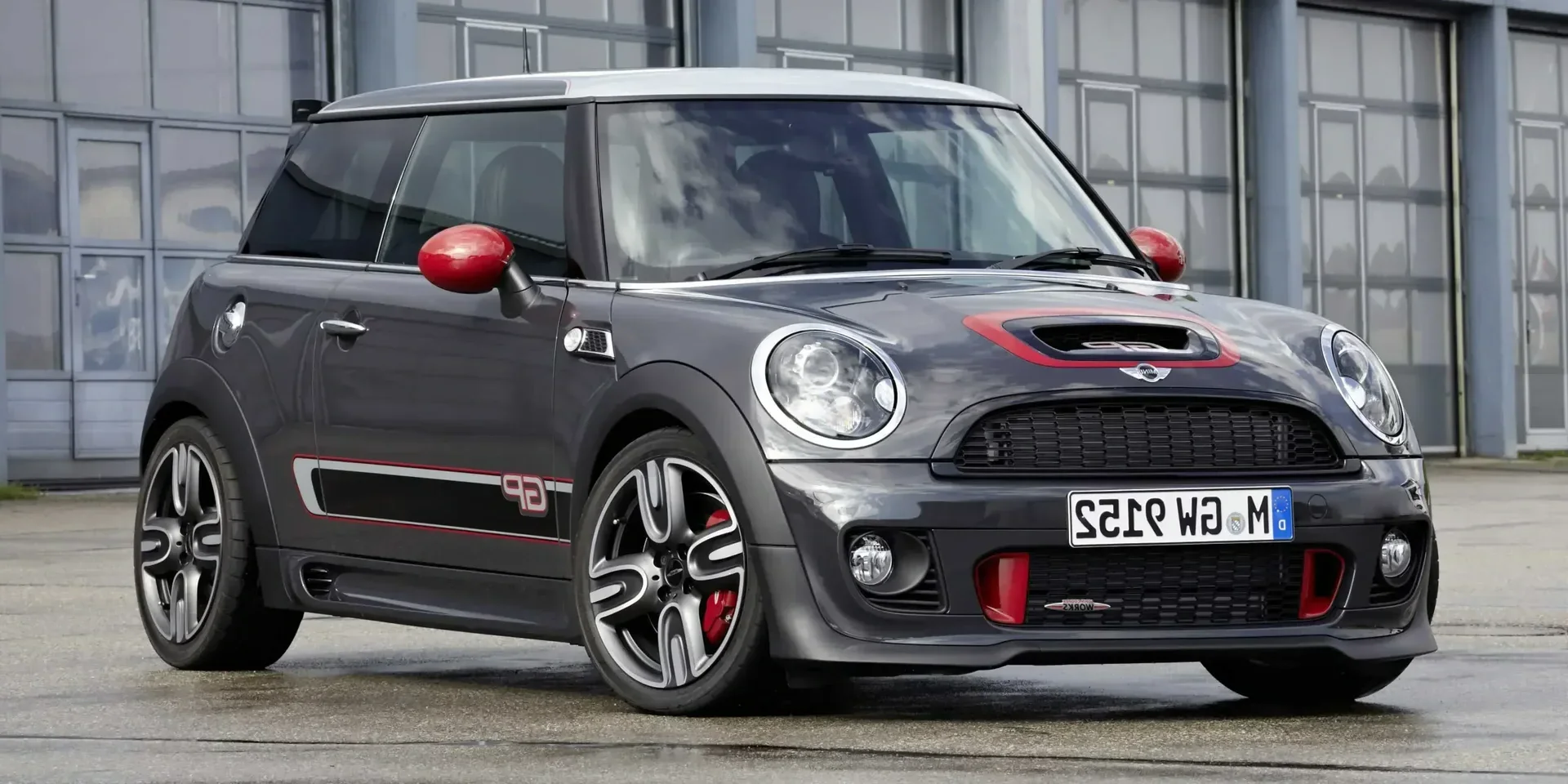

2013 Mini Cooper John Cooper Works

United KingdomGasolineFWDHatchback

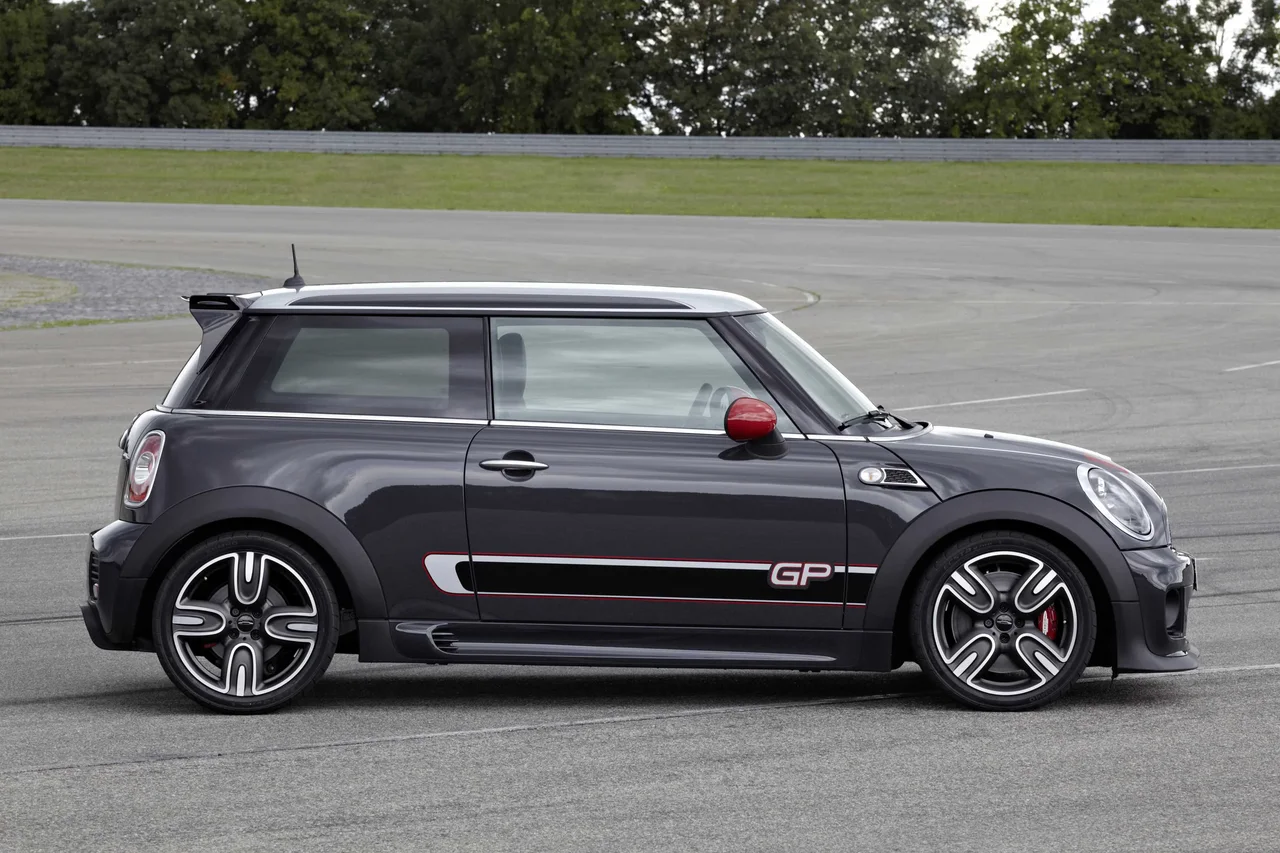

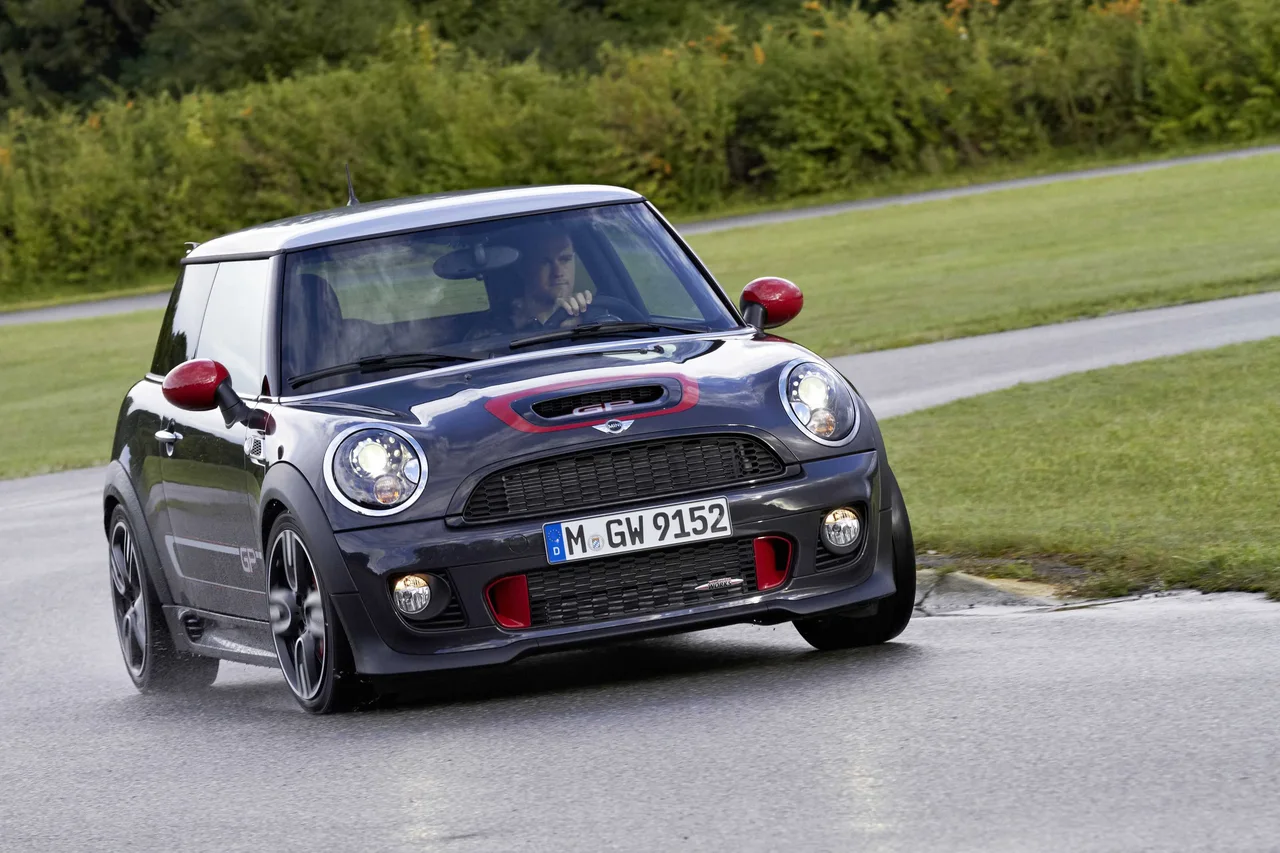

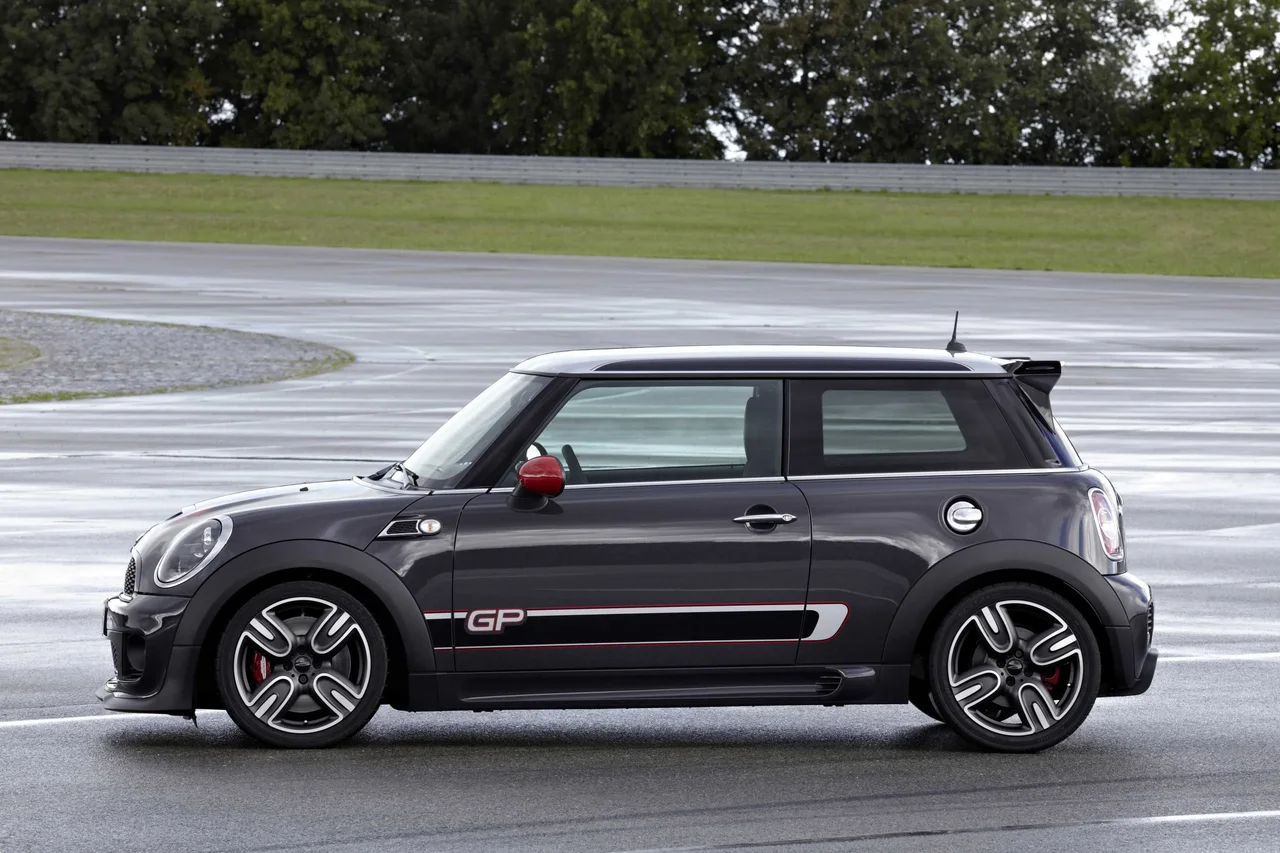

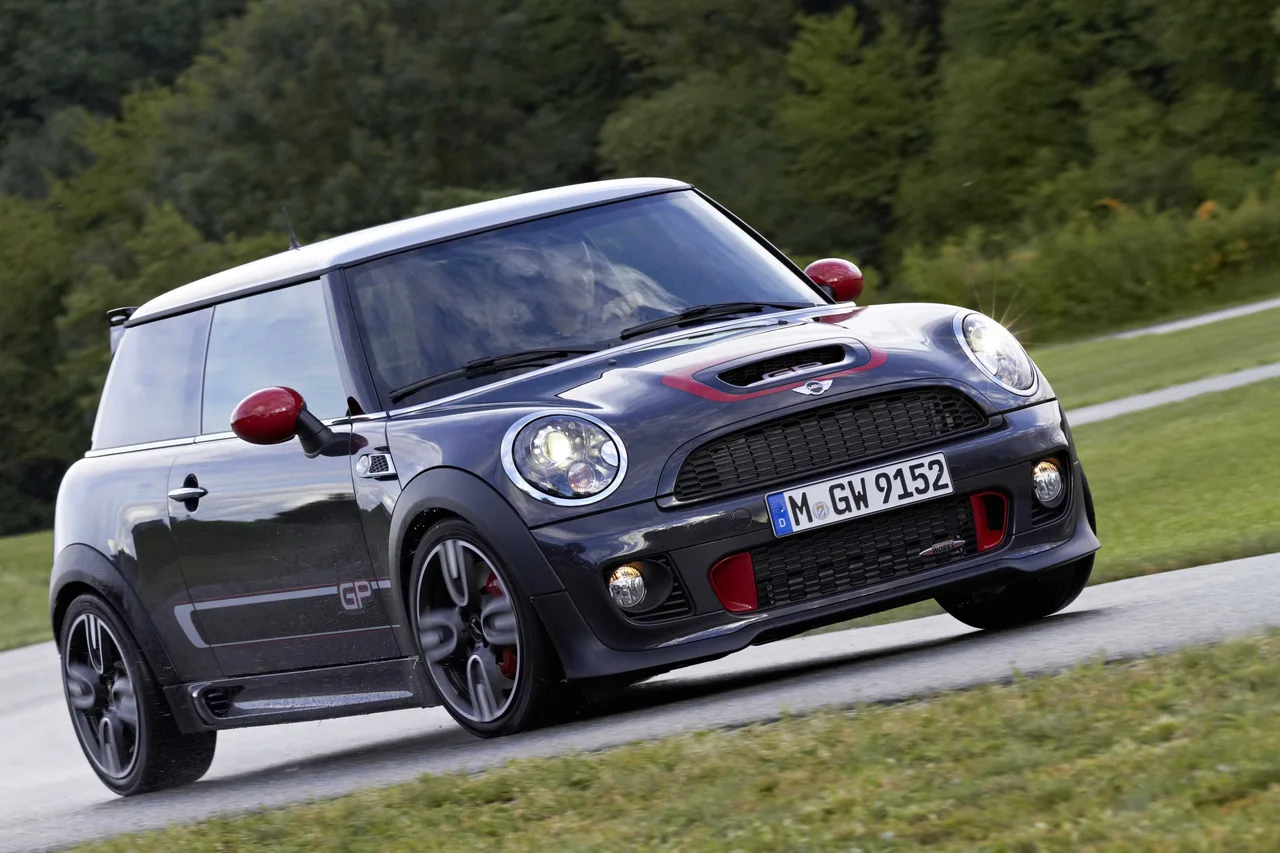

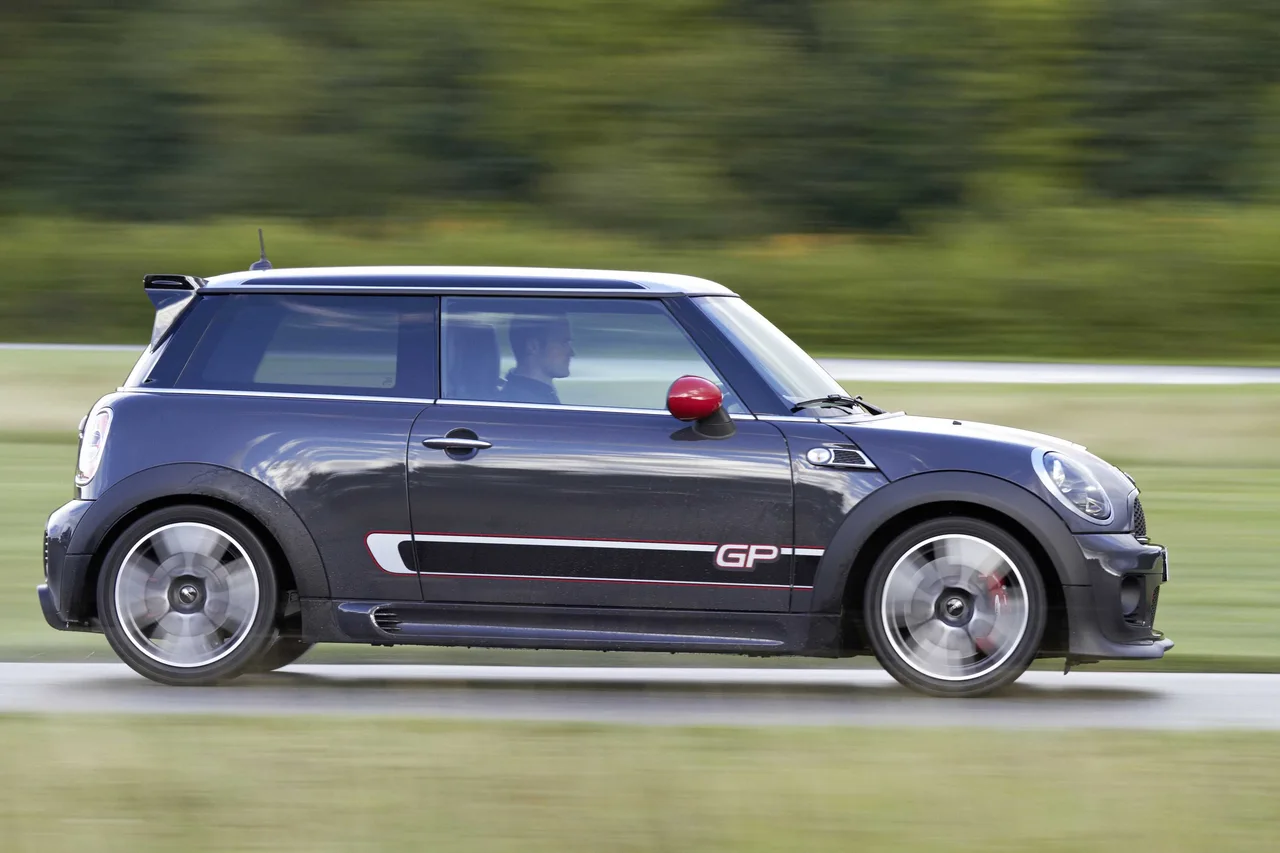

Photos

Specifications

Vehicle Details

Year
2013
Make
Mini
Model
Cooper
Variant
John Cooper Works
Body Style
Hatchback
Generation
R56 LCI
Seats
4
Doors
3
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
John Cooper Works GP Manual
Engine Configuration
Inline
Power (hp)
218 hp
Power (kW)
160 kW
Torque
280 Nm (207 lb-ft)
Top speed
242 km/h (150 mph)
0–60 mph
6 seconds
0–100 km/h
6.3 seconds
Displacement
1,598 cc

Dimensions

Length
3,729 mm (146.8 in)
Width
1,683 mm (66.3 in)
Height
1,407 mm (55.4 in)
Wheelbase
2,467 mm (97.1 in)
Curb weight
1,235 kg (2,723 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,750 - 5,100 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Engine Configuration
Bore
77 mm (3.0 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Fuel Injection
Camshaft Type
DOHC
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km (37,282 mi)
Spark Plug
30,000 km / 2 years
Brake Fluid
2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
4 years

Transmission & Drivetrain

Gear Ratio
1st Gear
3.31 :1
2nd Gear
2.13 :1
3rd Gear
1.48 :1
4th Gear
1.14 :1
5th Gear
0.95 :1
6th Gear
0.81 :1
Final Drive
3.7 :1
Reverse
3.23 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
307 mm (12.1 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
296 mm (11.7 in)
Width
10 mm (0.4 in)
Cooling
Solid

Performance

Drag Coefficient
0.36

Fuel

General
Tank Volume
50 litres
Emission
Emission Standard
Euro 5
Emission Control
Catalyst
Fuel Consumption NEDC
City
9.5 litres / 100 km
Highway
5.7 litres / 100 km
Combined
7.1 litres / 100 km
Emission NEDC
CO₂, Combined
165 g/km

Dimensions & Weight

Exterior

Track, Front
1,453 - 1,459 mm (57.2 - 57.4 in)
Track, Rear
1,461 - 1,467 mm (57.5 - 57.8 in)
Turning Circle
10.7 m
Ground Clearance
130 - 139 mm (5.1 - 5.5 in)

Interior

Head Room, Front
985 mm (38.8 in)
Head Room, Rear
955 mm (37.6 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
760 mm (29.9 in)
Shoulder Room, Front
1,278 mm (50.3 in)
Shoulder Room, Rear
1,136 mm (44.7 in)

Weight

Cargo Capacity
450 kg (992 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Spoiler
Yes
Antenna
Whip
Number of Exhaust Pipes
2
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Special Features
  • Come Home/Leaving Lights
  • Headlight Washers
Fog Lights
Front
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
56.1
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Fuel Gauge
Digital
Compass
Optional
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Micro Filter
Yes
Number of Vents, Front
4 pcs
Number of Vents, Rear
0 pcs
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • XM
  • DAB
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
Number of Ports
1 pcs
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
6.5"
Speakers
Total Number of Speakers
6 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Bottom of the Doors
Lights › Read Light
Rear
Optional
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Steering Ratio
14.1 :1
Steering Mechanism
Rack and Pinion
Voice Command
Optional
Answer Phone
Optional
Channels
Optional
Volume
Optional

Trunk

Rear Trunk
Yes
Release Button
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
160 litres
Volume, Back Seat Collapsed
680 litres

Design

Red
Optional
Red
Silver
Optional

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Collapsible
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
50/50

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Rear Camera Preparation
Optional
Phone
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2007
Adult Occupant
5/5 stars
Child Occupant
3/5 stars
Pedestrian
2/4 stars
Overall Score
32.51
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
13.02
Side Impact
14.49
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
  • A-Segment
  • B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
H13
Main Beam
H13
Fog Light, Front
H8
Fog Light, Rear
W2.1×9.5d (W16W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

Similar hatchbacks

Suggested vehicles
