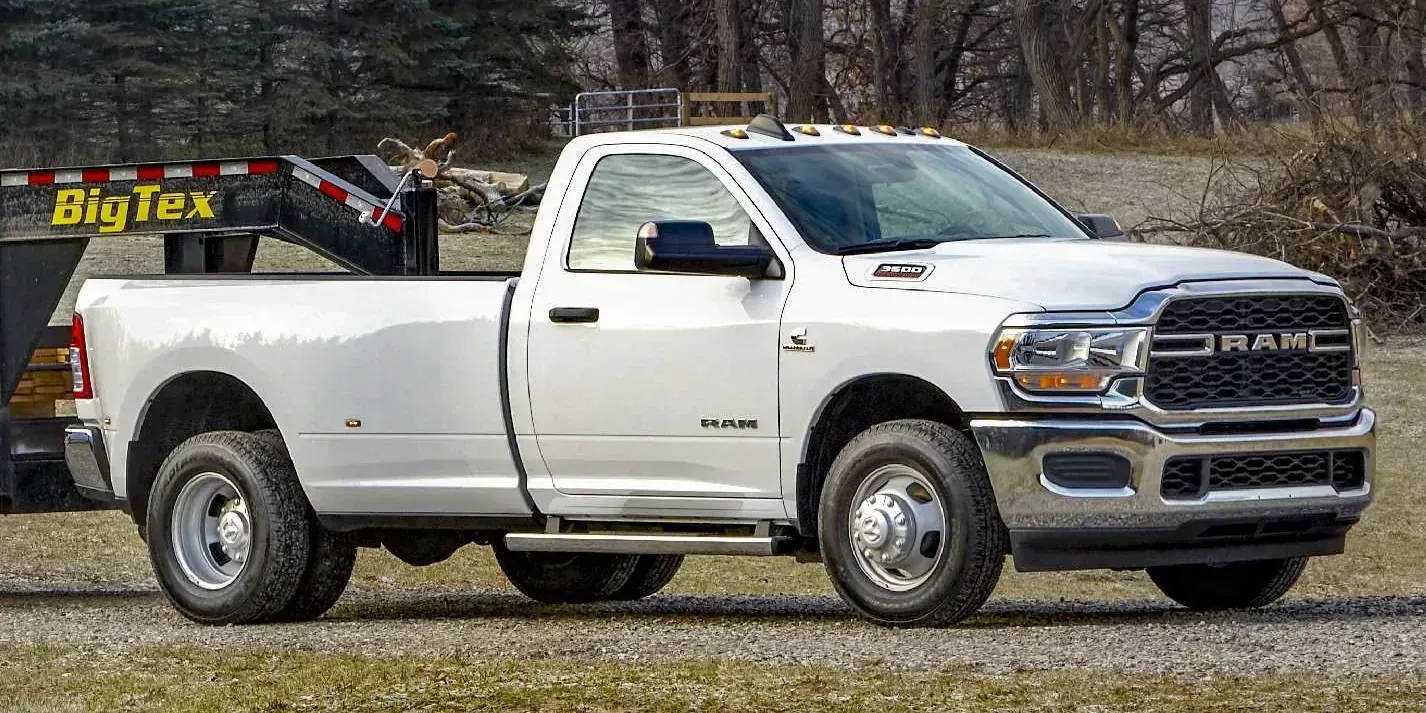

2013 Ram HD

United StatesDiesel4WDPickup

Photos

Specifications

Vehicle Details

Year
2013
Make
Ram
Model
HD
Body Style
Pickup
Generation
1st Generation Facelift
Seats
2
Doors
2
Fuel
Diesel
Drivetrain
4WD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
3500 Cab Chassis
Power (hp)
324 hp
Power (kW)
239 kW
Displacement
6,690 cc

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
11.3 litres
Transmission Fluid, Volume
4.7 – 6.2 litres
Engine Coolant, Volume
22.5 litres
Engine Configuration
Synchronization
Cylindrical Gears
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
Cam-in-block (Pushrod)
Engine Block
Cast Iron
Engine Heads
Cast Iron
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Fuel

General › Fuel Cap Position
Rear
Left
General
Lockable Fuel Cap
Yes

Brakes

Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil

Dimensions & Weight

Exterior

Ground Clearance
195 mm (7.7 in)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-B
Chassis Construction
Body-on-Frame
Body Material
Steel
Doors
Front Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
User Memory
Optional
Heated
Yes
Turning Signal
Optional
Side Mirrors › Mirror Type
Driver side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Windows › Window Lifts, Features
Pinch Protection
Optional
One-touch up/down
Optional
Windows › Window Lifts, Features › Pinch Protection
Driver
Optional
Passenger
Optional
Windows › Window Lifts, Features › One-touch up/down
Driver
Optional
Passenger
Optional
Windows
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
Safety Glass
Yes
Rear Windows, Sliding
Optional
Windows › Heated Windows
Rear
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Other Equipment
Tow Hook
  • Front
  • Rear
Antenna
Whip
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Optional
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Headlight Range Adjustment
Manual (Electric)

Colour

Non-painted
Bumper (Front)
Door Handles
Non-painted

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)
Dual Rear Wheels
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
3.5 - 7"
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
XM
Optional
Connectivity › Media Format
CD
Optional
Connectivity › Media Inputs
AUX
Front
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
5 - 8.4"
Center Display Controls
  • Buttons
  • Rotary Dial
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 10 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
3
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Heated
Optional
Power Steering
Yes
Adjustments
Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Recirculating Ball

Trunk

Rear Trunk
Yes

Design

Pedals
Standard
Pedals
Beige
Optional
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional

Features

Comfort Features

Keyless Entry
Optional
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Cameras
Optional
Voice Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Horn
Dual Note
GPS
USB
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Trailer Stability Assist (TSA)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Immobiliser
Electronic
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Car Classification

American Classification
Heavy Duty Pickup Truck
British Classification
Pick-up
Australian Classification
Pickup
European Segment
J-Segment JE-Segment
Car.info Classification
Pickup
