2014 Cadillac XTS

United StatesGasolineAWDSedan

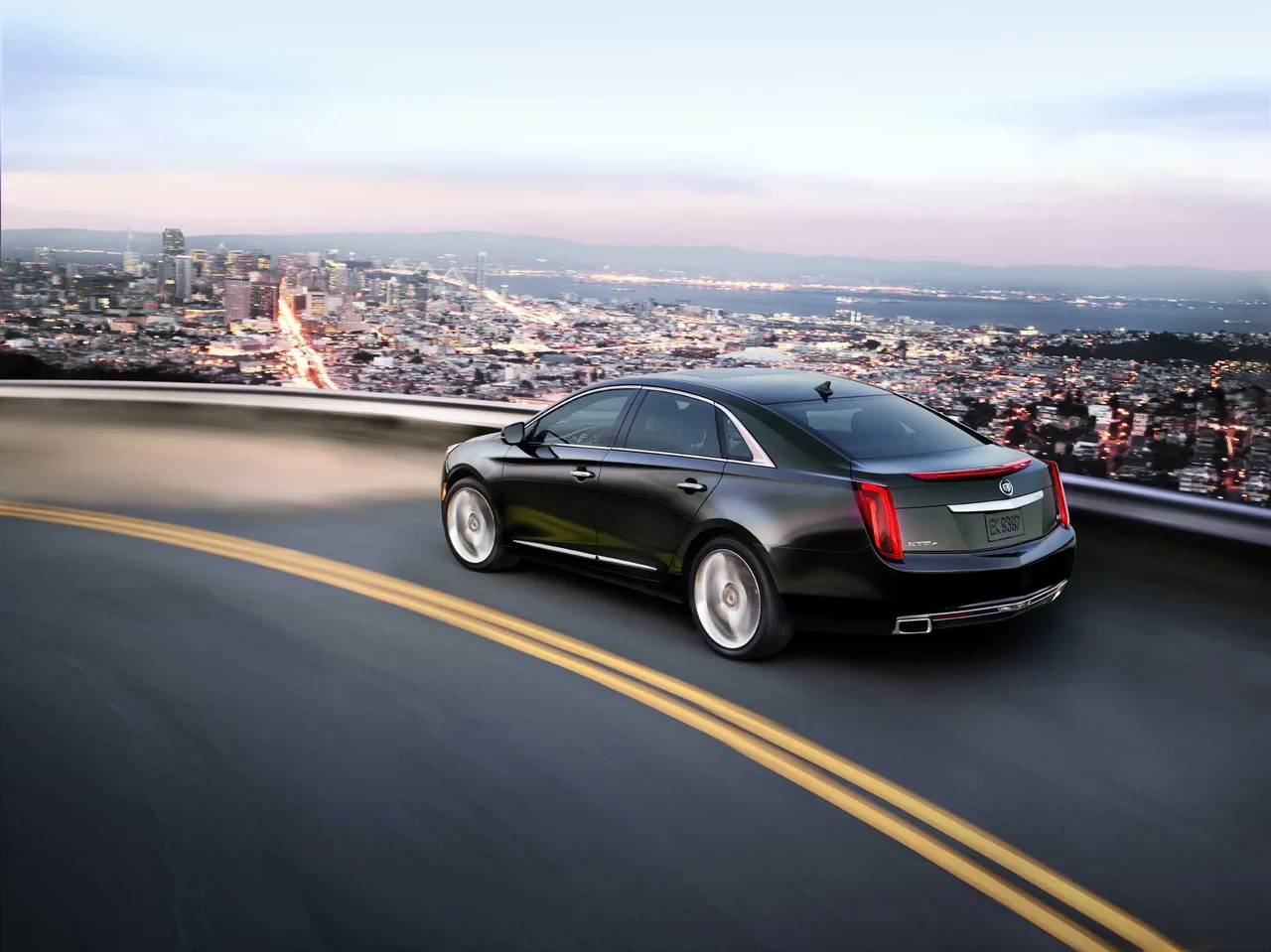

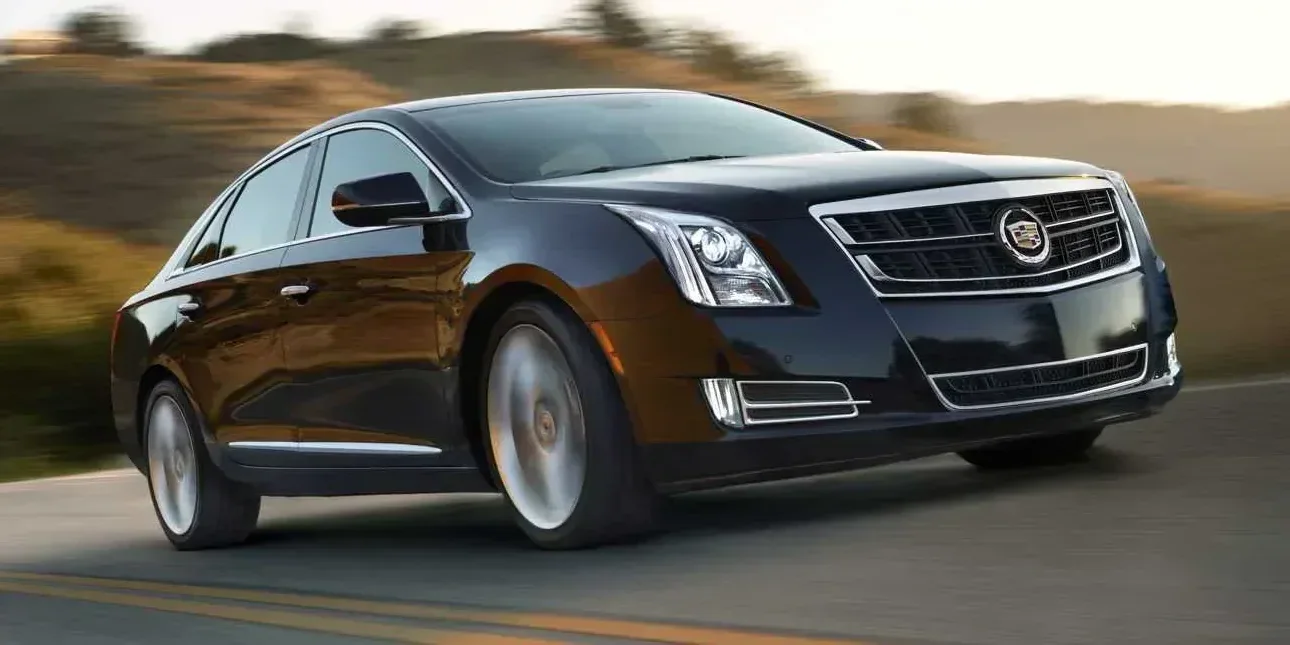

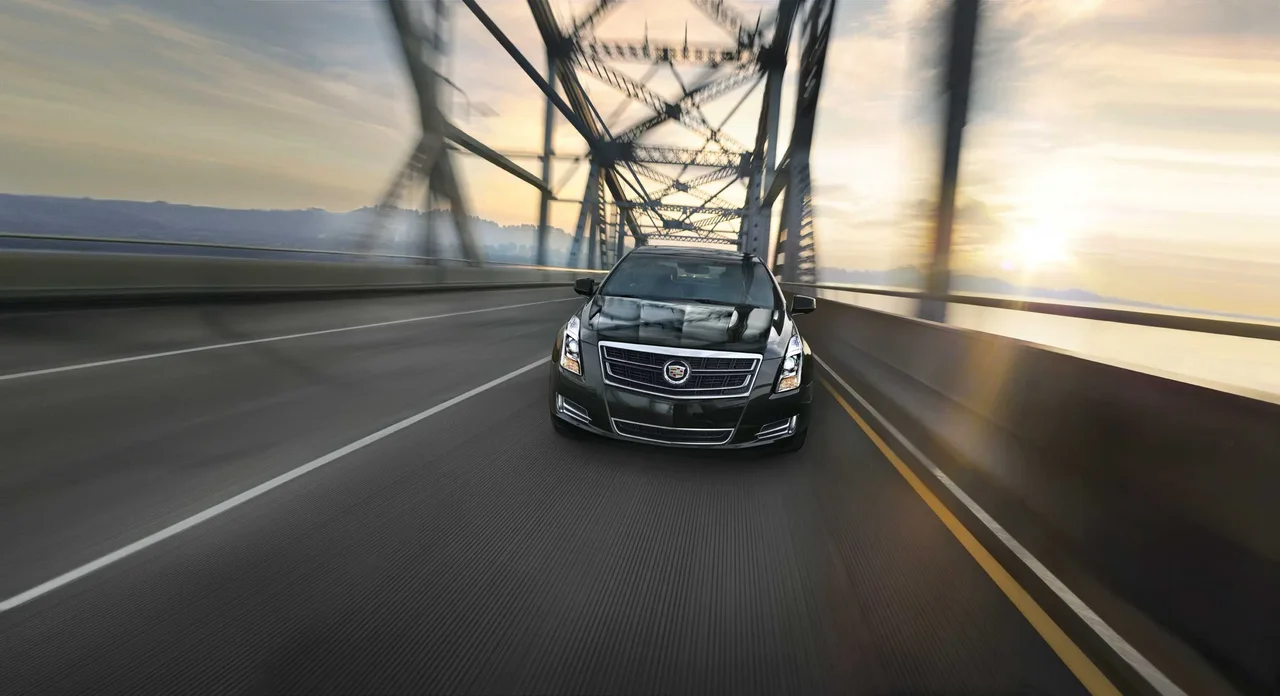

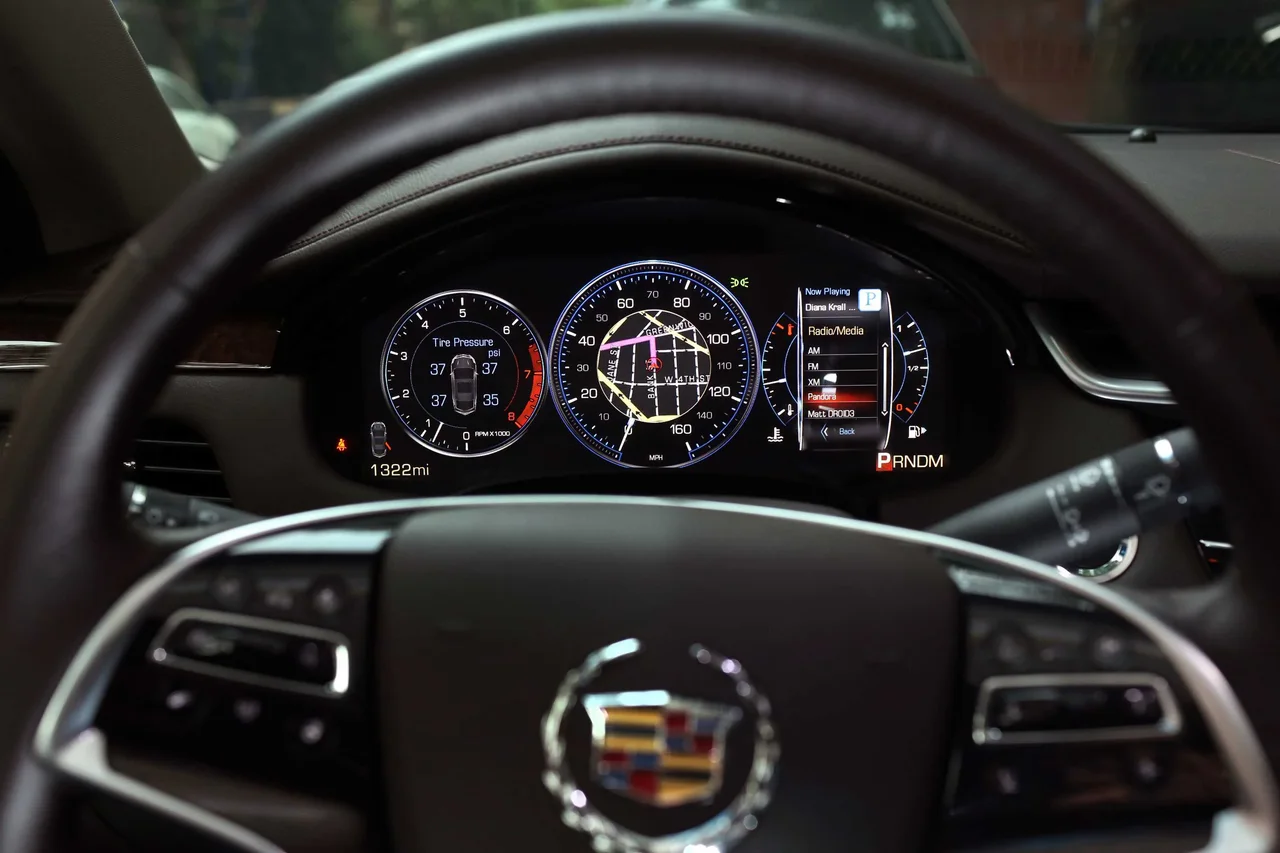

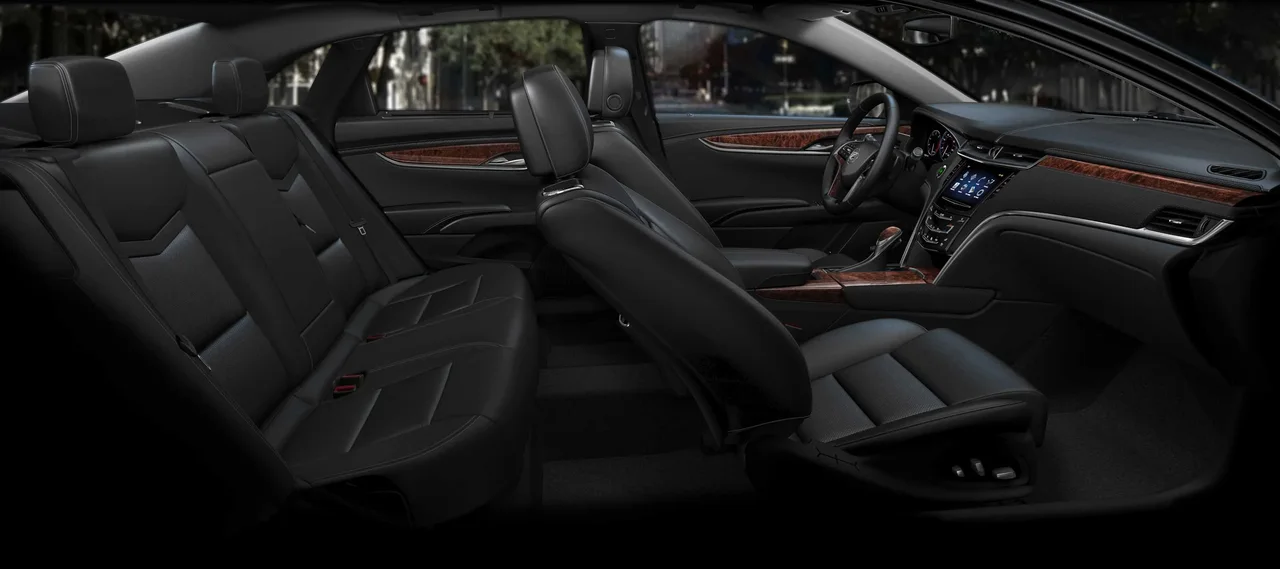

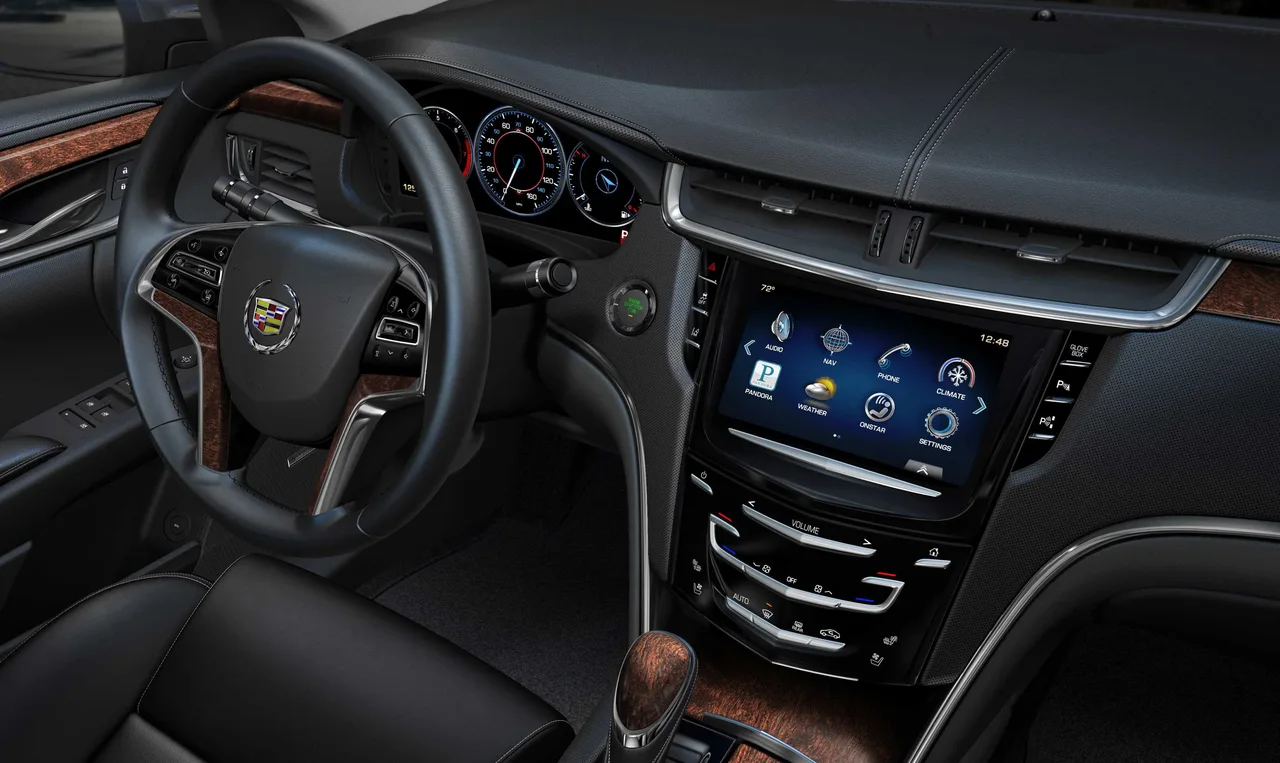

Photos

Specifications

Vehicle Details

Year
2014
Make
Cadillac
Model
XTS
Body Style
Sedan
Generation
1st Generation
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Electrohydraulic), 6-speed

Powertrain

Engine Name
4 V-Sport Hydra-Matic
Engine Configuration
V
Power (hp)
416 hp
Power (kW)
306 kW
Torque
500 Nm (369 lb-ft)
Displacement
3,564 cc

Dimensions

Length
5,131 mm (202.0 in)
Width
1,852 mm (72.9 in)
Height
1,510 mm (59.4 in)
Wheelbase
2,837 mm (111.7 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,900 - 5,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
6.6 litres
Engine Coolant, Volume
9.8 litres
Engine Configuration
Bore
94 mm (3.7 in)
Stroke
85.6 mm (3.4 in)
Compression Ratio
10.2 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
96,000 km (59,652 mi)
Brake Fluid
72,000 km / 3 years
Oil Change & Engine Filter
1 years
Transmission, Fluid
240,000 km (149,129 mi)
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.48 :1
2nd Gear
2.87 :1
3rd Gear
1.84 :1
4th Gear
1.41 :1
5th Gear
1 :1
6th Gear
0.74 :1
Final Drive
3.16 :1
Reverse
2.88 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
345 mm (13.6 in)
Width
20 mm (0.8 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Width
23 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Pneumatic Air
Anti-roll Bar
  • Front
  • Rear
Electronic Damper Control (EDC)
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
74 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
16 MPG
Highway
24 MPG

Dimensions & Weight

Exterior

Track, Front
1,580 mm (62.2 in)
Track, Rear
1,590 mm (62.6 in)
Turning Circle
11.8 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room, Front
991 mm (39.0 in)
Head Room, Rear
960 mm (37.8 in)
Leg Room, Front
1,164 mm (45.8 in)
Leg Room, Rear
1,019 mm (40.1 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,379 mm (54.3 in)
Shoulder Room, Front
1,470 mm (57.9 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Epsilon Platform (Epsilon II)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Sunroof
Optional
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
LED
Daytime Running Light
LED

Colour

Finish
Metallic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
66.9
Fastening Type
Lug Nuts
Tightening Torque
150 Nm
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Head-up Display (HUD)
Optional
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
HD Radio
Media Inputs
USB
App-Connect
Android Auto
Bluetooth
Yes
Connectivity › Radio
CD
Optional
Connectivity › Media Inputs
AUX
Yes
Speakers
Total Number of Speakers
8 - 14 pcs
Speaker Brand
Bose
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Yes
Interior Storage
Cup Holders
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
  • Make-up Light

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
Telescope
Material
  • Leather
  • Wood
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
510 litres

Design

Interior Decor Material
Wood

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Armrest
Yes
Ventilated Seats
Optional
Second Seat Row
Armrest
Yes
Collapsible
Yes
Second Seat Row › Collapsible
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Yes
Remote Engine Start
Yes
Cruise Control
Yes
Cameras
Optional
Cameras
Rear
Optional

Other Features

Start & Stop
Yes

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2013
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag

Seat Belt

Belt Pretensioner
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Other

Car Classification

American Classification
Full-Size Luxury Car
British Classification
Luxury Car
Australian Classification
Upper Large Car
European Segment
F-Segment
Car.info Classification
Luxury Car
