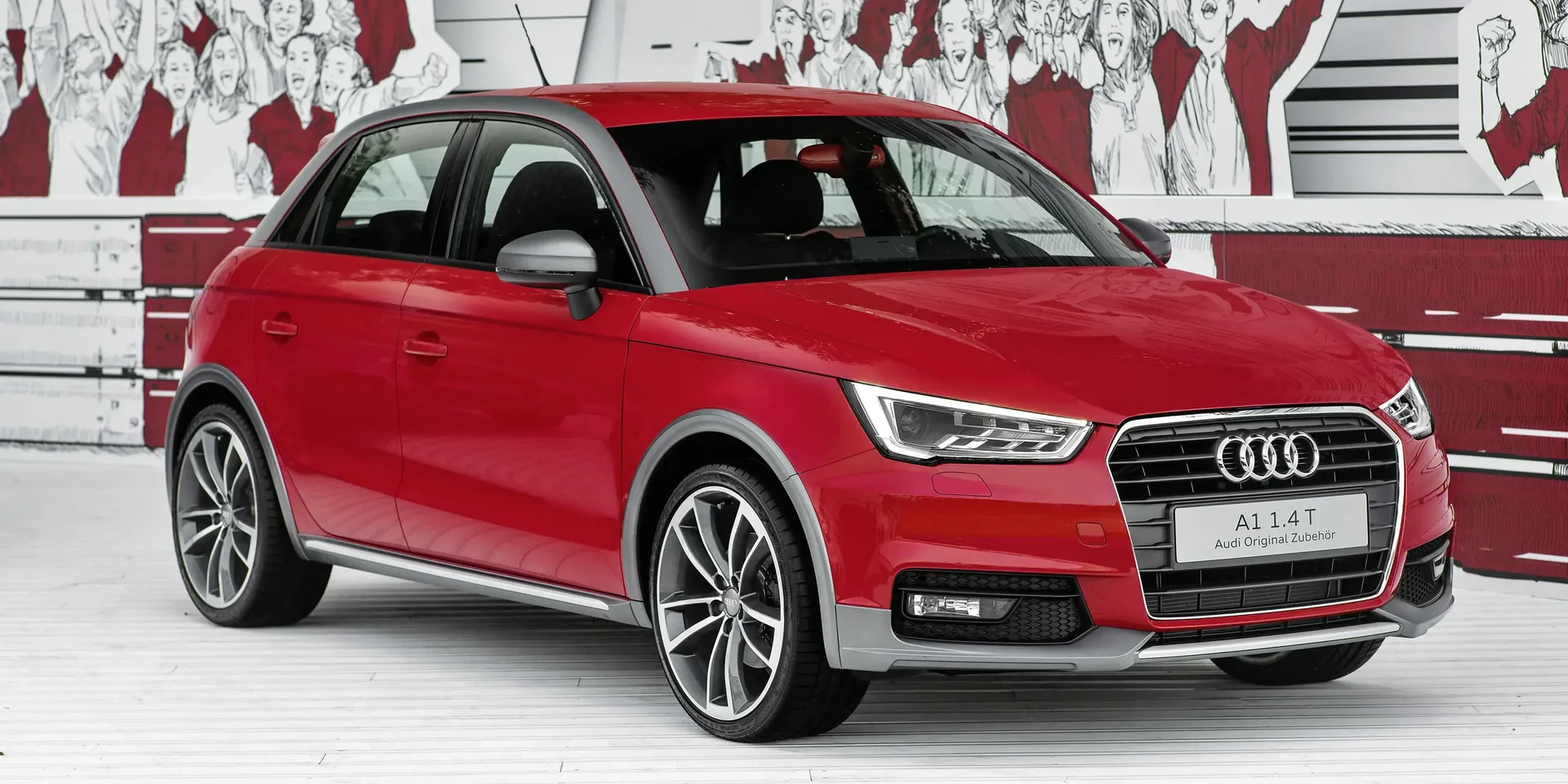

2015 Audi A1

GermanyGasolineFWDHatchback

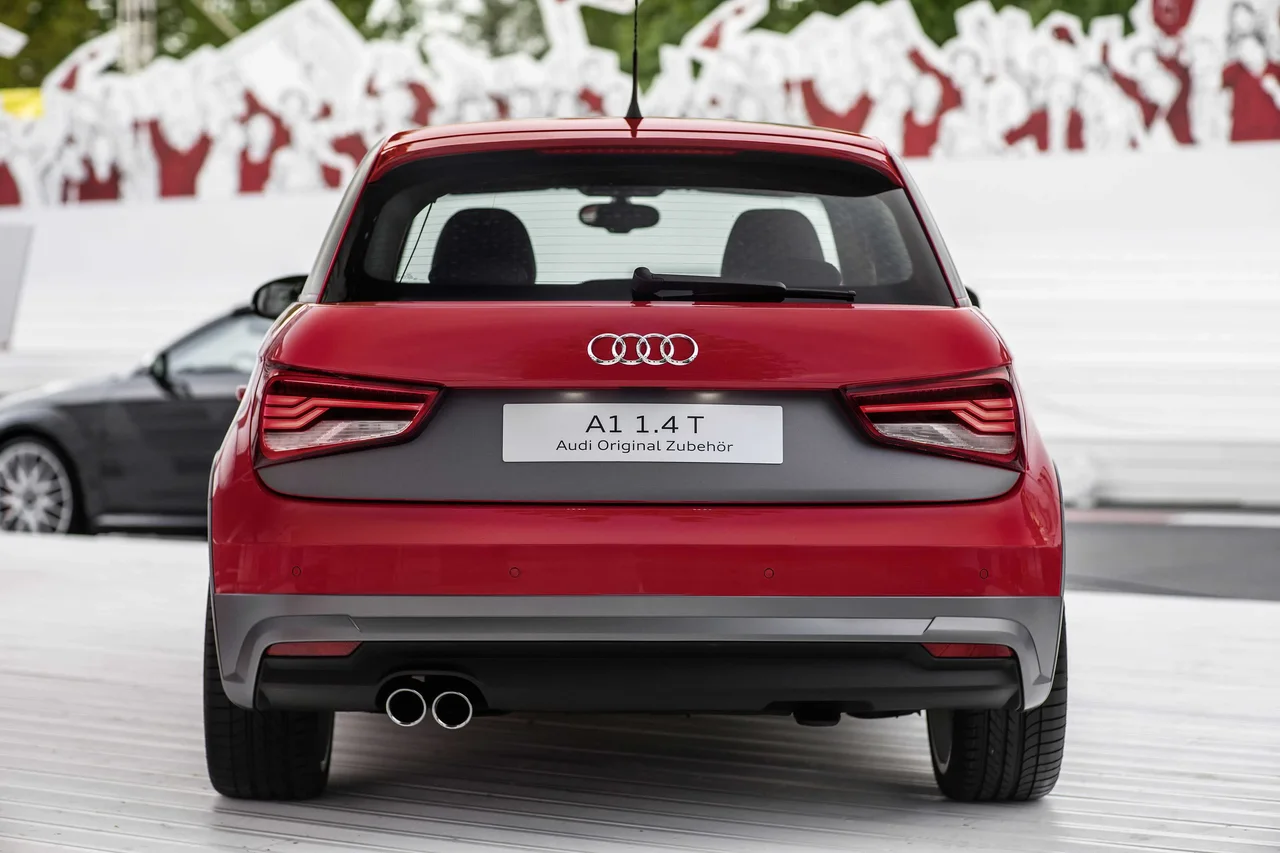

Photos

Specifications

Vehicle Details

Year
2015
Make
Audi
Model
A1
Body Style
Hatchback
Generation
8X Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
1.4 TFSI
Engine Configuration
Inline
Power (hp)
125 hp
Power (kW)
92 kW
Torque
200 Nm (148 lb-ft)
Top speed
204 km/h (127 mph)
0–60 mph
8.5 seconds (estimated)
0–100 km/h
8.9 seconds
Displacement
1,395 cc

Dimensions

Length
3,973 mm (156.4 in)
Width
1,746 mm (68.7 in)
Height
1,422 mm (56.0 in)
Wheelbase
2,469 mm (97.2 in)
Curb weight
1,180 kg (2,601 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,400 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
4 litres
Engine Configuration
Bore
74.5 mm (2.9 in)
Stroke
80 mm (3.1 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
210,000 km (130,488 mi)
Air Filter
90,000 km (55,923 mi)
Spark Plug
60,000 km / 6 years
Brake Fluid
3 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Diameter
256 - 310 mm (10.1 - 12.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
230 - 272 mm (9.1 - 10.7 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Fuel

General
Tank Volume
45 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
  • B
  • C
Fuel Consumption NEDC
City
6.2 – 6.6 - 6.3 – 6.7 litres / 100 km
Highway
4.2 - 4.4 litres / 100 km
Combined
4.9 – 5.1 - 5.1 – 5.2 litres / 100 km
Emission NEDC
CO₂, Combined
112 – 118 - 117 – 123 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,906 mm (75.0 in)
Track, Front
1,474 - 1,477 mm (58.0 - 58.1 in)
Track, Rear
1,452 - 1,471 mm (57.2 - 57.9 in)
Overhang, Front
813 - 816 mm (32.0 - 32.1 in)
Overhang, Rear
690 - 691 mm (27.2 - 27.2 in)
Ground Clearance
121 - 122 mm (4.8 - 4.8 in)

Interior

Head Room, Front
1,014 mm (39.9 in)
Head Room, Rear
937 mm (36.9 in)
Hip Room, Front
1,396 mm (55.0 in)
Hip Room, Rear
1,351 mm (53.2 in)
Shoulder Room, Front
1,330 mm (52.4 in)
Shoulder Room, Rear
1,279 mm (50.4 in)

Weight

Gross Weight
1625 – 1660 kg (3,583 – 3,660 lb)
Max Trailer Load, braked 12%
1,200 kg (2,646 lb)
Max Trailer Load, braked 8%
1,200 kg (2,646 lb)
Max Trailer Load, unbraked
590 – 600 kg (1,301 – 1,323 lb)
Cargo Capacity
445 kg (981 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Volkswagen Group
A05

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Heated Washer Nozzles
Yes
Windscreen Wipers: Connector type, Front
Slim Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Yes

Lights

Fog Lights
Optional
Special Features
  • Headlight Washers
  • Headlight Range Adjustment
Special Features
Main Beam Assist
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
125 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
500 g
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Bluetooth
Optional
Connectivity › Radio
DAB
Optional
Internet Radio
Optional
Connectivity › Media Format
CD
Yes
Connectivity › Media Inputs
AUX
Yes
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
Yes
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Driver
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Hydraulic
Adjustments
Tilt
Sport
Yes
Number of Spokes
3
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Cover
Foldable
Cargo Hooks
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
270 litres
Volume, Back Seat Collapsed
920 litres
Depth
633 mm (24.9 in)
Depth, Back Seat Collapsed
1,330 mm (52.4 in)
Width
921 mm (36.3 in)
Opening Width
922 mm (36.3 in)
Sill Height
663 mm (26.1 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Armrest
Middle
Front Seats › Heated Seats
Areas
Cushion
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
90 %
Child Occupant
79 %
Vulnerable Road Users
49 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2011
Overall Score
32.75
ANCAP Safety Rating
5
Adult Occupant
Total Points
32.2 /38
Frontal Impact
14.9 /16
Lateral Impact
14.4 /16
Rear Impact
2.9 /4
Frontal Offset
14.9
Side Impact
13.85
Pole
2
Whiplash Protection (Assessment)
Good
Child Occupant
Total Points
38.9 /49
Safety Features
3 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
17.7 /49
Pedestrian
  • 11.6
  • 0.2
  • 6
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
0 /4
Seat Belt Reminders
2
Pedestrian
Protection (Assessment)
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Inner Wing
Right
Left Side Casing of Window
Yes
Trunk
on Floor
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • D8S (xenon)
  • H7
Main Beam
H15
Bi-Xenon
  • D3S
  • D8S
Datyime Running Light
H15
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAW9s (HY21W)
Turn Indicators, Rear
W2.1×9.5d (W16W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

ACRISS

Category
Economy Elite (H)
Type
4-5 Doors (D)

Similar hatchbacks

Suggested vehicles
