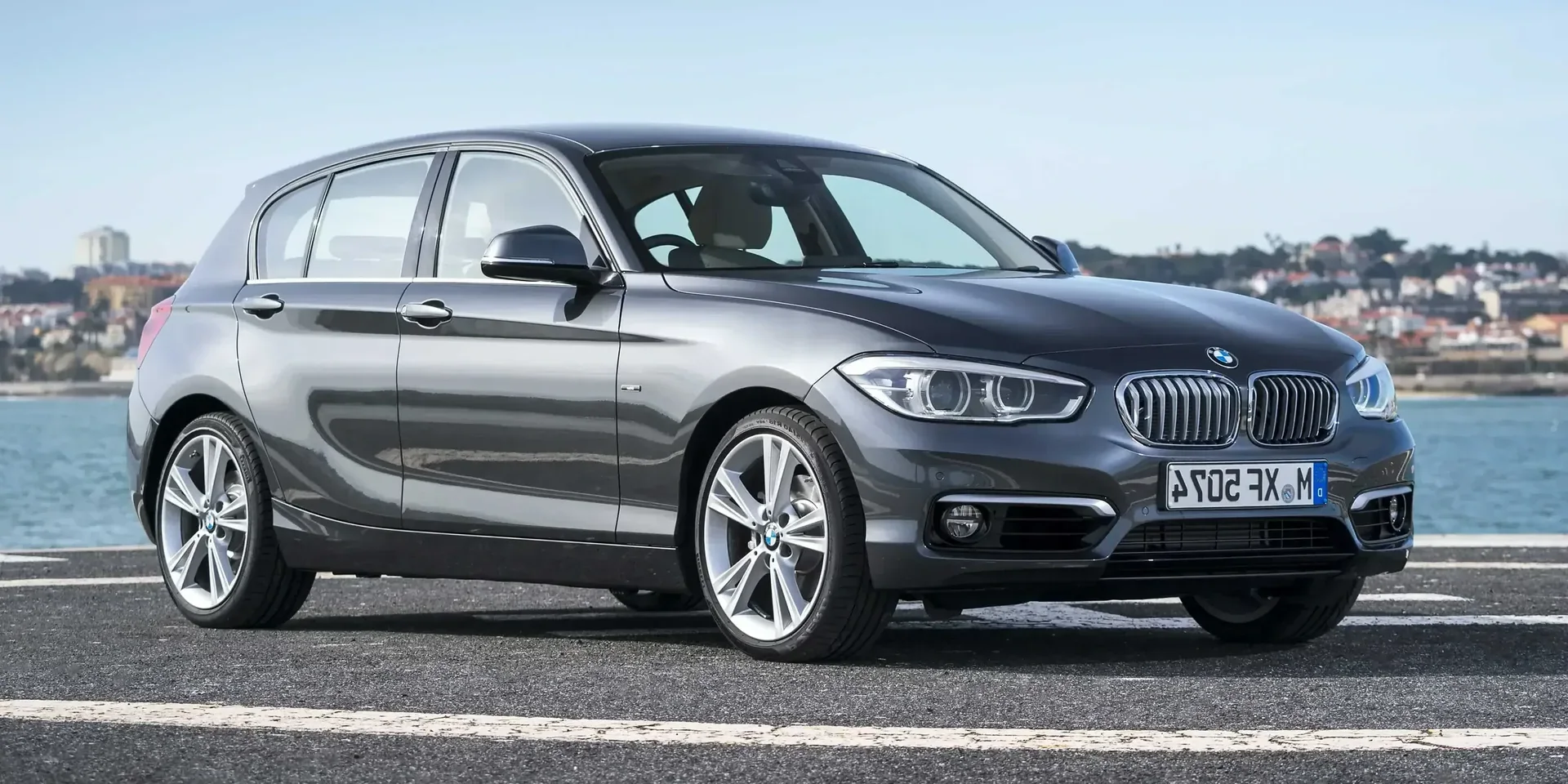

2015 BMW 1 Series

GermanyDieselAWDHatchback

Photos

Specifications

Vehicle Details

Year
2015
Make
BMW
Model
1 Series
Body Style
Hatchback
Generation
F20 LCI
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
120d xDrive 5-door Steptronic
Engine Configuration
Inline
Power (hp)
190 hp
Power (kW)
140 kW
Torque
400 Nm (295 lb-ft)
Top speed
222 km/h (138 mph)
0–60 mph
6.5 seconds (estimated)
0–100 km/h
6.8 seconds
Displacement
1,995 cc

Dimensions

Length
4,329 mm (170.4 in)
Width
1,765 mm (69.5 in)
Height
1,421 mm (55.9 in)
Wheelbase
2,690 mm (105.9 in)
Curb weight
1,530 kg (3,373 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
5 litres
Car Battery
Voltage
12 V
Alternator Charge Current
150 A
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Fuel Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
10,000 km / 1 years
Accessory Belt
100,000 km (62,137 mi)

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Gear Ratio
1st Gear
5 :1
2nd Gear
3.2 :1
3rd Gear
2.14 :1
4th Gear
1.72 :1
5th Gear
1.31 :1
6th Gear
1 :1
7th Gear
0.82 :1
8th Gear
0.64 :1
Final Drive
2.65 :1
Reverse
3.46 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
300 mm (11.8 in)
Width
22 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Sports Suspension
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
52 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
A
Fuel Consumption NEDC
City
5.1 - 5.5 litres / 100 km
Highway
3.9 - 4.3 litres / 100 km
Combined
4.3 - 4.7 litres / 100 km
Fuel Consumption EPA
City
51.4 MPG
Highway
65.7 MPG
Combined
60.1 MPG
Emission NEDC
CO₂, Combined
113 - 124 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,984 mm (78.1 in)
Track, Front
1,522 mm (59.9 in)
Track, Rear
1,556 mm (61.3 in)
Overhang, Front
770 mm (30.3 in)
Overhang, Rear
869 mm (34.2 in)
Turning Circle
11.3 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
1,018 mm (40.1 in)
Head Room, Rear
972 mm (38.3 in)
Leg Room, Front
1,055 mm (41.5 in)
Leg Room, Rear
837 mm (33.0 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,417 mm (55.8 in)
Shoulder Room, Front
1,386 mm (54.6 in)
Shoulder Room, Rear
1,366 mm (53.8 in)

Weight

Gross Weight
2,005 kg (4,420 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
550 kg (1,213 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
975 kg (2,150 lb)
Permitted Axle Load, rear
1,090 kg (2,403 lb)
Weight Distribution, front
46.8 %
Weight Distribution, rear
53.2 %

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Yes
Special Features
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
App-Connect
Optional
Bluetooth
Yes
Connectivity › Radio
DAB
Optional
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
6.5 - 8.8"
Speakers
Total Number of Speakers
6 - 12 pcs
Speakers Max. Watt
205 - 360 W
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Read Light
Rear
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Sport
Optional
Material
Leather
Colour
Black
Steering Ratio
15.1 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
360 litres
Volume, Back Seat Collapsed
1,200 litres
Sill Height
690 mm (27.2 in)

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Cameras
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Eco

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
91 %
Child Occupant
83 %
Vulnerable Road Users
63 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2011
Overall Score
36.33
ANCAP Safety Rating
5
Adult Occupant
Total Points
32.9 /38
Frontal Impact
15.4 /16
Lateral Impact
14.4 /16
Rear Impact
3 /4
Frontal Offset
15.45
Side Impact
15.88
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
40.8 /49
Safety Features
5 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
22.6 /49
Pedestrian
  • 16.6
  • 0
  • 6
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
0 /4
Seat Belt Reminders
3
Pedestrian
Protection (Assessment)
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
Yes
Longerun Frame
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D1S
Datyime Running Light
W3×16d (W21W)
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
BAX9s (H6W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
SV8.5 (C5W)

ACRISS

Category
Compact Elite (D)
Type
4-5 Doors (D)

Similar hatchbacks

Suggested vehicles
