2015 Cadillac CTS

United StatesGasolineRWDWagon

Photos

Specifications

Vehicle Details

Year
2015
Make
Cadillac
Model
CTS
Body Style
Wagon
Generation
2nd Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic Electrohydraulic
  • Manual, 6-speed

Powertrain

Engine Name
-V Sport Wagon
Engine Configuration
V
Power (hp)
564 hp
Power (kW)
415 kW
Torque
747 Nm (551 lb-ft)
Displacement
6,162 cc

Dimensions

Length
4,877 mm (192.0 in)
Width
1,842 mm (72.5 in)
Height
1,473 mm (58.0 in)
Wheelbase
2,880 mm (113.4 in)
Curb weight
1,992 kg (4,392 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,100 rpm
Rev. at Max Torque
3,800 rpm
Redline
6,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
11.8 litres
Engine Configuration
Bore
103.25 mm (4.1 in)
Stroke
92 mm (3.6 in)
Compression Ratio
9.1 :1
Engine Configuration
V-Engine
Supercharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
96,000 km (59,652 mi)
Brake Fluid
240,000 km / 10 years
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Transmission, Fluid
72000 – 156000 km (44,739 – 96,934 mi)
Transmission, Fluid Filter
72000 – 156000 km (44,739 – 96,934 mi)
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Electrohydraulic
  • Manual, 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
2.66 – 4.03 :1
2nd Gear
1.78 – 2.36 :1
3rd Gear
1.3 – 1.53 :1
4th Gear
1 – 1.15 :1
5th Gear
0.8 – 0.85 :1
6th Gear
0.63 – 0.67 :1
Final Drive
3.23 – 3.73 :1
Reverse
2.9 – 3.06 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
380 mm (15.0 in)
Width
32 mm (1.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
373 mm (14.7 in)
Width
28 mm (1.1 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Double Wishbone
Anti-roll Bar
Front
29 mm (1.1 in)
Rear
25.4 mm (1.0 in)

Fuel

General
Tank Volume
68 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
12 – 14 MPG
Highway
18 – 19 MPG

Dimensions & Weight

Exterior

Track, Front
1,570 mm (61.8 in)
Track, Rear
1,581 mm (62.2 in)
Turning Circle
11.6 m

Interior

Head Room, Front
986 mm (38.8 in)
Head Room, Rear
944 mm (37.2 in)
Leg Room, Front
1,078 mm (42.4 in)
Leg Room, Rear
913 mm (35.9 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,375 mm (54.1 in)
Shoulder Room, Front
1,441 mm (56.7 in)
Shoulder Room, Rear
1,390 mm (54.7 in)

Weight

Max Roof Load
75 kg (165 lb)
Weight Distribution, front
51 %
Weight Distribution, rear
49 %

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Sigma Platform (Sigma II)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Electrical
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Electric
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
Xenon
Low Beam
Xenon
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Front
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.9
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • DVD
  • MP3
Media Inputs
USB
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Lights
Read Light
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
Tilt
Colour
Black
Steering Mechanism
Rack and Pinion
Channels
Yes
Volume
Yes
Mute Audio
Yes

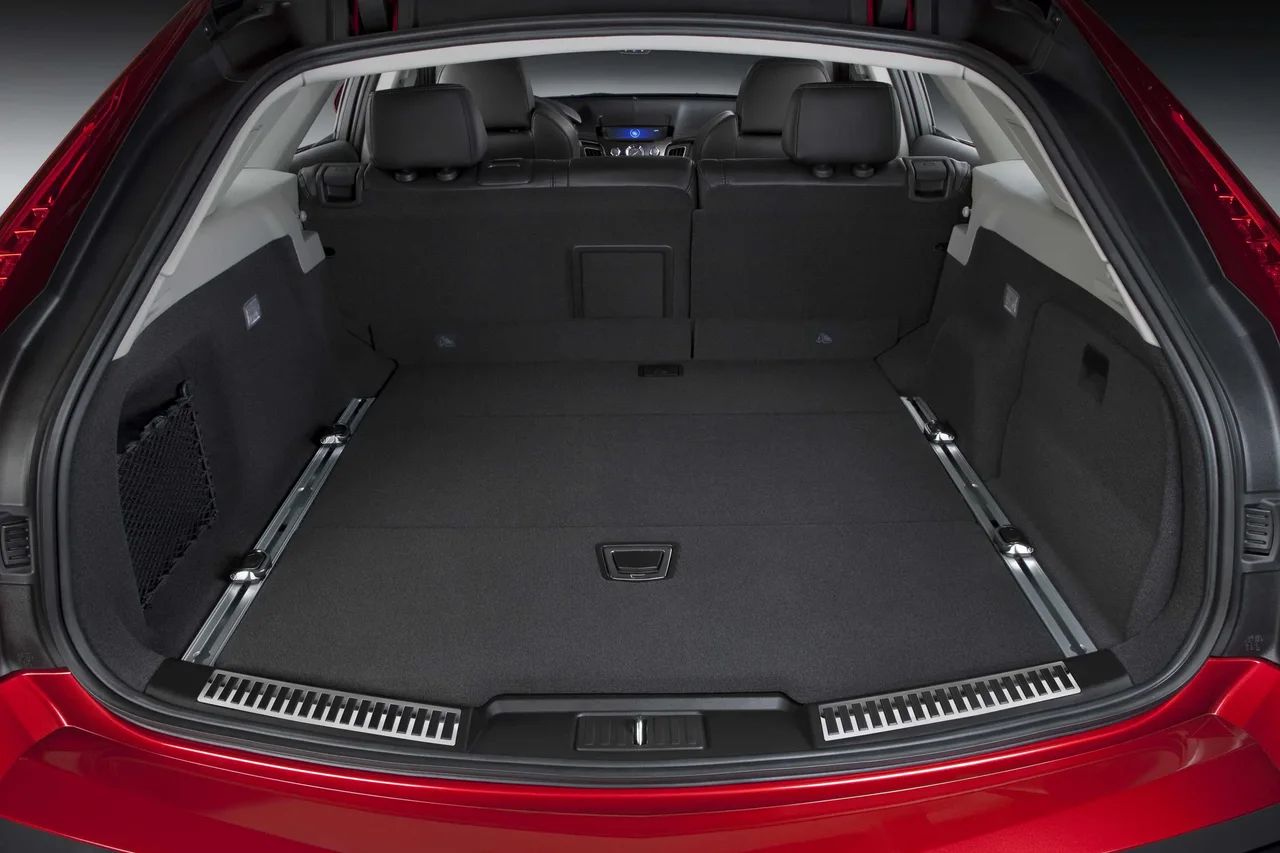

Trunk

Rear Trunk
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
720 litres
Volume, Back Seat Collapsed
1,644 litres

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cameras: Camera Position
Rear

Other Features

GPS
Navigation

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Rain Sensors
Yes

Other Features

Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Trunk
on Floor

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car
