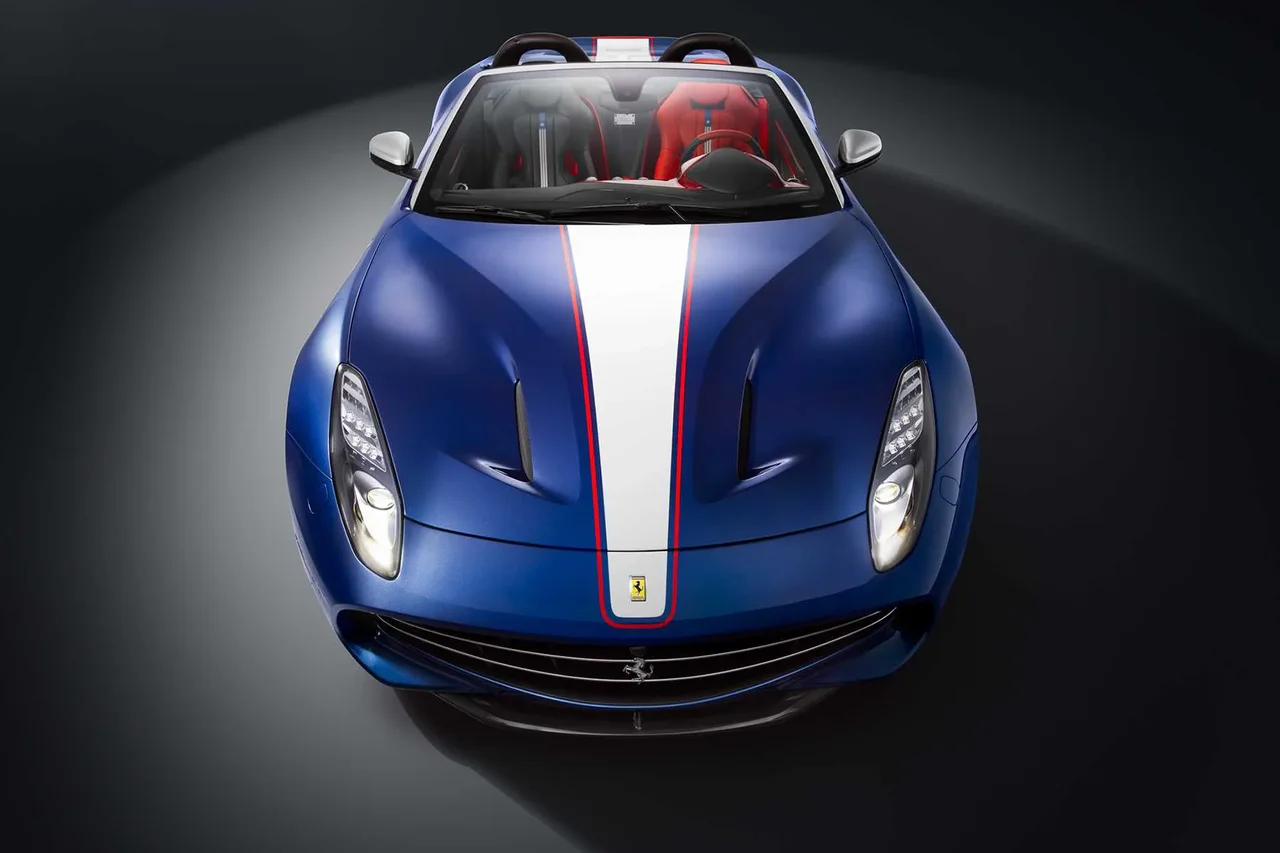

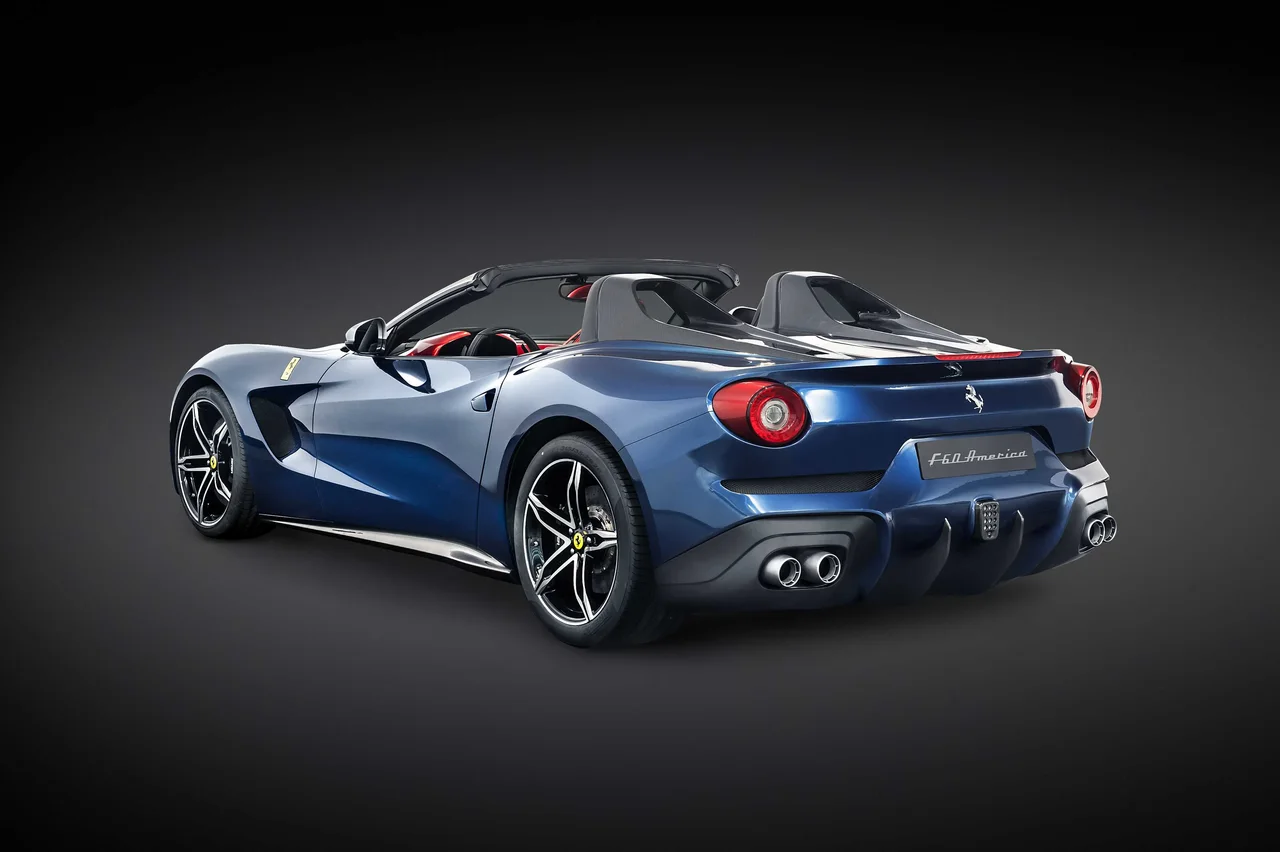

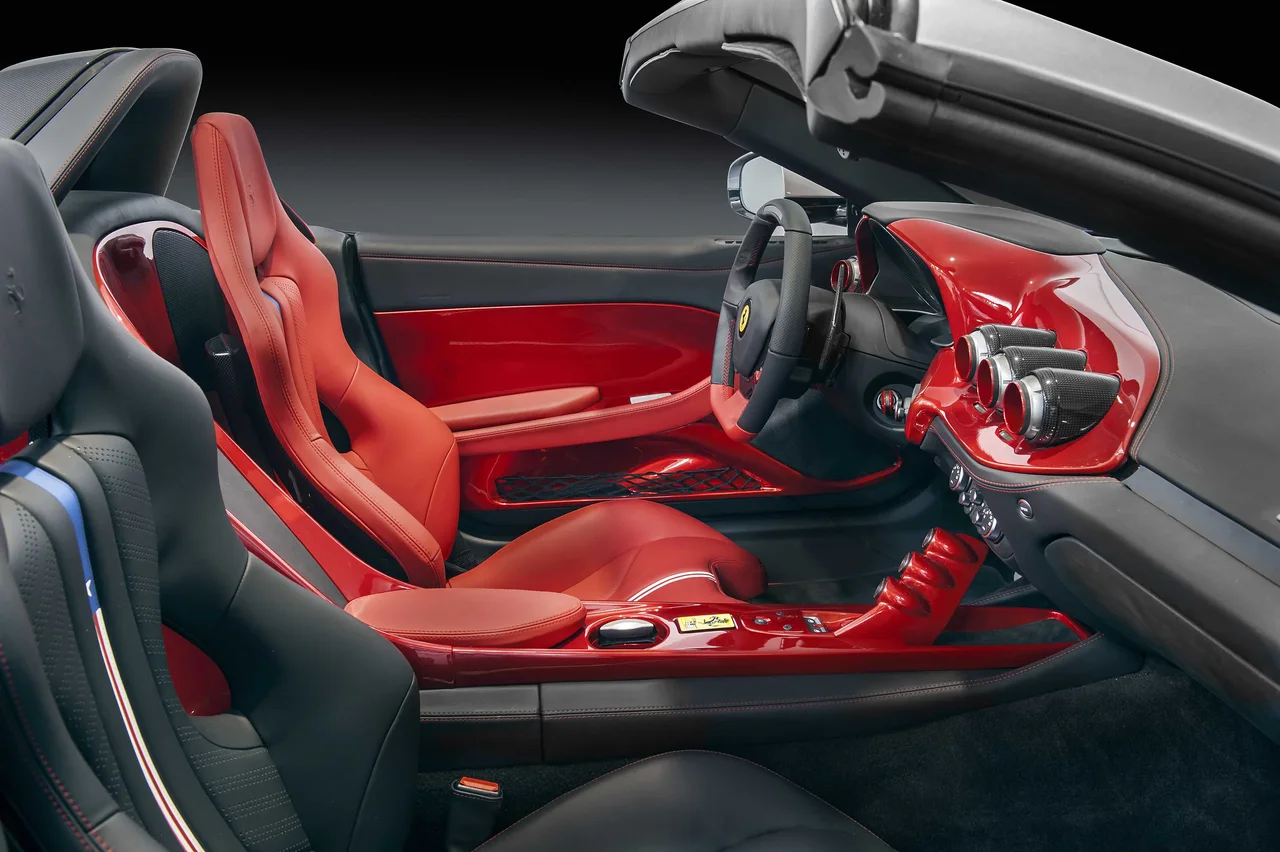

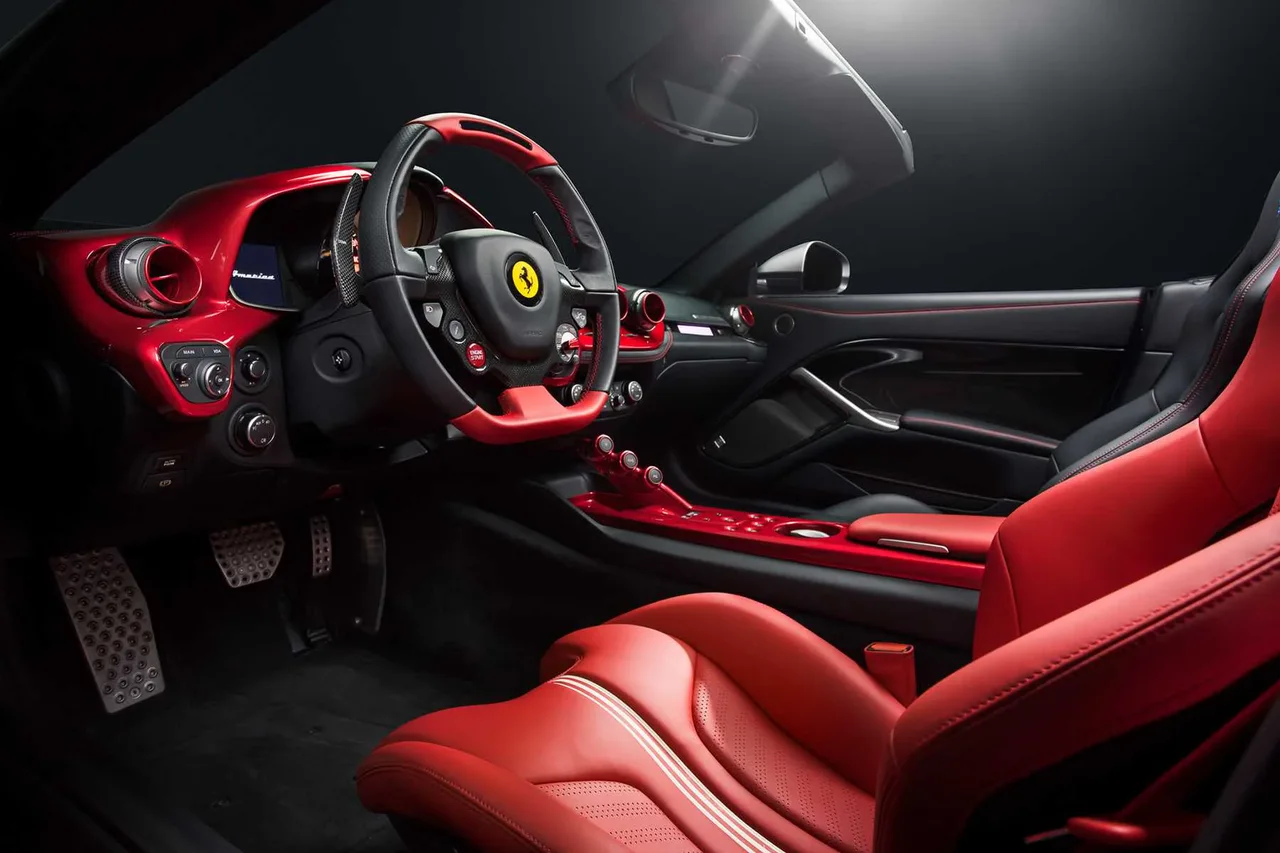

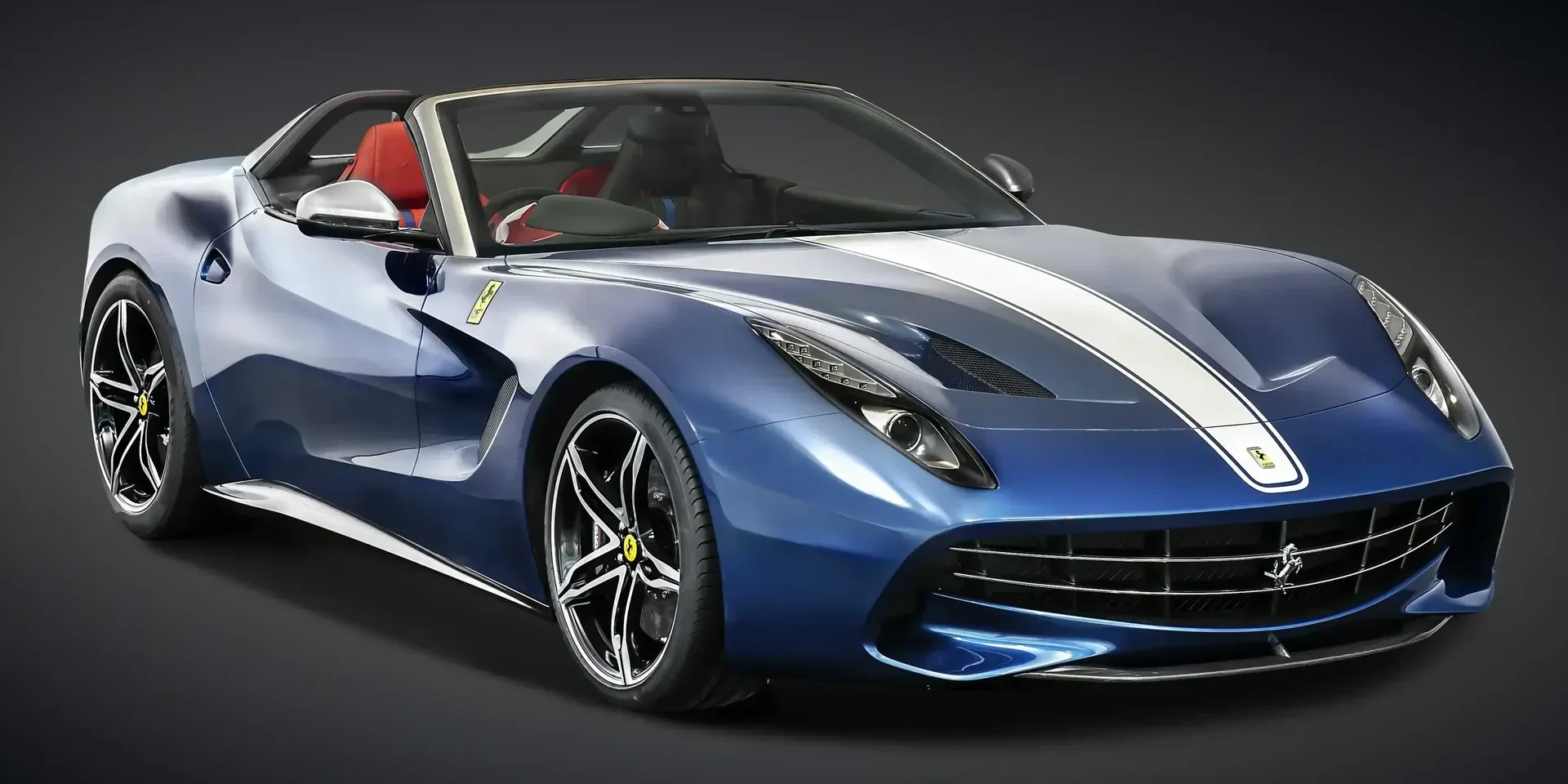

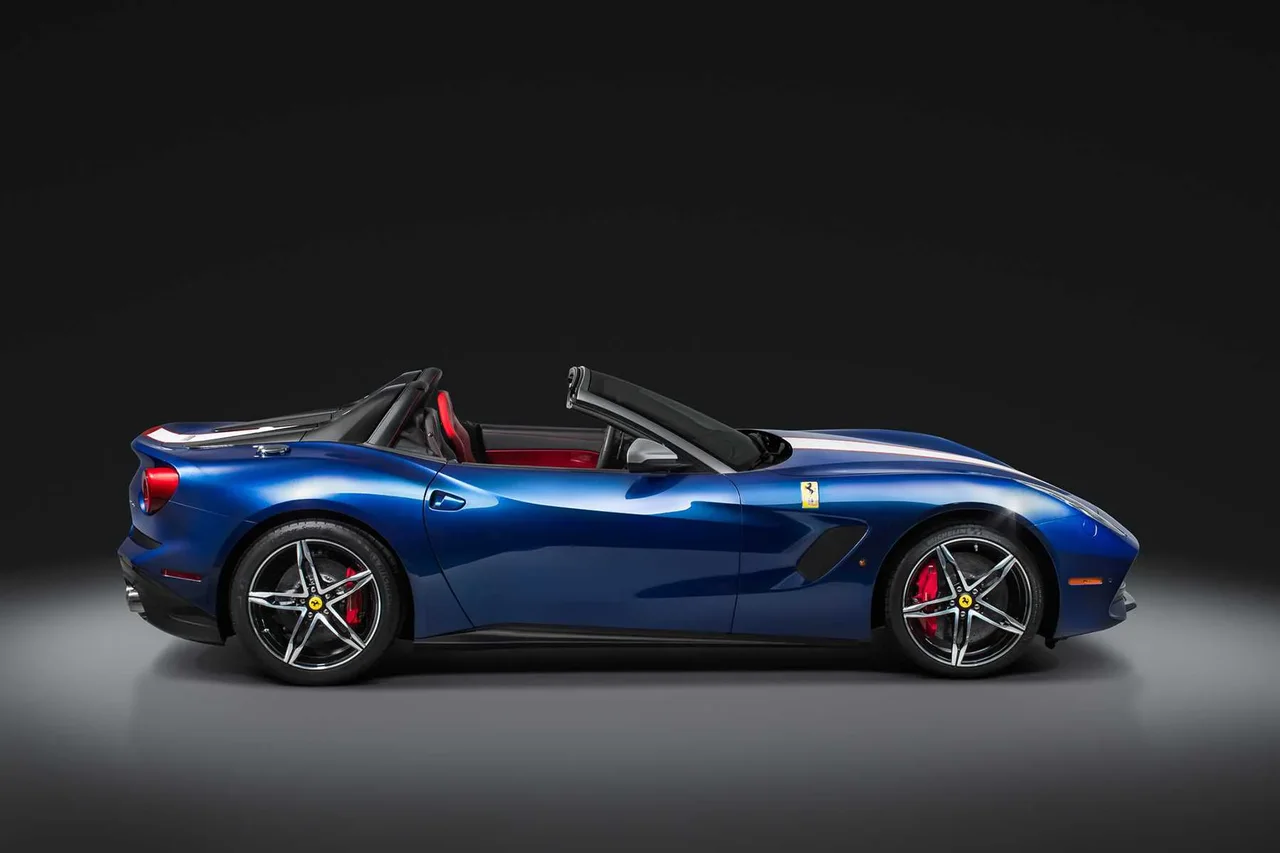

2015 Ferrari F60 America

ItalyGasolineRWDConvertible

Photos

Specifications

Vehicle Details

Year
2015
Make
Ferrari
Model
F60 America
Body Style
Convertible
Generation
F152
Seats
2
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
6.3 V12 F1 DCT
Engine Configuration
V
Power (hp)
780 hp
Power (kW)
574 kW
Torque
705 Nm (520 lb-ft)
Displacement
6,262 cc

Dimensions

Width
38 mm (1.5 in)
Wheelbase
2,720 mm (107.1 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
8,500 rpm
Rev. at Max Torque
6,250 rpm
Redline
8,900 rpm
Engine Configuration
Bore
94 mm (3.7 in)
Stroke
75.2 mm (3.0 in)
Compression Ratio
13.5 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front-Mid
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Ratio
1st Gear
3.08 :1
2nd Gear
2.19 :1
3rd Gear
1.63 :1
4th Gear
1.29 :1
5th Gear
1.03 :1
6th Gear
0.84 :1
7th Gear
0.69 :1
Final Drive
4.38 :1
Reverse
2.79 :1

Fuel

General
Tank Volume
90 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Carbon Ceramic
Front Brakes
Diameter
398 mm (15.7 in)
Width
38 mm (1.5 in)
Cooling
Ventilated
Rear Brakes
Diameter
360 mm (14.2 in)
Width
32 mm (1.3 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Track, Front
1,673 mm (65.9 in)
Track, Rear
1,648 mm (64.9 in)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Detachable Roof (Hard-top)
Pillars
A
Doors
Front Doors
Conventional

Interior

Steering Wheel

Steering Mechanism
Rack and Pinion

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Electronic Brakeforce Distribution (EBD)
Yes
Differential Lock
Electronic

Other

Production

Statistics
Production Number (Limited Edition)
10
Production Number (Series)
10
Production Number (Generation)
10
Statistics › Production Number (Model)
1st Generation
10
