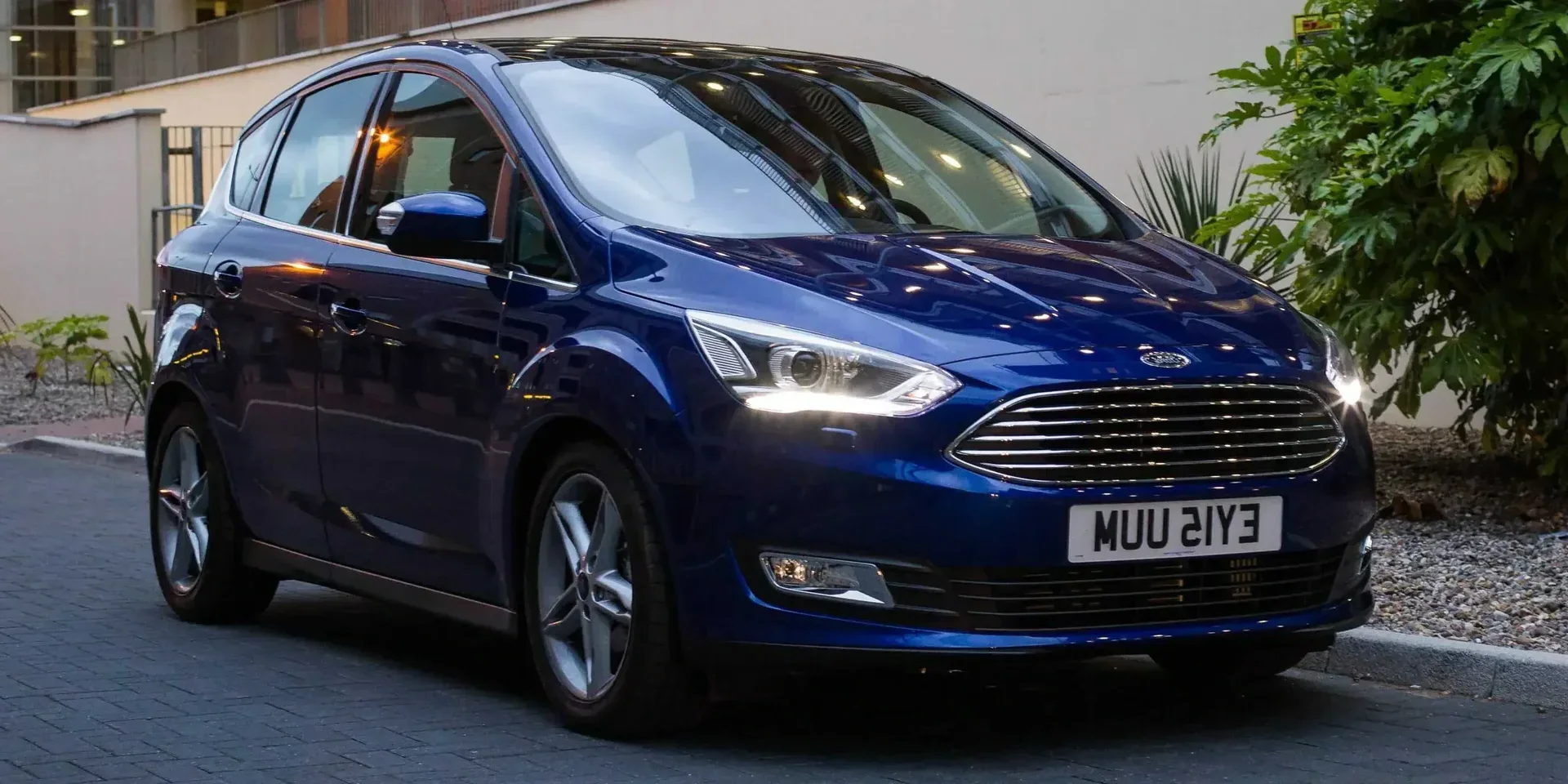

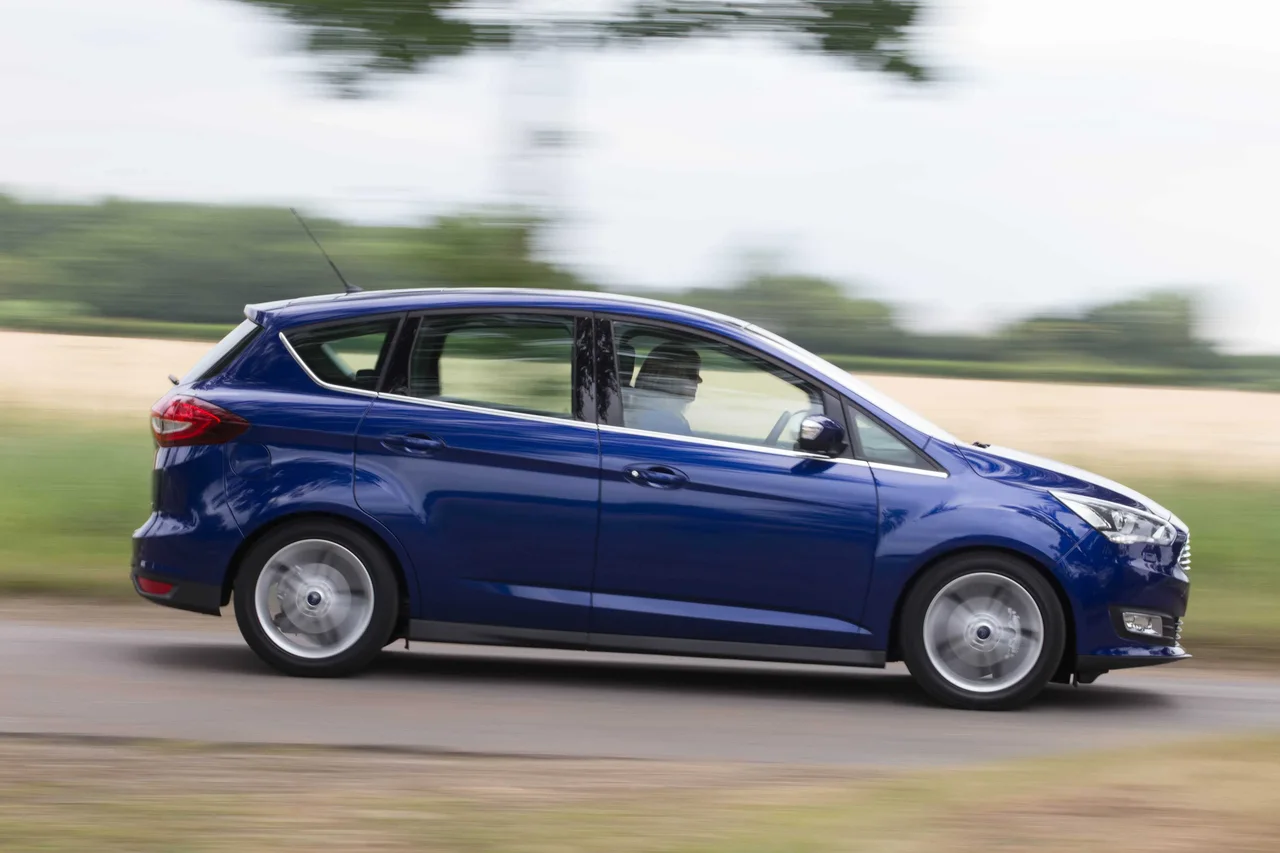

2015 Ford C-Max

United StatesDieselFWDMinivan

Photos

Specifications

Vehicle Details

Year
2015
Make
Ford
Model
C-Max
Body Style
Minivan
Generation
DXA Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.5 TDCi ECOnetic Manual
Engine Configuration
Inline
Power (hp)
105 hp
Power (kW)
77 kW
Torque
270 Nm (199 lb-ft)
Top speed
184 km/h (114 mph)
0–60 mph
11.5 seconds (estimated)
0–100 km/h
12.1 seconds
Displacement
1,500 cc

Dimensions

Length
4,410 mm (173.6 in)
Width
1,920 mm (75.6 in)
Height
1,620 mm (63.8 in)
Wheelbase
2,648 mm (104.3 in)
Curb weight
1,405 kg (3,097 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,600 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-20
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Configuration
Bore
73.5 mm (2.9 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
16 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Type of Combustion Engine
Piston

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
60 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
4.3 litres / 100 km
Highway
3.5 litres / 100 km
Combined
3.8 litres / 100 km
Emission NEDC
CO₂, Combined
99 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,086 mm (82.1 in)
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
1,041 mm (41.0 in)
Head Room, Rear
1,002 mm (39.4 in)
Leg Room, Front
1,096 mm (43.1 in)
Leg Room, Rear
928 mm (36.5 in)
Hip Room, Front
1,378 mm (54.3 in)
Hip Room, Rear
1,318 mm (51.9 in)
Shoulder Room, Front
1,421 mm (55.9 in)
Shoulder Room, Rear
1,403 mm (55.2 in)

Weight

Gross Weight
1,915 kg (4,222 lb)
Max Trailer Load, braked 12%
400 kg (882 lb)
Max Trailer Load, unbraked
400 kg (882 lb)
Cargo Capacity
510 kg (1,124 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Yes
Platform
Ford Motor Company
C1 Platform (Global C Platform)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Spoiler
Fixed
Antenna
Whip
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Optional
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Tightening Torque
135 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Compass
Yes
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Faders
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
App-Connect
Yes
Bluetooth
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Inputs
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
8.9 - 20.3"
Center Display Controls
Buttons
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 10 pcs
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
230V Outlet
Optional
Carpets
Yes
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Center Display
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › 230V Outlet
Front
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

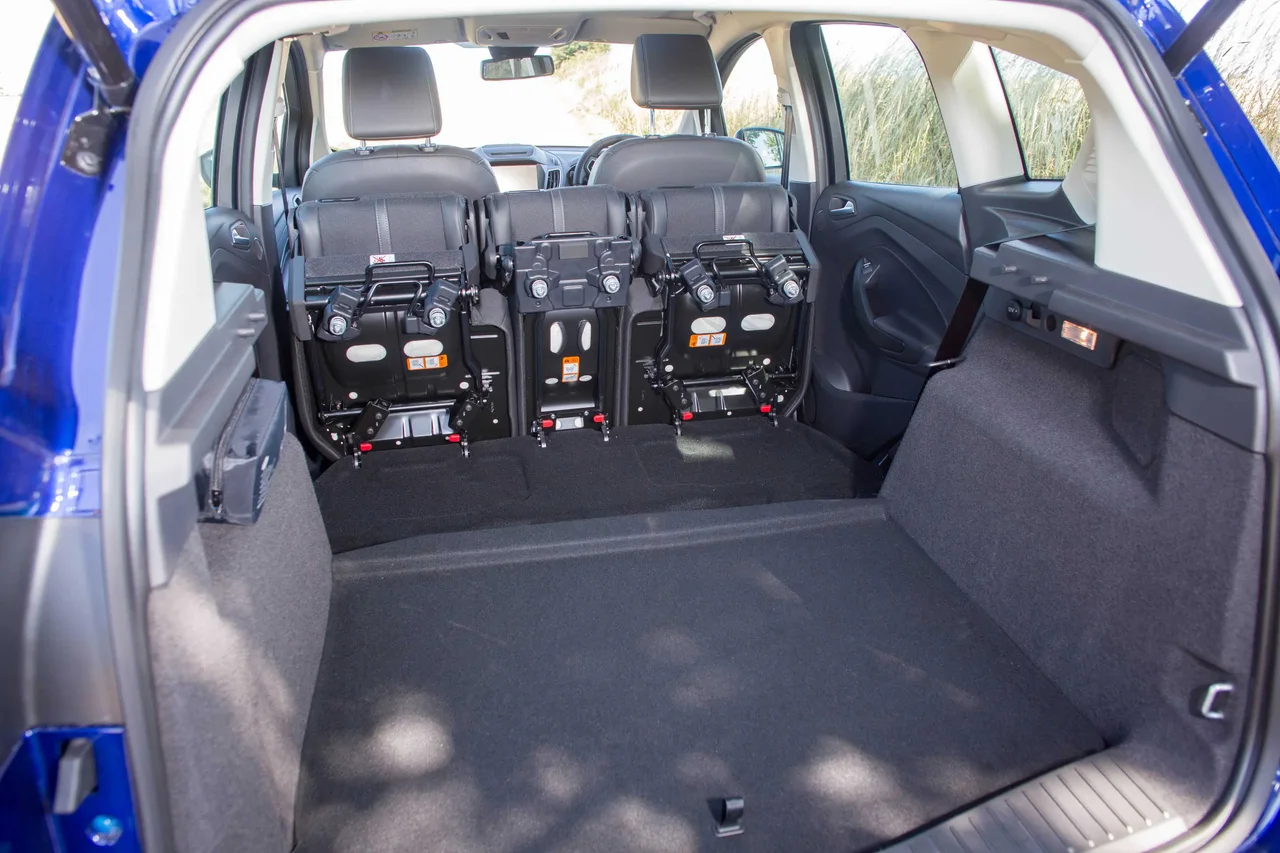

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • Key Button
Cover
Foldable
Barrier Net/Grid
Optional
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
545 litres
Volume, Back Seat Collapsed
1,211 litres
Depth
814 mm (32.0 in)
Depth, Back Seat Collapsed
1,644 mm (64.7 in)
Automatic Open
Motion Activated
Optional
Carpet
Rubber/Rug
Optional

Design

Interior Decor Colour
Black
Transmission Knob Material
Leather
Pedals
Standard

Seats

Colour & Material
Stitching Colour
White
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Armrest
Middle
Type of Seat
Comfort Seat (Driver | Passenger)
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Seat Depth
Optional
Backrest Angle
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Remote
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Yes
Start & Stop
Yes
Horn
Dual Note
GPS
USB
Optional

Accessories

Tire Repair Kit
Yes
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Positive Torque Control (PTC)
Yes
Forward Collision Warning (FCW)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Stability Assist (TSA)
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
City
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Optional
Emergency Call
Optional
Number of Remote Keys
1
Number of Standard Keys
1
Total Number of Keys
2
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2017
Adult Occupant
76 %
Child Occupant
60 %
Vulnerable Road Users
59 %
Safety Assist
29 %
Overall
3/5 stars
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
14.7 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
2 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H1
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Cornering Light
H1
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Rear/Brake Light
  • BAY15d (P21/5W)
  • W2.1×9.5d (W16W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Type
Monoscape (M)

Similar minivans

Suggested vehicles
