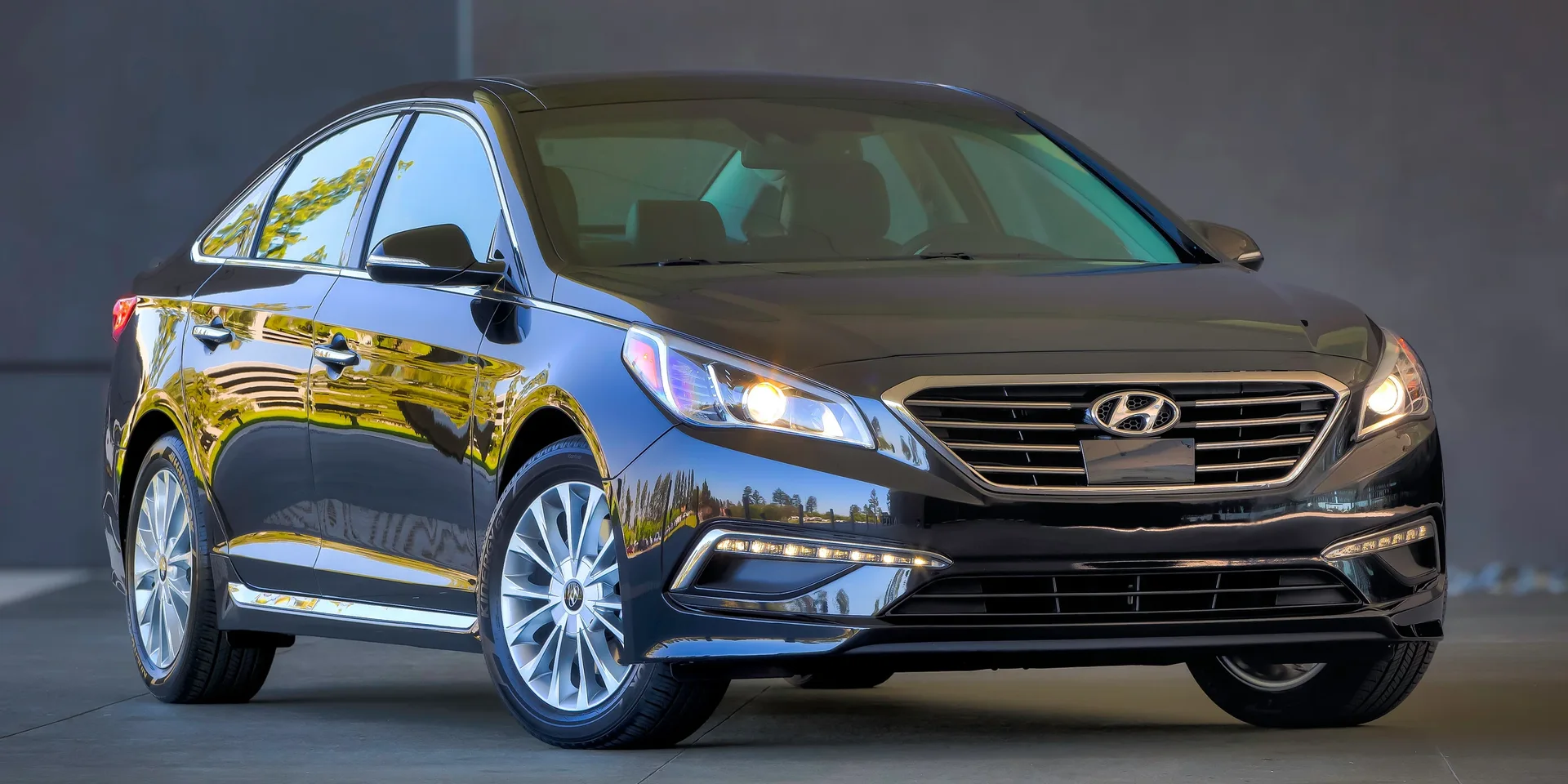

2015 Hyundai Sonata

South KoreaGasolineFWDSedan

Photos

Specifications

Vehicle Details

Year
2015
Make
Hyundai
Model
Sonata
Body Style
Sedan
Generation
LF
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
2.4 GDi Automatic
Power (hp)
201 hp
Power (kW)
148 kW
Torque
250 Nm (184 lb-ft)

Dimensions

Length
4,740 mm (186.6 in)
Width
1,820 mm (71.7 in)
Height
1,470 mm (57.9 in)
Wheelbase
2,770 mm (109.1 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,300 rpm
Rev. at Max Torque
4,250 rpm
Service Intervals
Air Filter
45,000 km / 3 years
Spark Plug
165,000 km (102,526 mi)
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
30,000 km / 2 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Dimensions & Weight

Exterior

Track, Front
1,590 mm (62.6 in)
Track, Rear
1,580 mm (62.2 in)
Overhang, Front
965 mm (38.0 in)
Overhang, Rear
1,085 mm (42.7 in)
Turning Circle
10.9 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
1,025 mm (40.4 in)
Head Room, Rear
965 mm (38.0 in)
Leg Room, Front
1,155 mm (45.5 in)
Leg Room, Rear
905 mm (35.6 in)
Hip Room, Front
1,404 mm (55.3 in)
Hip Room, Rear
1,426 mm (56.1 in)
Shoulder Room, Front
1,470 mm (57.9 in)
Shoulder Room, Rear
1,435 mm (56.5 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Hyundai-Kia Platforms
Y Platform (Y7)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Optional
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Electric
Optional

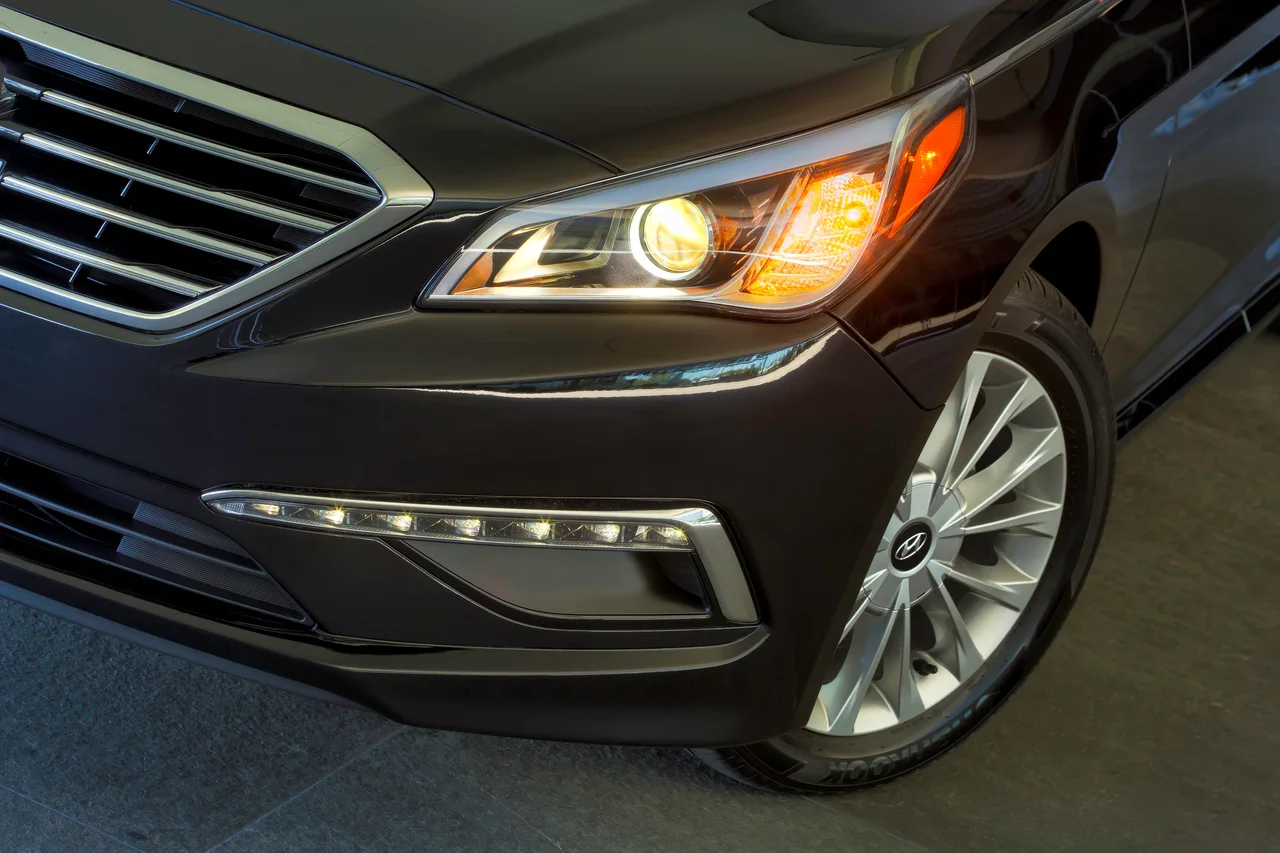

Lights

Main Beam
Halogen
Low Beam
Halogen
Daytime Running Light
LED
Special Features
Headlight Range Adjustment
Special Features
Main Beam Assist
Optional

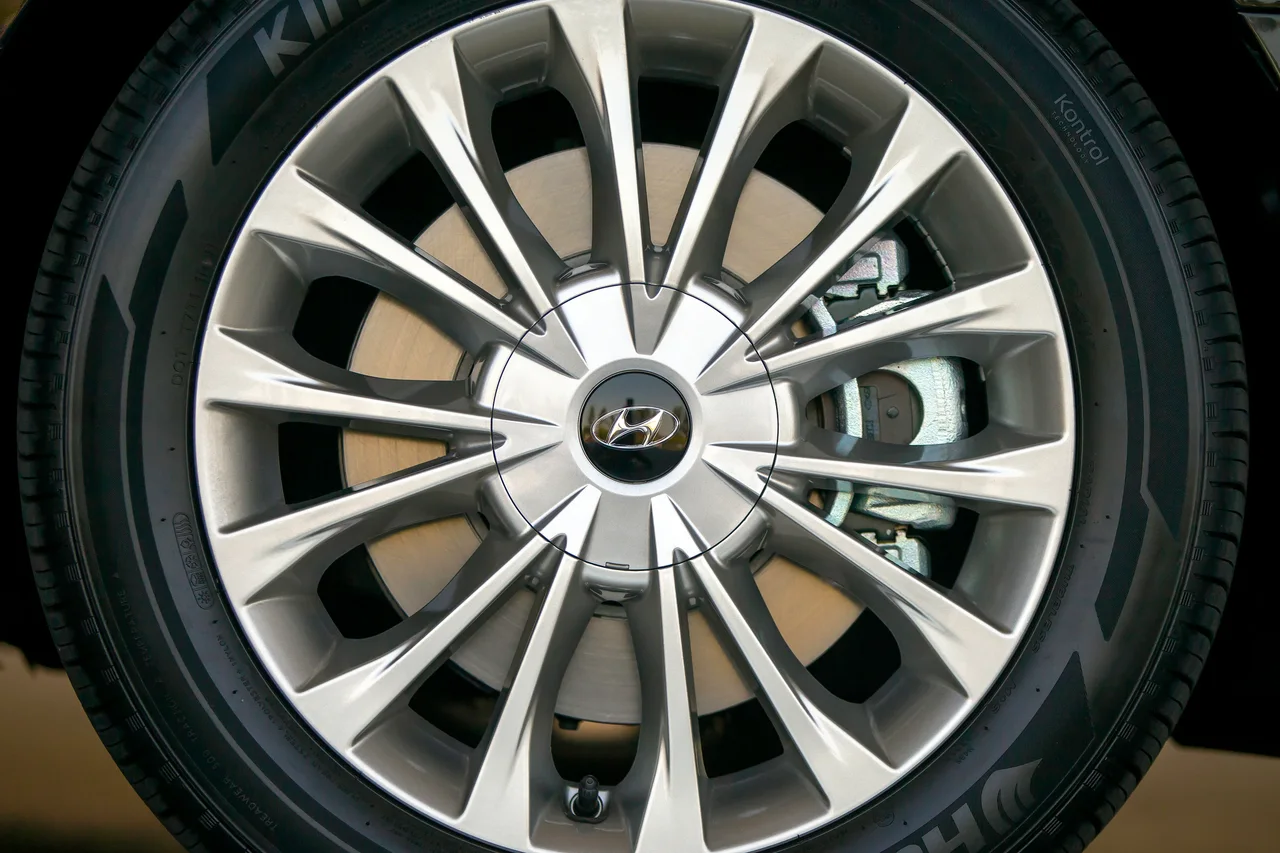

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Temporary

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Yes
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Interior Storage › Storage Compartments
Glove Compartment
Yes
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
462 litres

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Cameras: Camera Position
Rear

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Yes
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Remote

Safety Testing

General
Test Year
2015
Overall Score
33.84
ANCAP Safety Rating
5
Adult Occupant
Full Width
12.84
Frontal Offset
16
Side Impact
2
Whiplash Protection (Assessment)
Good
Pedestrian
Protection (Assessment)
Acceptable
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
10.5 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2016
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
  • Good
  • Poor

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

Spare Parts BETA

Bulb Types
Bi-Xenon
D3S
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Rear/Brake Light
P28/8W
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
PY28/8W
Turn Indicators, Rear
PY27W
License Plate Light
W2.1×9.5d (W5W)
