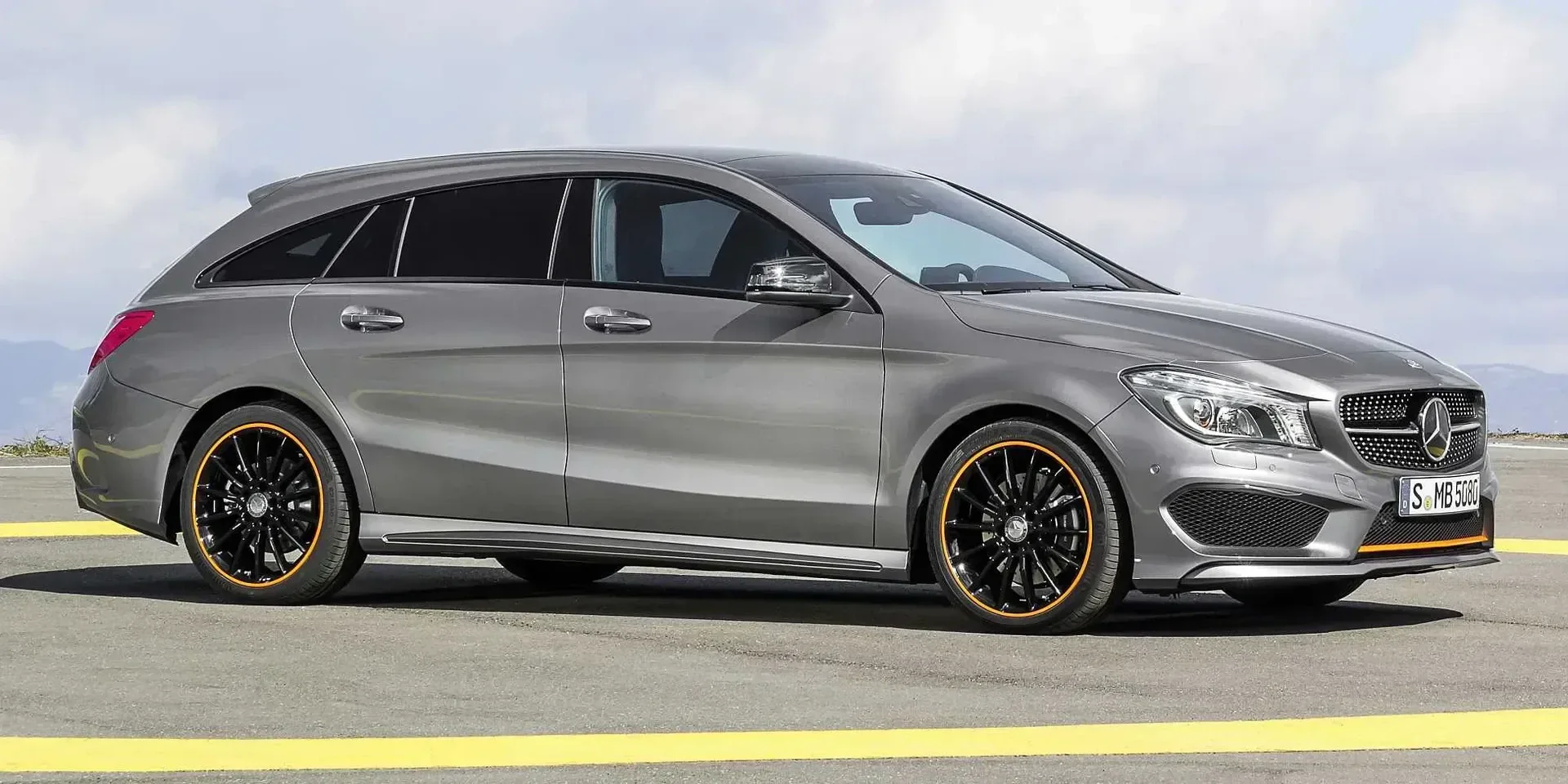

2015 Mercedes-Benz CLA

GermanyGasolineAWDWagon

Photos

Specifications

Vehicle Details

Year
2015
Make
Mercedes-Benz
Model
CLA
Body Style
Wagon
Generation
C117
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
250 Sport 4MATIC Shooting Brake 7G-DCT
Engine Configuration
Inline
Power (hp)
211 hp
Power (kW)
155 kW
Torque
350 Nm (258 lb-ft)
Top speed
240 km/h (149 mph)
0–60 mph
6.4 seconds
0–100 km/h
6.8 seconds
Displacement
1,991 cc

Dimensions

Length
4,630 mm (182.3 in)
Width
1,777 mm (70.0 in)
Height
1,435 mm (56.5 in)
Wheelbase
2,699 mm (106.3 in)
Curb weight
1,490 kg (3,285 lb)

Engine & Performance

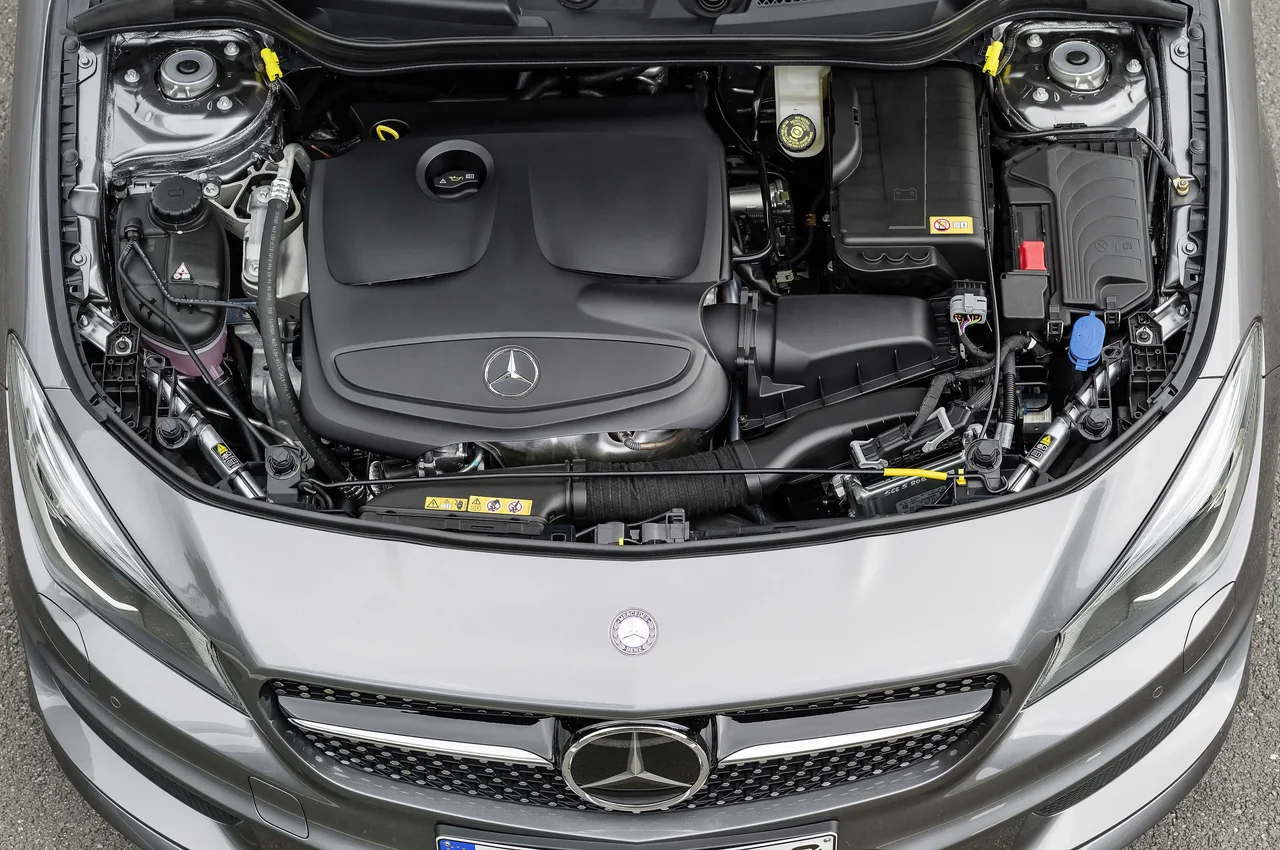

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,200 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 5W-50
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
5.8 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92 mm (3.6 in)
Compression Ratio
9.8 :1
Engine Configuration
Inline
Turbocharger
Yes
Engine Mount
Transversally
Service Intervals
Air Filter
80,000 km / 4 years
Fuel Filter
250,000 km / 15 years
Spark Plug
100,000 km / 5 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km (155,343 mi)
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
56 litres
Emission
Emission Standard
Euro 6
Emission Class
C
Fuel Consumption NEDC
City
8.7 litres / 100 km
Highway
5.7 litres / 100 km
Combined
6.8 litres / 100 km
Emission NEDC
CO₂, Combined
158 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,032 mm (80.0 in)
Track, Front
1,549 mm (61.0 in)
Track, Rear
1,547 mm (60.9 in)
Overhang, Front
915 mm (36.0 in)
Overhang, Rear
1,016 mm (40.0 in)
Ground Clearance
117 mm (4.6 in)

Interior

Head Room, Front
1,016 mm (40.0 in)
Head Room, Rear
947 mm (37.3 in)
Leg Room, Front
1,021 mm (40.2 in)
Leg Room, Rear
688 mm (27.1 in)
Hip Room, Front
1,391 mm (54.8 in)
Hip Room, Rear
1,350 mm (53.1 in)
Shoulder Room, Front
1,422 mm (56.0 in)
Shoulder Room, Rear
1,410 mm (55.5 in)

Weight

Gross Weight
2,050 kg (4,519 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
560 kg (1,235 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Glass-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Yes
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
Bluetooth
  • Phone
  • Audio
Phone Preparation
Yes
Cellular Network
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
Memory Card Reader
SD
MP3
Optional
WMA
Optional
Connectivity › Cellular Network
4G
Optional
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Speakers
Speakers Max. Watt
100 W
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Optional
Card Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Light
Yes
Rear Trunk
Volume
495 litres
Depth
1,003 mm (39.5 in)
Depth, Back Seat Collapsed
1,590 mm (62.6 in)
Height
703 mm (27.7 in)
Sill Height
555 mm (21.9 in)

Design

Accent
Aluminium

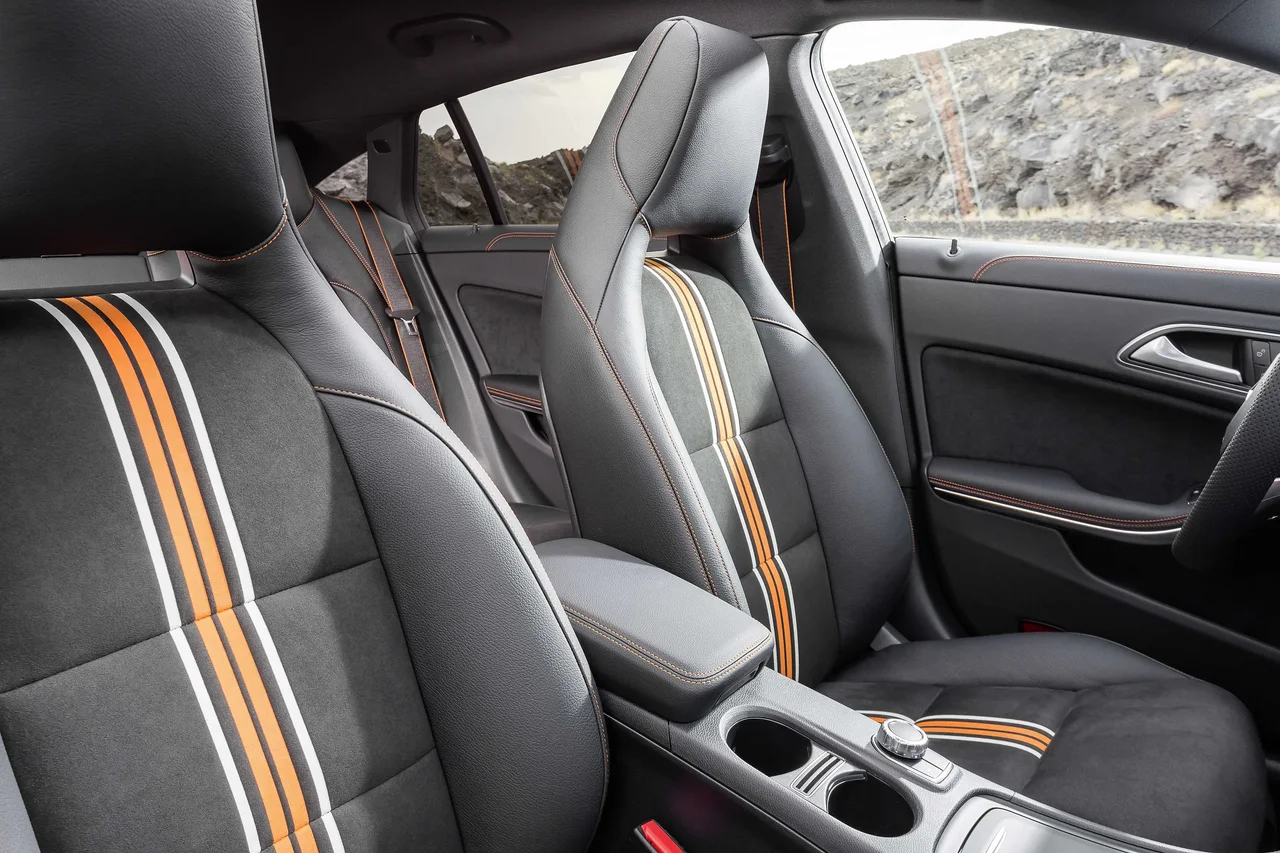

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
91 %
Child Occupant
75 %
Vulnerable Road Users
74 %
Safety Assist
81 %
Overall
5/5 stars
Overall Score
36.16
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.16
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H15
Bi-Xenon
D3S
Datyime Running Light
H15
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Rear/Brake Light
W2.1×9.5d (W16W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BA15s (P21W)
Turn Indicators, Rear
  • BA15s (P21W)
  • BAU15s (PY21W)
Read Light
  • SV8.5 (C10W)
  • W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)

ACRISS

Category
Intermediate Elite (J)
Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
