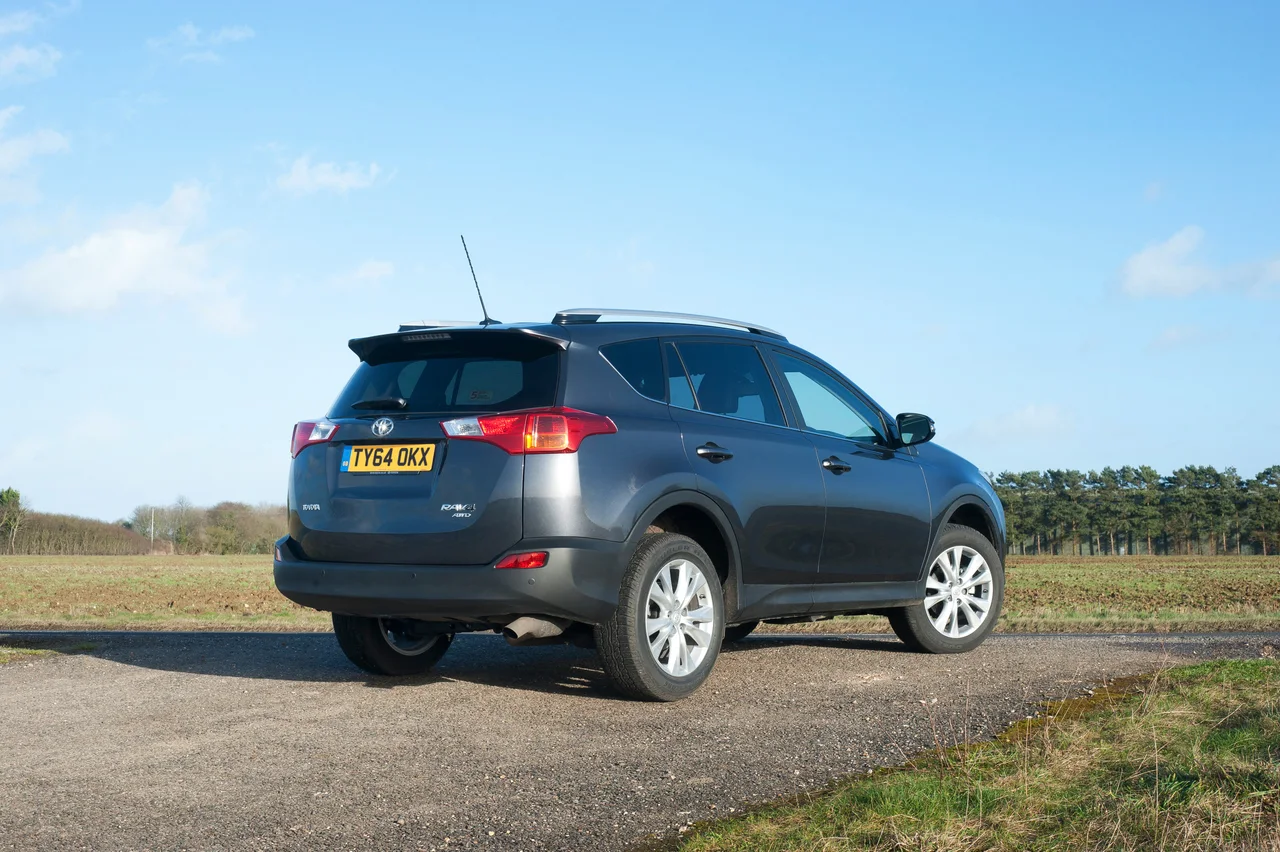

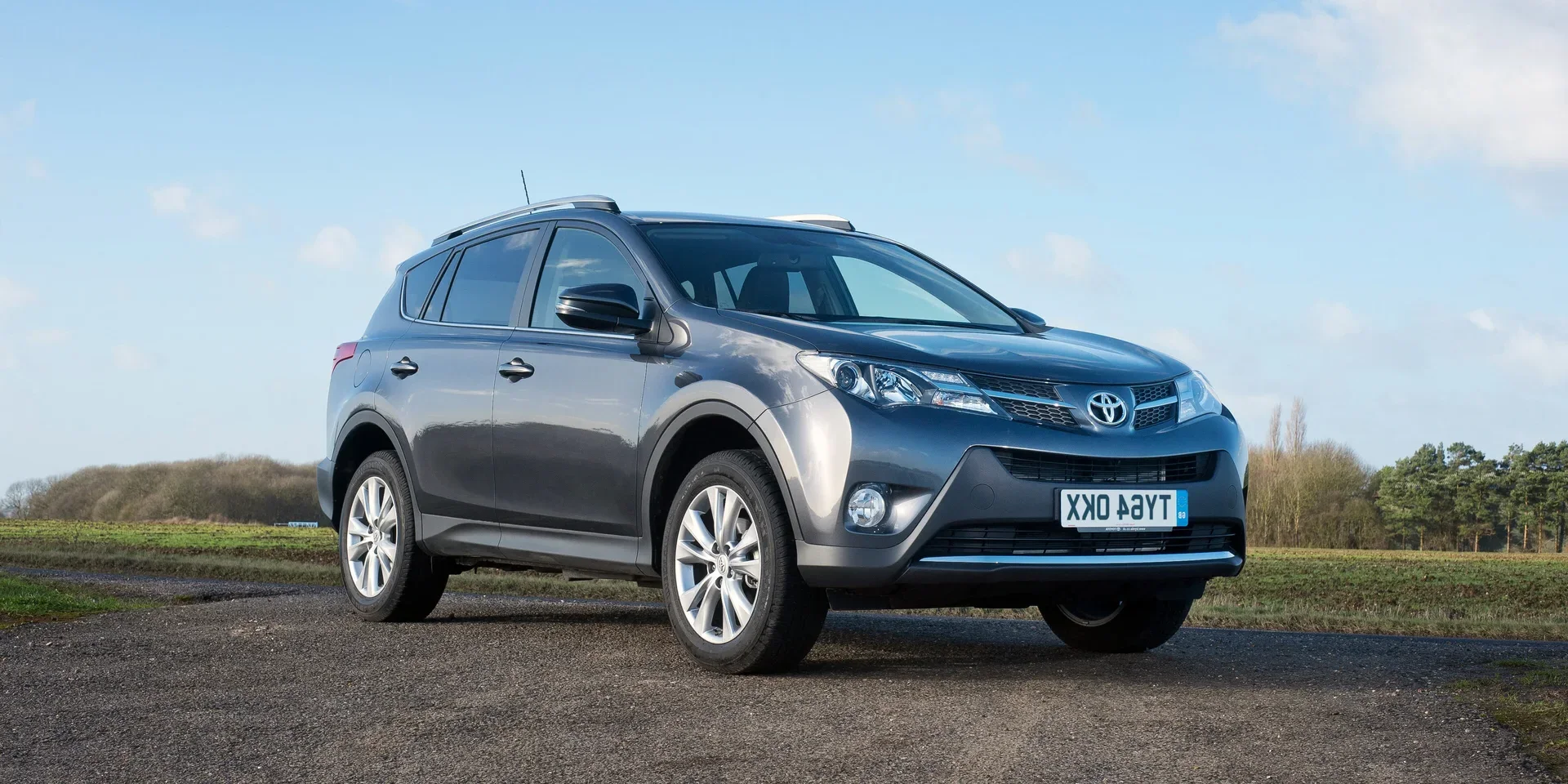

2015 Toyota RAV4

JapanGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2015
Make
Toyota
Model
RAV4
Body Style
SUV
Generation
XA40
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
  • Automatic Continuously variable
  • Manual, 6-speed

Powertrain

Engine Name
2.0 Dual VVT-i Valvematic AWD
Engine Configuration
Inline
Power (hp)
151 hp
Power (kW)
111 kW
Torque
195 Nm (144 lb-ft)
Top speed
185 km/h (115 mph)
0–60 mph
9.4 seconds (estimated)
0–100 km/h
9.9 seconds
Displacement
1,987 cc

Dimensions

Length
4,569 mm (179.9 in)
Width
1,844 mm (72.6 in)
Height
1,661 mm (65.4 in)
Wheelbase
2,659 mm (104.7 in)
Curb weight
1,565 kg (3,450 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,200 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
  • 10W-30
  • 15W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
  • 20W-50
Engine Oil, Volume
4.2 litres
Engine Configuration
Bore
80.5 mm (3.2 in)
Stroke
97.6 mm (3.8 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Service Intervals
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Continuously variable
  • Manual, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
60 litres
Emission
Emission Standard
Euro 5
Emission Class
  • C
  • D
Fuel Consumption NEDC
City
9.2 – 9.3 - 9.2 – 9.4 litres / 100 km
Highway
6 - 6.1 litres / 100 km
Combined
7.2 - 7.2 – 7.3 litres / 100 km
Emission NEDC
CO₂, Combined
166 – 167 - 167 – 169 g/km

Dimensions & Weight

Exterior

Track, Front
1,570 mm (61.8 in)
Track, Rear
1,570 mm (61.8 in)
Turning Circle
12 m
Ground Clearance
160 mm (6.3 in)

Interior

Head Room, Front
1,011 mm (39.8 in)
Head Room, Rear
988 mm (38.9 in)
Leg Room, Front
1,082 mm (42.6 in)
Leg Room, Rear
945 mm (37.2 in)
Hip Room, Front
1,379 mm (54.3 in)
Hip Room, Rear
1,242 mm (48.9 in)
Shoulder Room, Front
1,455 mm (57.3 in)
Shoulder Room, Rear
1,407 mm (55.4 in)

Weight

Gross Weight
2100 – 2110 kg (4,630 – 4,652 lb)
Max Trailer Load, braked 12%
1500 – 2000 kg (3,307 – 4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
420 – 440 - 515 – 535 kg (1,135 – 1,179 lb)
Max Roof Load
85 kg (187 lb)
Max Towbar Download
60 – 80 kg (132 – 176 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Toyota Platform
MC Platform (New MC)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Sunroof
Optional
Roof Railing
Optional

Lights

Daytime Running Light
LED
Special Features
Come Home/Leaving Lights

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Yes
Media Format
  • CD
  • WMA
Media Inputs
USB
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display: Size
6.1"
Interior Storage › Storage Compartments
Glove Compartment
Lockable
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Lights
Read Light
Front
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front
Ashtray
Yes

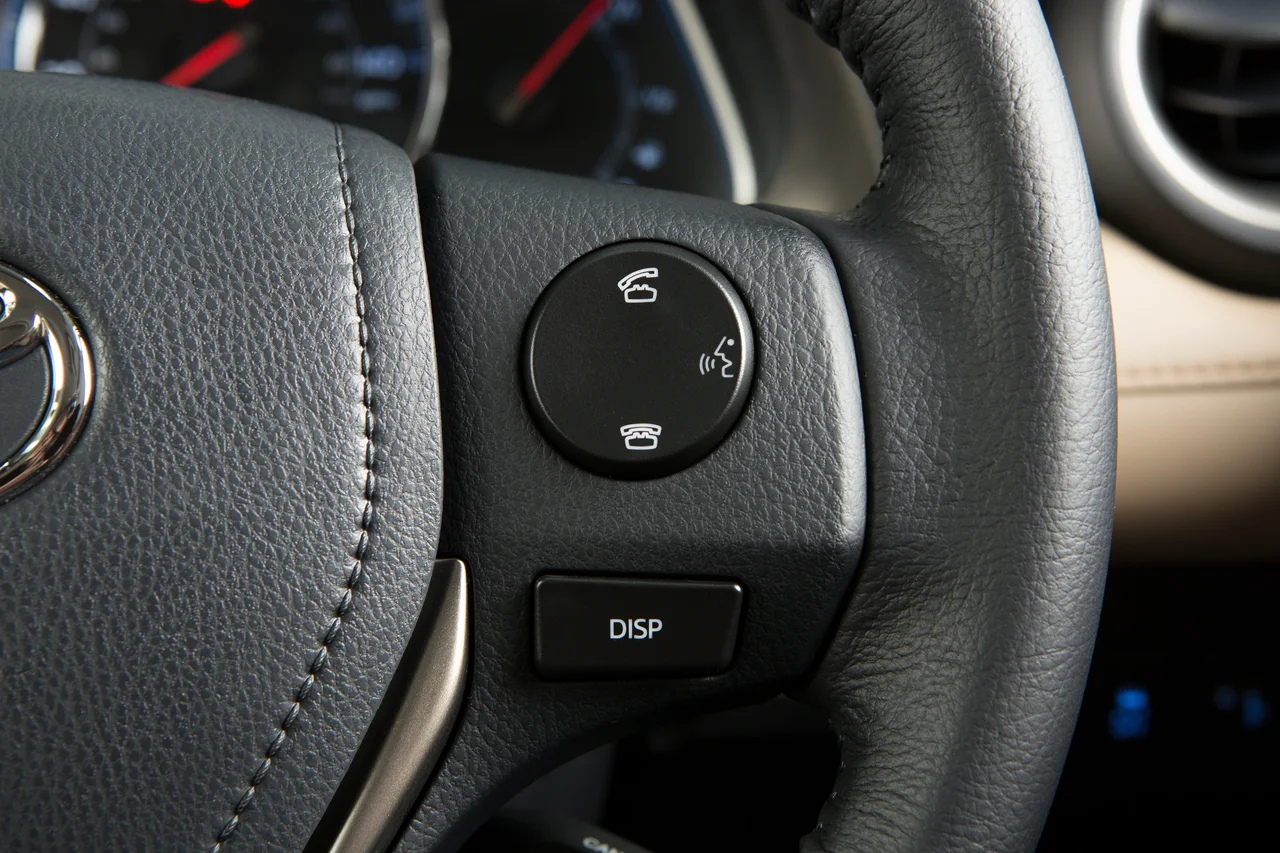

Steering Wheel

Multifunction Steering Wheel
Yes
Adjustments
  • Tilt
  • Telescope
Channels
Yes
Volume
Yes
Mute Audio
Yes

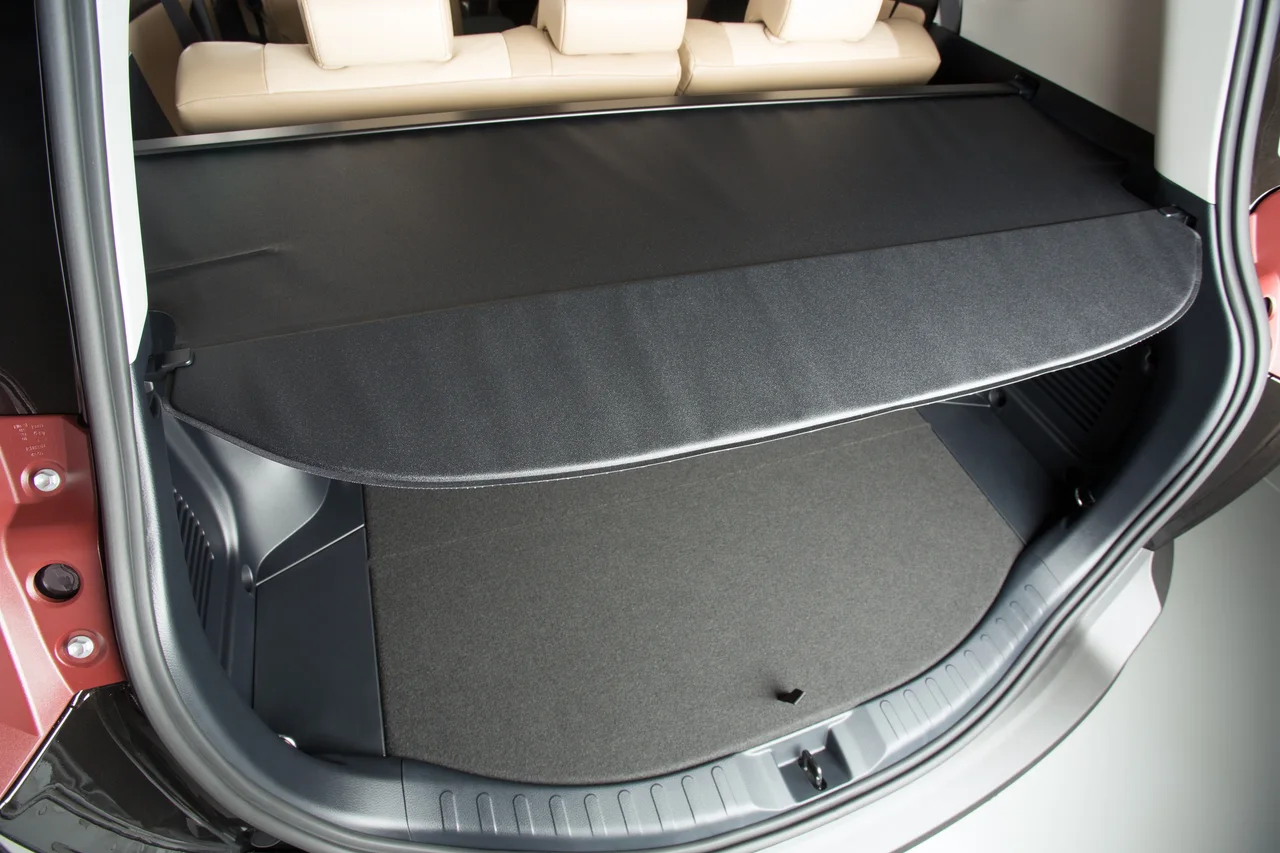

Trunk

Rear Trunk
Yes
Cargo Hooks
Yes
Light
Yes
Rear Trunk
Volume
550 litres
Volume, Back Seat Collapsed
1,750 litres
Depth
951 mm (37.4 in)
Width
1,337 mm (52.6 in)

Design

Interior Decor Material
Textile
Interior Decor Colour
Grey
Colour
Silver

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Second Seat Row
Adjustments
Backrest Angle
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
89 %
Child Occupant
82 %
Vulnerable Road Users
66 %
Safety Assist
66 %
Overall
5/5 stars
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
4/5 stars
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D4S (xenon)
  • HB3
  • HIR2
Main Beam
  • HB3
  • HIR2
Fog Light, Front
H16
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16q (W21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Type
Crossover (G)
