2015 Volkswagen Sharan

GermanyGasolineFWDMinivan

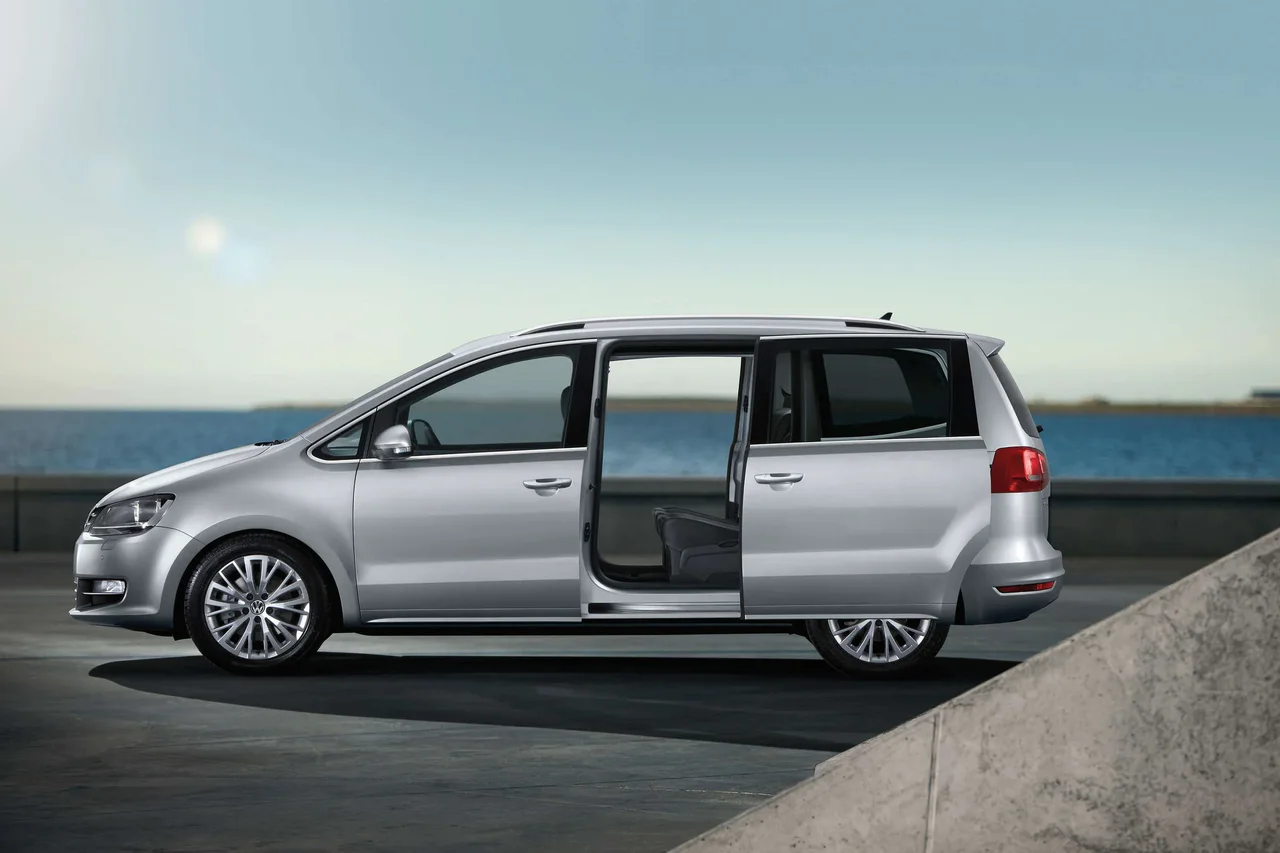

Photos

Specifications

Vehicle Details

Year
2015
Make
Volkswagen
Model
Sharan
Body Style
Minivan
Generation
II (Typ 7N)
Seats
6
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6-speed

Powertrain

Engine Name
1.4 TSI BMT
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
240 Nm (177 lb-ft)
Top speed
197 km/h (122 mph)
0–60 mph
9.4 seconds (estimated)
0–100 km/h
9.9 seconds
Displacement
1,390 cc

Dimensions

Length
4,854 mm (191.1 in)
Width
1,904 mm (75.0 in)
Height
1,720 mm (67.7 in)
Wheelbase
2,919 mm (114.9 in)
Curb weight
1,771 kg (3,904 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,800 rpm
Rev. at Max Torque
1,750 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
4 litres
Car Battery
Voltage
12 V
Battery Capacity
68 Ah
Alternator Charge Current
140 A
Alternator Voltage
14 V
Engine Configuration
Bore
76.5 mm (3.0 in)
Stroke
75.6 mm (3.0 in)
Compression Ratio
9.7 :1
Engine Configuration
Inline
Supercharger
Yes
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
90,000 km / 6 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front (1)
Brakes Material
Cast Iron
Front Brakes
Diameter
312 mm (12.3 in)
Width
25 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
282 mm (11.1 in)
Width
12 mm (0.5 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Sports Suspension
Optional
Electronic Damper Control (EDC)
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Emission Class
  • C
  • D
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
9.2 – 9.4 litres / 100 km
Highway
6.1 – 6.6 litres / 100 km
Combined
7.2 – 7.6 litres / 100 km
Emission NEDC
CO₂, Combined
167 – 178 g/km

Performance

Acceleration
0-80 km/h
6.6 – 6.9 sec
80-120 km/h
10 sec

Dimensions & Weight

Exterior

Width, with Mirrors
2,081 mm (81.9 in)
Width, open Doors
3,688 mm (145.2 in)
Height (Bonnet Open)
1,738 mm (68.4 in)
Track, Front
1,569 mm (61.8 in)
Track, Rear
1,617 mm (63.7 in)
Overhang, Front
968 mm (38.1 in)
Overhang, Rear
967 mm (38.1 in)
Approach Angle
13.7 °
Breakover Angle
9.6
Departure Angle
14 °
Turning Circle
11.9 m
Ground Clearance
106 mm (4.2 in)

Interior

Head Room, Front
1,021 - 1,037 mm (40.2 - 40.8 in)
Head Room, Rear
973 mm (38.3 in)
Head Room, Third Row
945 mm (37.2 in)
Leg Room, Front
989 mm (38.9 in)
Leg Room, Rear
947 mm (37.3 in)
Shoulder Room, Front
1,507 mm (59.3 in)
Shoulder Room, Rear
1,578 mm (62.1 in)
Shoulder Room, Third Row
1,254 mm (49.4 in)

Weight

Gross Weight
2440 – 2460 kg (5,379 – 5,423 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, braked 8%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
669 – 670 kg (1,475 – 1,477 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Door Handles
Pull-out
Platform
Volkswagen Group
A6/PQ46

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Glass-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Optional
Fog Lights
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
Connectivity › Radio
DAB
Optional
RDS
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
Optional
AAC
Optional
Hard Drive
30 GB
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Optional
Connectivity › Media Inputs › AUX
Front
Optional
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Rear
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Yes
Barrier Net/Grid
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
300 litres
Volume, Back Seat Collapsed
2,297 litres
Depth
444 mm (17.5 in)
Depth, Back Seat Collapsed
2,128 mm (83.8 in)
Width
1,254 mm (49.4 in)
Width, Between Wheel Arches
1,088 mm (42.8 in)
Height
1,099 mm (43.3 in)
Height, to Trunk Cover
574 mm (22.6 in)
Trunk Door Opening Height
2,052 mm (80.8 in)
Sill Height
671 mm (26.4 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Adjustments
  • Seat Depth
  • Backrest Angle
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
50/50
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Collapsible
Yes
Number of Seats
2
Type of Seat
Adult
Seat Angle
Front Facing
Third/Fourth Seat Row › Third Seat Row › Collapsible
Fold Type
Manual
Split Fold Ratio
50/50

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note
GPS
SD-Card
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
96 %
Child Occupant
80 %
Vulnerable Road Users
46 %
Safety Assist
71 %
Overall
5/5 stars
Adult Occupant
Total Points
34.5 /38
Frontal Impact
15.4 /16
Lateral Impact
15.5 /16
Rear Impact
3.6 /4
Child Occupant
Safety Features
5 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 12.4
  • 0
  • 4
Safety Assist
Speed Assistance (points)
0 /3
Seat Belt Reminder (points)
2 /2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
on Floor

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
  • Medium MPV
  • Large MPV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D3S
Datyime Running Light
BA15s (P21W)
Fog Light, Front
H8
Fog Light, Rear
BAY9s (H21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W3W)
Read Light
  • SV8.5 (C5W)
  • W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
Entry Light
W2.1×9.5d (W3W)
License Plate Light
W2.1×9.5d (W5W)

Similar minivans

Suggested vehicles
