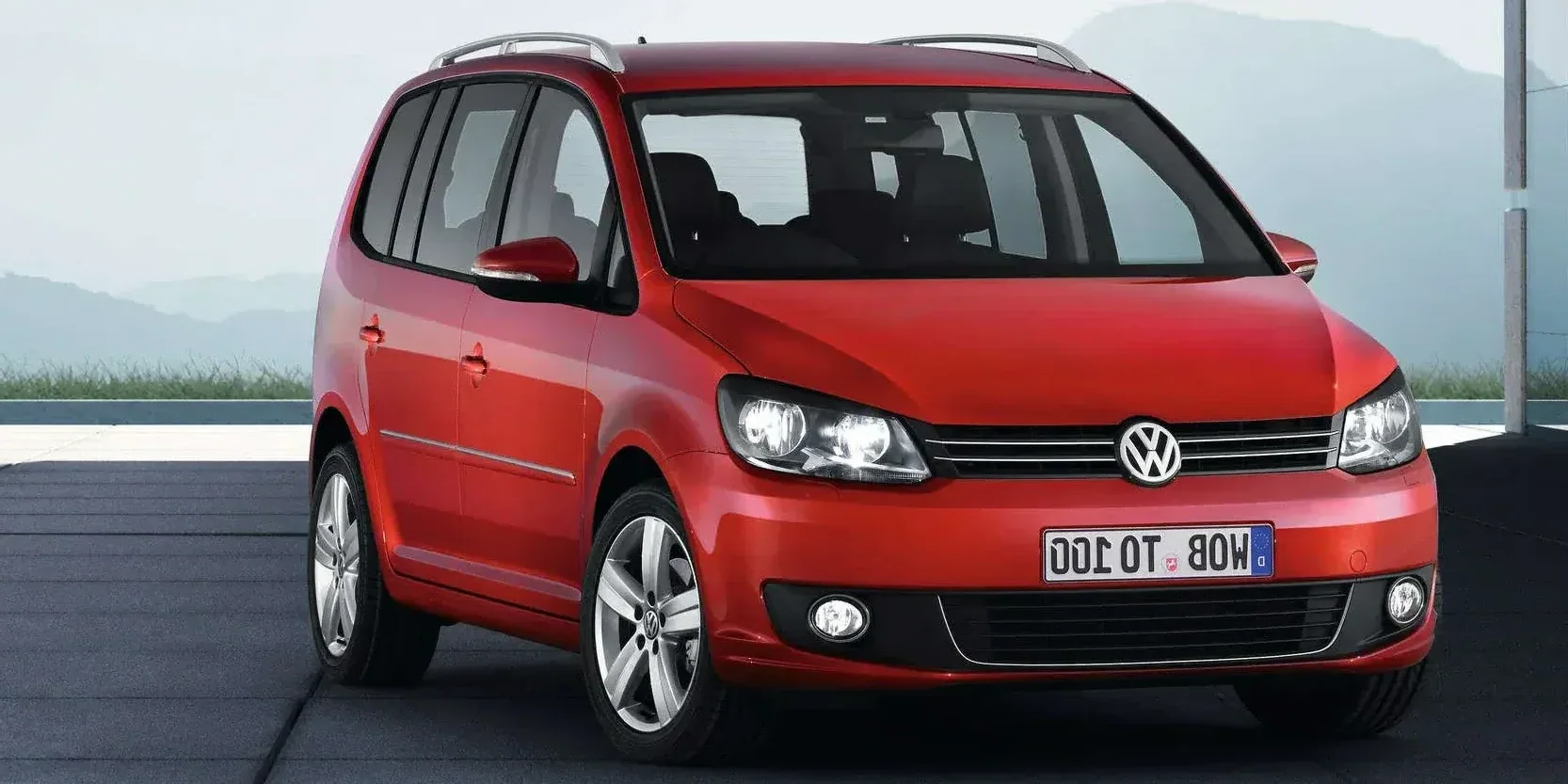

2015 Volkswagen Touran

GermanyGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2015
Make
Volkswagen
Model
Touran
Body Style
Minivan
Generation
I GP2 (Type 1T)
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
1.4 TSI DSG Sequential
Engine Configuration
Inline
Power (hp)
170 hp
Power (kW)
125 kW
Torque
240 Nm (177 lb-ft)
Top speed
213 km/h (132 mph)
0–60 mph
8.1 seconds (estimated)
0–100 km/h
8.5 seconds
Displacement
1,390 cc

Dimensions

Length
4,397 mm (173.1 in)
Width
1,794 mm (70.6 in)
Height
1,674 mm (65.9 in)
Wheelbase
2,678 mm (105.4 in)
Curb weight
1,567 kg (3,455 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,500 - 4,500 rpm
Engine Fluids
Engine Oil, Volume
3.6 litres
Car Battery
Voltage
12 V
Engine Configuration
Bore
76.5 mm (3.0 in)
Stroke
75.6 mm (3.0 in)
Compression Ratio
9.7 :1
Engine Configuration
Inline
Supercharger
Yes
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front
Brakes Material
Cast Iron
Front Brakes
Diameter
288 - 312 mm (11.3 - 12.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
272 mm (10.7 in)
Width
10 mm (0.4 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
60 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Emission Class
C
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
8.5 litres / 100 km
Highway
5.6 litres / 100 km
Combined
6.6 litres / 100 km
Emission NEDC
CO₂, Combined
154 g/km

Performance

Acceleration
0-80 km/h
6 sec

Dimensions & Weight

Exterior

Width, with Mirrors
2,081 mm (81.9 in)
Width, open Doors
3,590 mm (141.3 in)
Height (Bonnet Open)
1,865 mm (73.4 in)
Track, Front
1,541 mm (60.7 in)
Track, Rear
1,514 mm (59.6 in)
Approach Angle
13.3 °
Breakover Angle
8.6
Departure Angle
16.6 °
Turning Circle
11.2 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
1,016 - 1,018 mm (40.0 - 40.1 in)
Head Room, Rear
954 - 973 mm (37.6 - 38.3 in)
Leg Room, Front
1,000 mm (39.4 in)
Leg Room, Rear
910 mm (35.8 in)
Hip Room, Front
1,458 mm (57.4 in)
Hip Room, Rear
1,484 mm (58.4 in)
Hip Room, Third Row
1,297 mm (51.1 in)

Weight

Gross Weight
2,160 kg (4,762 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
668 kg (1,473 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,120 kg (2,469 lb)
Permitted Axle Load, rear
1,100 kg (2,425 lb)

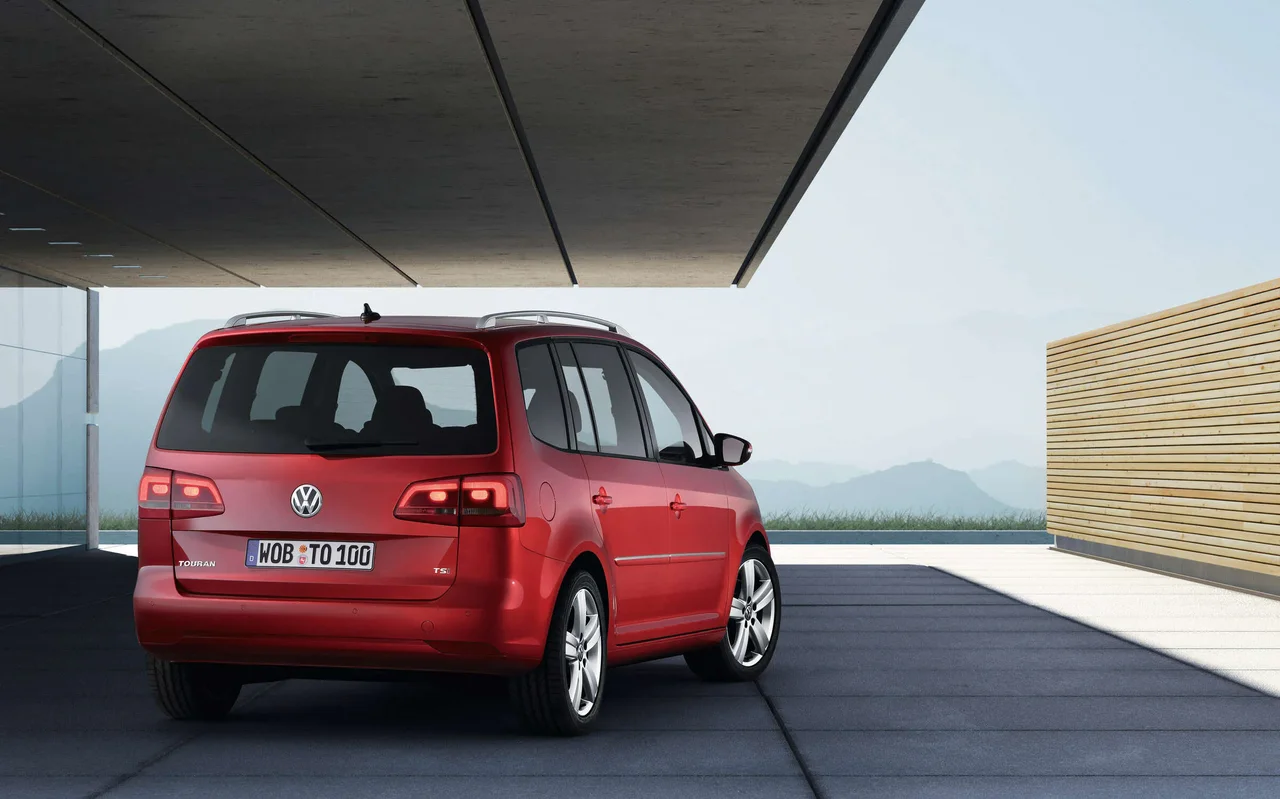

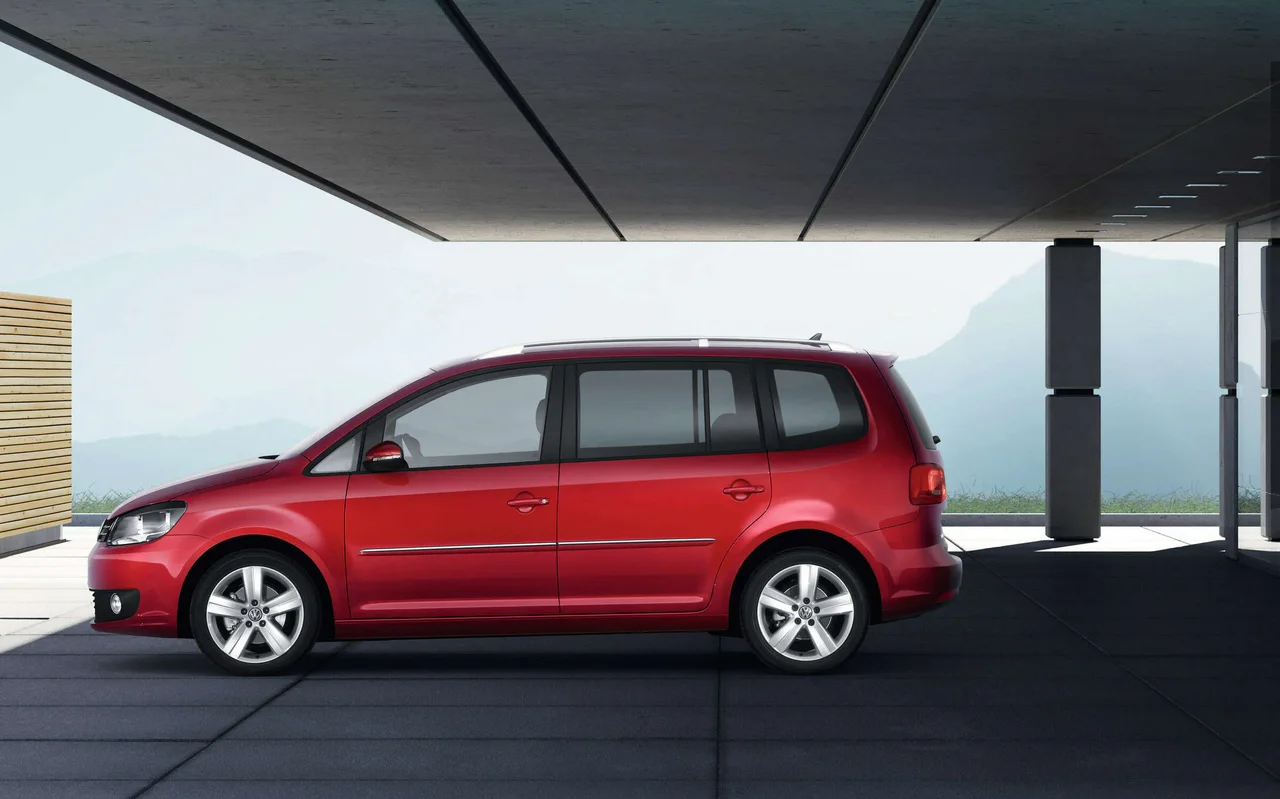

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D + Extra Pillar(s)
Chassis Construction
Unibody
Body Material
  • Plastic
  • Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
A Platform (PQ35)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Front
  • Second Row
  • Rear Window
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Special Features
  • Come Home/Leaving Lights
  • Headlight Washers
Fog Lights
Front
Halogen
Fog Lights › Front
Cornering Lights
Yes
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Automatic

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Alloy
Optional
Steel
Optional

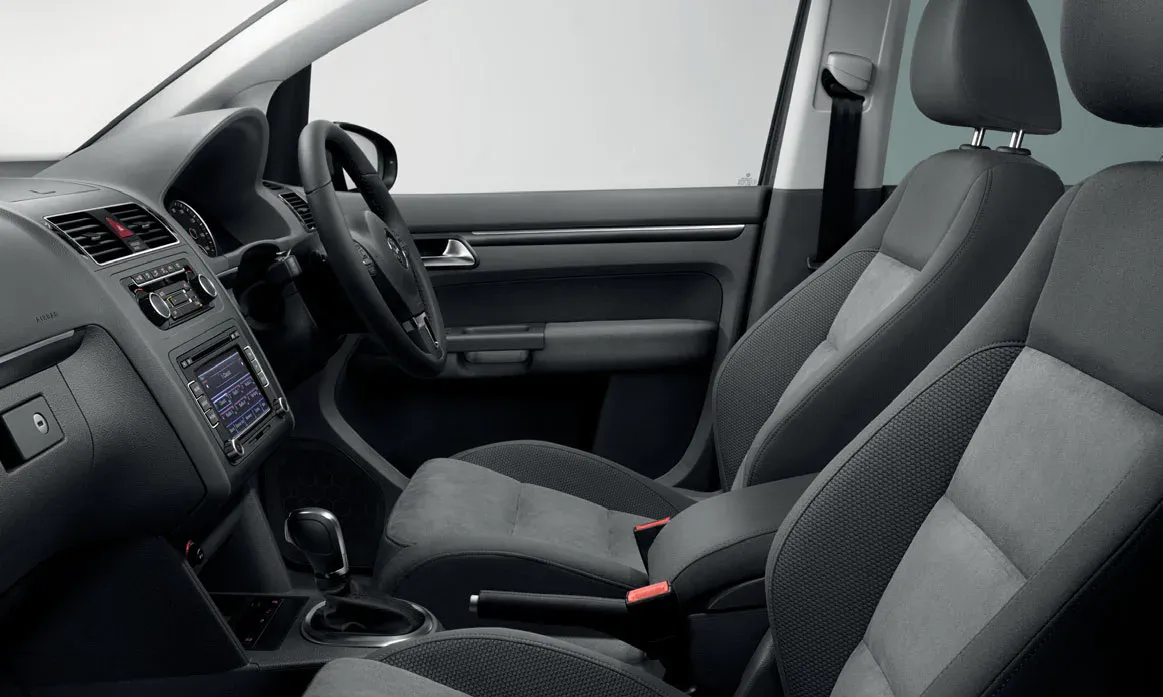

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Connectivity › Radio
DAB
Optional
RDS
Optional
Connectivity › Media Format
DVD
Optional
Memory Card Reader
Optional
AAC
Optional
Hard Drive
30 GB
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Front
Displays
Center Display
Optional
Displays › Center Display
Buttons
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Optional
Card Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
1
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons

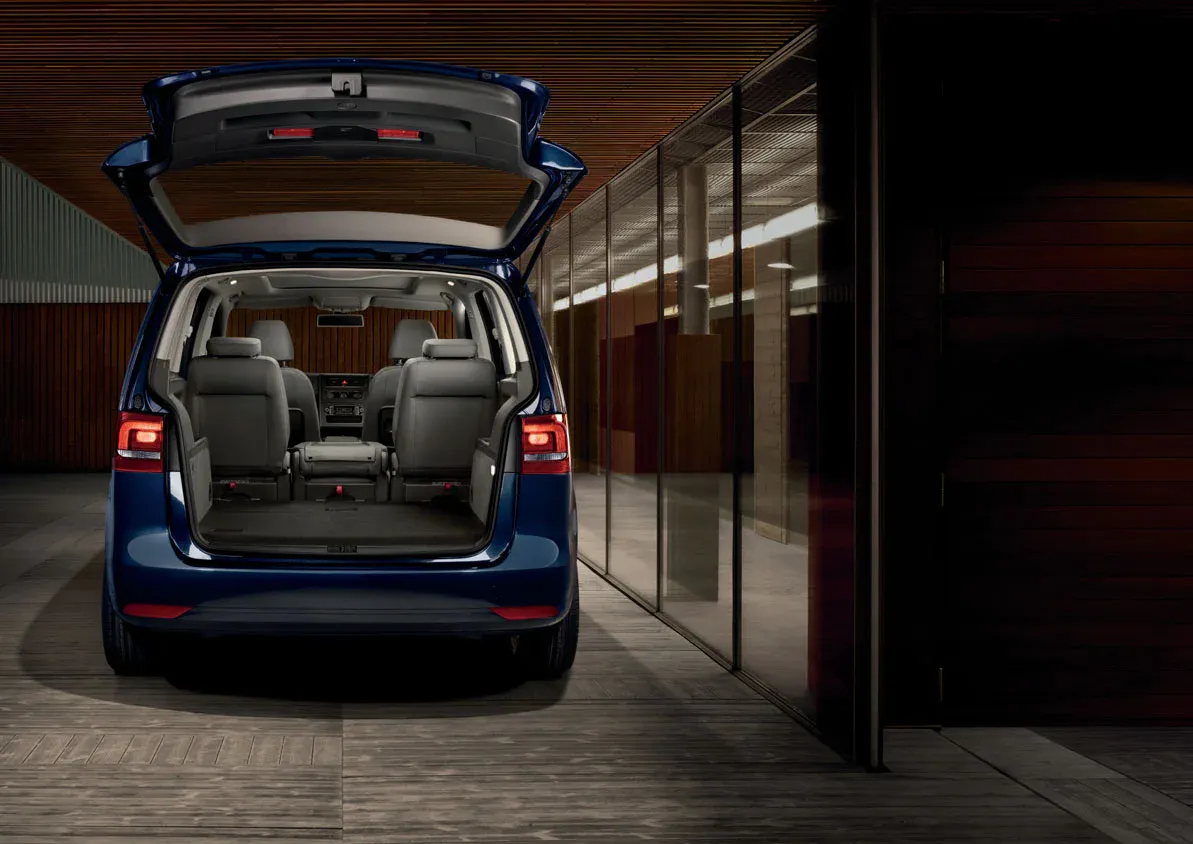

Trunk

Rear Trunk
Yes
Cover
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
695 litres
Volume, Back Seat Collapsed
1,989 litres
Depth
1,142 mm (45.0 in)
Depth, Back Seat Collapsed
1,794 mm (70.6 in)
Width
1,050 mm (41.3 in)
Opening Width
971 mm (38.2 in)
Height
1,098 mm (43.2 in)
Height, to Trunk Cover
572 mm (22.5 in)
Trunk Door Opening Height
2,060 mm (81.1 in)

Design

Interior Decor Colour
Black
Transmission Knob Material
Leather
Pedals
Standard

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Manual
Backrest Angle
Yes
Lumbar Support
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Collapsible
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Adjustments
Seat Depth
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
35/30/35
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Yes
Parking Heater
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Horn
Dual Note
GPS
SD-Card
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Sign Assist
Optional
Trailer Stability Assist (TSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Rear
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Type of Keys
Remote Keys
Number of Remote Keys
2
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2003
Adult Occupant
5/5 stars
Pedestrian
3/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
Behind

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H15
Bi-Xenon
D3S
Datyime Running Light
H15
Fog Light, Front
HB4
Fog Light, Rear
BAY9s (H21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Similar minivans

Suggested vehicles
