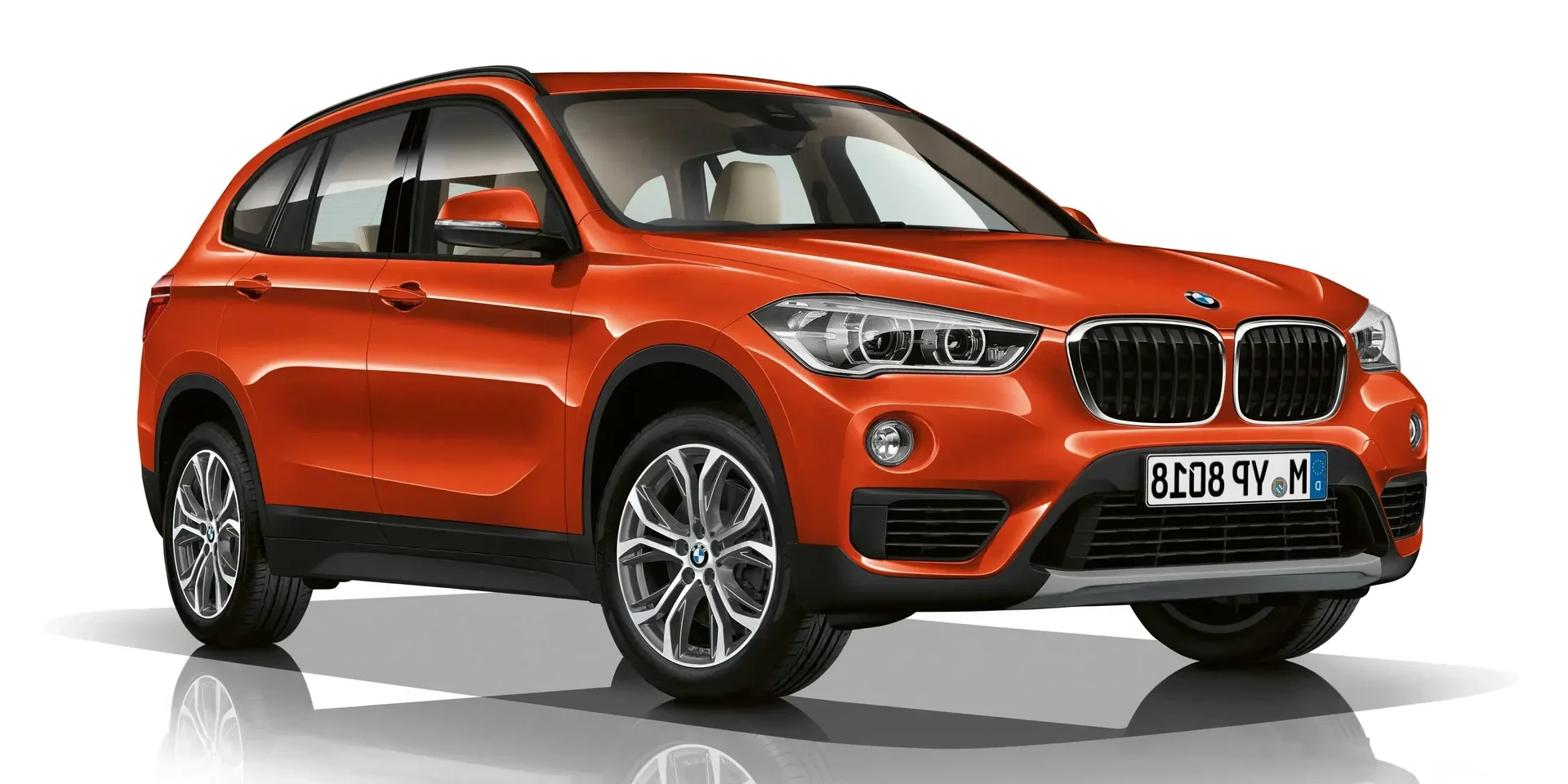

2016 BMW X1 xDrive20i

GermanyGasolineAWDSUV

Specifications

Vehicle Details

Year
2016
Make
BMW
Model
X1
Variant
xDrive20i
Body Style
SUV
Generation
F48
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
xDrive20i Steptronic
Engine Configuration
Inline
Power (hp)
192 hp
Power (kW)
141 kW
Torque
280 Nm (207 lb-ft)
Top speed
223 km/h (139 mph)
0–60 mph
7.0 seconds (estimated)
0–100 km/h
7.4 seconds
Displacement
1,998 cc

Dimensions

Length
4,439 mm (174.8 in)
Width
1,821 mm (71.7 in)
Height
1,612 mm (63.5 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,615 kg (3,560 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,700 - 6,000 rpm
Rev. at Max Torque
1,250 - 4,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
5.3 litres
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
11 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km / 4 years
Spark Plug
70,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
120,000 km / 8 years
Accessory Belt
120,000 km (74,565 mi)

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Gear Ratio
1st Gear
5.25 :1
2nd Gear
3.03 :1
3rd Gear
1.95 :1
4th Gear
1.46 :1
5th Gear
1.22 :1
6th Gear
1 :1
7th Gear
0.81 :1
8th Gear
0.67 :1
Final Drive
3.2 :1
Reverse
4.02 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
330 mm (13.0 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)

Fuel

General
Tank Volume
61 litres
Emission
Emission Standard
Euro 6
Emission Control
Catalyst
Fuel Consumption NEDC
City
7.6 - 7.7 litres / 100 km
Highway
5.6 - 5.7 litres / 100 km
Combined
6.3 - 6.4 litres / 100 km
Emission NEDC
CO₂, Combined
146 - 149 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,060 mm (81.1 in)
Track, Front
1,561 mm (61.5 in)
Track, Rear
1,562 mm (61.5 in)
Overhang, Front
842 mm (33.1 in)
Overhang, Rear
927 mm (36.5 in)
Turning Circle
11.4 m
Ground Clearance
183 mm (7.2 in)

Interior

Head Room, Front
1,065 mm (41.9 in)
Head Room, Rear
1,002 mm (39.4 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,453 mm (57.2 in)

Weight

Gross Weight
2,140 kg (4,718 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, braked 8%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
525 – 600 - 600 kg (1,323 - 1,323 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
BMW Platform
UKL Platform (UKL2)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Heated Washer Nozzles
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Windows › Heated Windows
Front
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
CD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
Yes
Other Equipment
12V Outlet
Yes
Carpets
Yes
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Sport
Optional
Number of Spokes
3
Colour
Black
Answer Phone
Optional
Volume
Optional
Mute Audio
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Carpet
Optional
Light
Yes
Rear Trunk
Volume
505 litres
Volume, Back Seat Collapsed
1,550 litres

Design

Transmission Knob Material
  • Aluminium
  • Leather
Colour
Black

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Optional
Speed Limiter
Yes
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Accessories

Warning Triangle
Yes
First Aid Kit
Yes
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Front Seats
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Driver Alertness Warning (DAW)
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
90 %
Child Occupant
87 %
Vulnerable Road Users
74 %
Safety Assist
77 %
Overall
5/5 stars
Test Year
2015
ANCAP Safety Rating
5
Adult Occupant
Total Points
34.5 /38
Lateral Impact
16 /16
Rear Impact
2.3 /4
Protection
90 %
Protection
34.5
Full Width
7.64
Frontal Offset
6.48
Side Impact
8
Pole
8
Whiplash Protection (Front)
2.34
AEB (City)
2.03
Child Occupant
Total Points
43 /49
Safety Features
7 /13
CRS Installation Check
12 /12
Protection
87 %
Protection
43
Vulnerable Road Users
Total Points
26.7 /49
Pedestrian
  • 19.4
  • 1.3
  • 6
Safety Assist
Speed Assistance (points)
2.3 /3
Lane Support (points)
0 /4
Safety Assist
70 %
Safety Assist
9.1
Speed Assistance System
1.3
ESC
3
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
1.8
Pedestrian
Protection
74 %
Protection
26.7
IIHS
Test Year
2016
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Advanced
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Datyime Running Light
H8
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)

ACRISS

Category
Standard (S)
Type
Crossover (G)

Awards

Golden Steering Wheel
Medium SUV
2015
