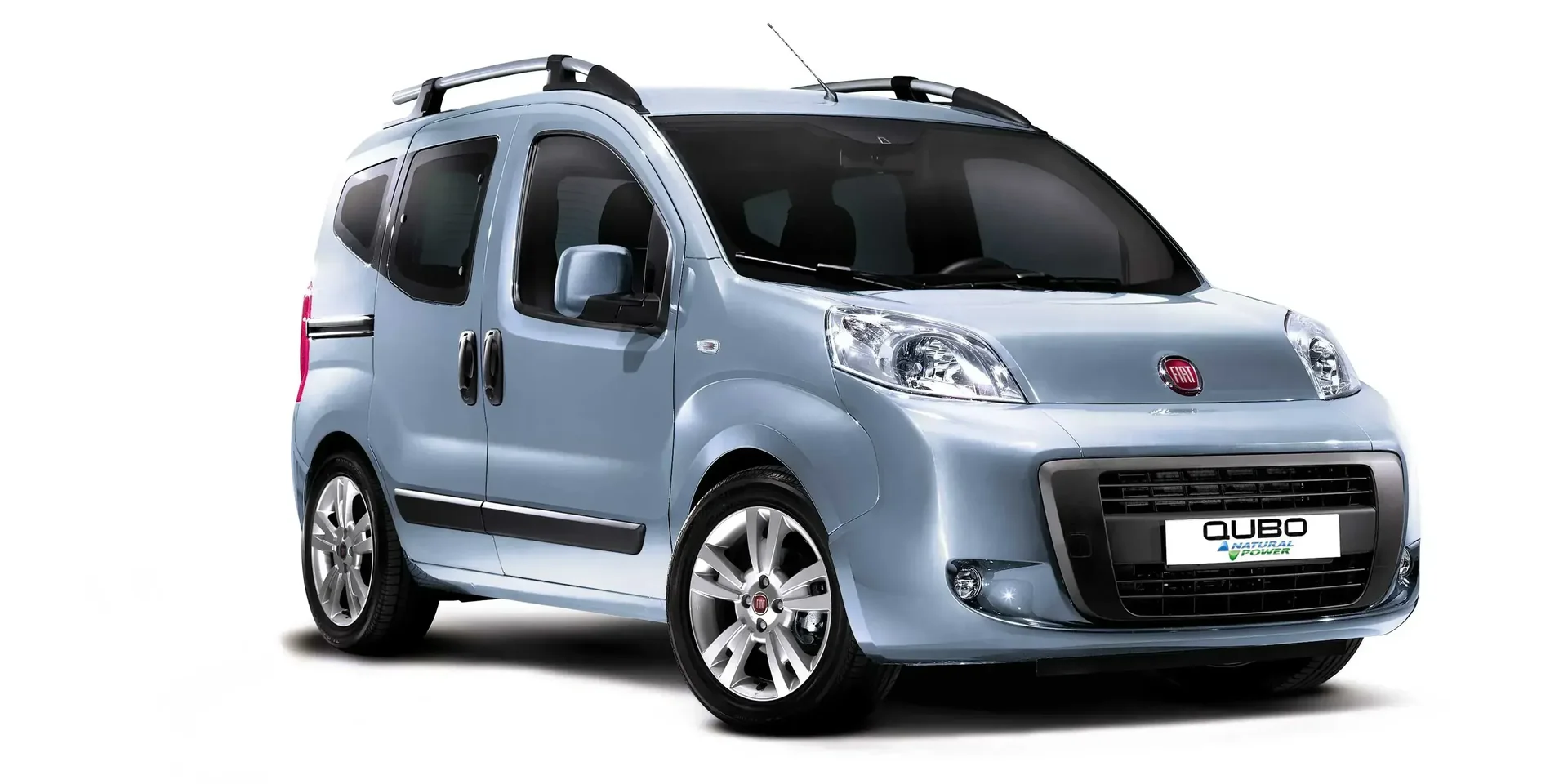

2016 Fiat Fiorino Qubo

ItalyDieselFWDLCV

Specifications

Vehicle Details

Year
2016
Make
Fiat
Model
Fiorino
Variant
Qubo
Body Style
LCV
Generation
Typ 225
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 5-speed

Powertrain

Engine Name
1.3 JTD Manual
Engine Configuration
Inline
Power (hp)
95 hp
Power (kW)
70 kW
Torque
200 Nm (148 lb-ft)
Top speed
167 km/h (104 mph)
0–60 mph
11.3 seconds (estimated)
0–100 km/h
11.9 seconds
Displacement
1,248 cc

Dimensions

Length
3,959 mm (155.9 in)
Width
1,716 mm (67.6 in)
Height
1,735 mm (68.3 in)
Wheelbase
2,513 mm (98.9 in)
Curb weight
1,185 kg (2,612 lb)

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
3.2 litres
Engine Configuration
Bore
69.6 mm (2.7 in)
Stroke
82 mm (3.2 in)
Compression Ratio
16.8 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Timing Interval
120,000 km (74,565 mi)
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
60,000 km / 2 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Gear Ratio
1st Gear
3.64 :1
2nd Gear
1.95 :1
3rd Gear
1.28 :1
4th Gear
0.98 :1
5th Gear
0.77 :1
Final Drive
3.56 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
45 litres
Fuel Consumption NEDC
City
4.8 litres / 100 km
Highway
3.6 litres / 100 km
Combined
4 litres / 100 km
Emission NEDC
CO₂, Combined
106 g/km

Dimensions & Weight

Exterior

Track, Front
1,462 mm (57.6 in)
Track, Rear
1,464 mm (57.6 in)
Turning Circle
10.6 m
Ground Clearance
130 - 150 mm (5.1 - 5.9 in)

Interior

Head Room, Front
1,075 mm (42.3 in)
Head Room (est.), Rear
1,010 - 1,030 mm (39.8 - 40.6 in)
Leg Room (est.), Rear
840 - 880 mm (33.1 - 34.6 in)

Weight

Gross Weight
1,700 kg (3,748 lb)
Max Trailer Load, braked 12%
600 kg (1,323 lb)
Max Trailer Load, unbraked
400 kg (882 lb)
Cargo Capacity
515 kg (1,135 lb)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Minibus)
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Platform
Fiat Platforms
Small Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Heated
Optional
Windows
Heat-Insulating Windows
  • Front
  • First Row
Other Equipment
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional
Special Features
Come Home/Leaving Lights
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
98
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
58.1
Fastening Type
Lug Bolts
Tightening Torque
86 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Optional
Pollen Filter
Optional
Outside Temperature Indicator
Optional
Connectivity
Radio
Optional
Radio Preparation
Yes
Bluetooth
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Radio Preparation
CD
Optional
MP3
Optional
WMA
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Other Equipment
Clock
Digital
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Carpets
Front
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
330 litres
Volume, Back Seat Collapsed
2,500 litres

Design

Interior Decor Material
Plastic

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Backrest Angle
Manual
Front Seats
Heated Seats
Optional
Armrest
Optional
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Cruise Control
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Optional
Electronic Brake Assist (BA/EBA)
Optional

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Other

Identification

VIN Location
Passenger Seat
in Front of
Trunk
Right Side

Car Classification

European Segment
M-Segment
Car.info Classification
Passenger Van

ACRISS

Type
Monoscape (M)
