2016 Hyundai Elantra

South KoreaGasolineFWDSedan

Photos

Specifications

Vehicle Details

Year
2016
Make
Hyundai
Model
Elantra
Body Style
Sedan
Generation
AD
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

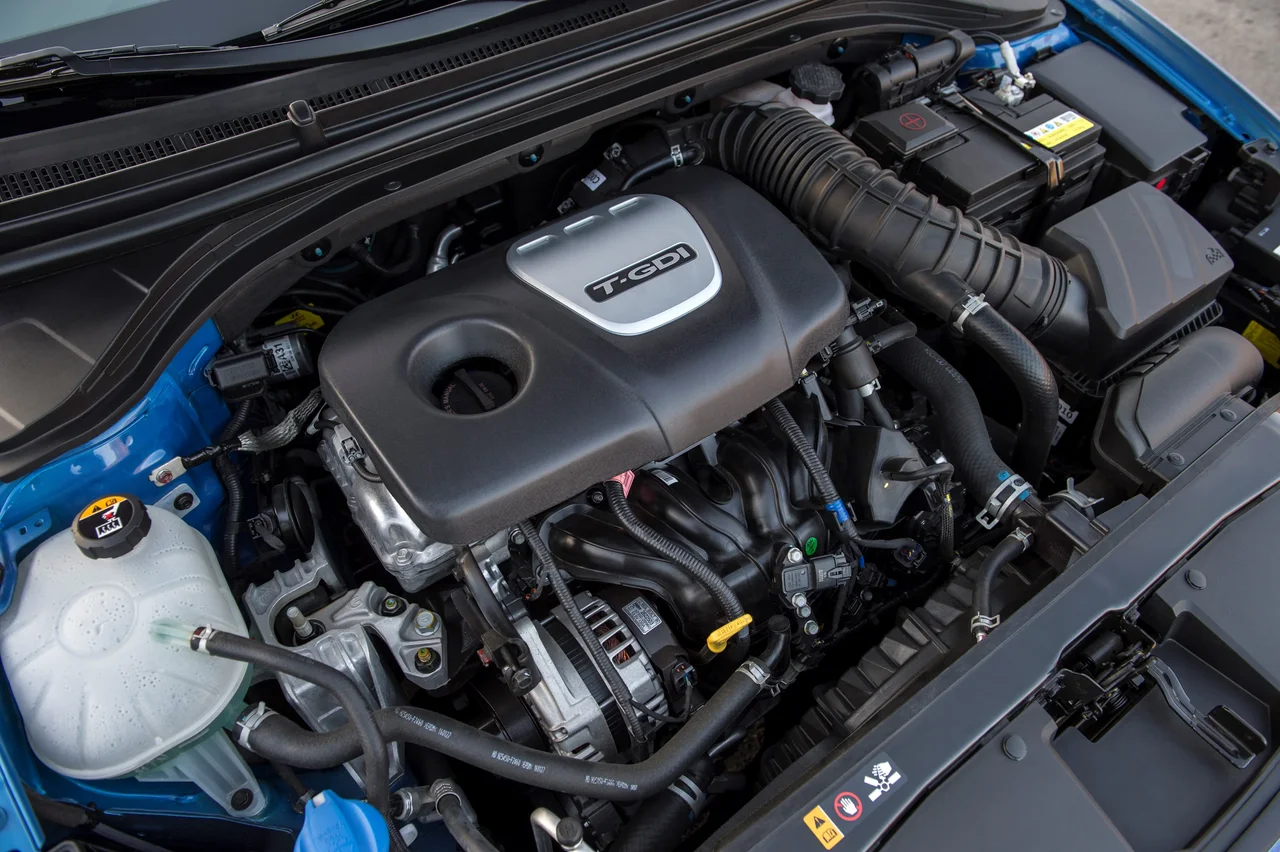

Engine Name
1.6 T-GDI
Engine Configuration
Inline
Power (hp)
204 hp
Power (kW)
150 kW
Torque
265 Nm (195 lb-ft)
Displacement
1,591 cc

Dimensions

Length
4,550 mm (179.1 in)
Width
1,775 mm (69.9 in)
Height
1,430 mm (56.3 in)
Wheelbase
2,700 mm (106.3 in)
Curb weight
1,360 kg (2,998 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,500 - 4,500 rpm
Engine Configuration
Bore
77 mm (3.0 in)
Stroke
85.44 mm (3.4 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
45,000 km / 3 years
Spark Plug
75,000 km / 10 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
30,000 km / 2 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Brakes

Front Brakes
Disc Brakes

Suspensions

Sports Suspension
Optional

Fuel

General
Tank Volume
53 litres
Fuel Consumption NEDC
City
9.4 – 10.3 litres / 100 km
Highway
5.7 – 6 litres / 100 km
Combined
7 – 7.6 litres / 100 km
Emission NEDC
CO₂, Combined
163 – 176 g/km

Dimensions & Weight

Exterior

Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
1,017 mm (40.0 in)
Head Room, Rear
943 mm (37.1 in)
Leg Room, Front
1,108 mm (43.6 in)
Leg Room, Rear
847 mm (33.3 in)
Hip Room, Front
1,348 mm (53.1 in)
Hip Room, Rear
1,339 mm (52.7 in)
Shoulder Room, Front
1,420 mm (55.9 in)
Shoulder Room, Rear
1,393 mm (54.8 in)

Weight

Gross Weight
1810 – 1840 kg (3,990 – 4,057 lb)
Cargo Capacity
450 kg (992 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Hyundai-Kia Platforms
J Platform (J6)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Optional
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Windows › Window Lifts, Features
Pinch Protection
Driver
One-touch up/down
Driver
Other Equipment
Sunroof
Optional
Normal Roof
Yes

Lights

Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Temporary

Interior

Equipment

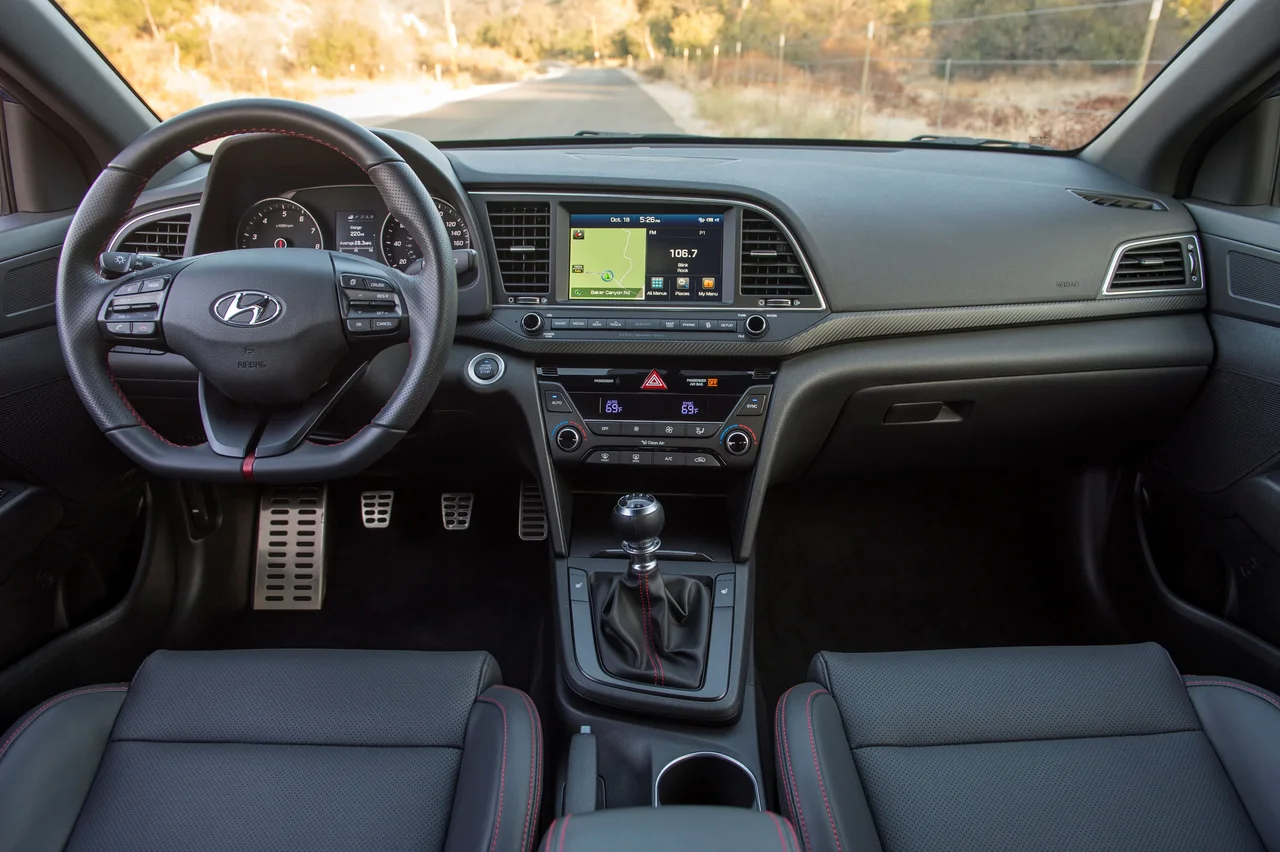

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
3.5 - 4.2"
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Optional
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • XM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Yes
  • Optional
Connectivity › Radio
HD Radio
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
7"
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 8 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Optional
Sunglass Compartment
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Cover
Foldable
Cargo Hooks
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
420 litres

Design

Pedals
Standard
Pedals
Aluminium
Optional
Beige
Optional
Grey
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Optional
Cruise Control
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Driving Mode Selection
  • Normal
  • Sport
Horn
Dual Note
GPS
USB
Optional

Accessories

Tire Repair Kit
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Test Year
2016
Overall Score
35.01
ANCAP Safety Rating
5
ASEAN NCAP
Test Year
2016
Adult Occupant
4/5 stars
Adult Occupant, Points
14.73
Child Occupant
4/5 stars
Child Occupant
77 %
Adult Occupant
Frontal Offset
14.01
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Good
Pedestrian
Protection (Assessment)
Acceptable
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
4/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
4/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
10.9 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2017
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car
