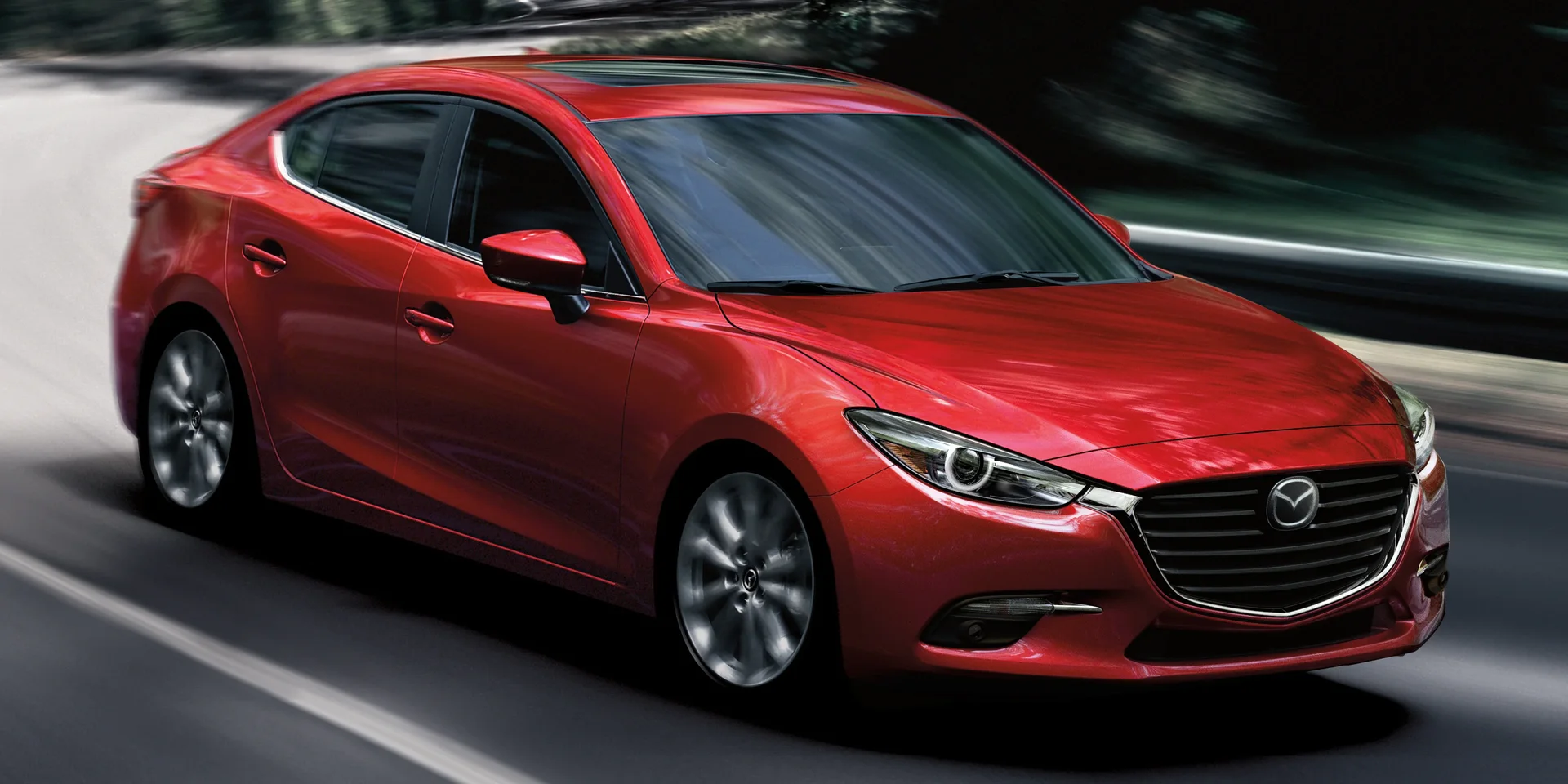

2016 Mazda 3

JapanGasolineFWDSedan

Photos

Specifications

Vehicle Details

Year
2016
Make
Mazda
Model
3
Body Style
Sedan
Generation
BN
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.5 SKYACTIV-G Manual
Engine Configuration
Inline
Power (hp)
101 hp
Power (kW)
74 kW
Torque
150 Nm (111 lb-ft)
Top speed
185 km/h (115 mph)
0–60 mph
10.2 seconds (estimated)
0–100 km/h
10.7 seconds
Displacement
1,496 cc

Dimensions

Length
4,585 mm (180.5 in)
Width
1,795 mm (70.7 in)
Height
1,450 mm (57.1 in)
Wheelbase
2,700 mm (106.3 in)
Curb weight
1,160 kg (2,557 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
Engine Oil, Volume
4.2 litres
Transmission Fluid, Volume
1.59 litres
Engine Configuration
Bore
74.5 mm (2.9 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
14 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
60,000 km / 3 years
Spark Plug
120,000 km (74,565 mi)
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Engine Coolant
100,000 km / 5 years
Transmission, Fluid
180,000 km (111,847 mi)
Interior Filter
40,000 km / 2 years

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
300 mm (11.8 in)
Cooling
Ventilated
Rear Brakes
Diameter
279 mm (11.0 in)
Cooling
Solid

Fuel

General
Tank Volume
51 litres
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
6.4 litres / 100 km
Highway
4.2 litres / 100 km
Combined
5 litres / 100 km
Emission NEDC
CO₂, Combined
118 g/km

Dimensions & Weight

Exterior

Track, Front
1,555 mm (61.2 in)
Track, Rear
1,560 mm (61.4 in)
Turning Circle
11.3 m
Ground Clearance
155 mm (6.1 in)

Interior

Head Room, Front
981 mm (38.6 in)
Head Room, Rear
955 mm (37.6 in)
Leg Room, Front
1,073 mm (42.2 in)
Leg Room, Rear
909 mm (35.8 in)
Hip Room, Front
1,388 mm (54.6 in)
Hip Room, Rear
1,359 mm (53.5 in)
Shoulder Room, Front
1,452 mm (57.2 in)
Shoulder Room, Rear
1,382 mm (54.4 in)

Weight

Gross Weight
1,800 kg (3,968 lb)
Max Trailer Load, braked 12%
950 kg (2,094 lb)
Max Trailer Load, unbraked
600 kg (1,323 lb)
Cargo Capacity
640 kg (1,411 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
108 - 147 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Digital
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
Yes
Media Format
  • CD
  • MP3
Media Inputs
USB
Connectivity › Media Inputs
AUX
Yes
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
419 litres
Depth
1,100 mm (43.3 in)
Width
1,300 mm (51.2 in)
Width, Between Wheel Arches
1,010 mm (39.8 in)

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes
Obstacle Detection Sensor
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
93 %
Child Occupant
86 %
Vulnerable Road Users
65 %
Safety Assist
81 %
Overall
5/5 stars
Overall Score
36.4
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.4
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
4/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
10.5 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
1 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

ACRISS

Category
Compact (C)
Type
4-5 Doors (D)

Similar sedans

Suggested vehicles
