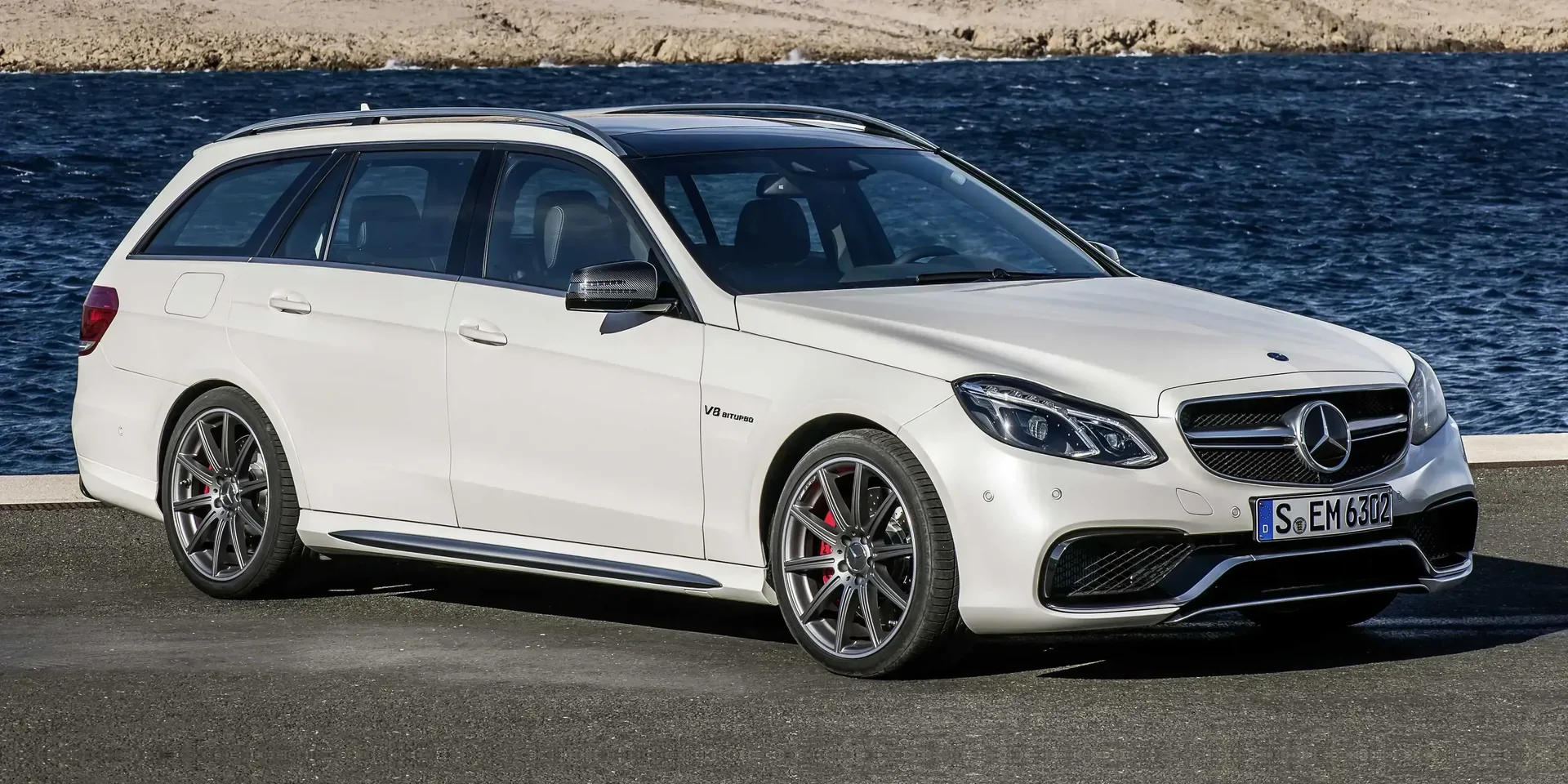

2016 Mercedes-Benz E-Class

GermanyGasolineAWDWagon

Photos

Specifications

Vehicle Details

Year
2016
Make
Mercedes-Benz
Model
E-Class
Body Style
Wagon
Generation
W212 Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
E 63 AMG T S 4MATIC AMG SpeedShift MCT 7-speed
Engine Configuration
V
Power (hp)
585 hp
Power (kW)
430 kW
Torque
800 Nm (590 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
3.5 seconds (estimated)
0–100 km/h
3.7 seconds
Displacement
5,461 cc

Dimensions

Length
4,868 mm (191.7 in)
Width
1,854 mm (73.0 in)
Height
1,471 mm (57.9 in)
Wheelbase
2,874 mm (113.1 in)
Curb weight
2,045 kg (4,508 lb)

Engine & Performance

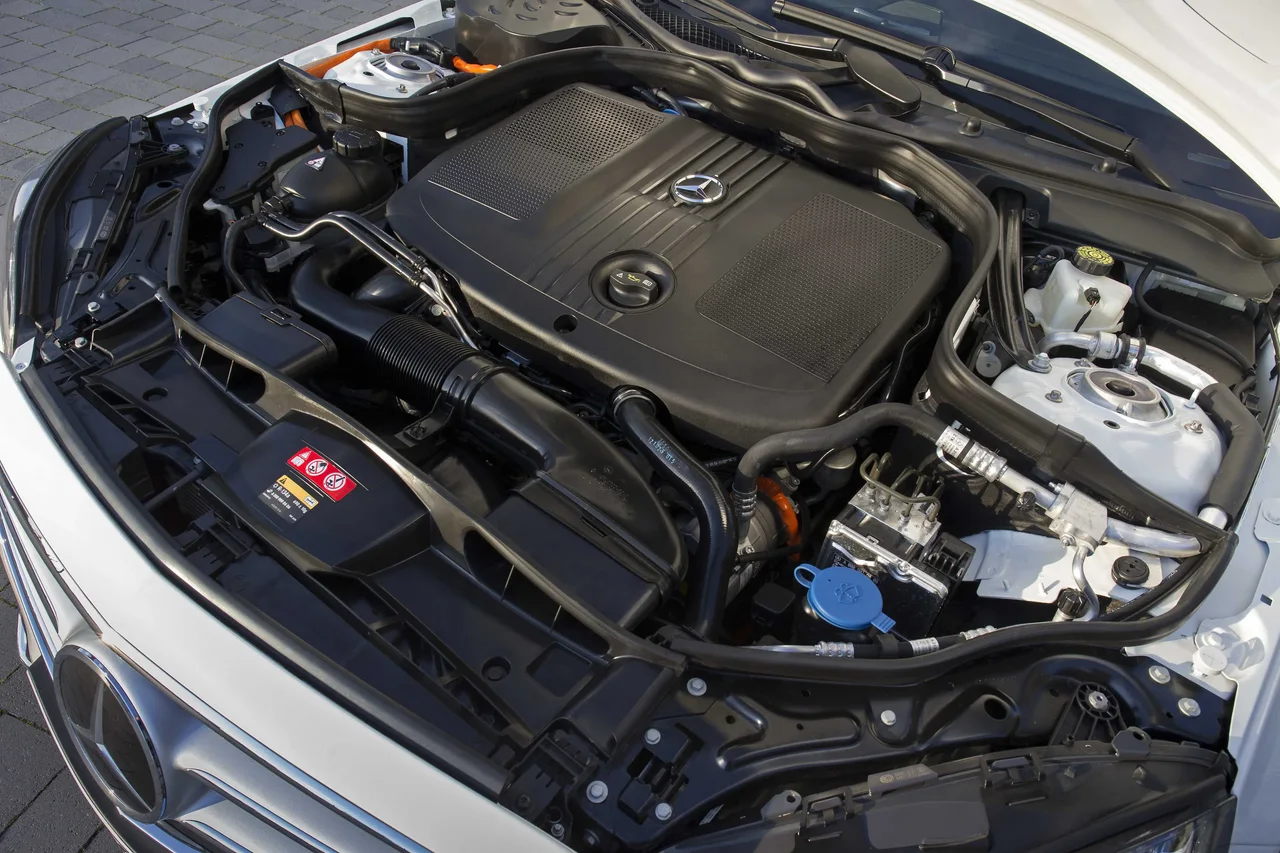

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,750 - 5,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-40
Engine Oil, Volume
8.5 litres
Engine Configuration
Compression Ratio
10 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
75,000 km / 4 years
Fuel Filter
250,000 km / 15 years
Spark Plug
75,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km / 15 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Ratio
1st Gear
4.38 :1
2nd Gear
2.86 :1
3rd Gear
1.92 :1
4th Gear
1.37 :1
5th Gear
1 :1
6th Gear
0.82 :1
Final Drive
2.65 :1

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Pneumatic Air
Spring, Rear
Pneumatic Air
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
F
Fuel Consumption NEDC
City
14.4 litres / 100 km
Highway
8.2 litres / 100 km
Combined
10.5 litres / 100 km
Emission NEDC
CO₂, Combined
246 g/km

Dimensions & Weight

Exterior

Track, Front
1,585 mm (62.4 in)
Track, Rear
1,604 mm (63.1 in)
Overhang, Front
849 mm (33.4 in)
Overhang, Rear
1,182 mm (46.5 in)
Turning Circle
11.3 m
Ground Clearance
113 - 147 mm (4.4 - 5.8 in)

Interior

Head Room, Front
1,056 mm (41.6 in)
Head Room, Rear
1,012 mm (39.8 in)
Hip Room, Front
1,490 mm (58.7 in)
Hip Room, Rear
1,505 mm (59.3 in)
Shoulder Room, Front
1,467 mm (57.8 in)
Shoulder Room, Rear
1,446 mm (56.9 in)

Weight

Gross Weight
2,580 kg (5,688 lb)
Cargo Capacity
535 kg (1,179 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
  • Electrical
  • Manual
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Glass-integrated
Electric
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Adaptive Headlights
  • Headlight Range Adjustment
Fog Lights
Front
LED
Rear
LED
Special Features
Come Home/Leaving Lights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

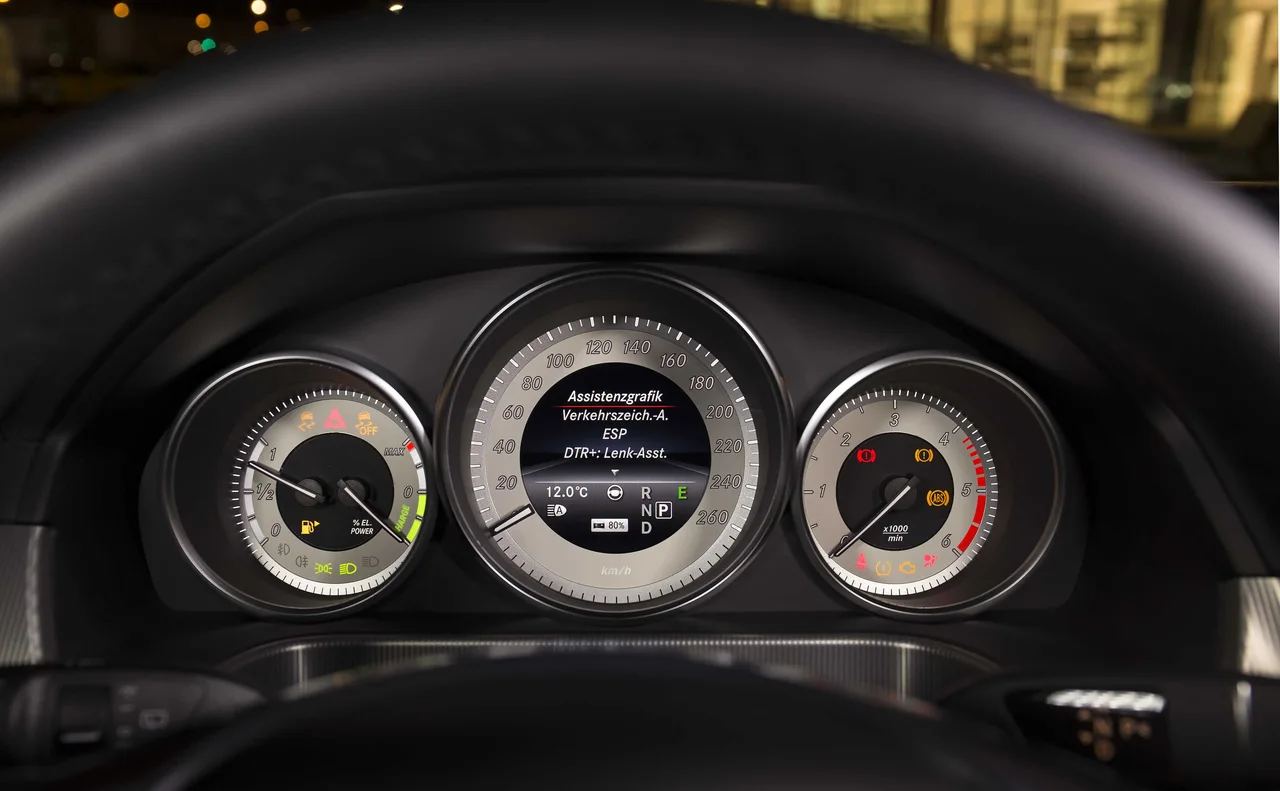

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • AAC
  • MP3
  • WMA
App-Connect
Android Auto
Bluetooth
  • Phone
  • Audio
Phone Preparation
Yes
Cellular Network
Optional
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
SD
Connectivity › Media Inputs
USB
USB-A
Connectivity › Cellular Network
4G
Optional
Displays
Center Display
Yes
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Rear
2
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Ambient Light
Yes
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Material
Leather
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Release Button
Yes
Barrier Net/Grid
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
695 litres
Volume, Back Seat Collapsed
1,950 litres
Depth
1,197 mm (47.1 in)
Depth, Back Seat Collapsed
2,001 mm (78.8 in)
Height
836 mm (32.9 in)
Sill Height
562 mm (22.1 in)

Design

Colour
Black
Colour
Beige
Optional
Brown
Optional
Grey
Optional
White
Optional

Seats

Colour & Material
Upholstery
Leather (Perforated)
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Optional
Backrest Angle
Powered
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Optional
Backrest Angle
Powered
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Massage
Optional
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Power Seat, Driver
User Memory
3 slots
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Launch Control
Yes

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Powered
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Night Vision
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
86 %
Child Occupant
77 %
Vulnerable Road Users
59 %
Safety Assist
86 %
Overall
5/5 stars
Overall Score
34.88
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
13.88
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
3/5 stars
Rollover
Rollover Resistance
9.9 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right
Passenger Seat
in Front of

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
  • Executive Car
  • Sports Car

Spare Parts BETA

Bulb Types
Main Beam
H7
Turn Indicators, Front
PG20 (PSY24W)

ACRISS

Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
