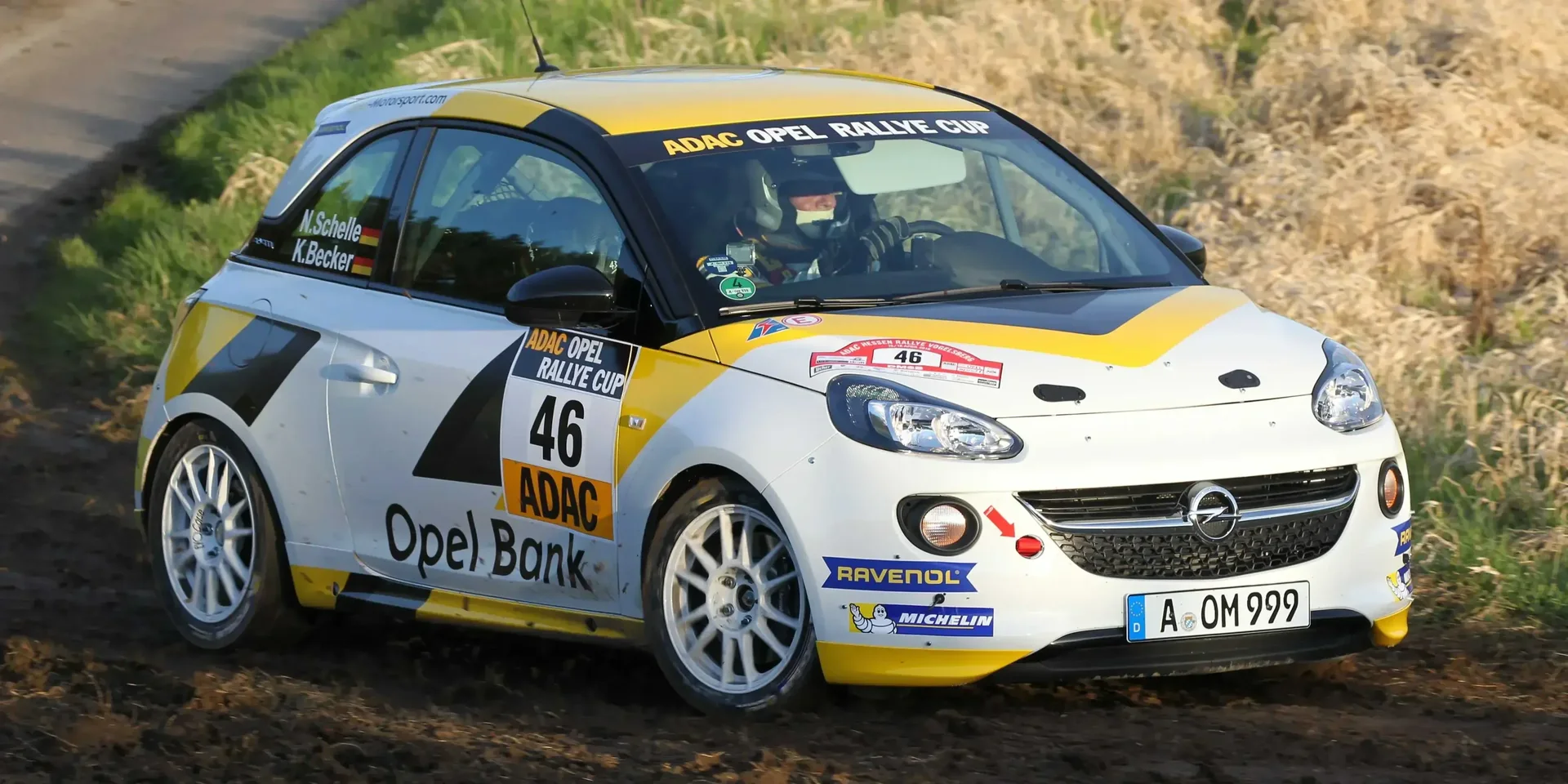

2016 Opel Adam Cup

GermanyGasolineFWDHatchback

Specifications

Vehicle Details

Year
2016
Make
Opel
Model
Adam
Variant
Cup
Body Style
Hatchback
Generation
M13
Seats
4
Doors
3
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Sequential), 5-speed

Powertrain

Engine Name
Cup 1.6 Sequential
Power (hp)
140 hp
Power (kW)
103 kW
Torque
160 Nm (118 lb-ft)

Dimensions

Length
3,698 mm (145.6 in)
Width
1,807 mm (71.1 in)
Height
1,484 mm (58.4 in)
Wheelbase
2,311 mm (91.0 in)

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Configuration
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
30,000 km / 1 years
Accessory Belt
150,000 km / 6 years

Transmission & Drivetrain

Transmission
Automatic (Sequential), 5-speed

Fuel

General › Fuel Cap Position
Rear
Right

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Leather
Optional
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Diameter
228 mm (9.0 in)
Front Brakes
Diameter
257 - 284 mm (10.1 - 11.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
264 mm (10.4 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Dimensions & Weight

Exterior

Width, with Mirrors
1,966 mm (77.4 in)
Track, Front
1,472 mm (58.0 in)
Track, Rear
1,464 mm (57.6 in)
Overhang, Front
818 mm (32.2 in)
Overhang, Rear
569 mm (22.4 in)
Turning Circle
9.8 m
Ground Clearance
127 mm (5.0 in)

Interior

Head Room (est.), Rear
910 - 930 mm (35.8 - 36.6 in)
Leg Room (est.), Rear
690 - 730 mm (27.2 - 28.7 in)

Weight

Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Platform
Fiat Platforms
Small Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
Driver
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Whip
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Yes
Fog Lights
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
56.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
110 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional
Temporary
Optional
Spare Wheel › Full-size
Alloy
Optional
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • RDS
Media Format
  • CD
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Phone
Connectivity › Radio
DAB
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › Bluetooth
Audio
Optional
Displays
Center Display
7 - 8"
Equalizer
Optional
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Back Pocket
Optional
Coin Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
2
Interior Storage › Cup Holders › Front
Middle Console
Optional
Interior Storage › Cup Holders › Rear
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Second Trunk Compartment
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
170 litres
Volume, Back Seat Collapsed
663 litres
Depth
462 mm (18.2 in)
Depth, Back Seat Collapsed
1,041 mm (41.0 in)
Width
963 mm (37.9 in)
Height
874 mm (34.4 in)
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Accent
Painted Inserts ()
Transmission Knob Material
Leather
Pedals
Standard
Pedals
Aluminium
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Optional
Front Seats
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Airbags

Other Airbags
Pedestrian Airbag
No
Middle Airbag
No
Door-mounted Airbags
No
Seat Belt Airbag
No
Seat Cushion
No
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Active Bonnet
No
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
87 %
Child Occupant
72 %
Vulnerable Road Users
65 %
Safety Assist
81 %
Overall
4/5 stars

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
2 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
City Car
Australian Classification
Microcar
European Segment
A-Segment
Car.info Classification
Mini Car

ACRISS

Type
2-3 Doors (B)
