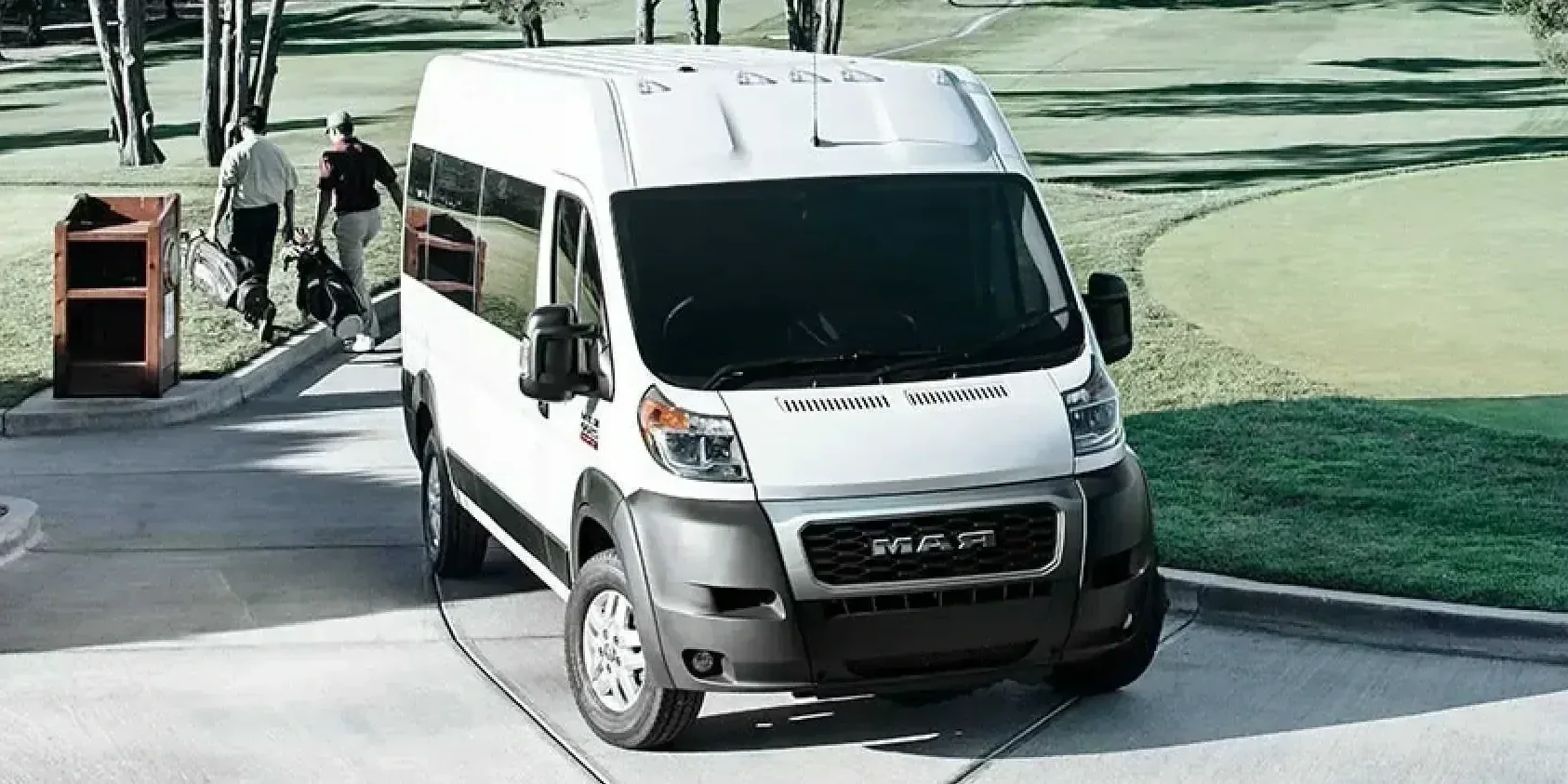

2016 Ram ProMaster

Specifications

Generation

VF

Seats

1

Doors

4

Fuel

Gasoline

Drivetrain

FWD

Transmission

Automatic (Electrohydraulic), 6-speed

10 litres

Engine Fluids › Engine Coolant

OAT: Yes

Car Battery

Voltage: 12 V
Battery Capacity: 95 Ah
Alternator Charge Current: 180 - 220 A
Alternator Voltage: 14 V

Engine Configuration

Bore: 96 mm (3.8 in)
Stroke: 83 mm (3.3 in)
Compression Ratio: 10.2 :1
Engine Configuration: V-Engine
Naturally Aspirated: Yes
Synchronization: Timing Chain
Engine Placement: Front
Engine Mount: Transversally
Type of Combustion Engine

Service Intervals

Air Filter: 48,000 km / 3 years
Spark Plug: 160,000 km (99,419 mi)
Brake Fluid: 2 years
Oil Change & Engine Filter: 16,000 km / 1 years
Engine Coolant: 240,000 km / 10 years
Transmission, Fluid: 96,000 km / 6 years
Transmission, Fluid Filter: 96,000 km / 6 years
Interior Filter: 32,000 km / 2 years

Piston

Fuel System

Electronic (Multi-Point) Fuel Injection

Camshaft Type

DOHC

Engine Block

Aluminium

Engine Heads

Aluminium

Engine Cooling

Liquid Cooling

6th Gear

0.65 :1

Final Drive

3.86 :1

Reverse

3.04 :1

Width

32 mm (1.3 in)

Cooling

Ventilated

Rear Brakes

Diameter: 279 mm (11.0 in)
Width: 16 mm (0.6 in)

Cargo Capacity

1,941 kg (4,279 lb)

Permitted Axle Load, front

2,100 kg (4,630 lb)

Permitted Axle Load, rear

2,400 kg (5,291 lb)

Rear Doors

Sliding (Right)

Door Handles

Pull-out

Display: Yes

Instrument Cluster › Trip Computer › Display

Type: Monochrome
Shape: Square

Climate Control

Air Condition: Optional
Number of Vents, Front: 4 pcs
Controls: Buttons
Faders

Climate Control › Air Condition

Refrigerant: R134A

Connectivity

Radio: AM
FM
Media Format: MP3
Bluetooth: Optional

Connectivity › Radio

XM: Optional

Connectivity › Media Format

CD: Optional

Connectivity › Media Inputs

AUX: Yes
USB: USB-A

Connectivity › Media Inputs › USB

Number of Ports: 2 pcs

Connectivity › Bluetooth

Phone: Optional

Displays

Center Display: 5"
Center Display Controls: Touchscreen
Rotary Dial
Equalizer: Yes

Displays › Center Display Controls

Buttons: Yes

Displays › Center Display Controls › Buttons

Side of Screen: 9 pcs

Speakers

Total Number of Speakers: 4 pcs

Rear-view Mirror

Adjustments: Mechanical
Rear-view Mirror: Mirror Type: Standard

Interior Storage › Storage Compartments

Glove Compartment: Yes
Under Seats: Optional
Door: Driver Side
Passenger Side
Total Number of Compartments: 8 pcs

Interior Storage › Storage Compartments › Glove Compartment

Lockable: Optional

Interior Storage › Storage Compartments › Under Seats

Front: Optional

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 3

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front
Guide Light: Entry Guard

Other Equipment › Make-up Mirror

Driver Side: Optional
Passenger Side: Optional
Make-up Light: Optional

Other Equipment

Clock: Yes
12V Outlet: Front
Carpets: Optional
Ashtray: Optional
Cigarette Lighter: Optional

Other Equipment › Clock

Digital: Center Display

Other Equipment › 12V Outlet

Rear: Optional

Other Equipment › Carpets

Front: Optional

Other Equipment › Ashtray

Front: Optional

Phone

Parking Heater

Cabin Heater: Optional

Parking Heater › Cabin Heater

Engine Heater: Optional
Remote: Optional
Timer: Optional

Cameras

Rear: Optional

Optional

-

Belt Pretensioner

Optional

-

Belt Load Limiter

Optional

-

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats

Type of Belt › Three-Point-Belt

Centre Rear Seat: Optional

Minibus

Australian Classification

People Mover

European Segment

M-Segment

Car.info Classification

Passenger Van

ProMaster

8.9

€67,000

MSRP · EUR

Body

Dimensions › Turning Circle

L4: 14.26 m

Side Door › Side Door Height

H2: 1,753 mm (69.0 in)

Side Door › Side Door Width

L4: 1,250 mm (49.2 in)

Rear Doors › Rear Doors Height

H2: 1,791 mm (70.5 in)

Rear Doors

Rear Doors Width: 1,562 mm (61.5 in)

Cargo Space › Cargo Volume

L4H2: 13,105 litres

Cargo Space › Depth

L4: 4,069 mm (160.2 in)

Cargo Space › Height

H2: 1,958 mm (77.1 in)

Weight

Curb Weight: 2296 kg (5,062 lb)

Weight › Gross Weight

L4H2: 4,241 kg (9,350 lb)

Number of Wiper Speeds

2

Speed Sensing Intermittent

Optional

Intermittent Control

Yes

Windows

Window Lifts, Front: Powered
Heated Windows: Rear
Heat-Insulating Windows: Front
First Row
Tinted Windows: Optional
Safety Glass: Yes

Windows › Window Lifts, Features

Pinch Protection: Driver
Passenger
One-touch up/down: Optional

Windows › Window Lifts, Features › One-touch up/down

Driver: Optional

Windows › Tinted Windows

Second Row: Optional
Rear Window: Optional

Windows › Safety Glass

Front: Laminated
Side: Tempered

Other Equipment

Tow Hook: Front
Rear
Antenna: Whip
Air Intakes: 1-port
Number of Exhaust Pipes: 1
Mud Flaps: Optional
Side Steps: Optional

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Other Equipment › Side Steps

Stationary: Optional

Optional

Headlight Range Adjustment

Manual (Electric)

Media

Yes

Number of Buttons

6 pcs

Multifunction Steering Wheel › Media

Voice Command: Yes
Answer Phone: Yes
Channels: Yes
Volume: Buttons
Mute Audio: Yes

4 - 6

Number of Driver Seat Adjustments, Total

4 - 6

Number of Passenger Seat Adjustments, Manual

4 - 6

Number of Passenger Seat Adjustments, Powered

4 - 6

Number of Passenger Seat Adjustments, Total

4 - 6

Heated Seats

Optional

Armrest

Optional

Front Seats › Adjustments, Passenger

Seat Depth: Manual
Seat Height: Manual
Backrest Angle: Manual
Lumbar Support: Optional
Headrest, Height: Manual

Front Seats › Heated Seats

Cushion: Optional
Number of Heat Levels: 1

Front Seats › Heated Seats › Cushion

Backrest: Optional

Colour & Material

Seat Colour: Black

-

Curtain Airbag

-

LCV

Variant

Configuration

ProMaster LCV Generations1 of 3

Year

Powertrain

3.6 V6 Automatic

Horsepower

284 hp

Drivetrain

FWD

Fuel

Gasoline

Transmission

Automatic (Electrohydraulic), 6-speed
