2016 Volkswagen Golf GTI

GermanyGasolineFWDConvertible

Photos

Specifications

Vehicle Details

Year
2016
Make
Volkswagen
Model
Golf
Variant
GTI
Body Style
Convertible
Generation
A6 (Type 51)
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 6-speed

Powertrain

Engine Name
Golf GTI Cabriolet 2.0 TSI BMT DSG Sequential
Engine Configuration
Inline
Power (hp)
220 hp
Power (kW)
162 kW
Torque
350 Nm (258 lb-ft)
Top speed
236 km/h (147 mph)
0–60 mph
6.6 seconds (estimated)
0–100 km/h
6.9 seconds
Displacement
1,984 cc

Dimensions

Length
4,258 mm (167.6 in)
Width
1,782 mm (70.2 in)
Height
1,414 mm (55.7 in)
Wheelbase
2,578 mm (101.5 in)
Curb weight
1,505 kg (3,318 lb)

Engine & Performance

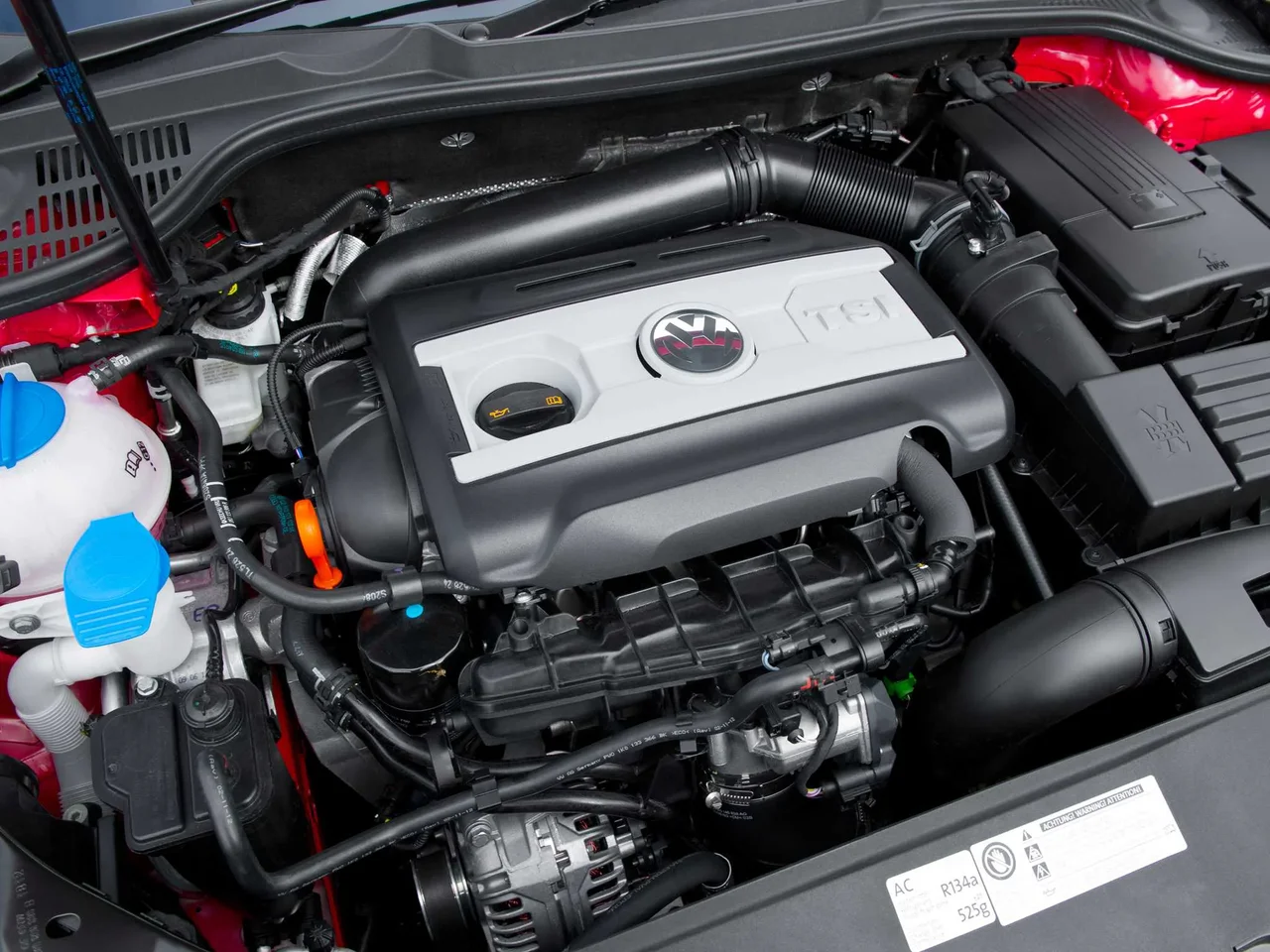

Engine

Engine Specification
Rev. at Max Power
4,500 - 6,200 rpm
Rev. at Max Torque
1,500 - 4,400 rpm
Engine Fluids
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.6 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Leather
Optional
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
55 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
B
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
8.2 litres / 100 km
Highway
5.5 litres / 100 km
Combined
6.5 litres / 100 km
Emission NEDC
CO₂, Combined
152 g/km

Performance

Acceleration
0-80 km/h
5.1 sec
Drag Coefficient
0.34

Dimensions & Weight

Exterior

Width, with Mirrors
2,044 mm (80.5 in)
Width, open Doors
4,029 mm (158.6 in)
Height (Bonnet Open)
1,767 mm (69.6 in)
Height (Roof Opening)
1,898 mm (74.7 in)
Track, Front
1,533 mm (60.4 in)
Track, Rear
1,514 mm (59.6 in)
Approach Angle
11.7 °
Breakover Angle
9.7
Departure Angle
14.1 °
Turning Circle
10.9 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room, Front
971 - 1,007 mm (38.2 - 39.6 in)
Head Room, Rear
948 mm (37.3 in)
Leg Room, Front
1,048 mm (41.3 in)
Leg Room, Rear
833 mm (32.8 in)
Hip Room, Front
1,468 mm (57.8 in)
Hip Room, Rear
1,228 mm (48.3 in)

Weight

Gross Weight
1,950 kg (4,299 lb)
Max Trailer Load, braked 12%
1,400 kg (3,086 lb)
Max Trailer Load, braked 8%
1,700 kg (3,748 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
520 kg (1,146 lb)
Max Roof Load
0 kg (0 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,060 kg (2,337 lb)
Permitted Axle Load, rear
940 kg (2,072 lb)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Pillars
A
Chassis Construction
Unibody
Roof Material
Textile
Doors
Front Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
A Platform (PQ35)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Tow Hook
  • Front
  • Rear
Antenna
Glass-integrated
Cabriolet Roof Opening
Powered
Windblocker
Optional
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic | Semi-Static)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Fastening Type
Lug Bolts
Tightening Torque
120 Nm
Rim Type
Disc Wheel

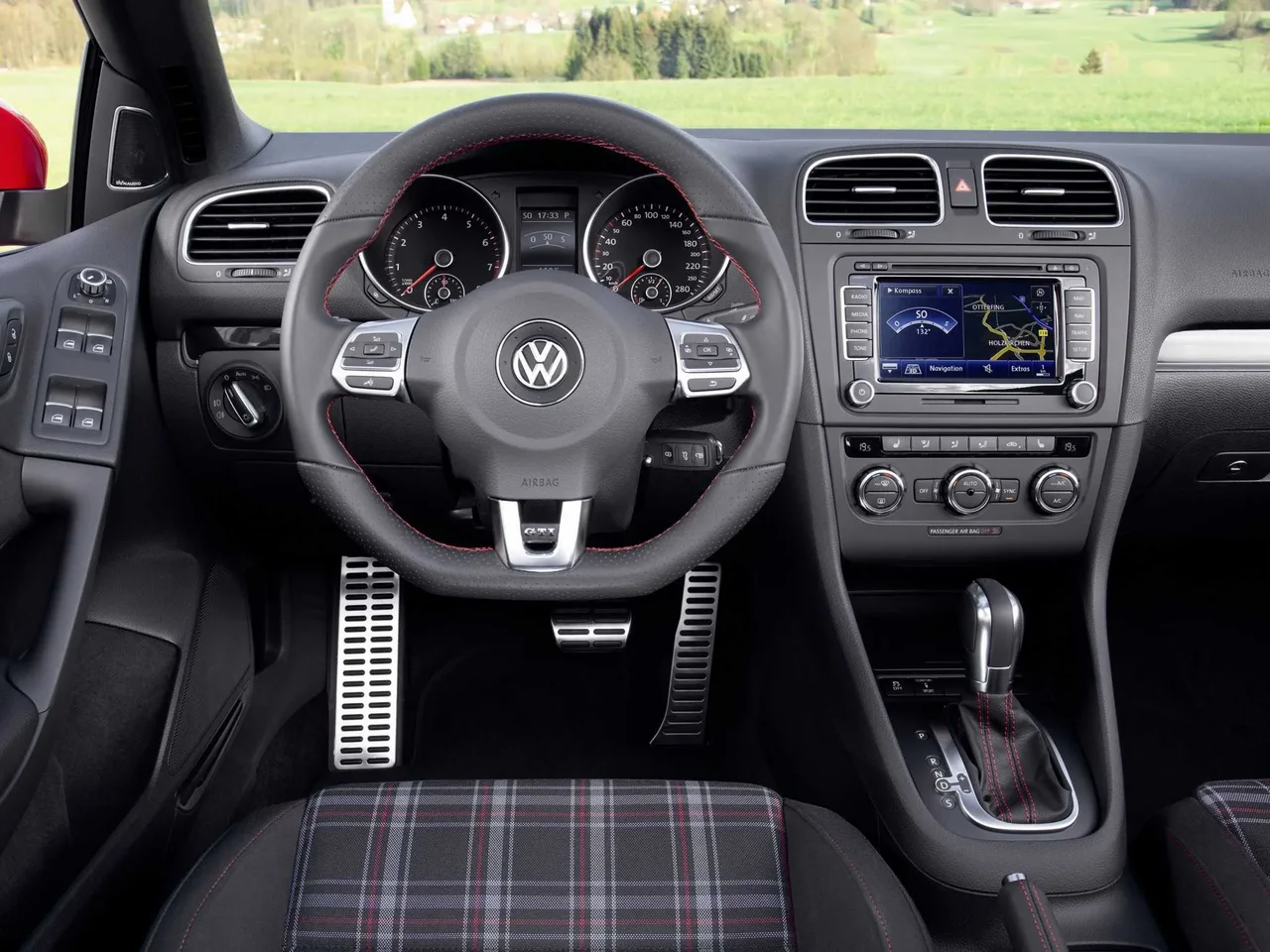

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
525 g
Connectivity
Radio
Optional
Connectivity › Radio
AM
Optional
FM
Optional
DAB
Optional
Connectivity › Media Format
CD
Optional
Memory Card Reader
Optional
MP3
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Connectivity › Media Inputs › AUX
Front
Optional
Connectivity › Media Inputs › USB
Front
Optional
USB-A
Optional
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Optional
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Rear
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
  • Middle Console
  • Driver Door
  • Passenger Door
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Bottom of the Doors
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Optional
Carpets
Optional
Ashtray
Front (Retractable)
Cigarette Lighter
Yes
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Front
Optional
Rear
Optional
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
250 litres
Depth
691 mm (27.2 in)
Depth, Back Seat Collapsed
1,534 mm (60.4 in)
Width
926 mm (36.5 in)
Opening Width
884 mm (34.8 in)
Height
382 mm (15.0 in)
Trunk Door Opening Height
1,462 mm (57.6 in)
Sill Height
675 mm (26.6 in)

Design

Accent
Chrome
Entry Guard Material
Plastic
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
50/50
Second Seat Row › Headrests
Outer Seats
Yes

Features

Comfort Features

Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Cameras
Optional
Rear Camera Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note
GPS
SD-Card
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Stability Assist (TSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Active Bonnet
No
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2011
Adult Occupant
96 %
Child Occupant
86 %
Vulnerable Road Users
53 %
Safety Assist
71 %
Overall
5/5 stars
Adult Occupant
Total Points
34.5 /38
Frontal Impact
15.2 /16
Lateral Impact
15.8 /16
Rear Impact
3.6 /4
Child Occupant
Total Points
42 /49
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
19 /49
Pedestrian
  • 11.3
  • 3.9
  • 3.8
Safety Assist
Seat Belt Reminder (points)
2 /2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Similar convertibles

Suggested vehicles
