2016 Volkswagen up!

GermanyElectricFWDHatchback

Photos

Specifications

Vehicle Details

Year
2016
Make
Volkswagen
Model
up!
Body Style
Hatchback
Generation
Type 12/BL
Seats
4
Doors
5
Fuel
Electric
Drivetrain
FWD
Transmission
Automatic (Fixed), 1-speed

Powertrain

Engine Name
e-up! Single Speed
Engine Configuration
Electric
Power (hp)
82 hp
Power (kW)
60 kW
Torque
210 Nm (155 lb-ft)
Top speed
130 km/h (81 mph)
0–60 mph
11.8 seconds (estimated)
0–100 km/h
12.4 seconds
Electric range
185 km (115 mi)
Battery
18.7 kWh

Dimensions

Length
3,540 mm (139.4 in)
Width
1,645 mm (64.8 in)
Height
1,492 mm (58.7 in)
Wheelbase
2,420 mm (95.3 in)
Curb weight
1,224 kg (2,698 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
2,800 - 12,000 rpm
Rev. at Max Torque
2,800 rpm
Configuration Electric
Type of Electric Car
Electric
Electric Engine Power
60 kW
Electric Engine Horsepower (Metric)
82 hp
Torque
210 Nm (155 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
18.7 kWh
Battery Capacity, Net
16.4 kWh
Number of Batterycells
204
Type of Battery
Li-ion
AC Charge Type
Single-phase
CCS
Yes
Configuration Electric › Front Engines
Power (kW)
60 kW
Horsepower
82 hp
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
6 h
Charge Power
3.6 kW
Configuration Electric › Charge DC
Charge Time, to 80%
0.5 h / 30 min
Charge Power
40 kW
Service Intervals
Brake Fluid
3 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Fixed), 1-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Brake Caliper Pistons
Front
Front Brakes
Diameter
256 mm (10.1 in)
Width
22 mm (0.9 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Sports Suspension
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Energy & Range

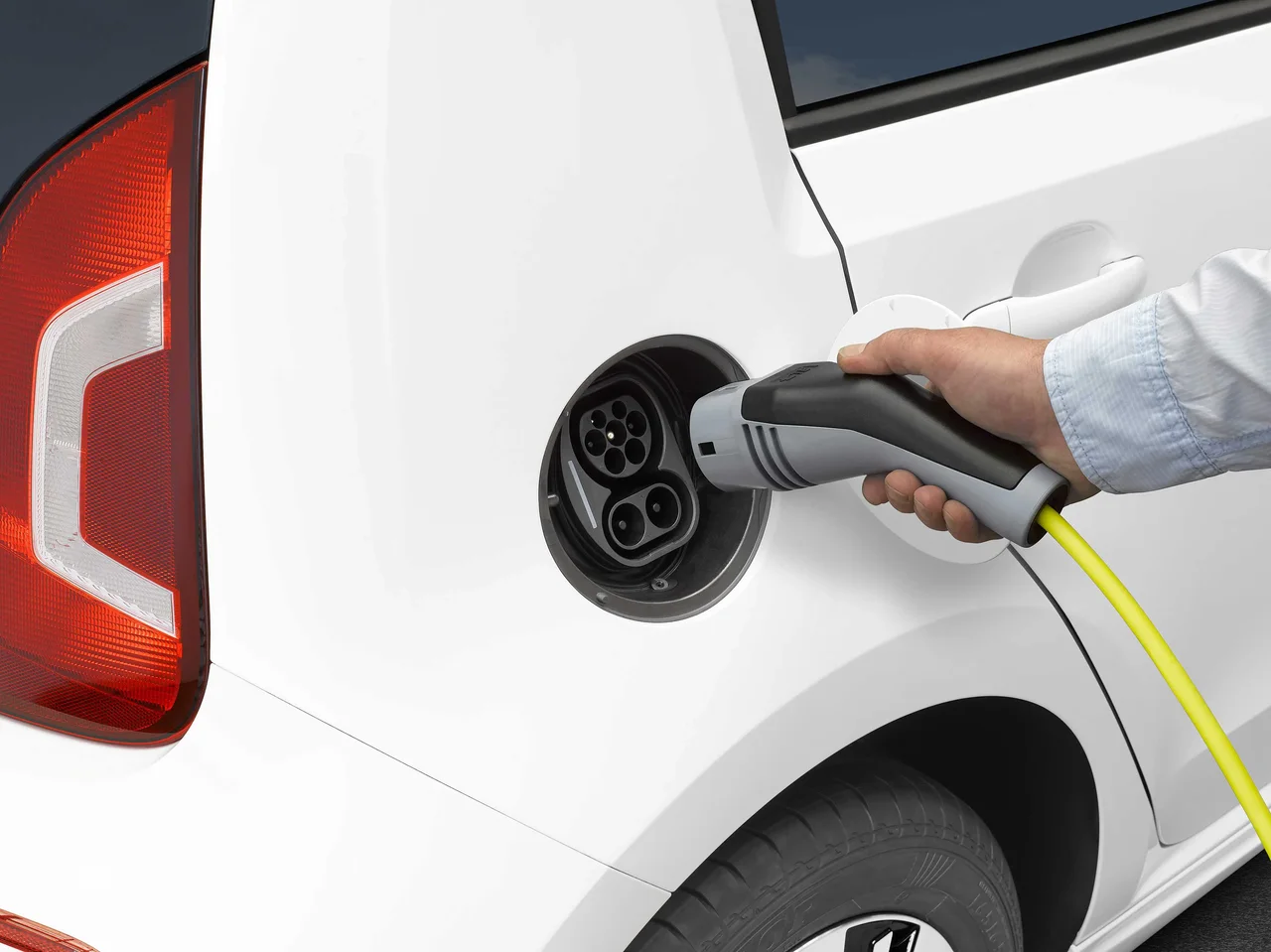

General › Charging Socket Position
Rear
Right
Emission
Emission Class
A+
WLTP Consumption
Electric Range
185 km (115 mi)
Fuel Consumption NEDC
City
0 litres / 100 km
Highway
0 litres / 100 km
Combined
0 litres / 100 km
Energy consumption
11.7 kWh/100km
Electric Range
120 - 160 km (75 - 99 mi)
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,910 mm (75.2 in)
Width, open Doors
3,493 mm (137.5 in)
Height (Bonnet Open)
1,619 mm (63.7 in)
Track, Front
1,428 mm (56.2 in)
Track, Rear
1,424 mm (56.1 in)
Overhang, Front
585 mm (23.0 in)
Overhang, Rear
535 mm (21.1 in)
Approach Angle
15.1 °
Breakover Angle
11
Departure Angle
23.5 °
Turning Circle
9.8 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
993 mm (39.1 in)
Head Room, Rear
947 mm (37.3 in)
Leg Room, Front
1,009 mm (39.7 in)
Leg Room, Rear
789 mm (31.1 in)
Hip Room, Front
1,369 mm (53.9 in)
Hip Room, Rear
1,388 mm (54.6 in)

Weight

Gross Weight
1,510 kg (3,329 lb)
Cargo Capacity
286 – 361 - 361 kg (796 - 796 lb)
Max Roof Load
50 kg (110 lb)
Permitted Axle Load, front
790 kg (1,742 lb)
Permitted Axle Load, rear
750 kg (1,653 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
NSF Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Heated Windows
  • Front
  • Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Electric
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional
Fog Lights
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Tightening Torque
110 Nm
Rim Type
Disc Wheel
Tire Pressure Monitoring System (TPMS)
Indirect
Optional

Interior

Equipment

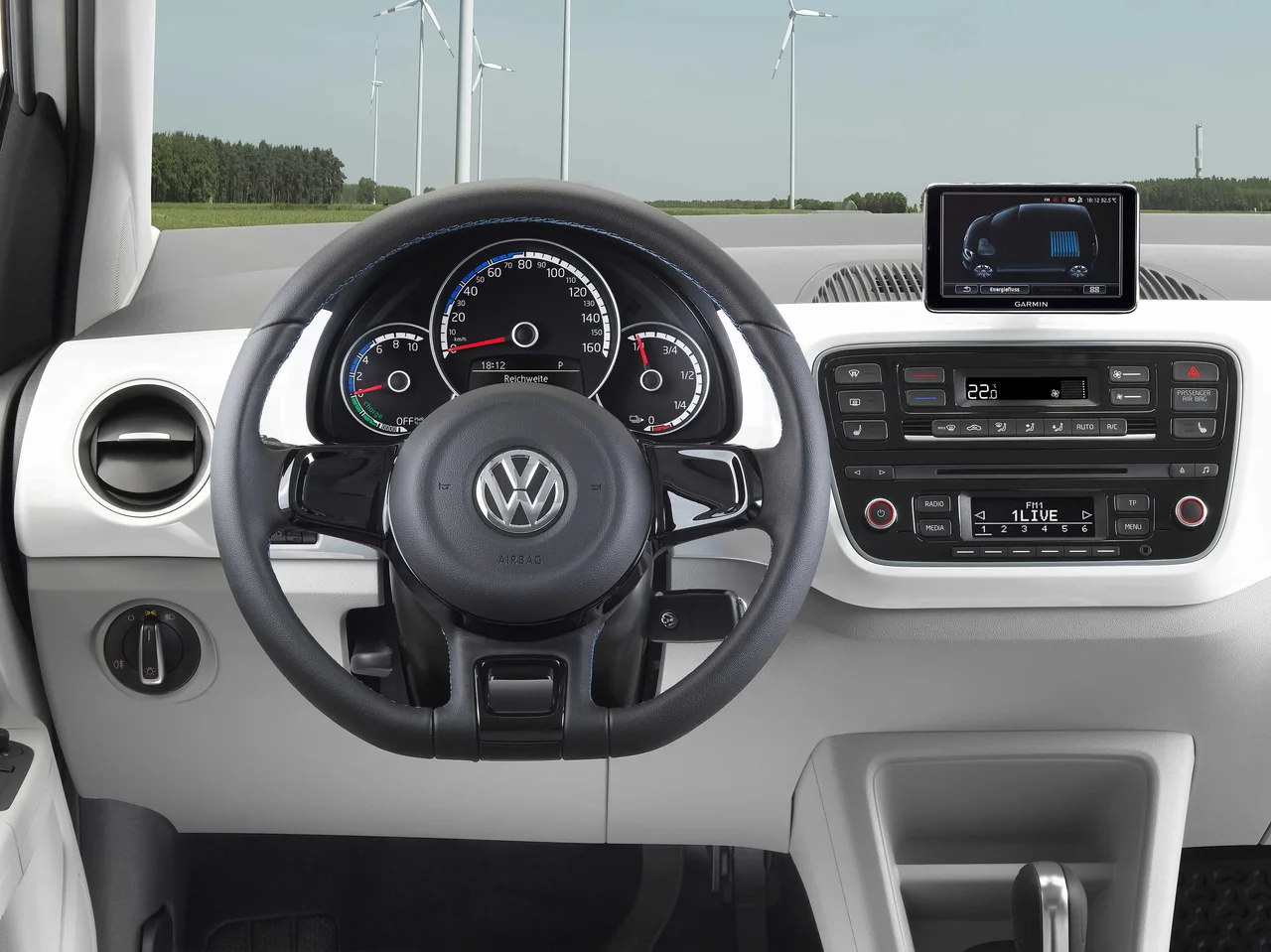

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Optional
Outside Temperature Indicator
Optional
Climate Control › Air Condition
R134A
Optional
Connectivity
Radio
Yes
Media Format
  • CD
  • MP3
Bluetooth
Optional
Connectivity › Media Format
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Optional
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Light
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage
Cup Holders
Optional
Lights
Read Light
Front
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Other Equipment
Passenger Side
Optional
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electro-mechanical
Adjustments
Tilt
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
250 litres
Volume, Back Seat Collapsed
923 litres
Depth
632 mm (24.9 in)
Depth, Back Seat Collapsed
1,252 mm (49.3 in)
Width
868 mm (34.2 in)
Trunk Door Opening Height
1,990 mm (78.3 in)
Sill Height
769 mm (30.3 in)

Design

Interior Decor Material
Plastic
Transmission Knob Material
Leather
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Front Seats
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Optional

Other Features

GPS
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Safety Testing

General
Test Year
2011
Adult Occupant
89 %
Child Occupant
80 %
Vulnerable Road Users
46 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2012
Overall Score
33.37
ANCAP Safety Rating
5
Adult Occupant
Total Points
32 /38
Frontal Impact
14.2 /16
Lateral Impact
14.4 /16
Rear Impact
3.4 /4
Frontal Offset
14.2
Side Impact
14.17
Pole
2
Whiplash Protection (Assessment)
Good
Child Occupant
Total Points
39.1 /49
Safety Features
4 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.7
  • 0
  • 4.9
Pedestrian
Protection (Assessment)
Marginal
Safety Assist
Seat Belt Reminders
3
Teknikens Världs Moose Test
Test Year
2014
Speed
62 km/h (39 mph)

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
160,000 km / 8 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Trunk
on Floor

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
City Car
Australian Classification
Microcar
European Segment
A-Segment
Car.info Classification
Mini Car

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Datyime Running Light
W3×16q (W21/5W)
Fog Light, Front
HB4
Fog Light, Rear
BAZ15d (P21/4W)
Positioning-/Parking Lights, Front
W3×16q (W21/5W)
Rear/Brake Light
BAZ15d (P21/4W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)
R10W
Yes
RY10W
Yes

ACRISS

Category
Mini Elite (N)

Awards

World
Car of the Year
2012
Golden Steering Wheel
Subcompact
2011
