2016 Volvo V70

SwedenDieselFWDWagon

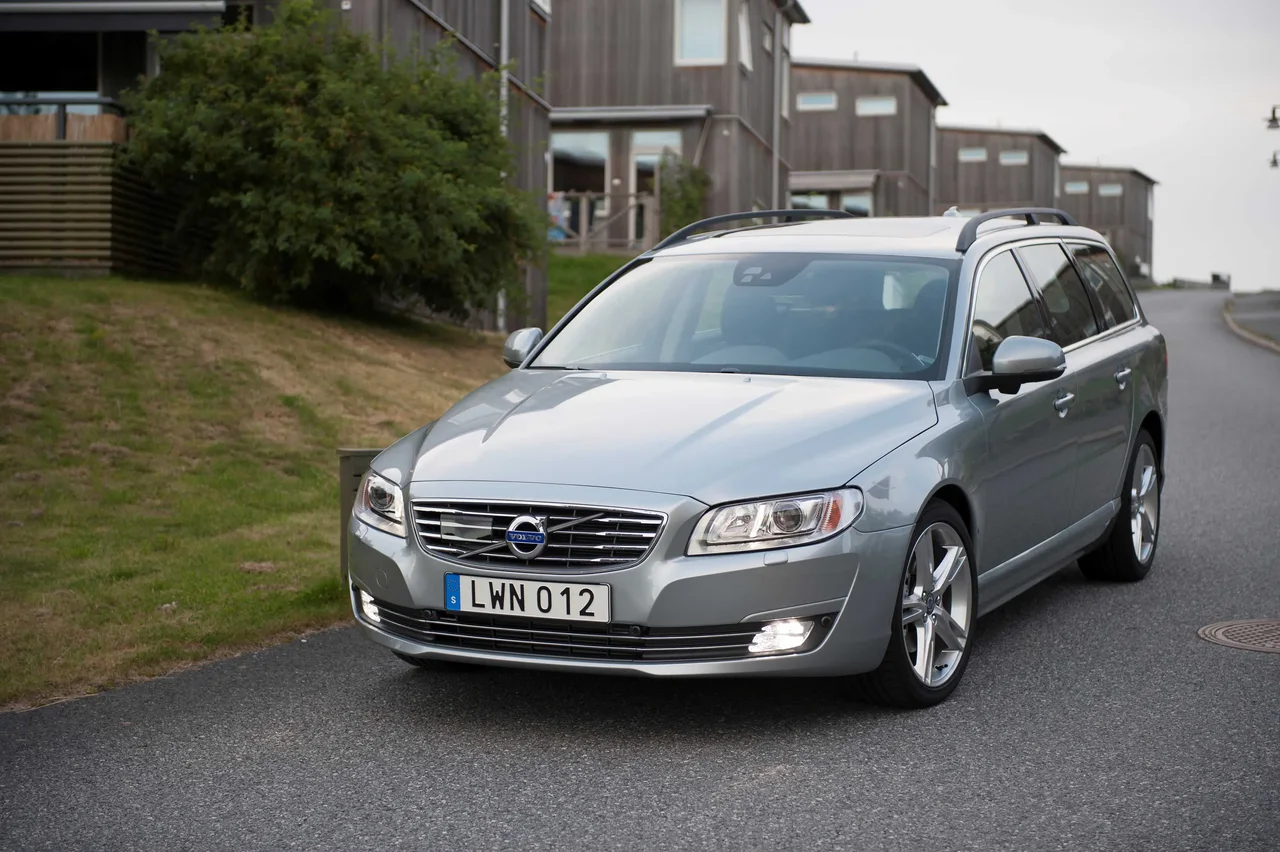

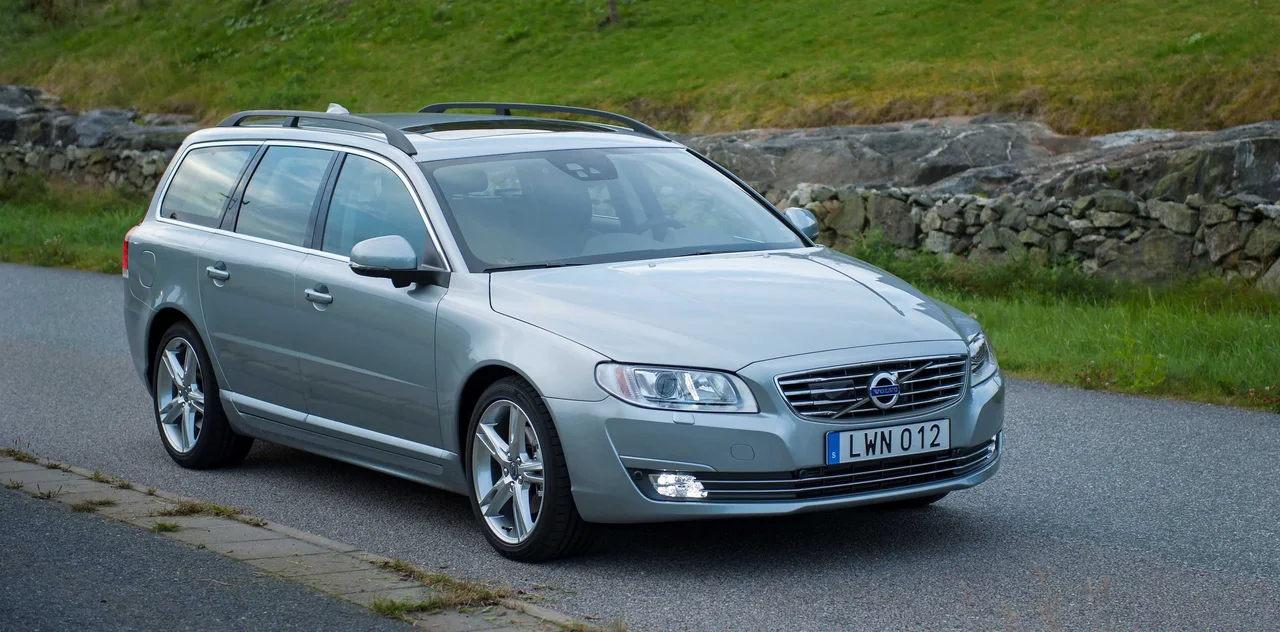

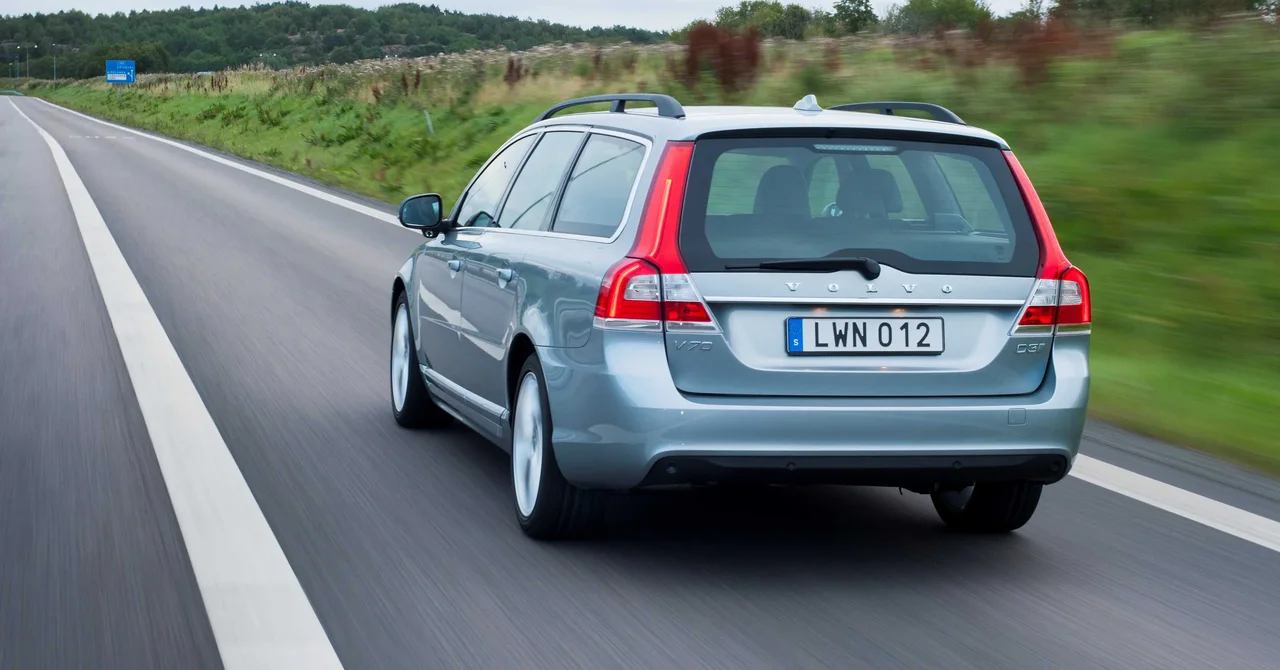

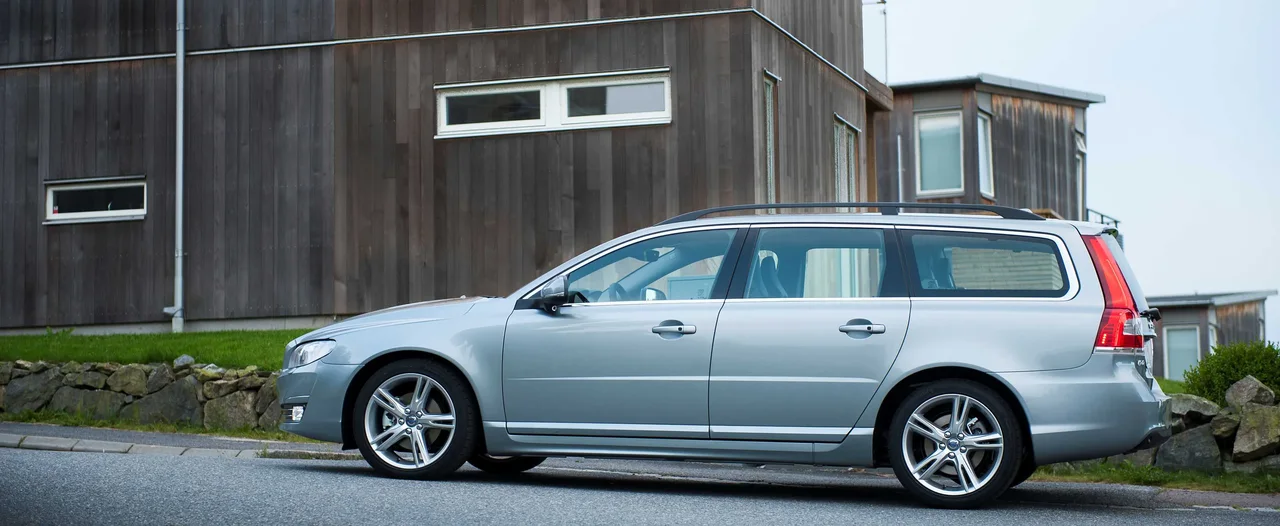

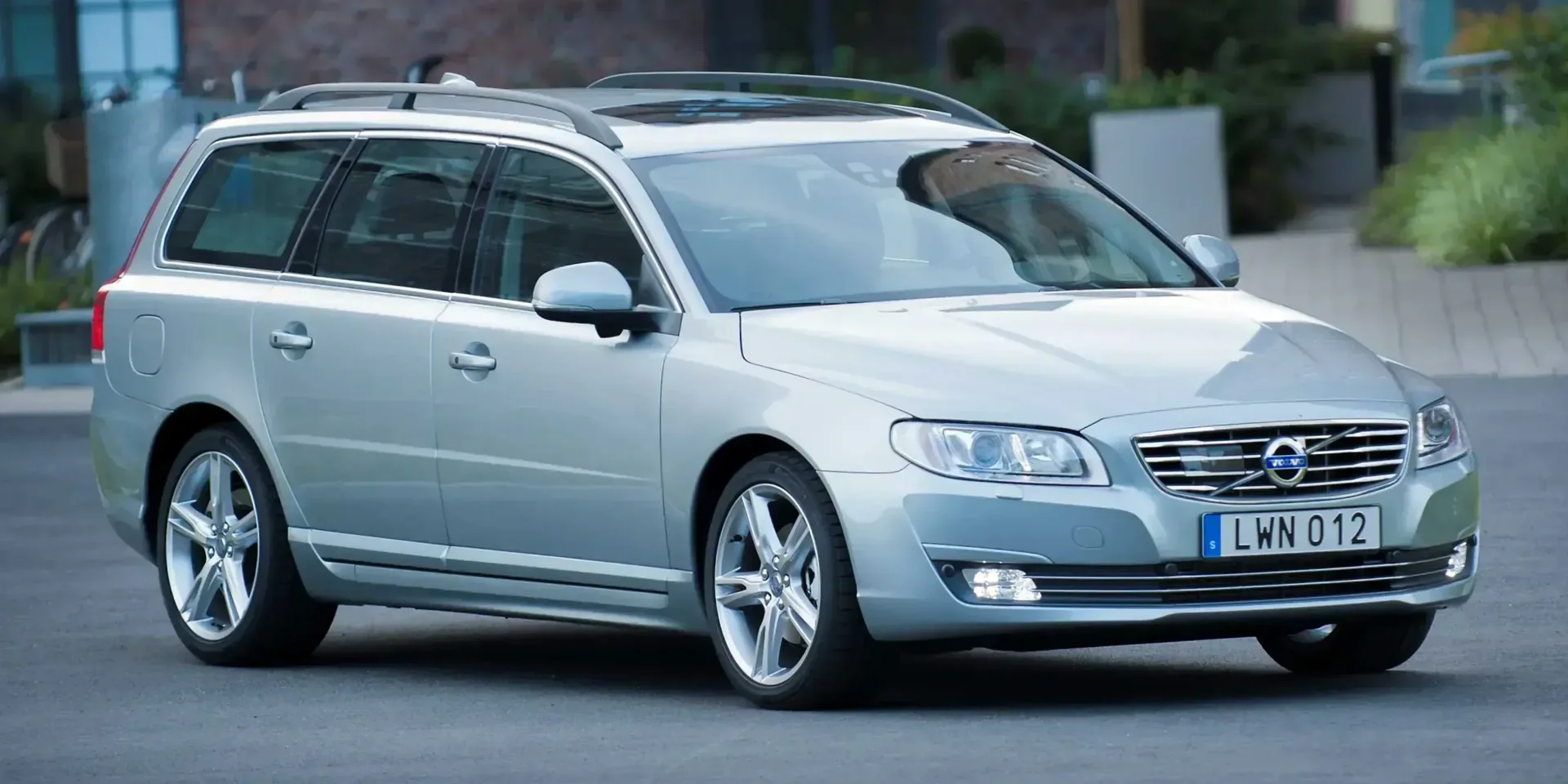

Photos

Specifications

Vehicle Details

Year
2016
Make
Volvo
Model
V70
Body Style
Wagon
Generation
24 2nd Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Powertrain

Engine Name
D3
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
320 Nm (236 lb-ft)
Top speed
205 km/h (127 mph)
0–60 mph
9.3 seconds (estimated)
0–100 km/h
9.8 seconds
Displacement
1,969 cc

Dimensions

Length
4,814 mm (189.5 in)
Width
1,861 mm (73.3 in)
Height
1,547 mm (60.9 in)
Wheelbase
2,816 mm (110.9 in)
Curb weight
1,789 kg (3,944 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,750 rpm
Rev. at Max Torque
1,750 - 3,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
5.9 litres
Car Battery
Voltage
12 V
Cold Start Power
700 - 800 A
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
93.2 mm (3.7 in)
Compression Ratio
16 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
150,000 km / 10 years
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
1 years
Oil Change & Engine Filter
30,000 km / 1 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
300 - 336 mm (11.8 - 13.2 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
302 mm (11.9 in)
Width
12 mm (0.5 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
4.6 – 4.7 litres / 100 km
Highway
3.9 – 4 litres / 100 km
Combined
4.1 – 4.3 litres / 100 km
Emission NEDC
CO₂, Combined
108 – 112 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,106 mm (82.9 in)
Track, Front
1,588 mm (62.5 in)
Track, Rear
1,586 mm (62.4 in)
Overhang, Front
978 mm (38.5 in)
Overhang, Rear
1,020 mm (40.2 in)
Turning Circle
11.2 m
Ground Clearance
140 - 160 mm (5.5 - 6.3 in)

Interior

Head Room, Front
1,010 mm (39.8 in)
Head Room, Rear
981 mm (38.6 in)
Leg Room, Front
1,064 mm (41.9 in)
Leg Room, Rear
880 mm (34.6 in)
Hip Room, Front
1,391 mm (54.8 in)
Hip Room, Rear
1,400 mm (55.1 in)
Shoulder Room, Front
1,457 mm (57.4 in)
Shoulder Room, Rear
1,434 mm (56.5 in)

Weight

Gross Weight
2,260 kg (4,982 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
471 kg (1,038 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Ford Motor Company
EUCD Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Number of Wiper Speeds
3
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Front
Yes
Rear
Yes
Special Features
Main Beam Assist
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Manual

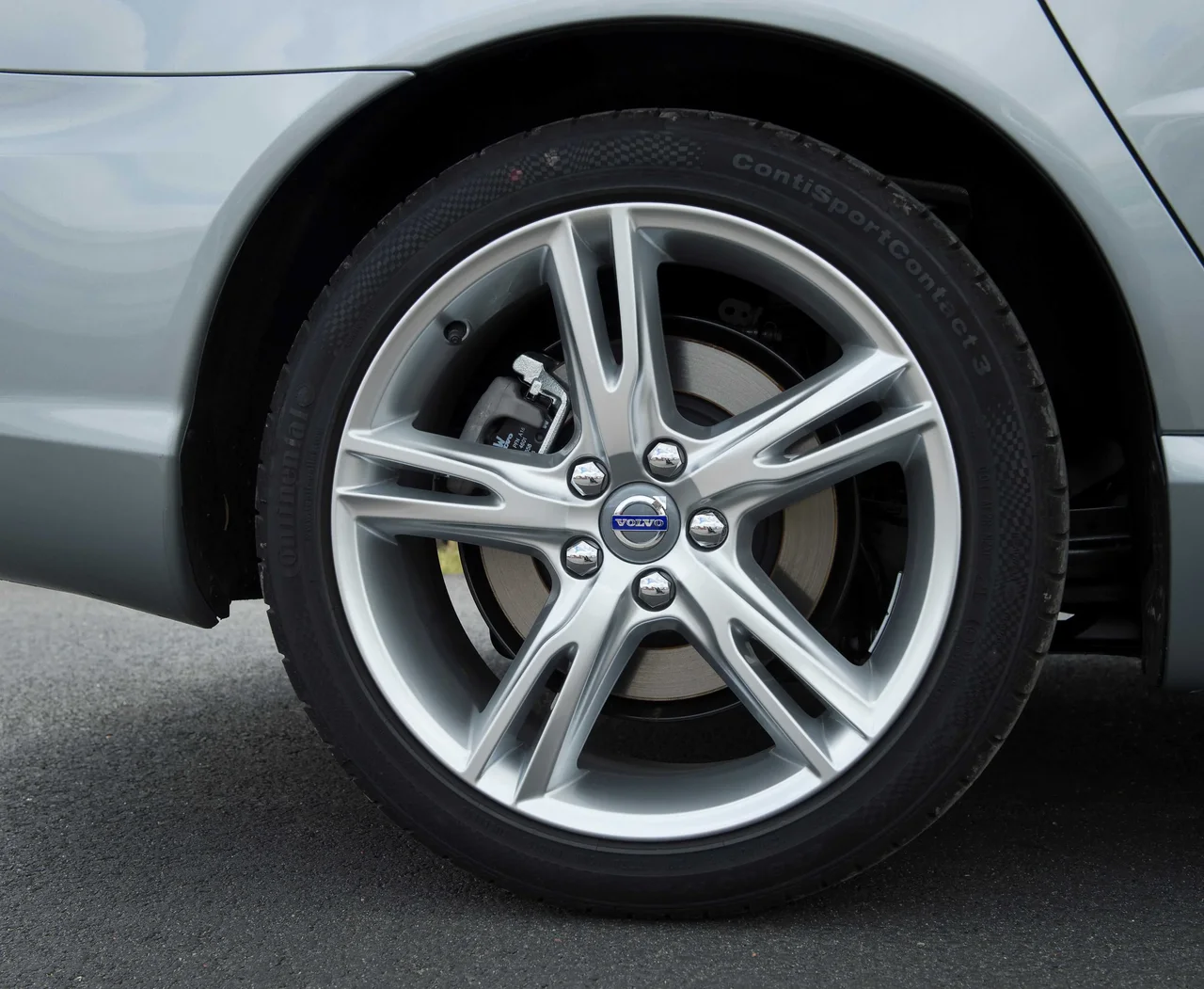

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
820 g
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Internet Radio
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
Yes
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
Optional
Speakers
Total Number of Speakers
6 - 12 pcs
Speakers Max. Watt
80 - 650 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
  • Yes
  • Optional
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Armrest
Optional
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Ambient Light
Optional
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Yes
Barrier Net/Grid
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
575 litres
Volume, Back Seat Collapsed
1,600 litres
Depth
1,089 mm (42.9 in)
Depth, Back Seat Collapsed
1,878 mm (73.9 in)
Width
1,153 mm (45.4 in)
Height
801 mm (31.5 in)
Sill Height
648 mm (25.5 in)

Design

Accent
Aluminium
Transmission Knob Material
Leather

Seats

Colour & Material
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Smartphone App
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Optional
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2009
Adult Occupant
88 %
Child Occupant
84 %
Vulnerable Road Users
43 %
Safety Assist
71 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
  • H7
  • H9
Turn Indicators, Front
BAY9s (H21W)
Turn Indicators, Side Mirrors
W2.1×9.5d (WY5W)
Glove Compartment
SV8.5 (C5W)
Make-up Mirrors
W2×4.6d (W2.3W)
License Plate Light
SV8.5 (C5W)
PY21W
Yes

ACRISS

Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
