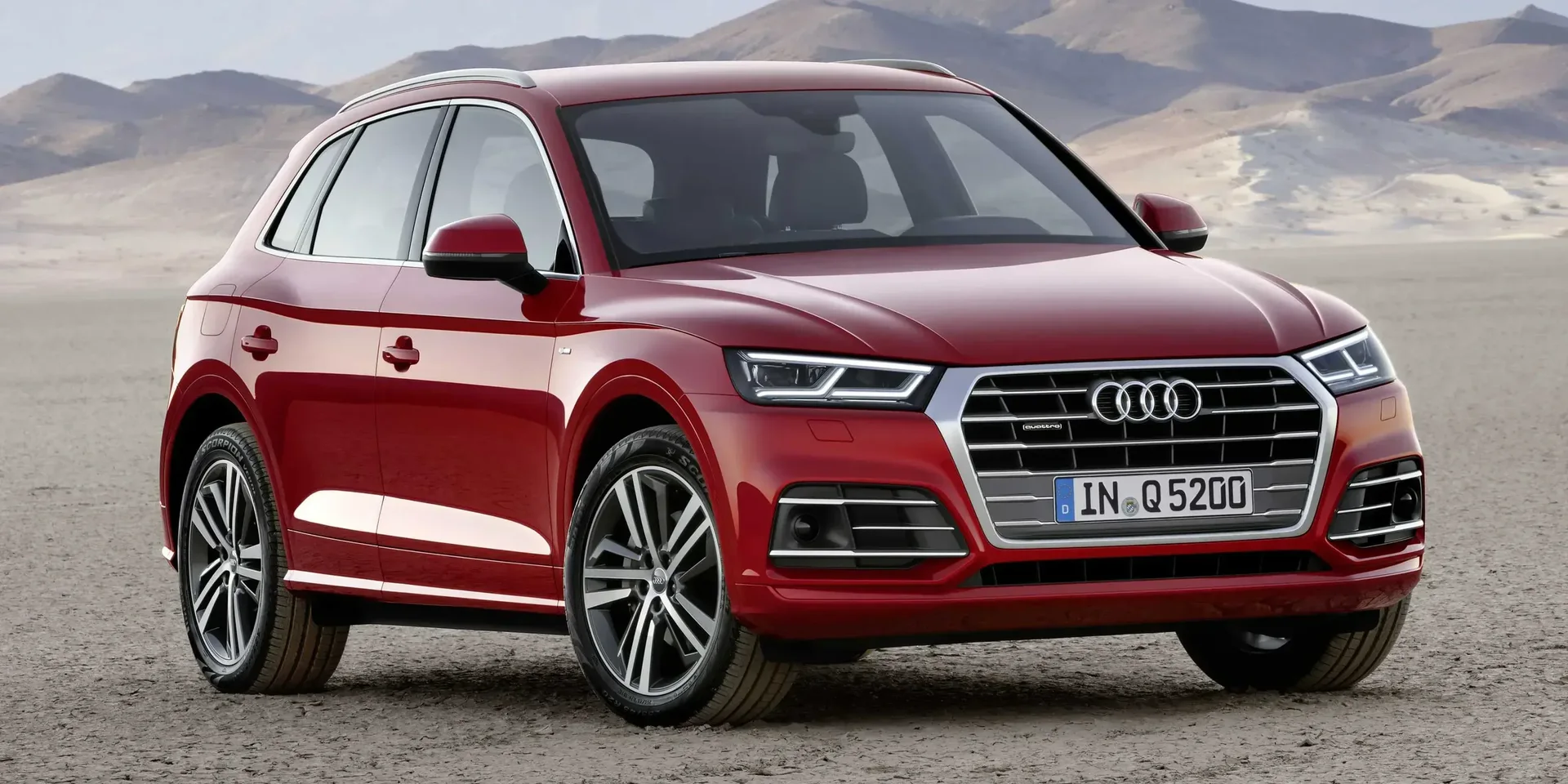

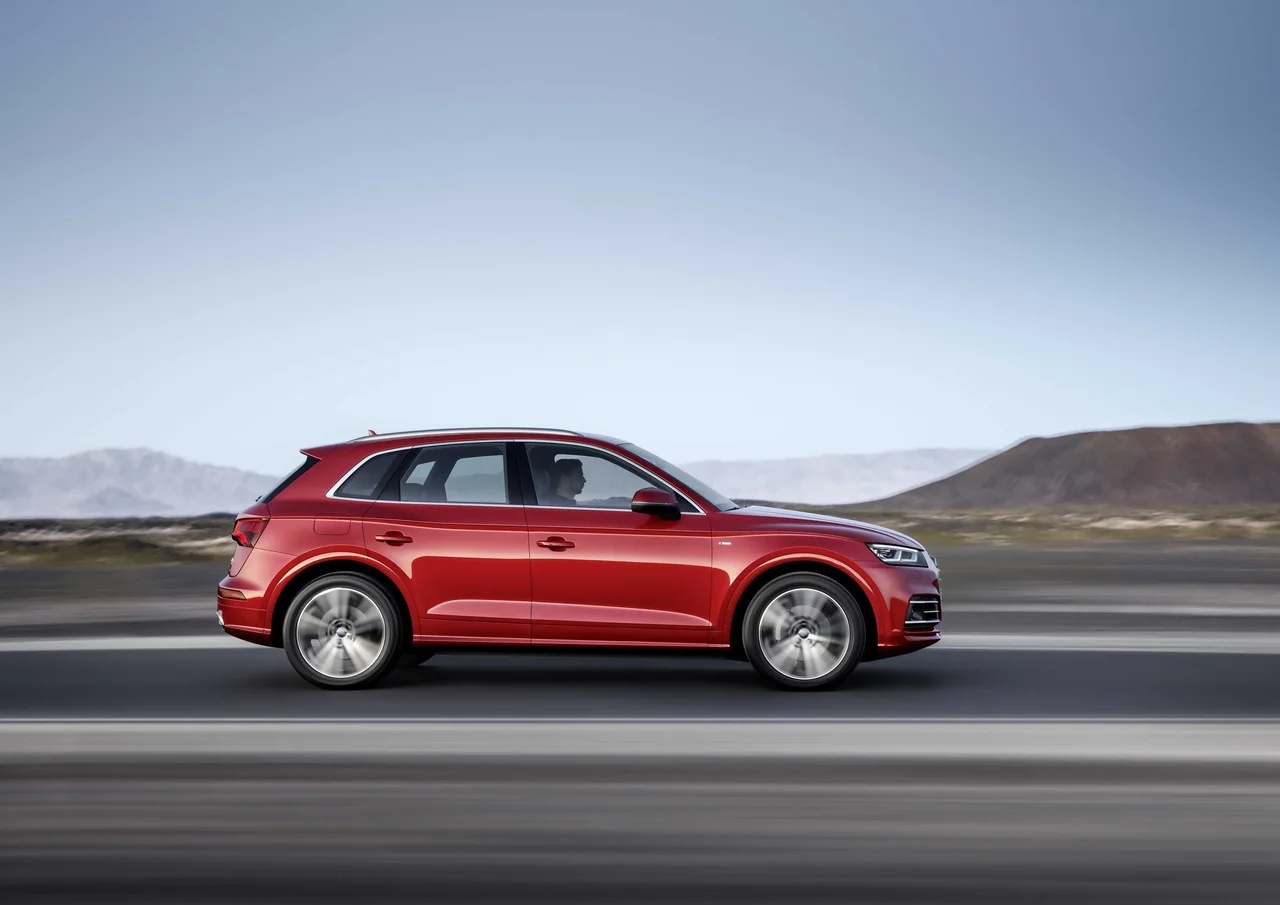

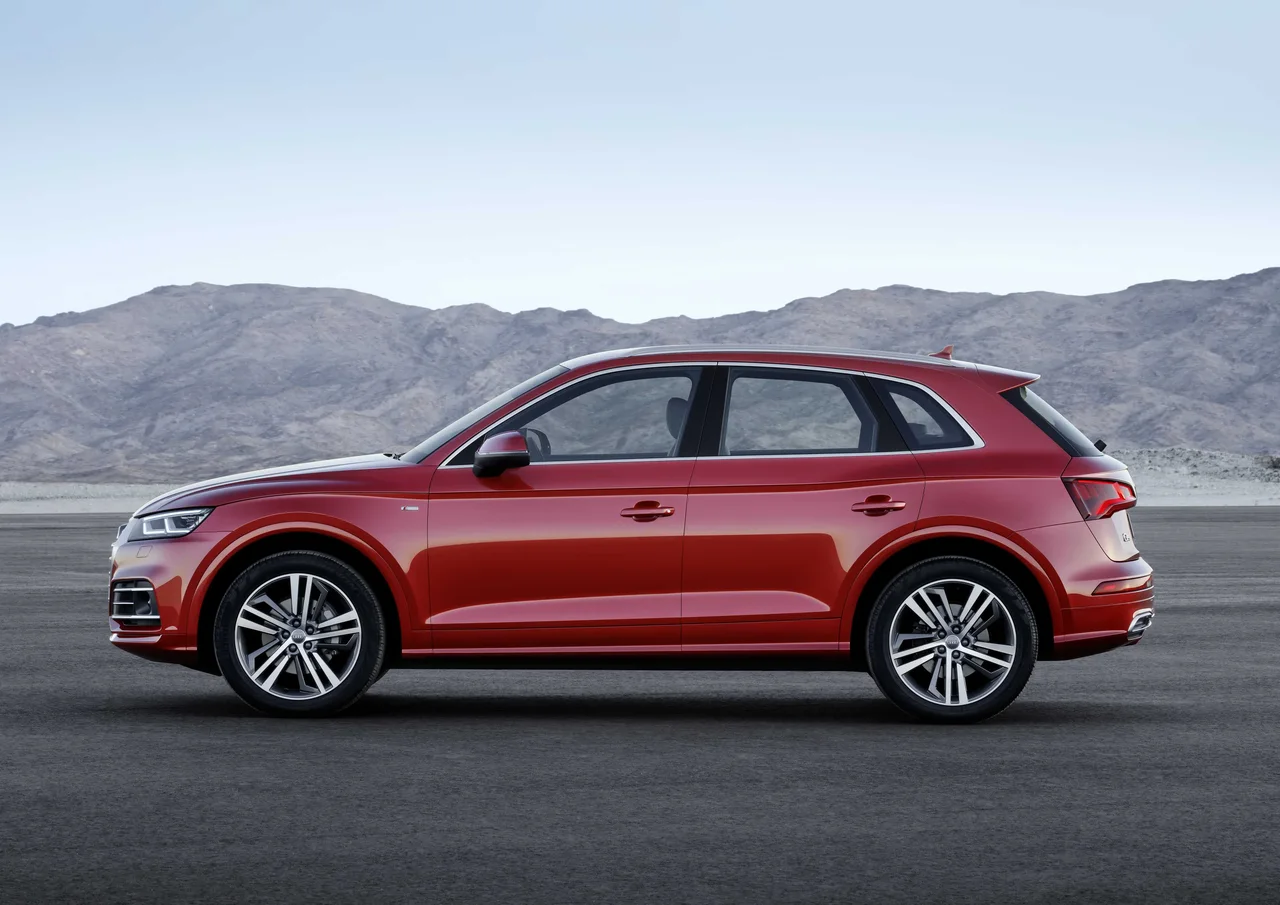

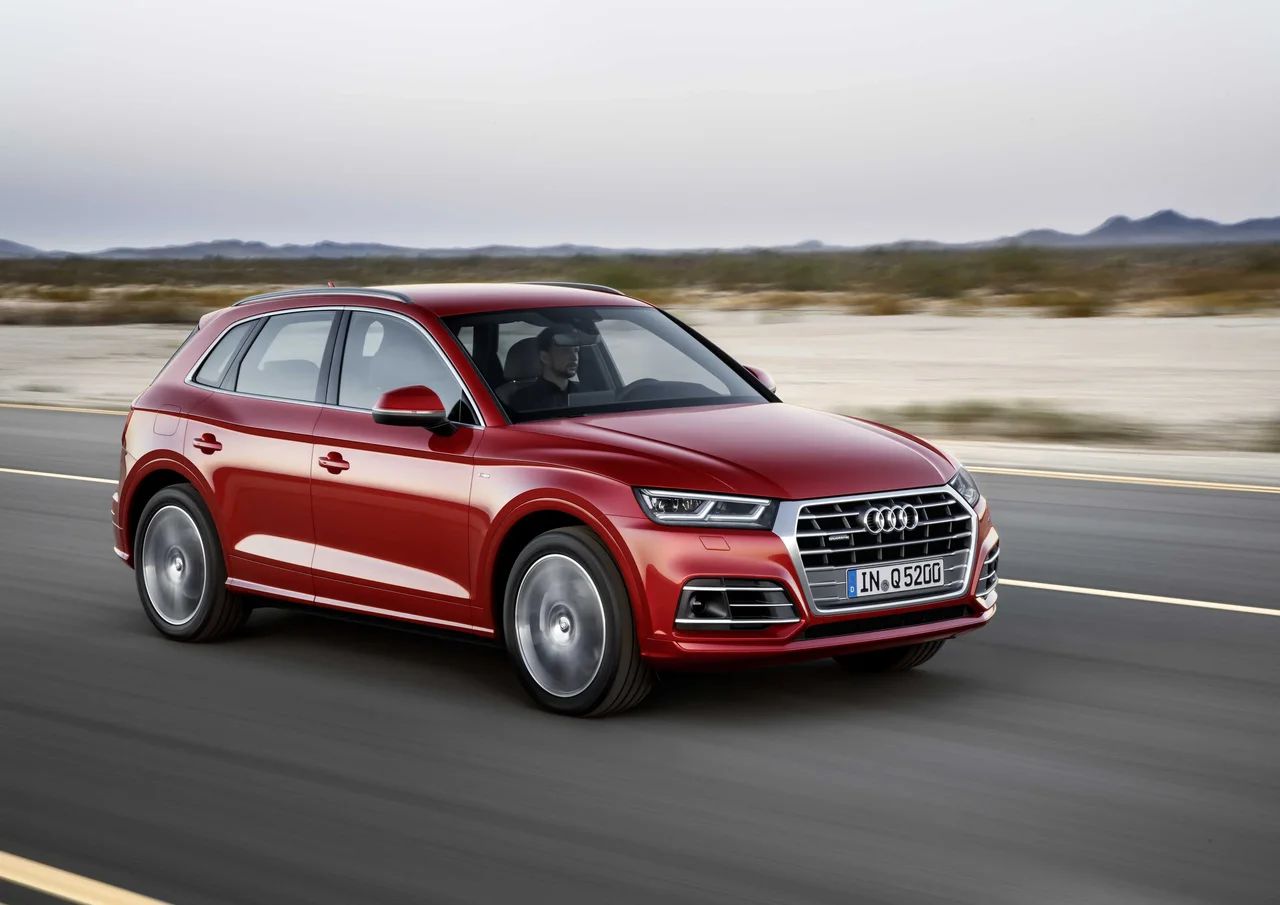

2017 Audi Q5
Germany
Gasoline
AWD
SUV
45 photos
45 photos
Photos
Specifications
Vehicle Details
Powertrain
Dimensions
Engine & Performance
Dimensions & Weight
Exterior
Interior
Features
Safety & Security
Other
Vehicle Details
Year
2017
Make
Audi
Model
Q5
Body Style
SUV
Generation
FY
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed
Powertrain
Engine Name
2.0 TFSI quattro S Tronic
Engine Configuration
Inline
Power (hp)
252 hp
Power (kW)
185 kW
Torque
370 Nm (273 lb-ft)
Top speed
237 km/h
(147 mph)
0–60 mph
6 seconds
0–100 km/h
6.3 seconds
Displacement
1,984 cc
Dimensions
Length
4,663 mm
(183.6 in)
Width
1,893 mm
(74.5 in)
Height
1,659 mm
(65.3 in)
Wheelbase
2,819 mm
(111.0 in)
Curb weight
1,795 kg
(3,957 lb)
Engine & Performance
Engine
Engine Specification
Rev. at Max Power
5,000 - 6,000 rpm
Rev. at Max Torque
1,600 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
0W-40
5W-30
5W-40
Semi-synthetic Oil (viscosity)
5W-30
5W-40
10W-40
Engine Oil, Volume
4.2 litres
Engine Coolant, Volume
8.65 litres
Engine Configuration
Bore
82.5 mm
(3.2 in)
Stroke
92.8 mm
(3.7 in)
Compression Ratio
9.6 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
90,000 km
(55,923 mi)
Fuel Filter
60,000 km
(37,282 mi)
Spark Plug
60,000 km / 4 years
Brake Fluid
3 years
Oil Change & Engine Filter
15,000 km / 1 years
Transmission & Drivetrain
Transmission
Automatic (Dual-clutch), 7-speed
Brakes
Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Fuel
General
Tank Volume
70 litres
Emission
Emission Standard
Euro 6
Emission Class
B
C
Fuel Consumption NEDC
City
8.3 - 8.6 litres / 100 km
Highway
5.9 - 6.4 litres / 100 km
Combined
6.8 - 7.2 litres / 100 km
Emission NEDC
CO₂, Combined
154 - 164 g/km
Dimensions & Weight
Exterior
Width, with Mirrors
2,140 mm
(84.3 in)
Track, Front
1,616 mm
(63.6 in)
Track, Rear
1,609 mm
(63.3 in)
Overhang, Front
899 mm
(35.4 in)
Overhang, Rear
945 mm
(37.2 in)
Turning Circle
11.7 m
Ground Clearance
200 - 210 mm
(7.9 - 8.3 in)
Interior
Head Room, Front
1,059 mm
(41.7 in)
Head Room, Rear
998 mm
(39.3 in)
Leg Room, Front
1,039 mm
(40.9 in)
Leg Room, Rear
961 mm
(37.8 in)
Shoulder Room, Front
1,466 mm
(57.7 in)
Shoulder Room, Rear
1,434 mm
(56.5 in)
Weight
Gross Weight
2,400 kg
(5,291 lb)
Max Trailer Load, braked 12%
2,400 kg
(5,291 lb)
Max Trailer Load, braked 8%
2,400 kg
(5,291 lb)
Max Trailer Load, unbraked
750 kg
(1,653 lb)
Cargo Capacity
605 kg
(1,334 lb)
Max Roof Load
75 kg
(165 lb)
Max Towbar Download
Exterior
Chassis & Body
Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Volkswagen Group
MLBevo
Equipment
Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
Lights
Rear Lights
LED
Fog Lights
Yes
Fog Lights
Front
Yes
Main Beam Assist
Optional
Headlight Washers
Optional
Rims & Tires
Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Interior
Equipment
Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
AM
FM
Media Format
Memory Card Reader
MP3
Media Inputs
USB
App-Connect
Android Auto
Apple CarPlay
Bluetooth
Phone
Connectivity › Media Format
CD
Yes
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Features
Comfort Features
Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
360° Camera
Optional
Cruise Control
Safety & Security
Seat Belt
Type of Belt
Three-Point-Belt
Front Seats
Centre Rear Seat
Seat Belt Colour
Black
Feature
Driver
Passenger
Rear
Other
Warranty
Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Identification
VIN Location
Left Side Casing of Window
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Speakers
Total Number of Speakers
8 pcs
Interior Storage › Storage Compartments
Glove Compartment
Cooled
Light
Lockable
Armrest Hatch
Front
Door
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
Driver Side
Passenger Side
Make-up Light
Clock
Digital
12V Outlet
Front
Carpets
Front
Rear
Other Equipment › Carpets
Material
Textile
Colour
Black
Steering Wheel
Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
Tilt
Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15.8 :1

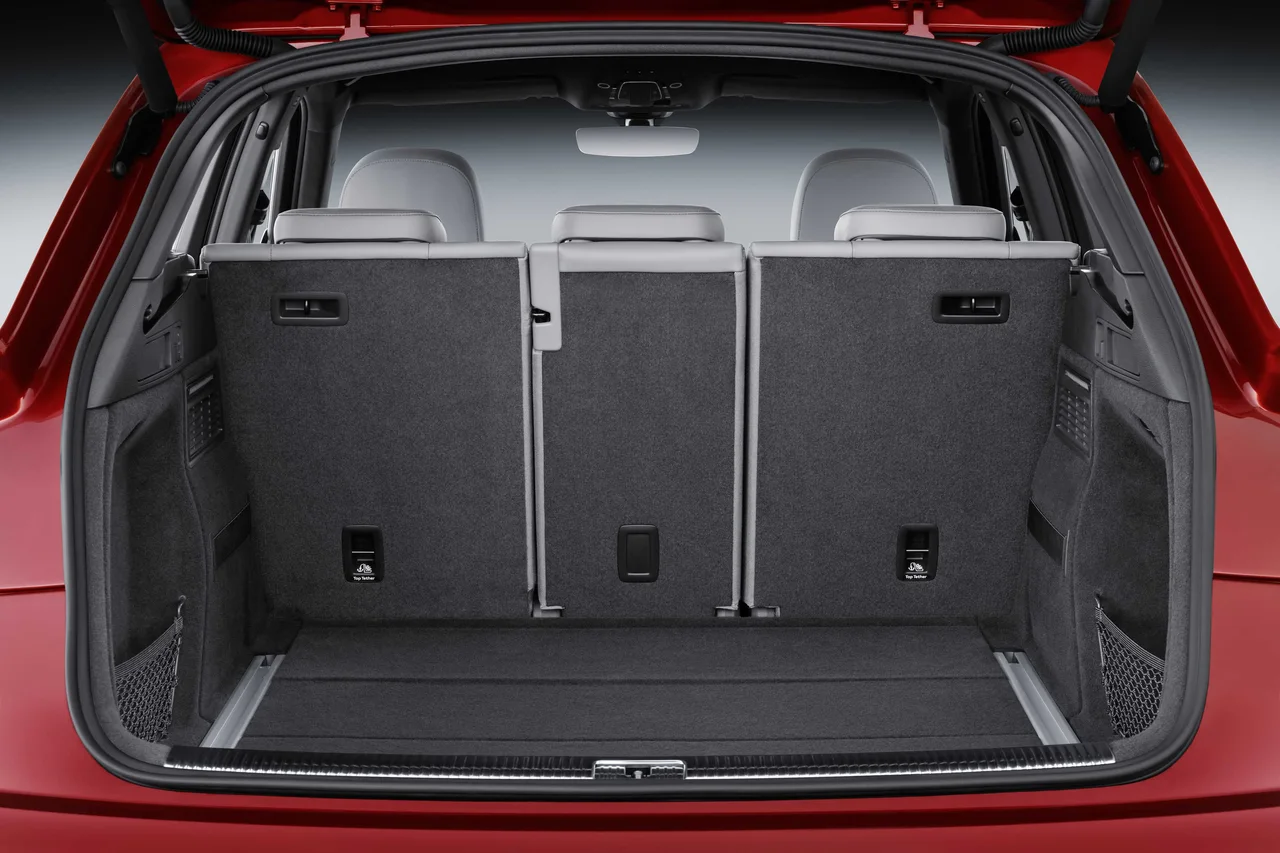

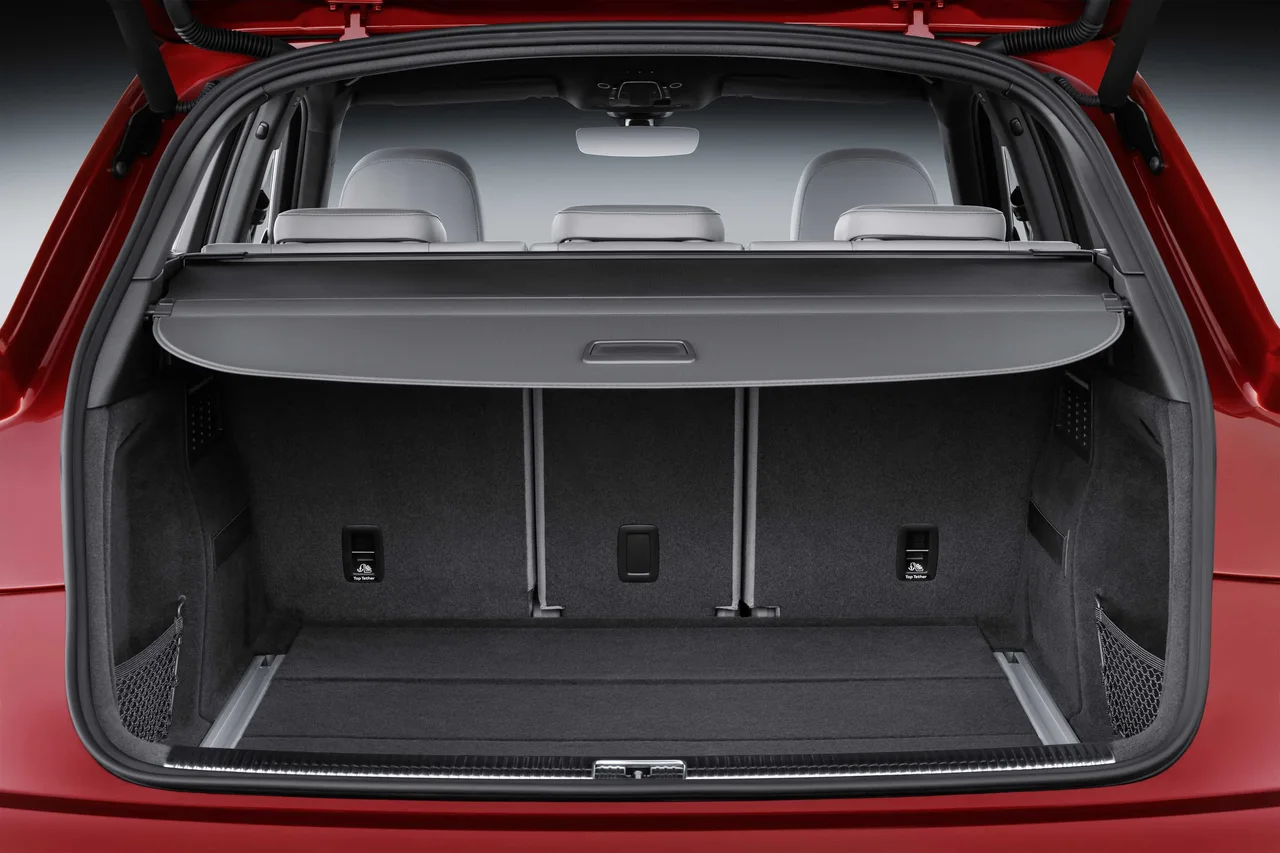

Trunk
Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Rear Trunk
Volume
550 litres
Depth
982 mm
(38.7 in)
Width
1,050 mm
(41.3 in)
Opening Width
1,133 mm
(44.6 in)
Seats
Front Seats › Adjustments, Passenger
Lumbar Support
Optional
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Second Seat Row
Collapsible
Yes
Second Seat Row › Collapsible
Adaptive Cruise Control
Optional
360° Camera
Rear
Optional
Other Features
GPS
Yes
Start & Stop
Yes
Accessories
Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes
Seat Belt Reminder
Driver
Yes
Passenger
Yes
Rear
Yes
Belt Pretensioner
Driver
Yes
Passenger
Yes
Rear
Yes
Belt Load Limiter
Driver
Yes
Passenger
Yes
Rear
Yes
Assist Systems
Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Optional
Brake Systems
Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
City
Yes
Inter-urban
Sensors
Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional
Other Features
Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Active Bonnet
Yes
Immobiliser
Electronic
Yes
Safety Testing
General
Test Year
2017
Adult Occupant
93 %
Child Occupant
86 %
Vulnerable Road Users
73 %
Safety Assist
58 %
Overall
5/5 stars
Test Year
2017
ANCAP Safety Rating
Airbags
Feature
Driver
Passenger
Rear
Frontal Airbag
Driver
Yes
Passenger
Yes
Rear
-
Side Chest Airbag
Driver
Child Protection
Isofix
Passenger: Optional
Rear: Yes
Yes
Pillar
A-Pillar, Right
On-board Diagnostic, Port Location
Steering Wheel, Lower Left
Car Classification
American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV
Spare Parts BETA
Bulb Types
Low Beam
D5S (xenon)
Bi-Xenon
D5S
Fog Light, Rear
W2.1×9.5d (W16W)
Rear/Brake Light
W2.1×9.5d (W16W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
W2.1×9.5d (W16W)
Glove Compartment
W2.1×9.5d (W5W)
ACRISS
Category
Premium (P)
Awards
Golden Steering Wheel
Large SUV
2017
100 kg
(220 lb)
Front
First Row
Second Row
Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Electric
Optional
Rim Material
Alloy
Rim Type
Disc Wheel
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Sill Height
759 mm
(29.9 in)
Heated Seats
Optional
Yes
5
Adult Occupant
Total Points
35.7 /38
Lateral Impact
14.7 /16
Rear Impact
2.4 /4
Protection
93 %
Protection
35.7
Full Width
7.8
Frontal Offset
7.74
Side Impact
8
Pole
6.74
Child Occupant
Total Points
42.3 /49
Crash Test Performance
15.3
8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Protection
86 %
Protection
42.3
Vulnerable Road Users
Total Points
31 /49
Pedestrian
17.6
2.6
5
AEB Pedestrian
5.9 /9
Safety Assist
Speed Assistance (points)
1.5 /3
Lane Support (points)
0 /4
Safety Assist
58 %
Safety Assist
7
Speed Assistance System
1.5
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
2.5
Pedestrian
Protection
73 %
Protection
31
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Barrier and Pole Ratings, Front
5/5 stars
Side Barrier and Pole Ratings, Rear
5/5 stars
Side Barrier Rating
5/5 stars
Side Barrier Rating, Driver
5/5 stars
Side Barrier Rating, Rear
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
16.4 %
Test Year
2019
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2018
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Yes
Passenger
Yes
Rear
Optional
Side Head Airbag
Driver
Yes
Passenger
Yes
Rear
Yes
Side Pelvis Airbag
Driver
Yes
Passenger
Yes
Rear
Optional
Airbag cut-off Switch
Driver
-
Passenger
Yes
Rear
-
Whiplash Protection (Front)
2.36
AEB (City)
2.99
Good
Q5
8.9
€67,000
MSRP · EUR
Body
SUV
Variant
Q5 Standard
2009–2026
Q5 SUV Generations
3 of 6
FY
2017–2020
Year
2017
Powertrain
2.0 TFSI quattro S Tronic
Horsepower
252 hp
Drivetrain
AWD
Fuel
Gasoline
Transmission
Automatic (Dual-clutch), 7-speed
SUV
AWD
Automatic (Dual-clutch), 7-speed
