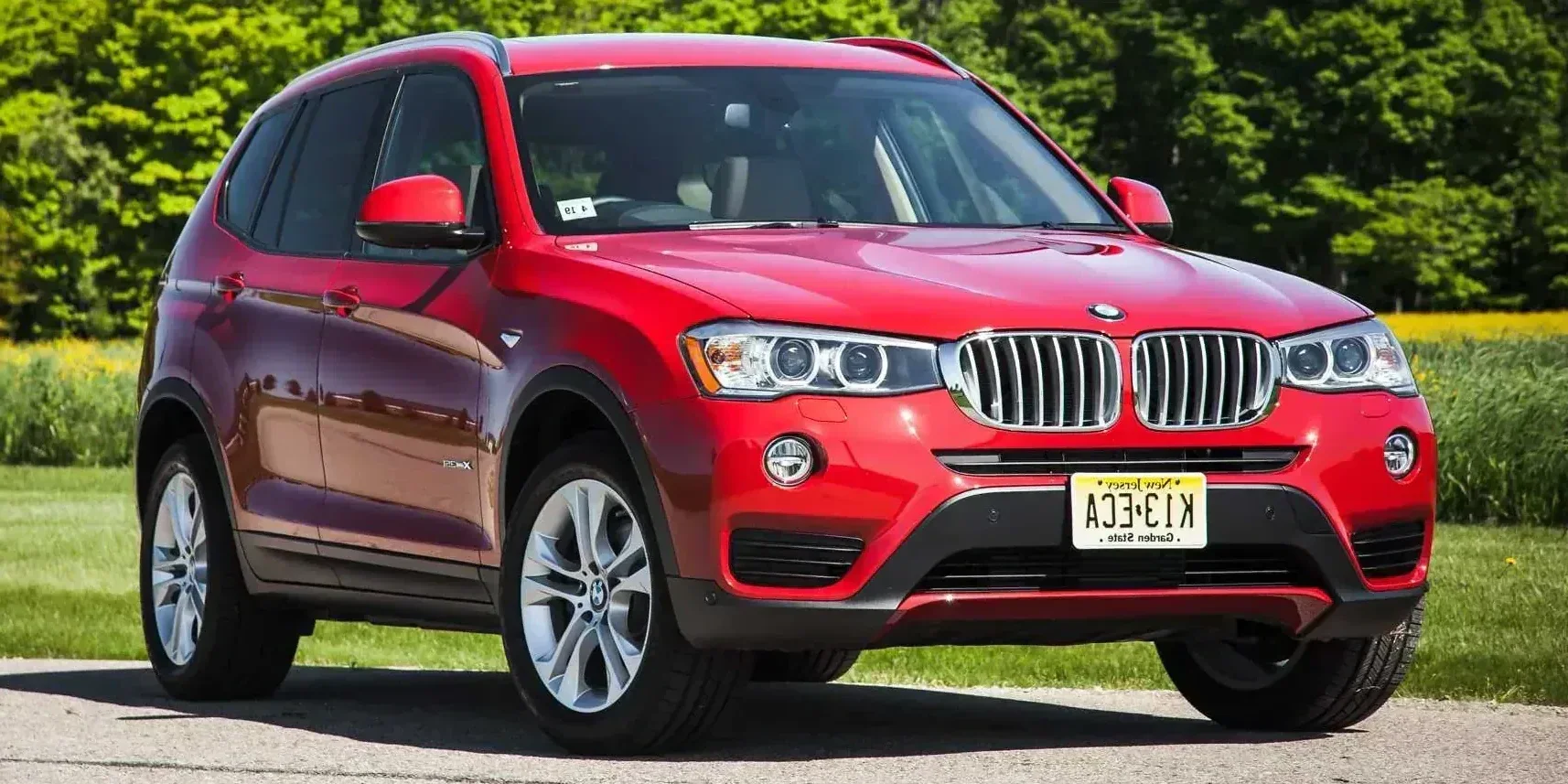

2017 BMW X3 xDrive35i

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2017
Make
BMW
Model
X3
Variant
xDrive35i
Body Style
SUV
Generation
F25 LCI
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
xDrive35i Steptronic
Engine Configuration
Inline
Power (hp)
306 hp
Power (kW)
225 kW
Torque
400 Nm (295 lb-ft)
Top speed
245 km/h (152 mph)
0–60 mph
5.3 seconds (estimated)
0–100 km/h
5.6 seconds
Displacement
2,979 cc

Dimensions

Length
4,657 mm (183.3 in)
Width
1,881 mm (74.1 in)
Height
1,678 mm (66.1 in)
Wheelbase
2,810 mm (110.6 in)
Curb weight
1,900 kg (4,189 lb)

Engine & Performance

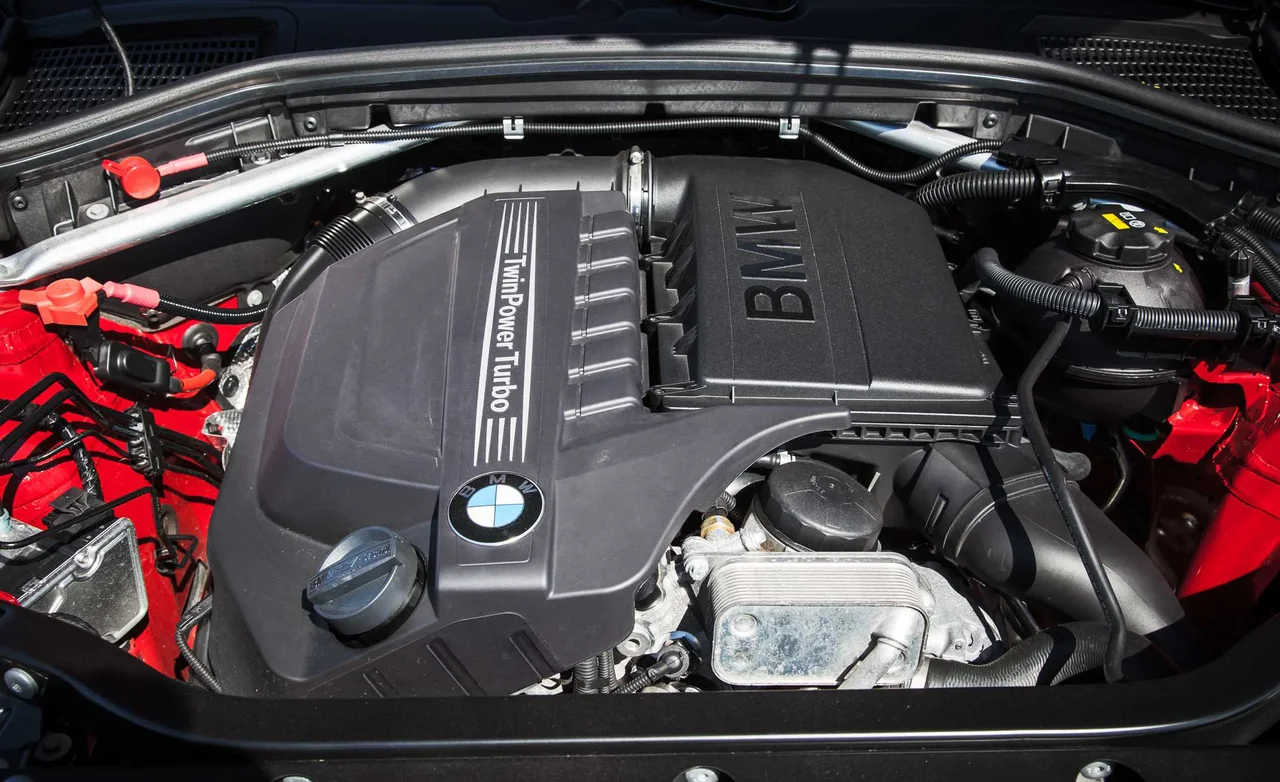

Engine

Engine Specification
Rev. at Max Power
5,800 rpm
Rev. at Max Torque
1,200 - 5,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Engine Oil, Volume
6.5 litres
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
89.6 mm (3.5 in)
Compression Ratio
10.2 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
30,000 km / 1 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
120,000 km / 8 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Gear Ratio
1st Gear
4.71 :1
2nd Gear
3.14 :1
3rd Gear
2.11 :1
4th Gear
1.67 :1
5th Gear
1.29 :1
6th Gear
1 :1
7th Gear
0.84 :1
8th Gear
0.67 :1
Final Drive
3.39 :1
Reverse
3.3 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
328 mm (12.9 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
67 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
10.7 litres / 100 km
Highway
6.9 litres / 100 km
Combined
8.3 litres / 100 km
Emission NEDC
CO₂, Combined
193 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,089 mm (82.2 in)
Track, Front
1,616 mm (63.6 in)
Track, Rear
1,632 mm (64.3 in)
Overhang, Front
858 mm (33.8 in)
Overhang, Rear
989 mm (38.9 in)
Turning Circle
11.9 m
Ground Clearance
204 mm (8.0 in)

Interior

Head Room, Front
1,033 mm (40.7 in)
Head Room, Rear
994 mm (39.1 in)
Shoulder Room, Front
1,483 mm (58.4 in)
Shoulder Room, Rear
1,458 mm (57.4 in)

Weight

Gross Weight
2,405 kg (5,302 lb)
Max Trailer Load, braked 12%
2,400 kg (5,291 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
580 kg (1,279 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Fog Lights
Front
Yes
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

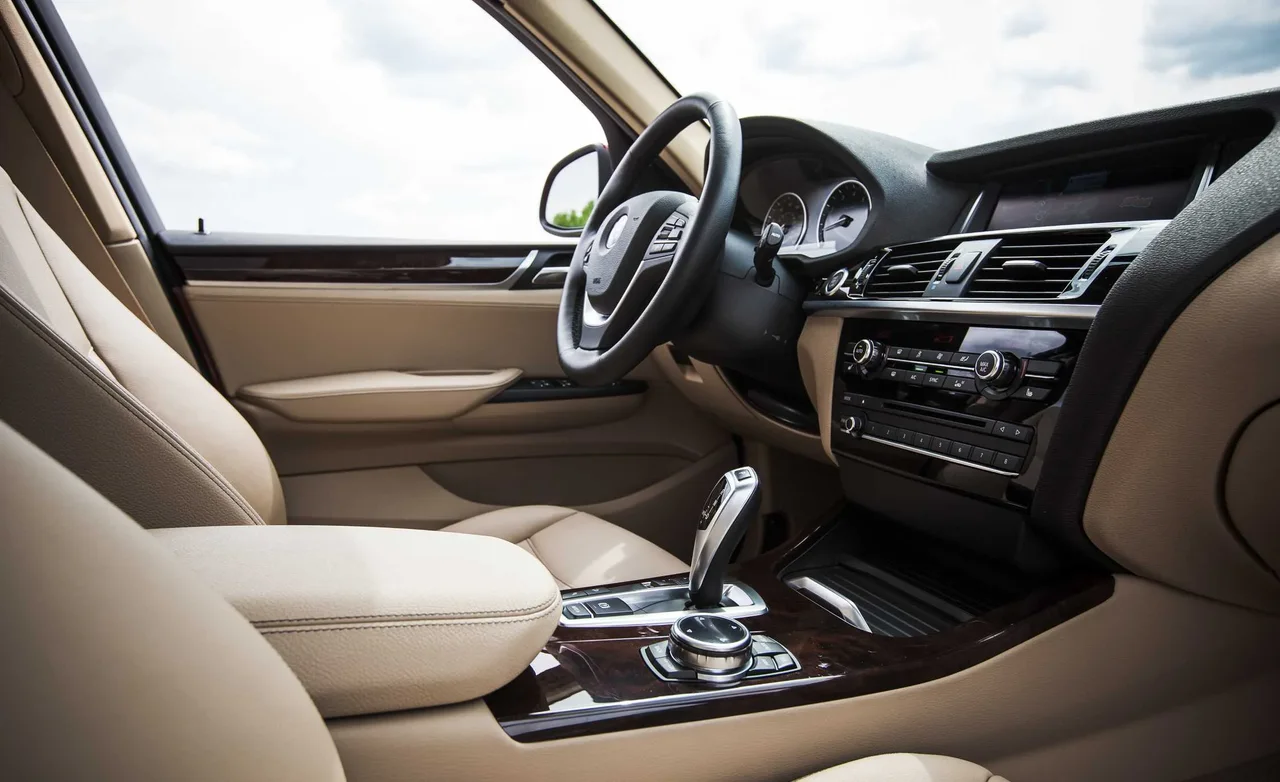

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
App-Connect
Yes
Bluetooth
Yes
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › Bluetooth
Audio
Optional
Displays
Center Display
Yes
Speakers
Total Number of Speakers
6 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Multifunction Steering Wheel
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
550 litres
Volume, Back Seat Collapsed
1,600 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Headrest, Height
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Headrest, Height
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Front Seats › Power Seat, Driver
User Memory
Yes
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2011
Adult Occupant
88 %
Child Occupant
83 %
Vulnerable Road Users
53 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2011
Overall Score
34.58
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
16
Side Impact
2
Whiplash Protection (Assessment)
Good
Pedestrian
Protection (Assessment)
Acceptable
Safety Assist
Seat Belt Reminders
2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Front Panel
Yes
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Datyime Running Light
W3×16d (W21W)
Fog Light, Front
H8
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
  • BA15s (P21W)
  • BAY9s (H21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)

Similar suvs

Suggested vehicles
