2017 Ford F-Series F-150 Raptor

United StatesGasoline4WDPickup

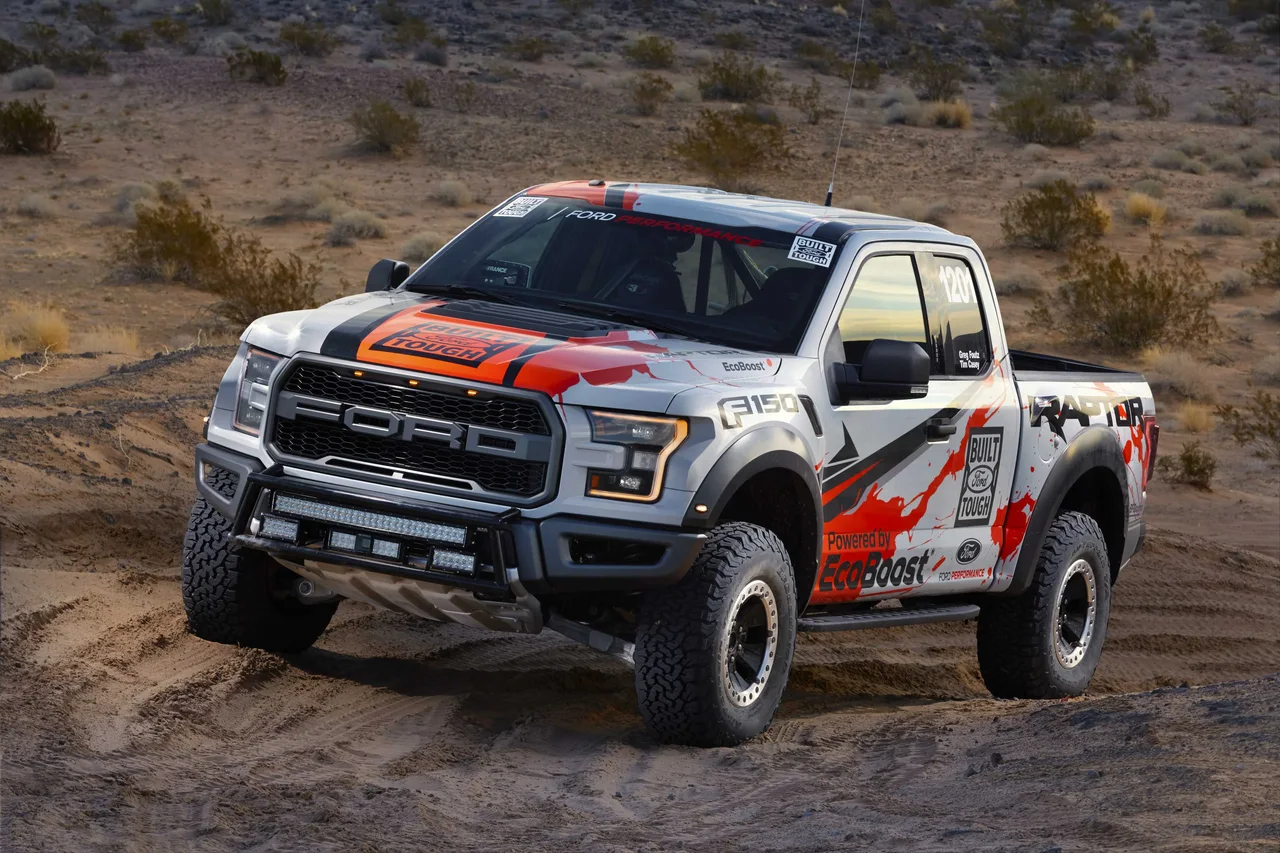

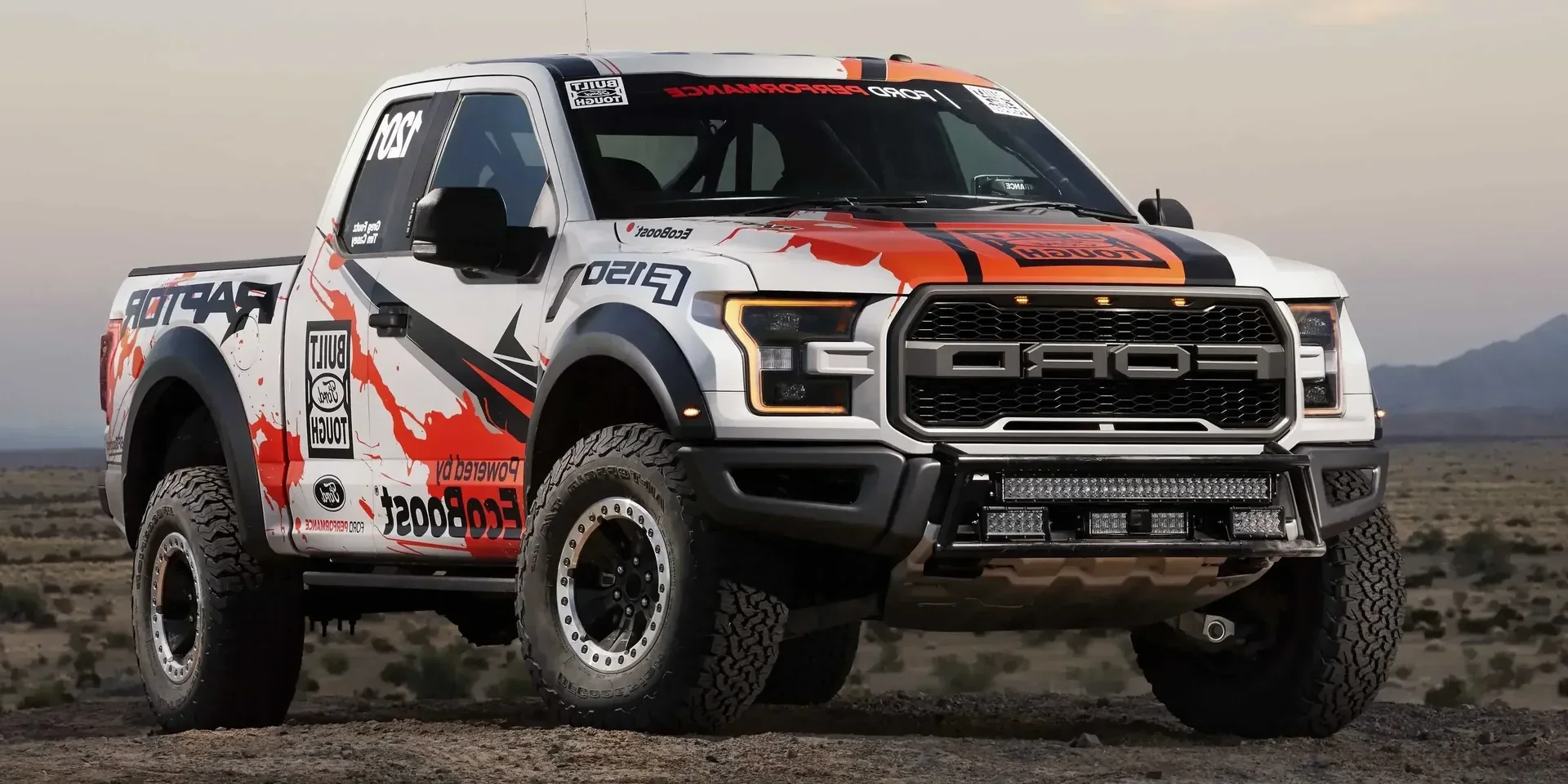

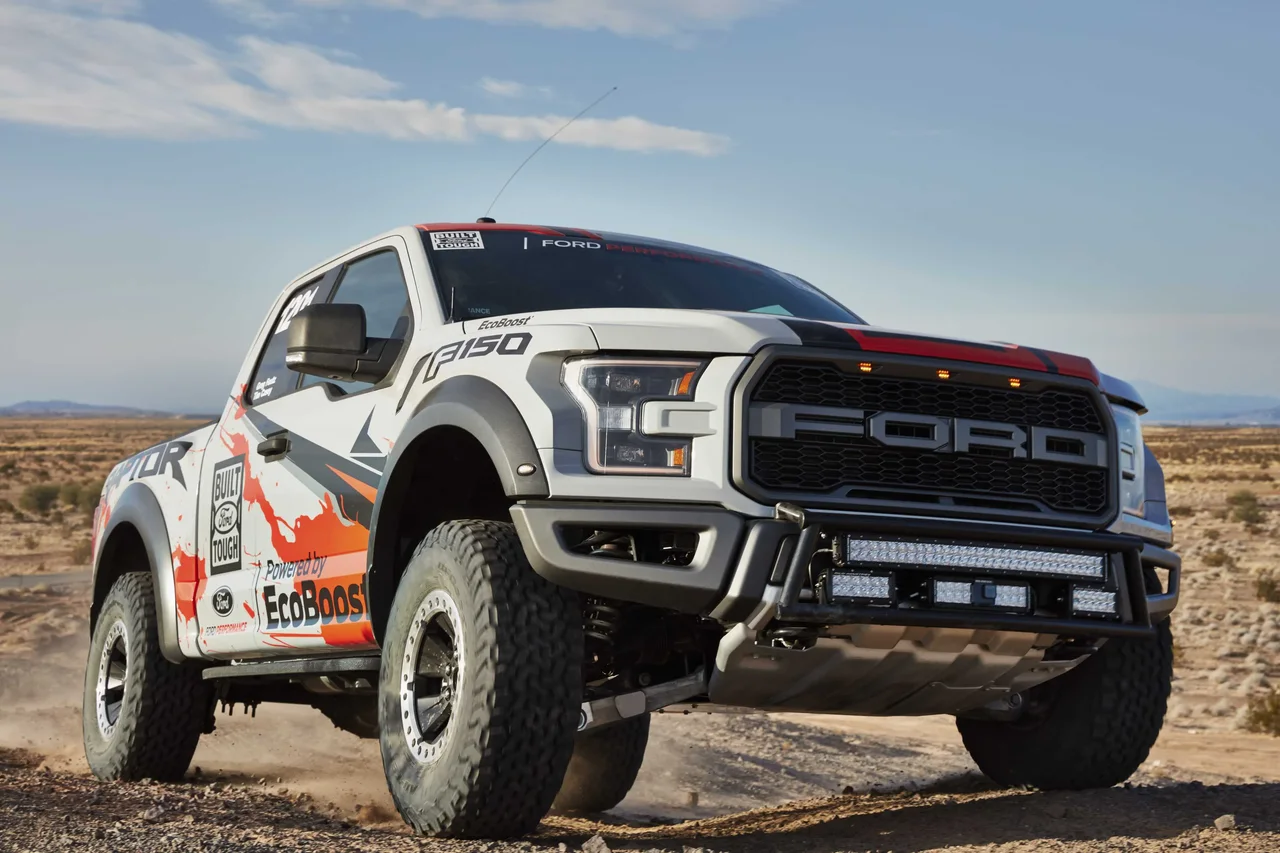

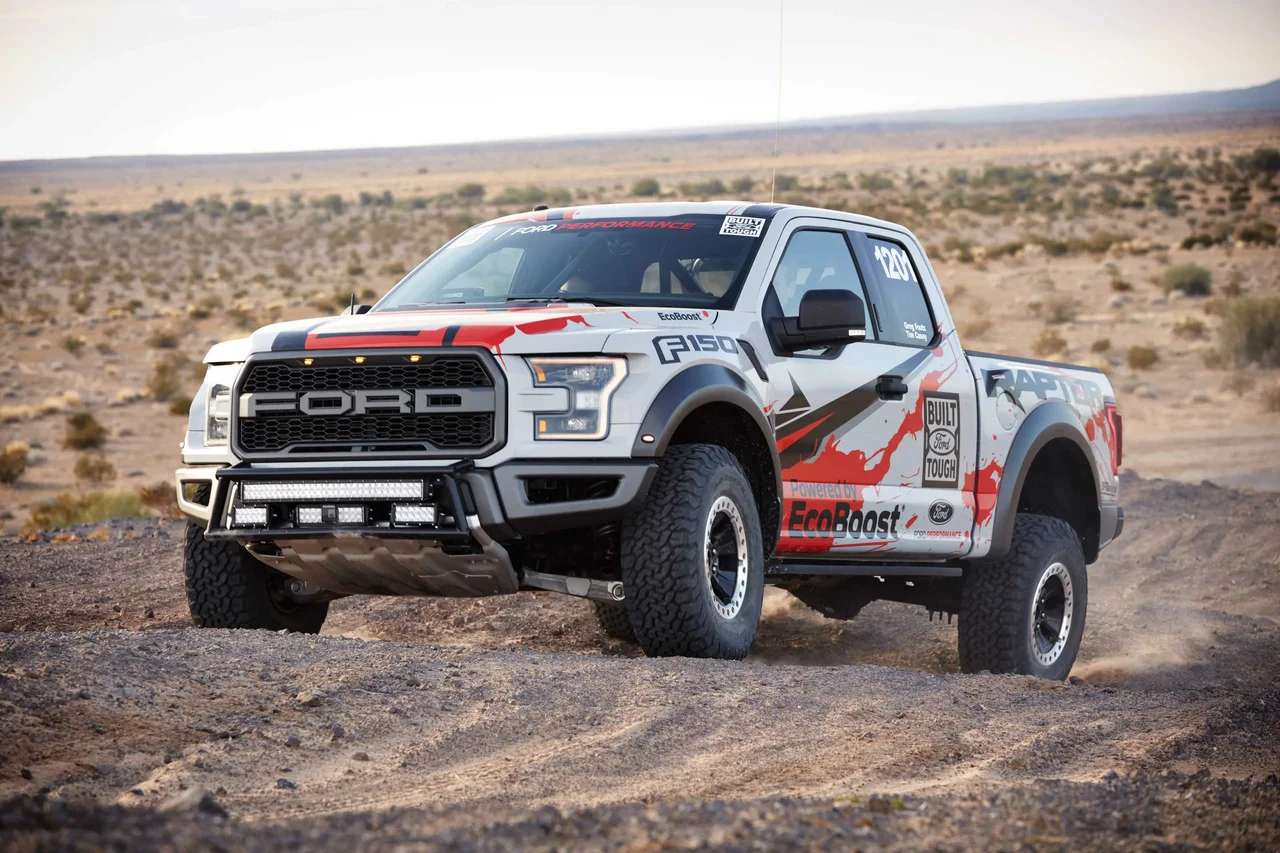

Photos

Specifications

Vehicle Details

Year
2017
Make
Ford
Model
F-Series
Variant
F-150 Raptor
Body Style
Pickup
Generation
13th Generation (P552)
Seats
5
Doors
2
Fuel
Gasoline
Drivetrain
4WD
Transmission
Automatic, 10-speed

Powertrain

Engine Name
F-150 Raptor SuperCab SelectShift
Engine Configuration
V
Power (hp)
456 hp
Power (kW)
336 kW
Torque
691 Nm (510 lb-ft)
Displacement
3,496 cc

Dimensions

Length
5,588 mm (220.0 in)
Width
2,192 mm (86.3 in)
Height
1,994 mm (78.5 in)
Wheelbase
3,409 mm (134.2 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Configuration
Bore
92.5 mm (3.6 in)
Stroke
86.7 mm (3.4 in)
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
48,000 km (29,826 mi)
Fuel Filter
48,000 km (29,826 mi)
Brake Fluid
3 years
Oil Change & Engine Filter
16,000 km / 1 years
Engine Coolant
322,000 km / 10 years
Interior Filter
16,000 km / 1 years
Accessory Belt
160,000 km (99,419 mi)

Transmission & Drivetrain

Transmission
Automatic, 10-speed

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf
Suspension, Front
Independent
Double Wishbone

Dimensions & Weight

Exterior

Width, with Mirrors
2,459 mm (96.8 in)
Track, Front
1,717 mm (67.6 in)
Track, Rear
1,717 mm (67.6 in)
Overhang, Front
942 - 960 mm (37.1 - 37.8 in)
Overhang, Rear
1,237 - 1,247 mm (48.7 - 49.1 in)
Ground Clearance
251 - 221 mm (9.9 - 8.7 in)

Interior

Head Room, Front
1,036 mm (40.8 in)
Head Room, Rear
1,026 mm (40.4 in)
Leg Room, Front
1,115 mm (43.9 in)
Leg Room, Rear
1,107 mm (43.6 in)
Hip Room, Front
1,588 mm (62.5 in)
Hip Room, Rear
1,643 mm (64.7 in)
Shoulder Room, Front
1,694 mm (66.7 in)
Shoulder Room, Rear
1,671 mm (65.8 in)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-C
Chassis Construction
Body-on-Frame
Doors
Front Doors
Conventional
Rear Doors
Rear-hinged
Door Handles
Pull-out
Platform
Ford Motor Company
P Platform (P552)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Optional
Ground Light
Optional
Turning Signal
Optional
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Rear Windows, Sliding
Optional
Windows › Window Lifts, Features
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Rear
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Antenna
Whip
Push Bumper
Optional
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Deployable
Optional
Stationary
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Headlight Washers
Fog Lights
Front
Halogen
Spot Light
Optional
Special Features
Main Beam Assist
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
204 Nm
Rim Material
  • Aluminium
  • Steel
Number of Spokes
6
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

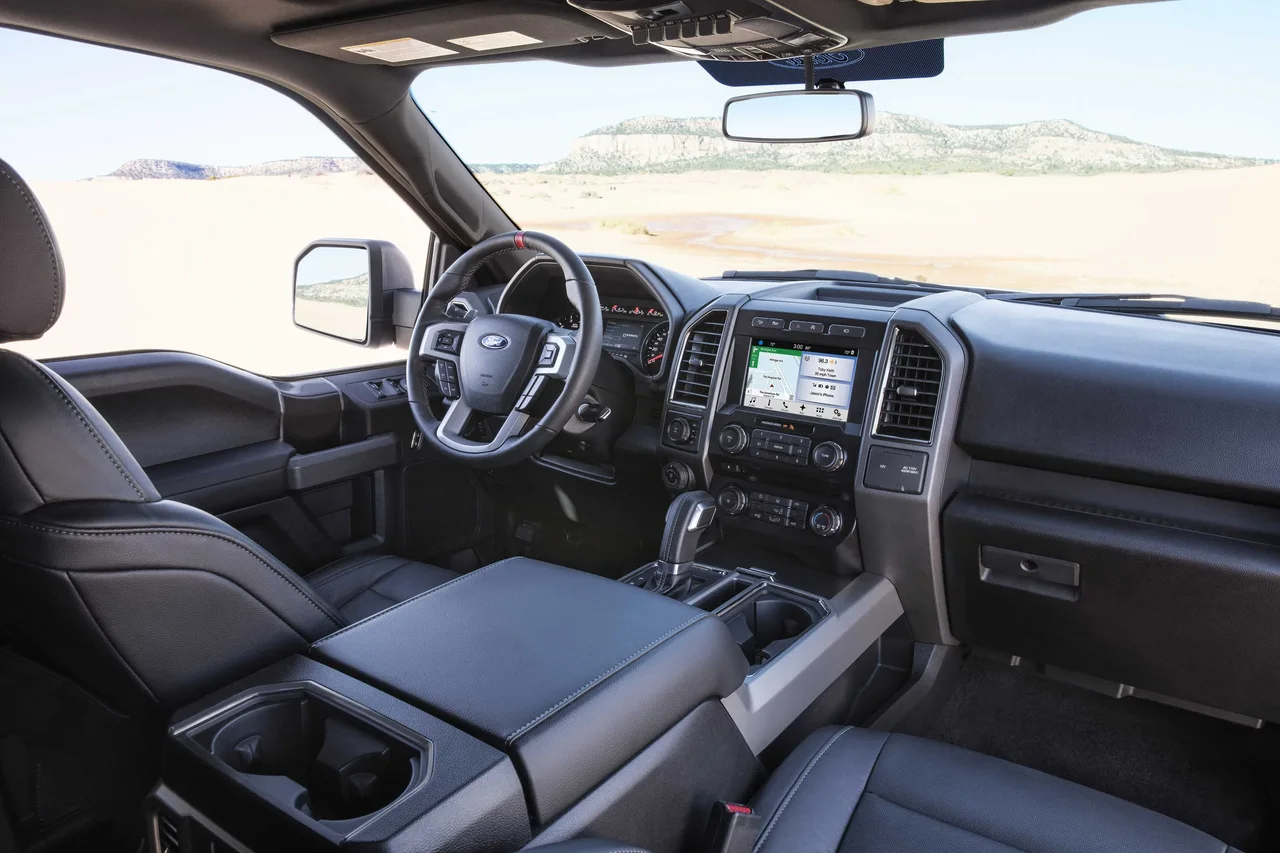

Interior

Equipment

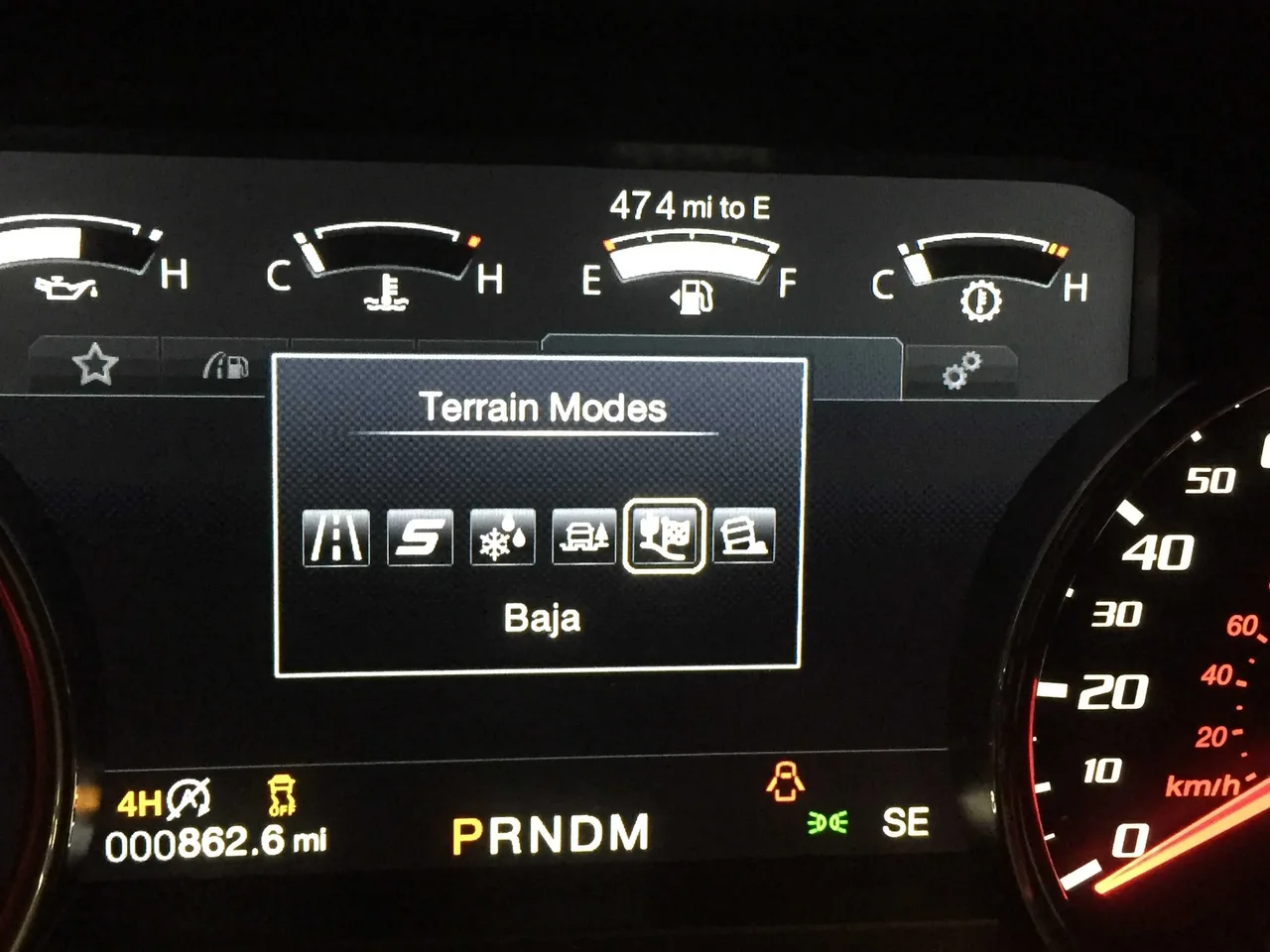

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
  • Analogue
  • Digital
Oil Pressure
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Compass
Yes
Instrument Cluster › Trip Computer
Display
4.2 - 8"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
  • XM
Media Format
  • CD
  • MP3
App-Connect
Android Auto
Bluetooth
  • Phone
  • Audio
Connectivity › Radio
HD Radio
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Front
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Displays
Center Display
8"
Center Display Controls
  • Touchscreen
  • Buttons
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
Optional
Speakers
Total Number of Speakers
6 - 10 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
4
Interior Storage › Cup Holders › Front
Placement
  • Middle Console
  • Driver Door
  • Passenger Door
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
110V Outlet
  • Front
  • Rear
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Sport
Yes
Number of Spokes
4
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

Design

Interior Decor Colour
Black
Entry Guard Material
Stainless steel
Pedals
Standard

Seats

Colour & Material
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Parking Heater
Optional
Cameras
Rear
Rear Camera Preparation
Yes
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
View Location
Center Display
Voice Control
Navigation
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Horn
Dual Note
GPS
USB
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote (Panic Button)
Active Bonnet
No
Emergency Call
Yes
Speed Sensitive
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2016
Small Overlap Front: Driver Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
Poor
Latch Ease of Use
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Car Classification

American Classification
Full-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Pickup
European Segment
J-Segment JE-Segment
Car.info Classification
Pickup

Awards

North American
Truck of the Year
2015
Canadian
Utility Vehicle of the Year
2015

Similar pickups

Suggested vehicles
