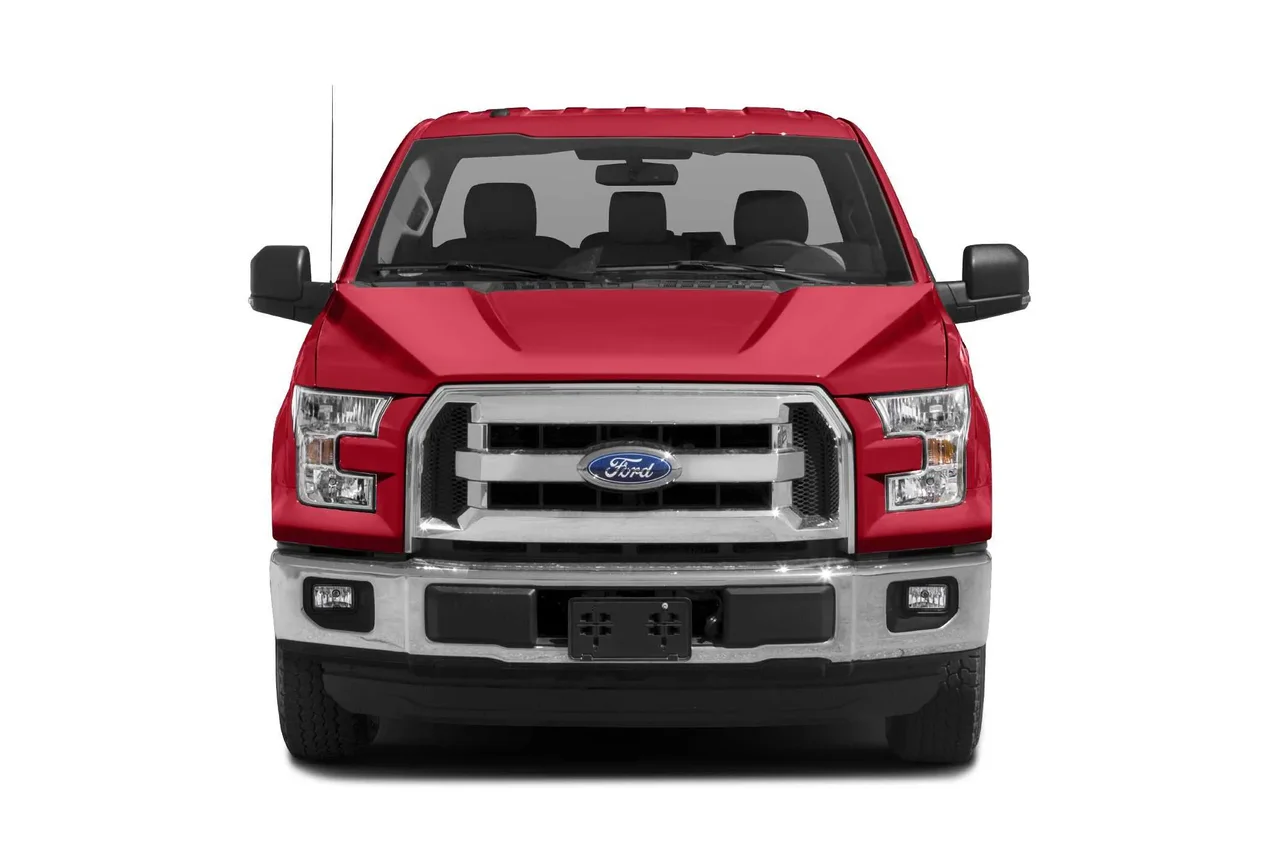

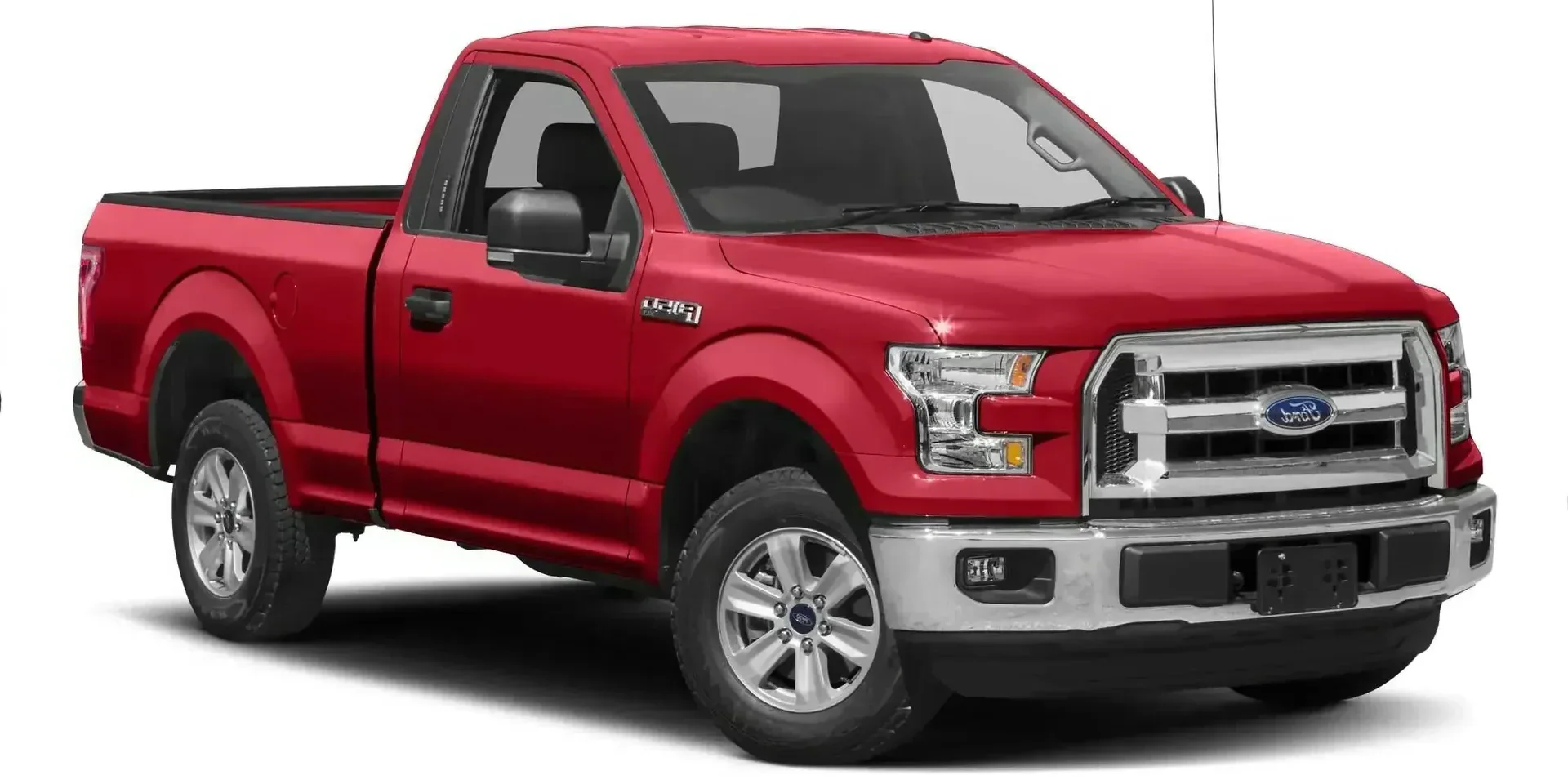

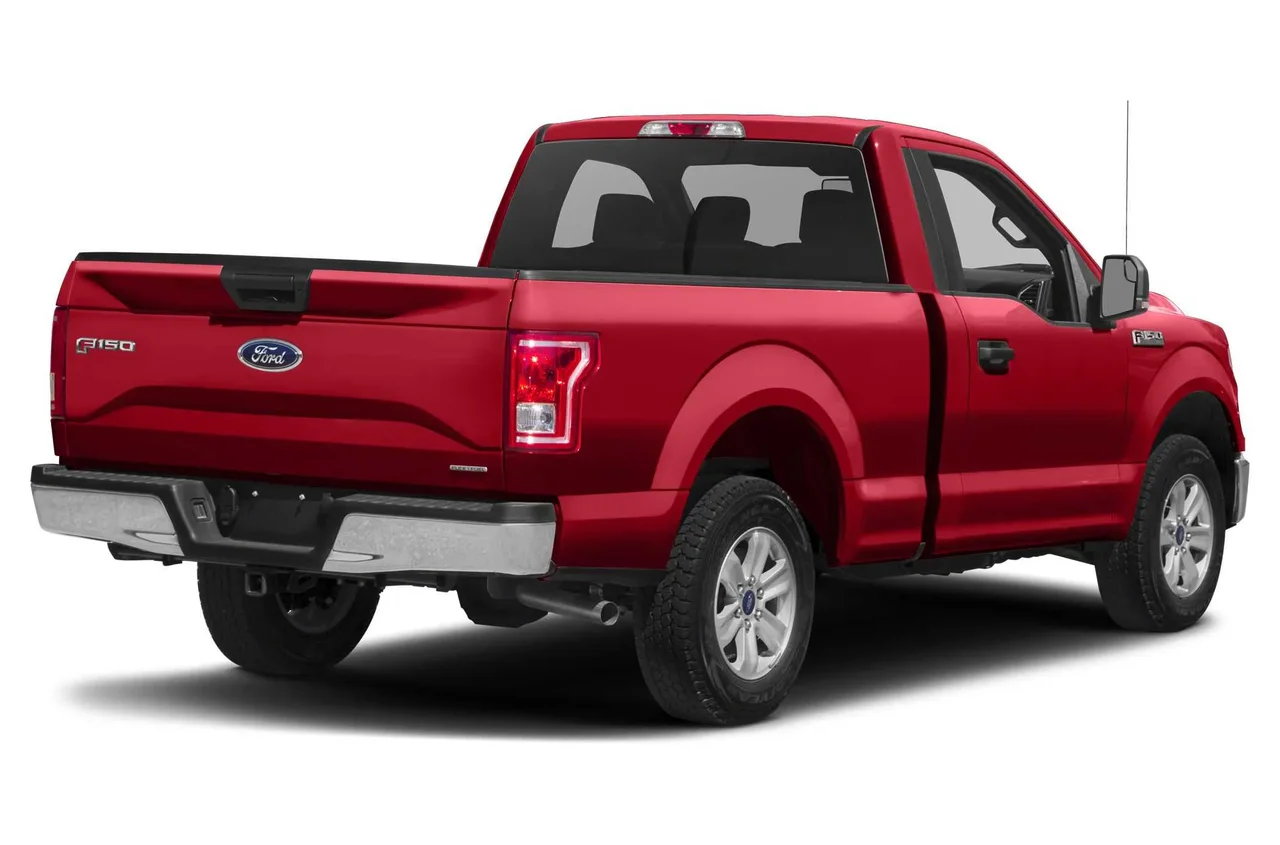

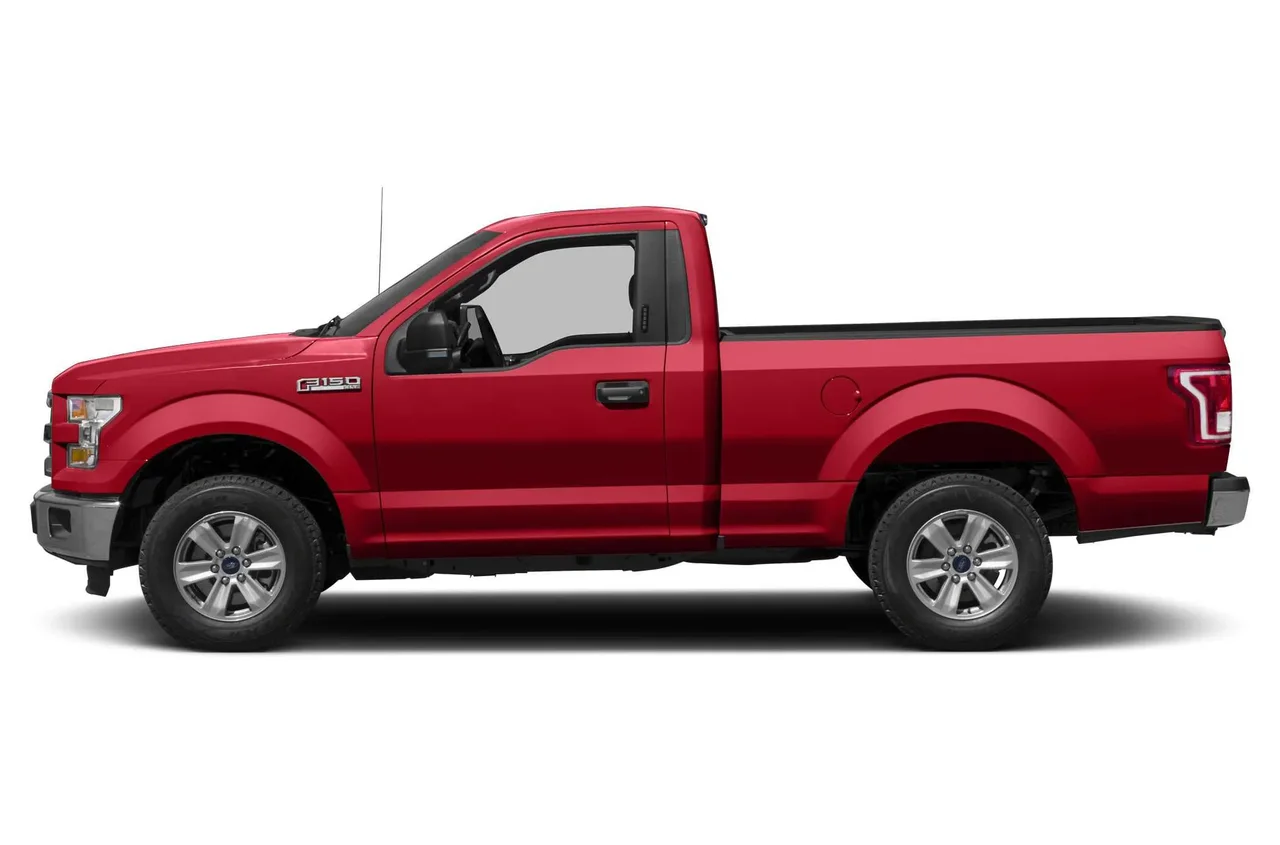

2017 Ford F-Series F-150

United StatesEthanol E85RWDPickup

Photos

Specifications

Vehicle Details

Year
2017
Make
Ford
Model
F-Series
Variant
F-150
Body Style
Pickup
Generation
13th Generation (P552)
Seats
2
Doors
2
Fuel
Ethanol E85
Drivetrain
RWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
3.5 V6 Ti-VCT FFV Automatic
Engine Configuration
V
Power (hp)
286 hp
Power (kW)
210 kW
Torque
346 Nm (255 lb-ft)
Displacement
3,496 cc

Dimensions

Length
5,316 mm (209.3 in)
Width
2,029 mm (79.9 in)
Height
1,918 mm (75.5 in)
Wheelbase
3,109 mm (122.4 in)

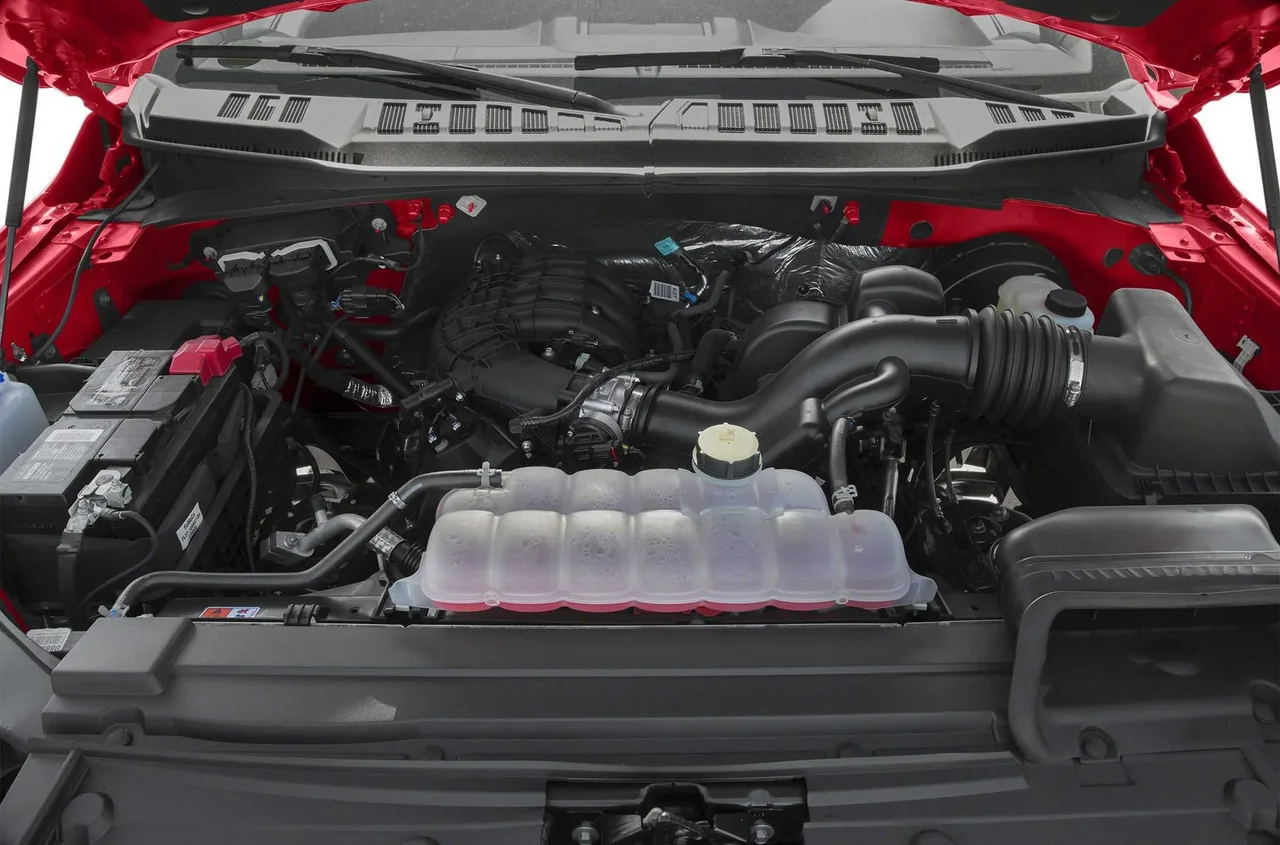

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,250 rpm
Rev. at Max Torque
4,250 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Configuration
Bore
92.5 mm (3.6 in)
Stroke
87.6 mm (3.4 in)
Compression Ratio
10.8 :1
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
48,000 km (29,826 mi)
Fuel Filter
48,000 km (29,826 mi)
Brake Fluid
3 years
Oil Change & Engine Filter
16,000 km / 1 years
Engine Coolant
322,000 km / 10 years
Interior Filter
16,000 km / 1 years
Accessory Belt
160,000 km (99,419 mi)

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Fuel

General
Tank Volume
87 litres

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf
Suspension, Front
Independent
Double Wishbone

Dimensions & Weight

Exterior

Width, with Mirrors
2,459 mm (96.8 in)
Track, Front
1,717 mm (67.6 in)
Track, Rear
1,717 mm (67.6 in)
Overhang, Front
960 mm (37.8 in)
Overhang, Rear
1,247 mm (49.1 in)
Ground Clearance
224 mm (8.8 in)

Interior

Head Room, Front
1,036 mm (40.8 in)
Leg Room, Front
1,115 mm (43.9 in)
Hip Room, Front
1,588 mm (62.5 in)
Shoulder Room, Front
1,694 mm (66.7 in)

Weight

Gross Weight
2,726 kg (6,010 lb)
Max Trailer Load, braked 12%
2,268 kg (5,000 lb)
Cargo Capacity
866 kg (1,909 lb)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-B
Chassis Construction
Body-on-Frame
Doors
Front Doors
Conventional
Door Handles
Pull-out
Platform
Ford Motor Company
P Platform (P552)

Equipment

Side Mirrors
Mirror Type
Conventional
User Memory
Optional
Heated
Optional
Ground Light
Optional
Turning Signal
Optional
Side Mirrors › Mirror Type
Driver side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows › Window Lifts, Features
One-touch up/down
Optional
Windows › Window Lifts, Features › One-touch up/down
Driver
Optional
Passenger
Optional
Windows
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Rear Windows, Sliding
Optional
Windows › Heated Windows
Front
Optional
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Tow Hook
Front
Antenna
Whip
Push Bumper
Optional
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Deployable
Optional
Stationary
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Optional
Fog Lights
Spot Light
Optional
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Yes

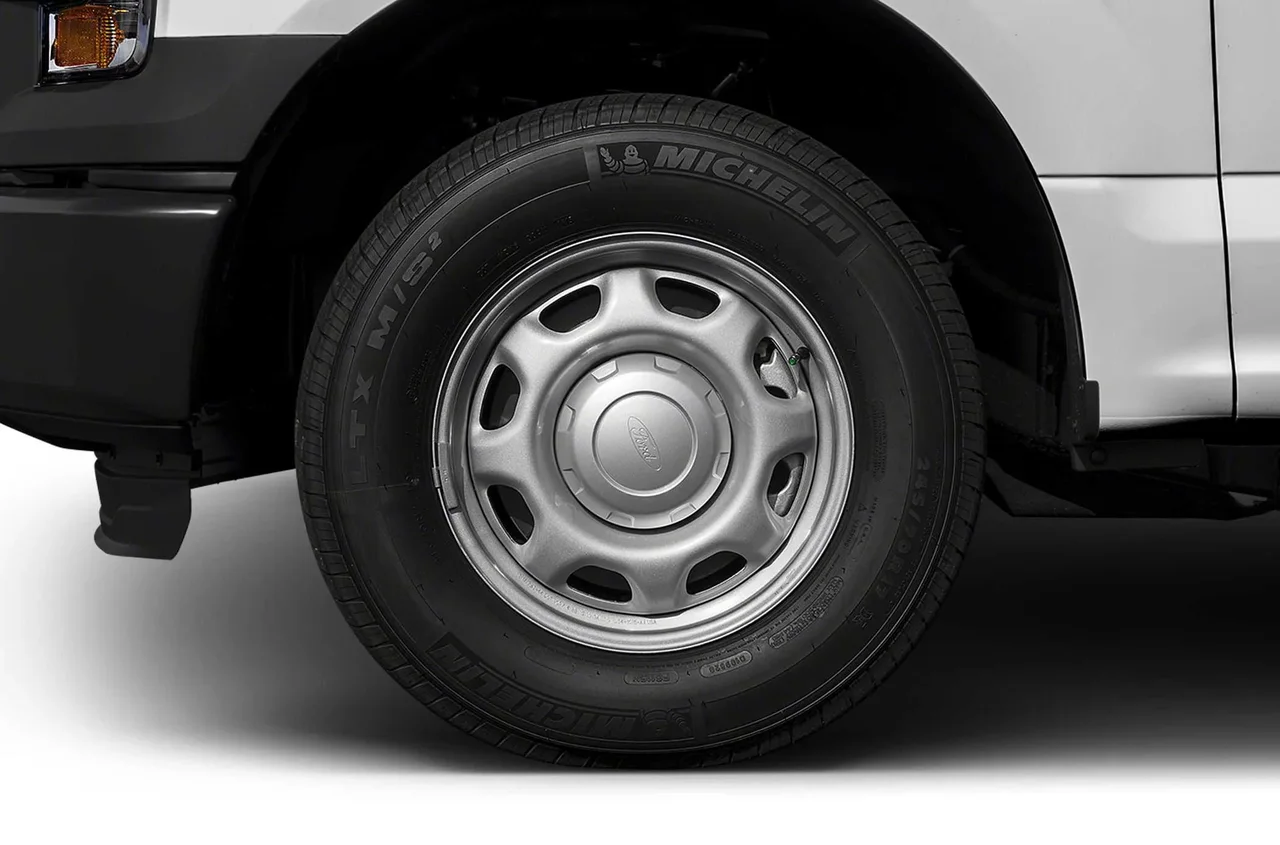

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
6 pcs
Bolt Distance
135
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
87.1
Fastening Type
Lug Nuts
Tightening Torque
204 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Odometer Limit
1,000,000 km/miles
Compass
Optional
Instrument Cluster › Trip Computer
Display
2.3 - 8"
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
XM
Optional
HD Radio
Optional
CD
Optional
DVD
Optional
MP3
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Connectivity › Media Inputs › AUX
Front
Optional
Connectivity › Media Inputs › USB
Front
Optional
USB-A
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
4.2 - 8"
Center Display Controls
Buttons
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Touchscreen
Optional
Displays › Entertainment Screens
Back of Headrest
Optional
Speakers
Total Number of Speakers
4 - 10 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Sunglass Compartment
Yes
Coin Holder
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
4
Interior Storage › Cup Holders › Front
Placement
  • Middle Console
  • Driver Door
  • Passenger Door
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
110V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 110V Outlet
Front
Optional
Other Equipment › Carpets
Front
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Heated
Optional
Power Steering
Electric
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional

Design

Pedals
Standard
Pedals
Beige
Optional
Brown
Optional

Features

Comfort Features

Keyless Entry
Optional
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Optional
Parking Heater
Optional
Cameras
Optional
Rear Camera Preparation
Optional
Voice Control
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Horn
Dual Note
GPS
USB
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote (Panic Button)
Emergency Call
Optional
Speed Sensitive
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Car Classification

American Classification
Full-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Pickup
European Segment
J-Segment JE-Segment
Car.info Classification
Pickup

Awards

North American
Truck of the Year
2015
Canadian
Utility Vehicle of the Year
2015
