2017 Honda Civic Type R

JapanGasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2017
Make
Honda
Model
Civic
Variant
Type R
Body Style
Hatchback
Generation
10th Generation
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
Type R Manual
Engine Configuration
Inline
Power (hp)
320 hp
Power (kW)
235 kW
Torque
400 Nm (295 lb-ft)
Top speed
272 km/h (169 mph)
0–60 mph
5.5 seconds (estimated)
0–100 km/h
5.8 seconds
Displacement
1,996 cc

Dimensions

Length
4,518 mm (177.9 in)
Width
1,799 mm (70.8 in)
Height
1,434 mm (56.5 in)
Wheelbase
2,697 mm (106.2 in)
Curb weight
1,380 kg (3,042 lb)

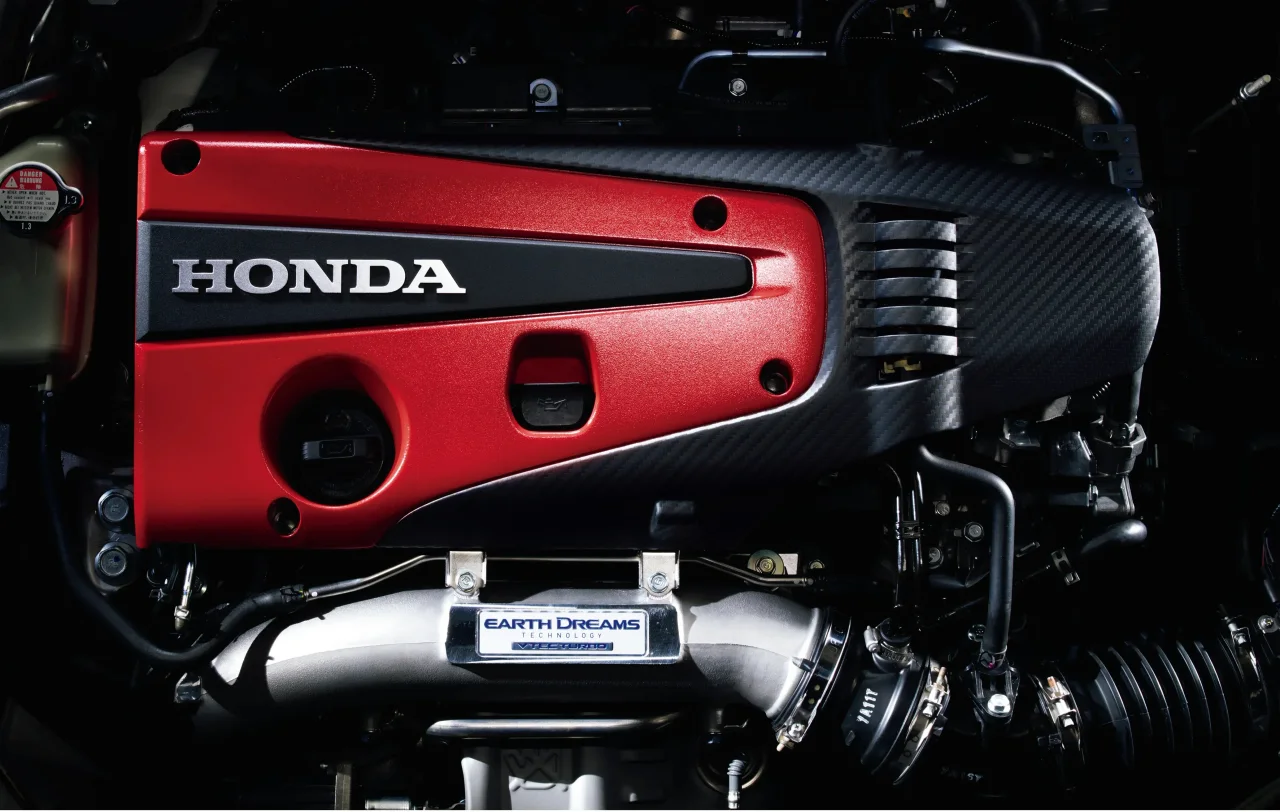

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,500 rpm
Rev. at Max Torque
2,500 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
5.4 litres
Engine Configuration
Bore
86 mm (3.4 in)
Stroke
85.9 mm (3.4 in)
Compression Ratio
9.8 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Oil Change & Engine Filter
20,000 km / 1 years

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil

Fuel

General
Tank Volume
46 litres
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
E
WLTP Consumption
Low (l/100km) (WLTP)
11.2 litres / 100 km
High (l/100km)
7.4 litres / 100 km
Combined (l/100km)
8.5 litres / 100 km
Fuel Consumption NEDC
City
9.1 litres / 100 km
Highway
7.1 litres / 100 km
Combined
7.8 litres / 100 km
Emission WLTP
CO₂, Combined
192 - 193 g/km
Emission NEDC
CO₂, Combined
178 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,076 mm (81.7 in)
Track, Front
1,537 mm (60.5 in)
Track, Rear
1,565 mm (61.6 in)
Turning Circle
11.8 m
Ground Clearance
129 mm (5.1 in)

Weight

Gross Weight
1,760 kg (3,880 lb)
Cargo Capacity
380 kg (838 lb)
Max Roof Load
45 kg (99 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Turning Signal
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Normal Roof
Yes

Lights

Low Beam
LED
Daytime Running Light
LED
Fog Lights
Optional
Special Features
  • Main Beam Assist
  • Come Home/Leaving Lights
Fog Lights
Front
Yes
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
64.1
Fastening Type
Lug Nuts
Tightening Torque
108 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
Yes
Media Format
MP3
Media Inputs
USB
App-Connect
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Lights
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Yes

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes

Trunk

Rear Trunk
Yes
Cover
Foldable
Flat Surface
Yes
Rear Trunk
Volume
420 litres
Volume, Back Seat Collapsed
1,209 litres

Seats

Colour & Material
Upholstery
Textile
Front Seats
Heated Seats
Optional
Type of Seat
Sport Seats
Second Seat Row
Collapsible
Manual
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Wireless Phone Charger
Optional
Cameras: Camera Position
Rear

Other Features

GPS
Optional
Start & Stop
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote

Safety Testing

General
Test Year
2017
Adult Occupant
92 %
Child Occupant
75 %
Vulnerable Road Users
75 %
Safety Assist
88 %
Overall
5/5 stars
ASEAN NCAP
Test Year
2016
Adult Occupant
4/5 stars
Adult Occupant, Points
14.74
Child Occupant
4/5 stars
Child Occupant
86 %
IIHS
Test Year
2016
Small Overlap Front: Driver Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
Poor
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of
Front of Hood
Yes

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H11
Main Beam
HB3
Fog Light, Front
H8
Fog Light, Rear
W3×16d (W21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)

ACRISS

Type
4-5 Doors (D)

Awards

North American
Car of the Year
2016
