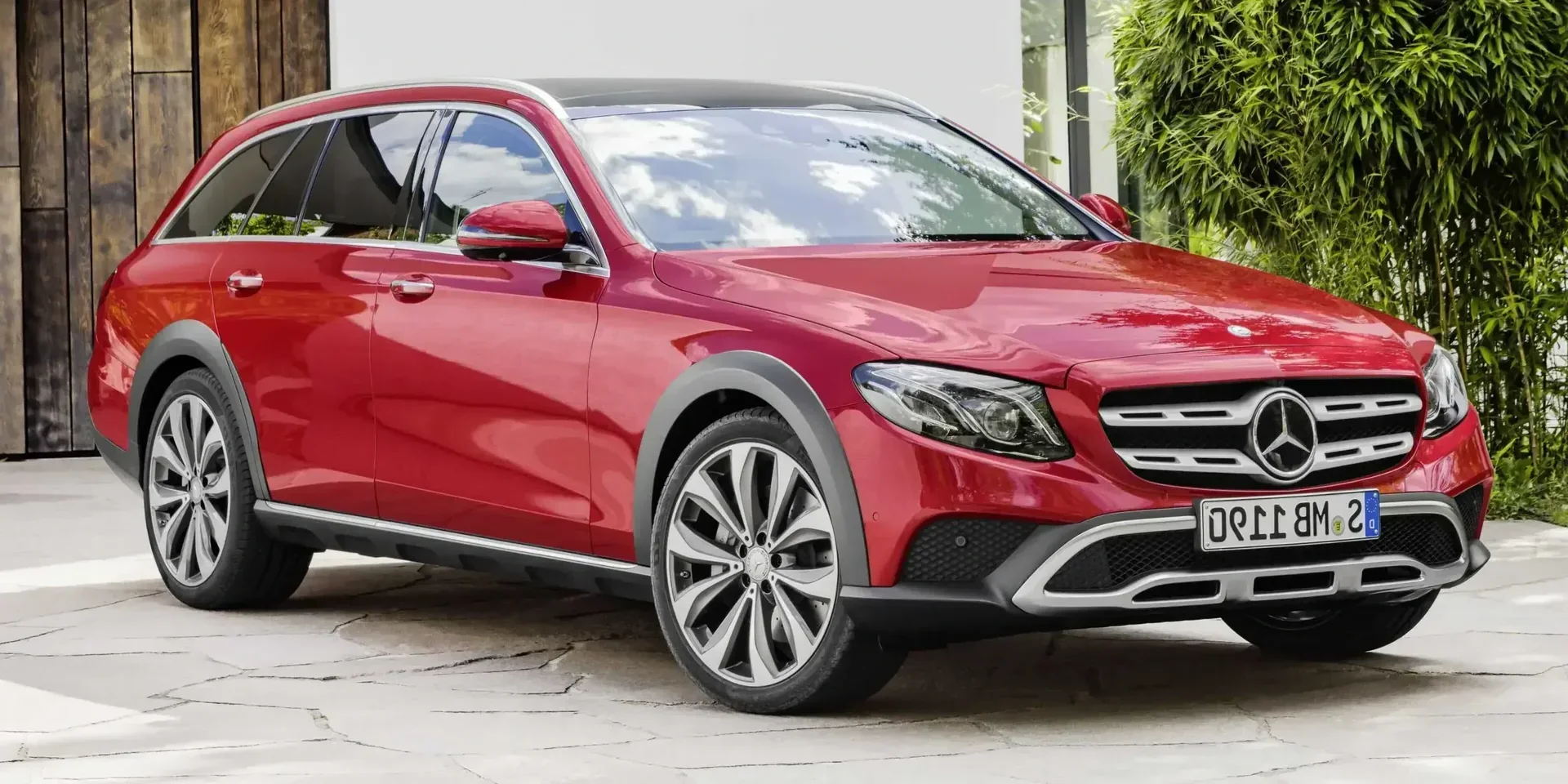

2017 Mercedes-Benz E-Class

GermanyDieselAWDCrossover

Photos

Specifications

Vehicle Details

Year
2017
Make
Mercedes-Benz
Model
E-Class
Body Style
Crossover
Generation
W213
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
E 220 d 4MATIC All-Terrain 9G-Tronic
Engine Configuration
Inline
Power (hp)
194 hp
Power (kW)
143 kW
Torque
400 Nm (295 lb-ft)
Top speed
231 km/h (144 mph)
0–60 mph
7.6 seconds (estimated)
0–100 km/h
8 seconds
Displacement
1,950 cc

Dimensions

Length
4,933 mm (194.2 in)
Width
1,852 mm (72.9 in)
Height
1,475 mm (58.1 in)
Wheelbase
2,939 mm (115.7 in)
Curb weight
1,920 kg (4,233 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,800 rpm
Rev. at Max Torque
1,600 - 2,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
6 litres
Engine Configuration
Engine Configuration
Inline
Turbocharger
Yes
Service Intervals
Oil Change & Engine Filter
25,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
50 litres
Emission
Emission Standard
Euro 6
Emission Class
A
Fuel Consumption NEDC
City
5.5 - 5.6 litres / 100 km
Highway
5 - 5.1 litres / 100 km
Combined
5.2 - 5.3 litres / 100 km
Emission NEDC
CO₂, Combined
137 - 139 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,065 mm (81.3 in)
Track, Front
1,600 mm (63.0 in)
Track, Rear
1,609 mm (63.3 in)
Overhang, Front
841 mm (33.1 in)
Overhang, Rear
1,153 mm (45.4 in)
Ground Clearance
136 mm (5.4 in)

Interior

Head Room, Front
1,060 - 1,061 mm (41.7 - 41.8 in)
Head Room, Rear
1,005 mm (39.6 in)
Hip Room, Front
1,468 mm (57.8 in)
Hip Room, Rear
1,450 mm (57.1 in)
Shoulder Room, Front
1,499 mm (59.0 in)
Shoulder Room, Rear
1,494 mm (58.8 in)

Weight

Gross Weight
2,590 kg (5,710 lb)
Max Trailer Load, braked 12%
2,100 kg (4,630 lb)
Cargo Capacity
640 kg (1,411 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-D
Chassis Construction
Unibody
Body Material
Aluminium
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Door Handles
Pull-out
Platform
Mercedes-Benz Platforms
MRA

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Heated Water Tank
Optional
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Glass-integrated
Electric
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Main Beam Assist
  • Headlight Range Adjustment

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
MP3
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
CD
Optional
Memory Card Reader
SD
Connectivity › Media Inputs
USB
USB-A
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
8.4"
Center Display Controls
Touchpad
Displays › Center Display
Type
Colour
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Fridge
Optional
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Dual Sun Visors
Optional
Clock
Digital
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Dual Sun Visors
Driver
Optional
Passenger
Optional
Other Equipment › Clock
Analogue
Optional
Other Equipment › 230V Outlet
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Barrier Net/Grid
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Depth
1,175 mm (46.3 in)
Depth, Back Seat Collapsed
2,005 mm (78.9 in)
Height
819 mm (32.2 in)
Sill Height
612 mm (24.1 in)
Automatic Open
Motion Activated
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Backrest Release
From Trunk
Fold Type
Manual
Split Fold Ratio
40/20/40
Second Seat Row › Armrest
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
360° Camera
Optional
Cruise Control
Adaptive Cruise Control
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Powered
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Yes
Emergency Call
Yes

Safety Testing

General
Test Year
2016
Adult Occupant
95 %
Child Occupant
90 %
Vulnerable Road Users
77 %
Safety Assist
62 %
Overall
5/5 stars
ANCAP Safety Rating
5
Adult Occupant
Protection
95 %
Protection
36.3
Full Width
7.52
Frontal Offset
7.31
Side Impact
8
Pole
7.92
Whiplash Protection (Front)
2.54
AEB (City)
3
Child Occupant
Protection
90 %
Protection
44.6
Pedestrian
Protection
77 %
Protection
32.5
Safety Assist
Safety Assist
62 %
Safety Assist
7.5
Speed Assistance System
1.5
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Type
Wagon/Estate (W)

Similar crossovers

Suggested vehicles
