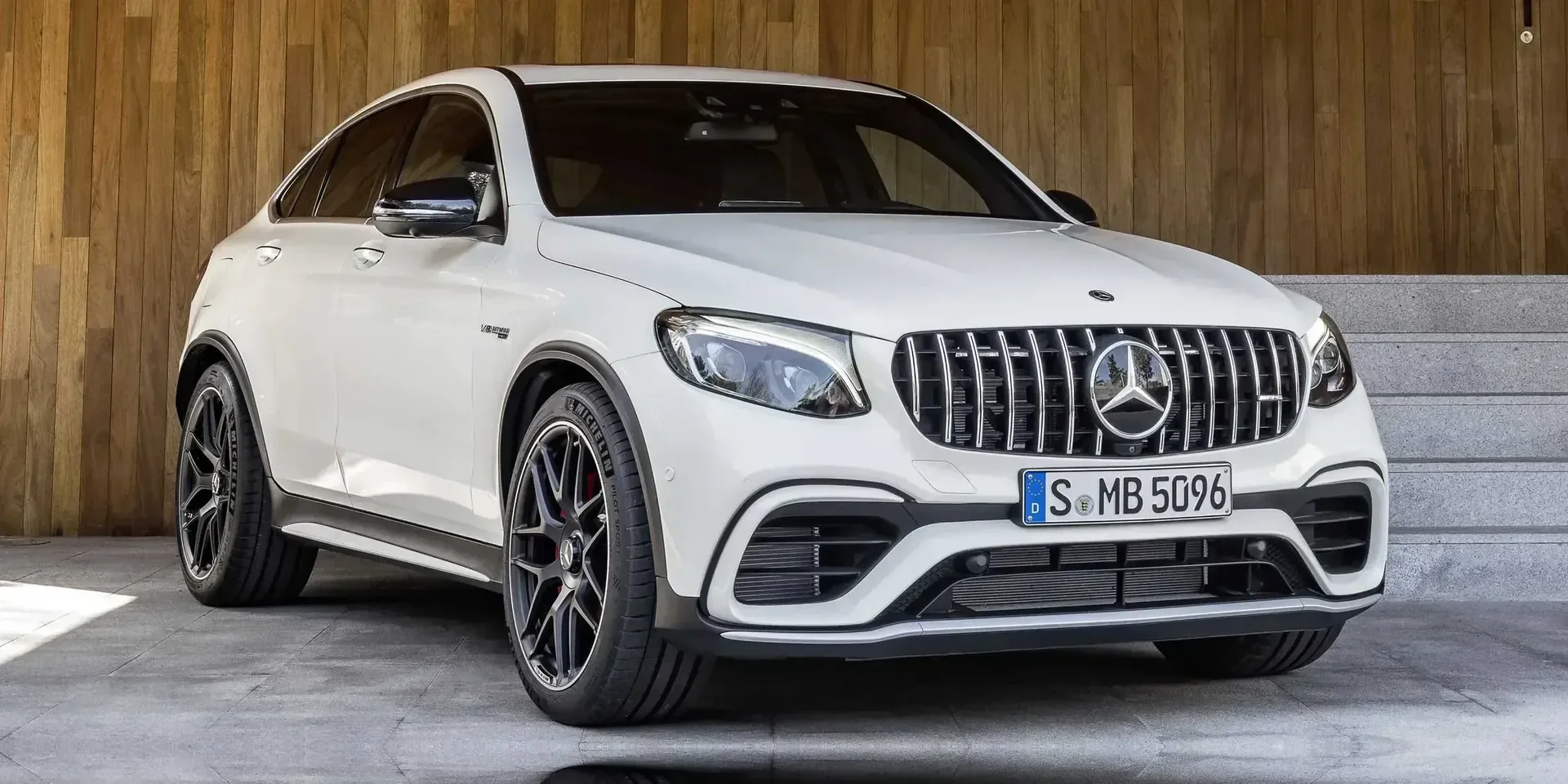

2017 Mercedes-Benz GLC AMG GLC

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2017
Make
Mercedes-Benz
Model
GLC
Variant
AMG GLC
Body Style
SUV
Generation
X253
Seats
4
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic, 9-speed

Powertrain

Engine Name
AMG GLC 63 S Coupé 4MATIC+ AMG SpeedShift MCT 9-speed
Engine Configuration
V
Power (hp)
510 hp
Power (kW)
375 kW
Torque
700 Nm (516 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
3.6 seconds (estimated)
0–100 km/h
3.8 seconds
Displacement
3,982 cc

Dimensions

Length
4,732 mm (186.3 in)
Width
1,890 mm (74.4 in)
Height
1,602 mm (63.1 in)
Wheelbase
2,873 mm (113.1 in)
Curb weight
2,020 kg (4,453 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 - 6,250 rpm
Rev. at Max Torque
1,750 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-40
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92 mm (3.6 in)
Compression Ratio
10.5 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Engine Mount
Longitudinally
Service Intervals
Air Filter
80,000 km (49,710 mi)
Fuel Filter
200,000 km / 10 years
Spark Plug
100,000 km / 5 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
200,000 km / 10 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic, 9-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
66 litres
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
G
Emission WLTP
CO₂, Combined
279 - 283 g/km
Emission NEDC
CO₂, Combined
244 g/km
Fuel Consumption NEDC
City
14.1 litres / 100 km
Highway
8.7 litres / 100 km
Combined
10.7 litres / 100 km

Dimensions & Weight

Exterior

Width, with Mirrors
2,096 mm (82.5 in)
Height (Bonnet Open)
3,686 mm (145.1 in)
Track, Front
1,620 mm (63.8 in)
Track, Rear
1,619 mm (63.7 in)
Overhang, Front
831 mm (32.7 in)
Overhang, Rear
1,028 mm (40.5 in)
Turning Circle
11.8 m
Ground Clearance
180 mm (7.1 in)

Interior

Head Room, Front
988 mm (38.9 in)
Head Room, Rear
972 mm (38.3 in)
Hip Room, Front
1,499 mm (59.0 in)
Hip Room, Rear
1,474 mm (58.0 in)
Shoulder Room, Front
1,455 mm (57.3 in)
Shoulder Room, Rear
1,436 mm (56.5 in)

Weight

Gross Weight
2,590 kg (5,710 lb)
Max Trailer Load, braked 12%
2,200 kg (4,850 lb)
Cargo Capacity
570 kg (1,257 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV (Crossover Coupé)
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Yes
Special Features
Main Beam Assist
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.5
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • FLAC
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Memory Card Reader
SD
Connectivity › Media Inputs
USB
USB-A
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Rear-view Mirror
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Adjustments
  • Tilt
  • Telescope
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Rear Trunk
Volume
500 litres
Volume, Back Seat Collapsed
1,400 litres
Depth
997 mm (39.3 in)
Depth, Back Seat Collapsed
1,513 mm (59.6 in)
Height
695 mm (27.4 in)
Trunk Door Opening Height
2,208 mm (86.9 in)
Sill Height
824 mm (32.4 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Yes
Second Seat Row › Collapsible
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
95 %
Child Occupant
89 %
Vulnerable Road Users
82 %
Safety Assist
71 %
Overall
5/5 stars
ANCAP Safety Rating
5
Adult Occupant
Protection
95 %
Protection
36.4
Full Width
7.45
Frontal Offset
7.57
Side Impact
8
Pole
8
Whiplash Protection (Front)
2.59
AEB (City)
2.81
Child Occupant
Protection
89 %
Protection
43.7
Pedestrian
Protection
82 %
Protection
29.7
Safety Assist
Safety Assist
71 %
Safety Assist
9.3
Speed Assistance System
1.3
ESC
3
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Turn Indicators, Front
BAU15s (PY21W)

Similar suvs

Suggested vehicles
