2017 Porsche Macan

GermanyGasolineAWDSUV

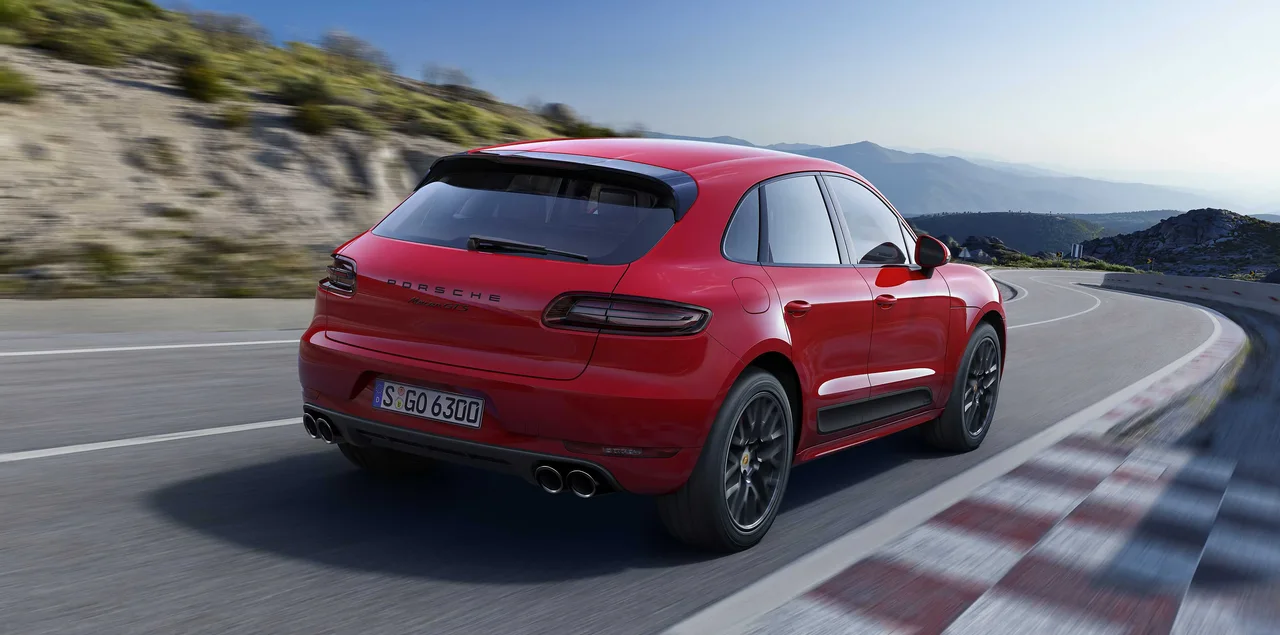

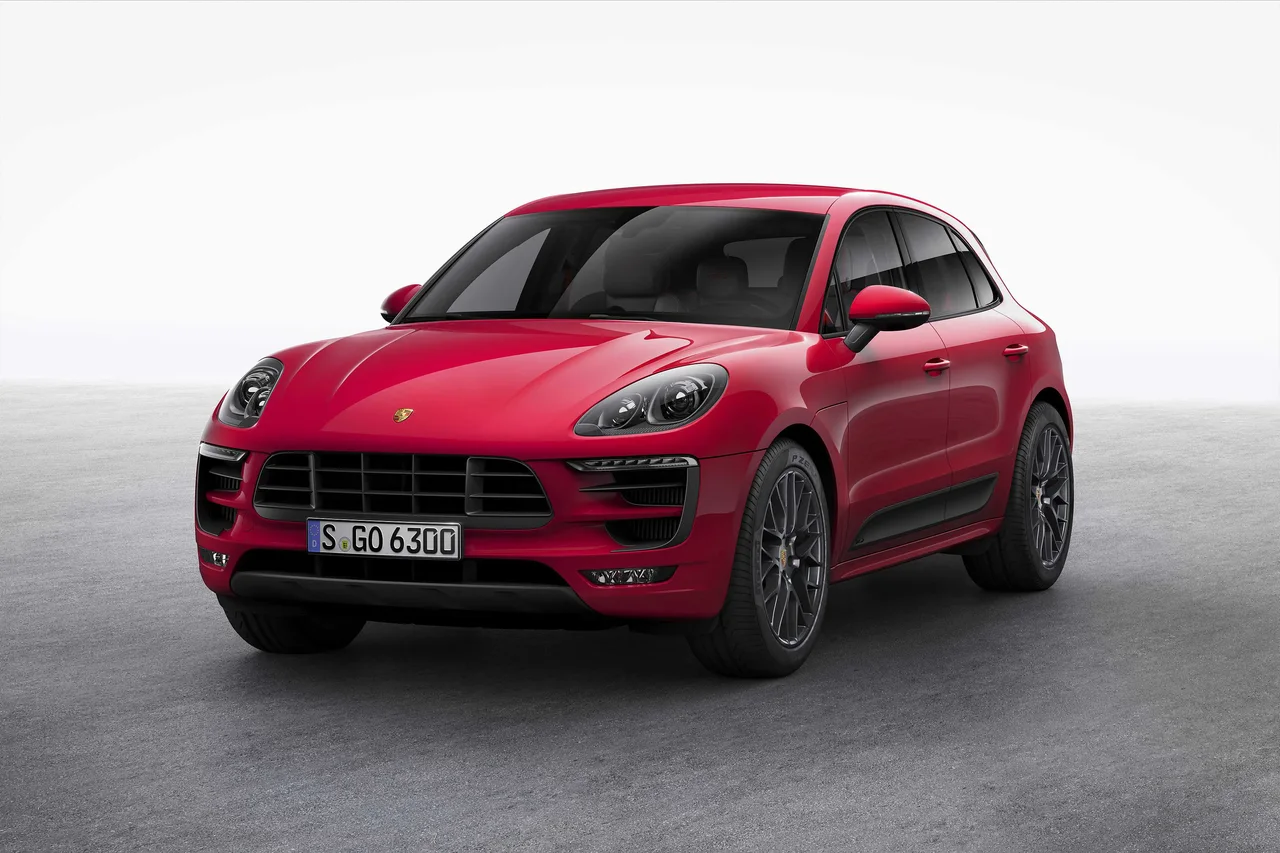

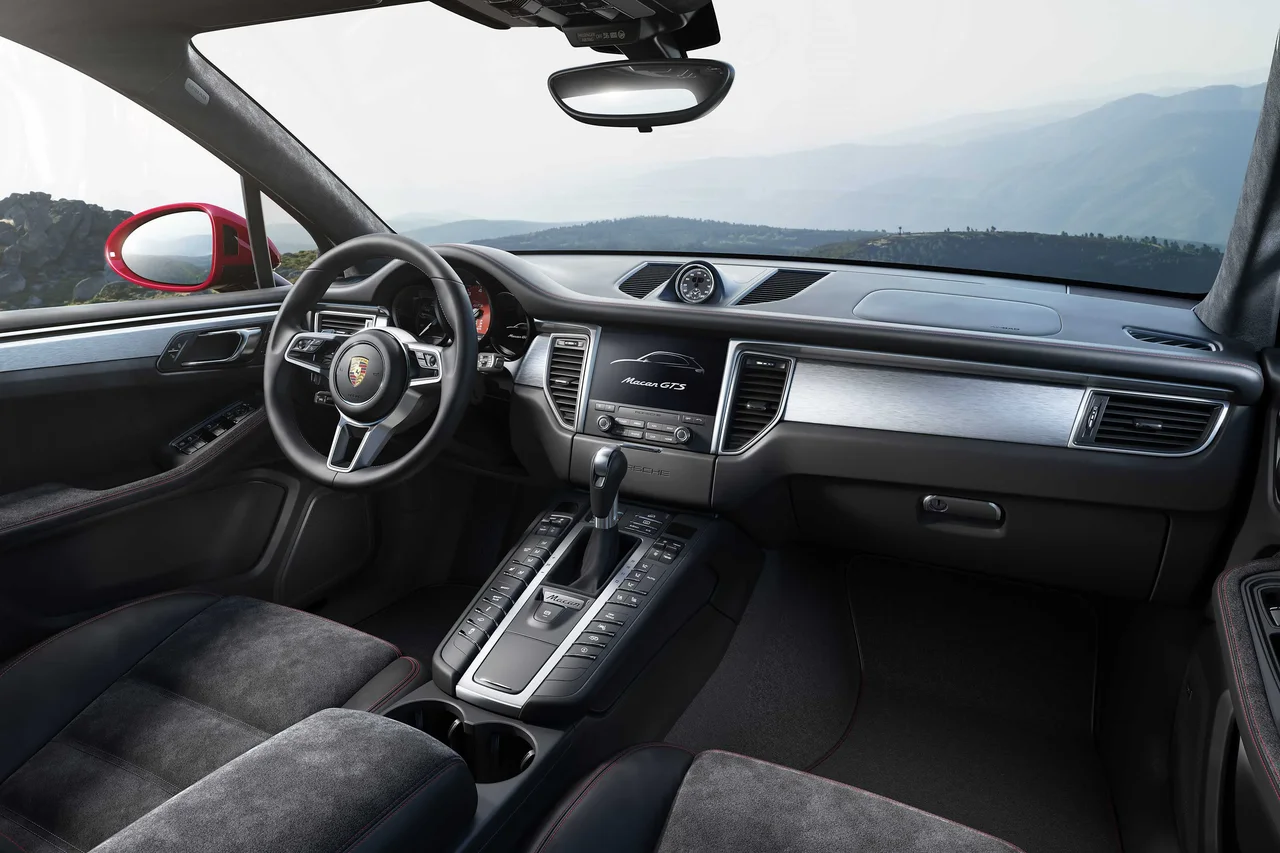

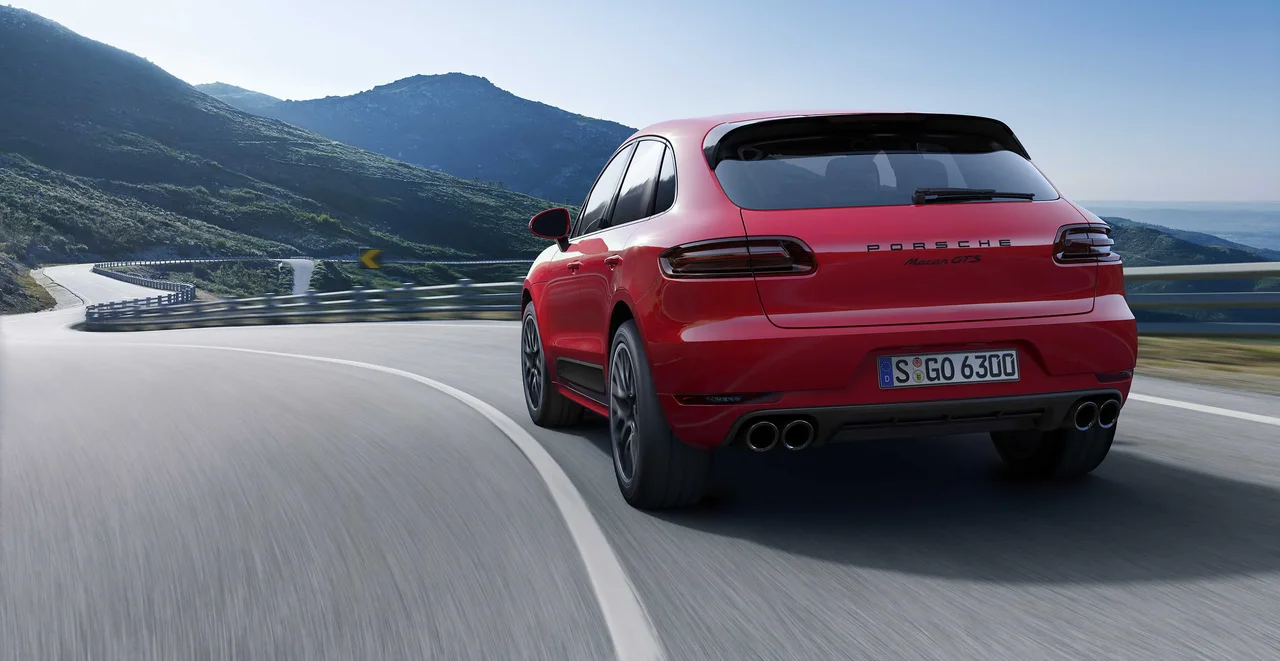

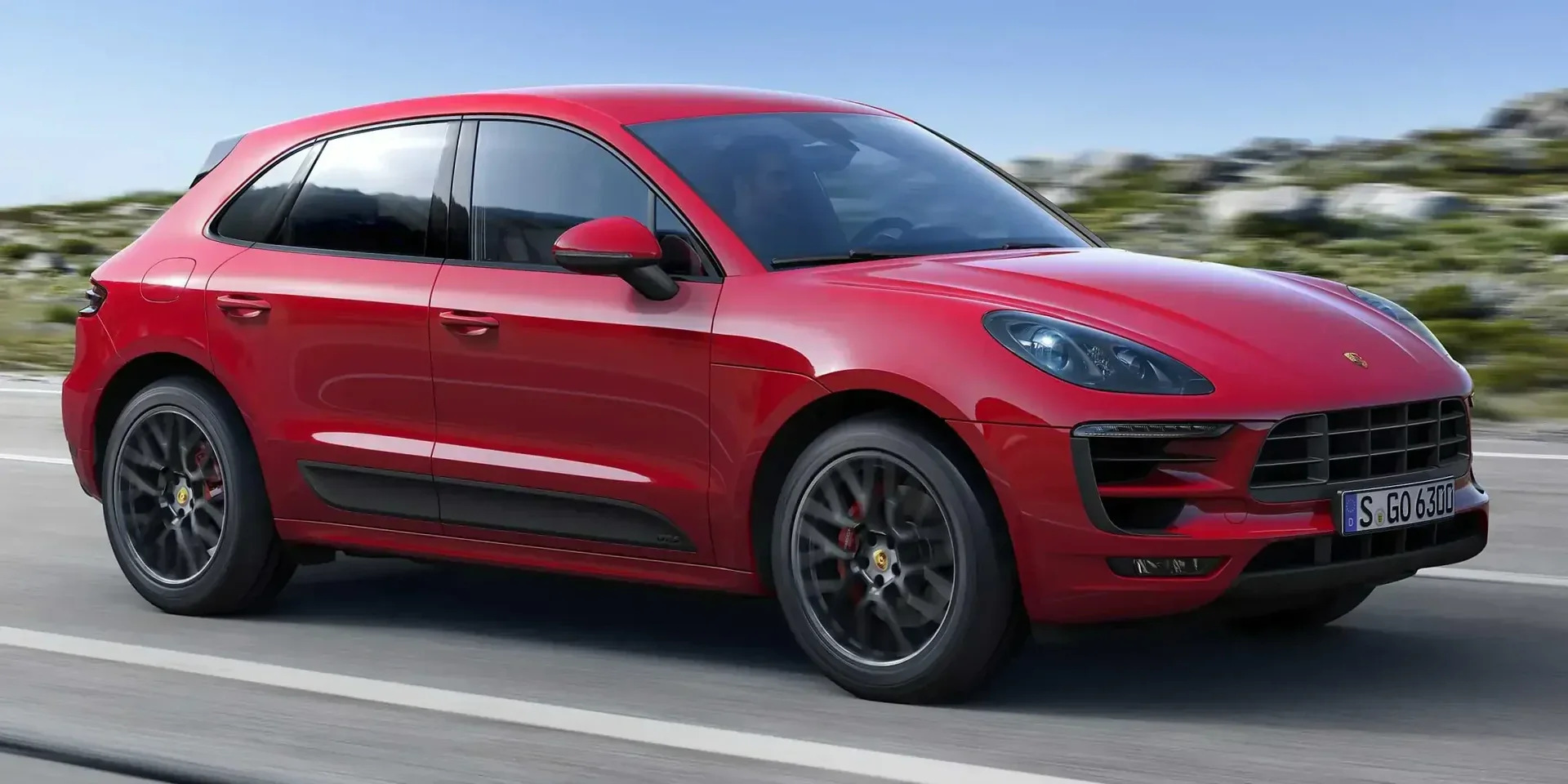

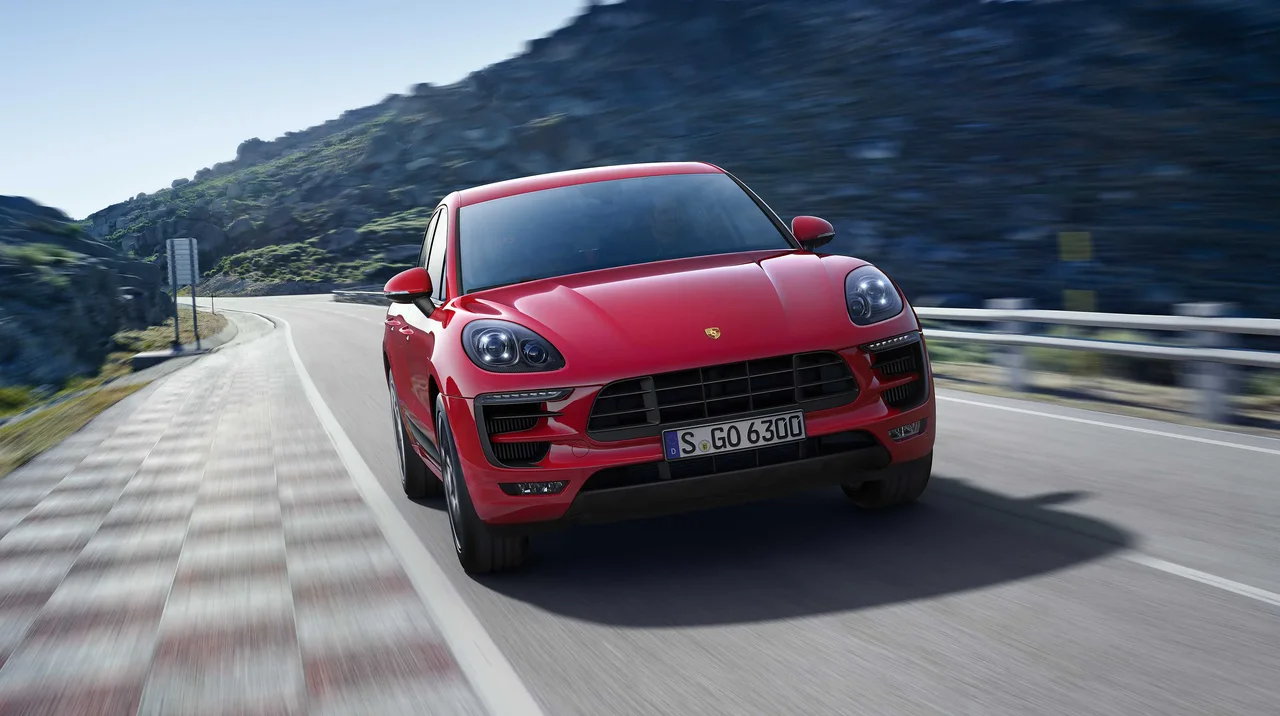

Photos

Specifications

Vehicle Details

Year
2017
Make
Porsche
Model
Macan
Body Style
SUV
Generation
95B
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
GTS PDK
Engine Configuration
V
Power (hp)
360 hp
Power (kW)
265 kW
Torque
500 Nm (369 lb-ft)
Top speed
256 km/h (159 mph)
0–60 mph
5.0 seconds (estimated)
0–100 km/h
5.2 seconds
Displacement
2,997 cc

Dimensions

Length
4,697 mm (184.9 in)
Width
1,923 mm (75.7 in)
Height
1,624 mm (63.9 in)
Wheelbase
2,807 mm (110.5 in)
Curb weight
1,895 kg (4,178 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,650 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-40
  • 5W-40
  • 5W-50
Semi-synthetic Oil (viscosity)
5W-40
Engine Oil, Volume
8 litres
Engine Configuration
Bore
96 mm (3.8 in)
Stroke
69 mm (2.7 in)
Compression Ratio
9.8 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Service Intervals
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
360 mm (14.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
Double Wishbone
Sports Suspension
Optional
Electronic Damper Control (EDC)
Optional

Fuel

General
Tank Volume
65 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
11.4 litres / 100 km
Highway
7.4 litres / 100 km
Combined
8.8 litres / 100 km
Emission NEDC
CO₂, Combined
207 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,098 mm (82.6 in)
Track, Front
1,655 mm (65.2 in)
Track, Rear
1,651 mm (65.0 in)
Ground Clearance
205 mm (8.1 in)

Weight

Gross Weight
2,550 kg (5,622 lb)
Cargo Capacity
655 kg (1,444 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Platform
Volkswagen Group
MLB

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Spoiler
Optional
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Spoiler
Fixed
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Headlight Washers
Fog Lights
Front
Yes
Fog Lights › Front
Cornering Lights
Yes
Special Features
Main Beam Assist
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.5
Fastening Type
Lug Bolts
Tightening Torque
160 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
4.8"
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Back Seat Controls
Buttons
Air Ionizer
Optional
Fragrance System
Optional
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
App-Connect
Apple CarPlay
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
Memory Card Reader
Optional
Connectivity › Media Inputs
AUX
Optional
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Number of Ports
2 pcs
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
10 pcs
Speakers Max. Watt
150 W
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Sport
Optional
Number of Spokes
3
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Rear Trunk
Volume
500 litres
Volume, Back Seat Collapsed
1,500 litres
Depth
949 mm (37.4 in)
Depth, Back Seat Collapsed
1,691 mm (66.6 in)
Width
1,064 mm (41.9 in)
Width, Between Wheel Arches
1,038 mm (40.9 in)
Height
725 mm (28.5 in)
Sill Height
798 mm (31.4 in)

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Yes
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Yes
Number of Seats
3
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Remote Engine Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Automatic Access Height
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Launch Control
Optional
Driving Mode Selection
Optional
Dynamic Chassis Control (DCC)
Optional
Horn
Dual Note
Driving Mode Selection
Comfort
Optional
Eco
Optional
Normal
Optional
Race
Optional
Snow
Optional
Auto
Optional

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2014
Adult Occupant
88 %
Child Occupant
87 %
Vulnerable Road Users
60 %
Safety Assist
66 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Medium SUV

Awards

Golden Steering Wheel
Medium SUV
2014

Similar suvs

Suggested vehicles
