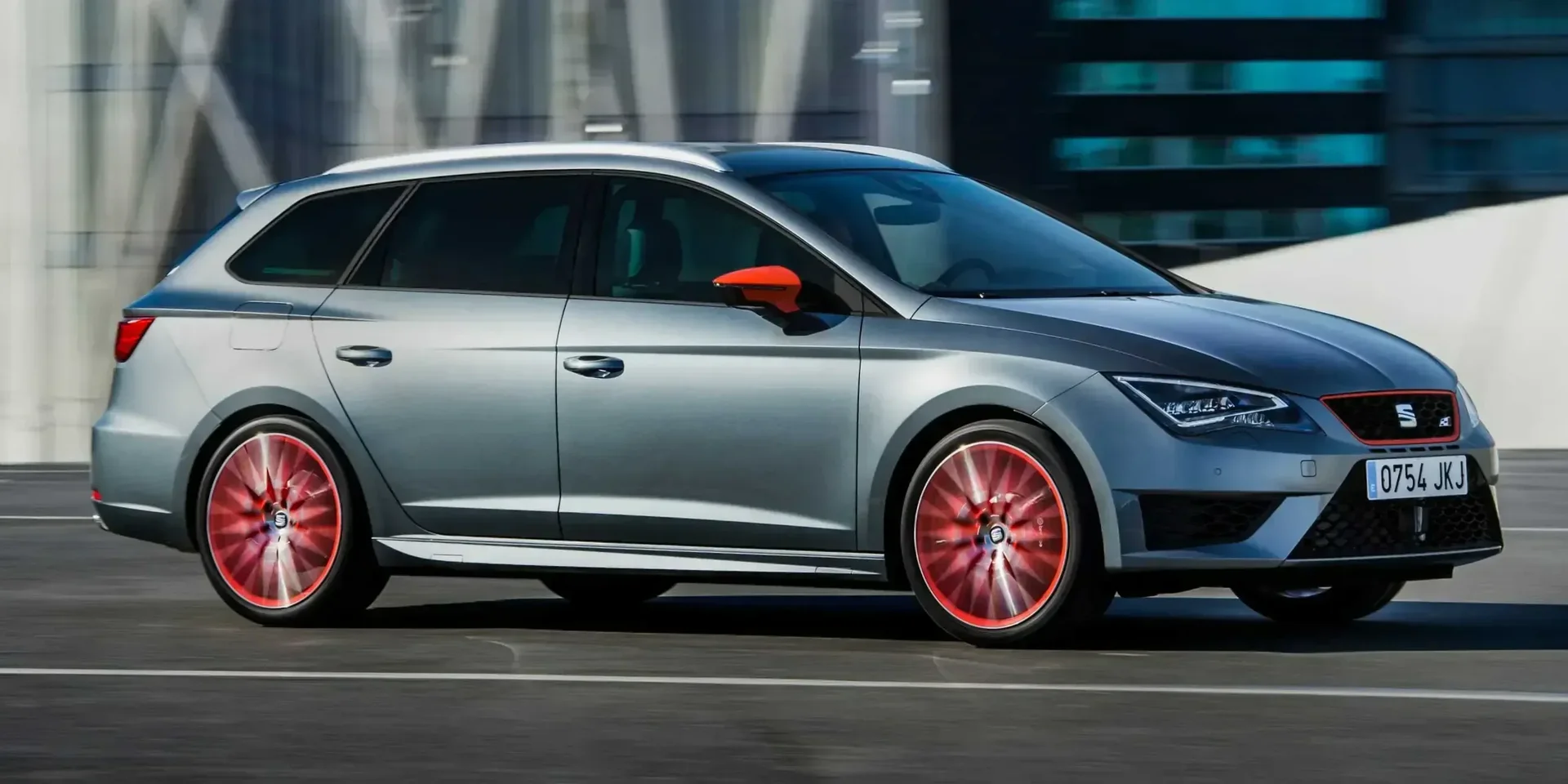

2017 SEAT León Cupra ST

SpainGasolineFWDWagon

Photos

Specifications

Vehicle Details

Year
2017
Make
SEAT
Model
León
Variant
Cupra ST
Body Style
Wagon
Generation
5F
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6-speed

Powertrain

Engine Name
Cupra ST
Engine Configuration
Inline
Power (hp)
290 hp
Power (kW)
213 kW
Torque
350 Nm (258 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.6 seconds (estimated)
0–100 km/h
5.9 seconds
Displacement
1,984 cc

Dimensions

Length
4,540 mm (178.7 in)
Width
1,820 mm (71.7 in)
Height
1,460 mm (57.5 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,440 kg (3,175 lb)

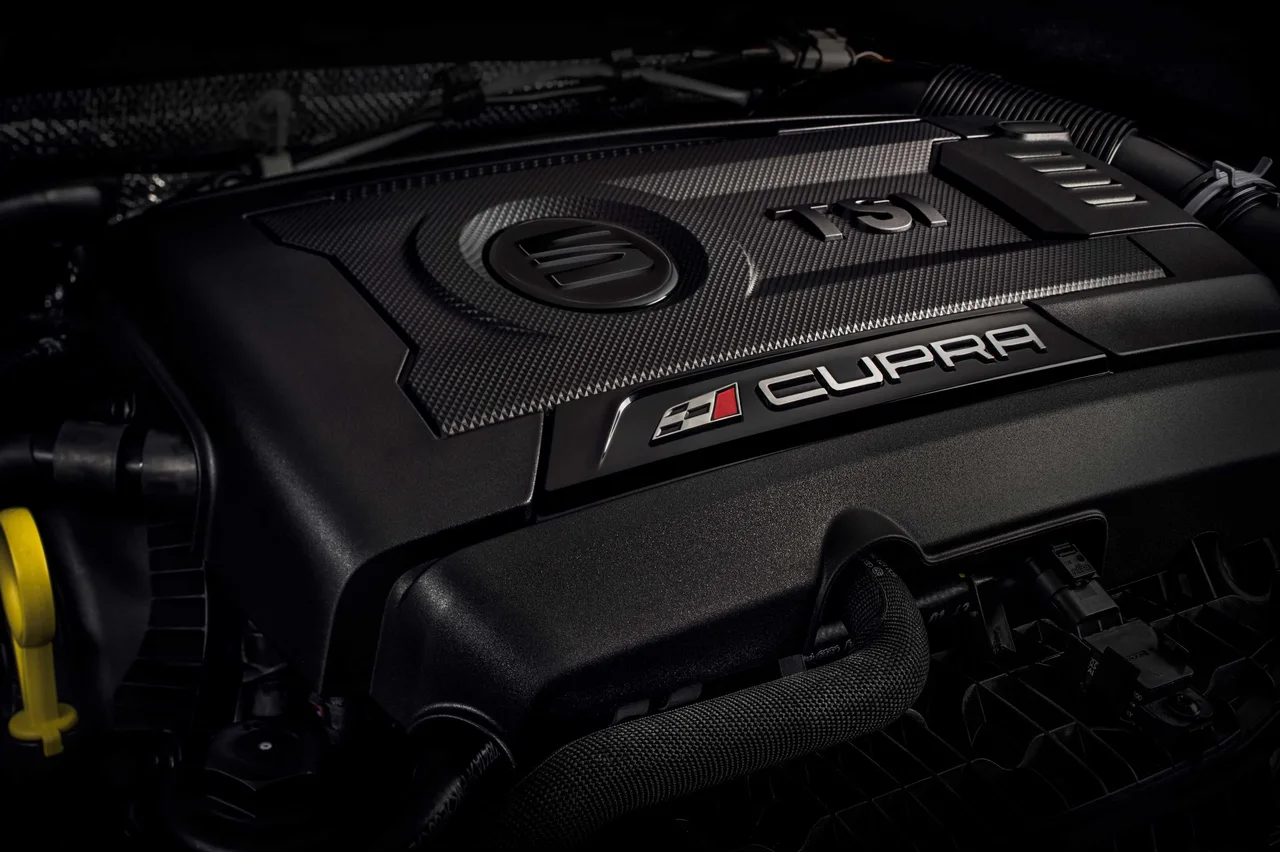

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 - 6,500 rpm
Rev. at Max Torque
1,700 - 5,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
340 mm (13.4 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
310 mm (12.2 in)
Width
22 mm (0.9 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
50 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
D
Fuel Consumption NEDC
Combined
6.6 – 6.8 litres / 100 km
Emission NEDC
CO₂, Combined
156 – 158 g/km

Dimensions & Weight

Exterior

Track, Front
1,550 mm (61.0 in)
Track, Rear
1,520 mm (59.8 in)
Turning Circle
10.2 m
Ground Clearance
147 mm (5.8 in)

Interior

Head Room, Front
1,041 mm (41.0 in)
Head Room, Rear
972 mm (38.3 in)
Shoulder Room, Front
1,436 mm (56.5 in)
Shoulder Room, Rear
1,435 mm (56.5 in)

Weight

Gross Weight
1980 – 2000 kg (4,365 – 4,409 lb)
Cargo Capacity
609 – 615 kg (1,343 – 1,356 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Body Material
Aluminium
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
MQB Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Automatic Headlight Activation
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic | Semi-Static)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Tightening Torque
120 Nm
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Optional
Number of Vents, Front
4 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Climate Control › Controls
Buttons
Optional
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Connectivity › Media Format
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Front
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Carpet
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
585 litres
Volume, Back Seat Collapsed
1,470 litres
Depth
1,040 mm (40.9 in)
Depth, Back Seat Collapsed
1,802 mm (70.9 in)
Width
1,040 mm (40.9 in)
Width, Between Wheel Arches
1,005 mm (39.6 in)
Height
660 mm (26.0 in)
Sill Height
638 mm (25.1 in)

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Collapsible › Backrest Release
From Trunk
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Optional
Horn
Dual Note
Driving Mode Selection
Eco
Optional
Individual
Optional
Normal
Optional
Sport
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
94 %
Child Occupant
92 %
Vulnerable Road Users
70 %
Safety Assist
71 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Left
Engine Compartment, Inner Wing
Right
Left Side Casing of Window
Yes
Trunk
on Floor

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

ACRISS

Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
