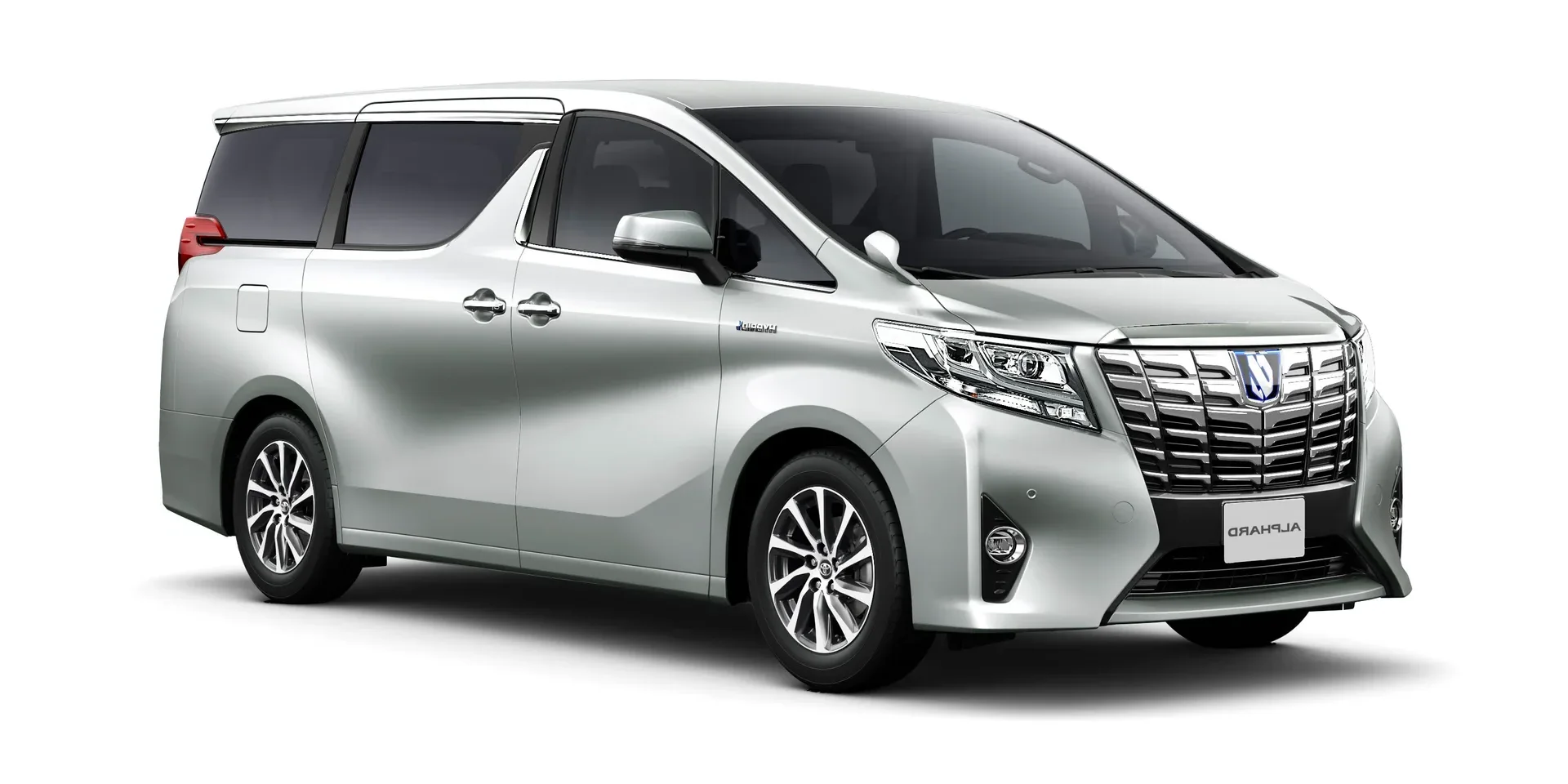

2017 Toyota Alphard

JapanGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2017
Make
Toyota
Model
Alphard
Body Style
Minivan
Generation
AH30
Seats
7
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
2.5 Dual VVT-i Super CVT‐i
Engine Configuration
Inline
Power (hp)
181 hp
Power (kW)
133 kW
Torque
231 Nm (170 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
10.8 seconds (estimated)
0–100 km/h
11.3 seconds
Displacement
2,494 cc

Dimensions

Length
4,915 mm (193.5 in)
Width
1,850 mm (72.8 in)
Height
1,895 mm (74.6 in)
Wheelbase
3,000 mm (118.1 in)
Curb weight
2,025 kg (4,464 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,100 rpm
Engine Configuration
Engine Configuration
Inline

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Fuel

General
Tank Volume
75 litres
Fuel Consumption NEDC
City
11.6 litres / 100 km
Emission NEDC
CO₂, Combined
200 g/km

Dimensions & Weight

Exterior

Track, Front
1,600 mm (63.0 in)
Track, Rear
1,625 mm (64.0 in)
Overhang, Front
880 mm (34.6 in)
Overhang, Rear
1,035 mm (40.7 in)
Ground Clearance
160 mm (6.3 in)

Interior

Head Room (est.), Rear
1,000 - 1,020 mm (39.4 - 40.2 in)
Head Room (est.), Third Row
980 - 1,000 mm (38.6 - 39.4 in)
Leg Room (est.), Rear
1,100 - 1,140 mm (43.3 - 44.9 in)
Leg Room (est.), Third Row
900 - 950 mm (35.4 - 37.4 in)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Platform
Toyota Platform
MC Platform (New MC)

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts

Interior

Seats

Third/Fourth Seat Row
Third Seat Row
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
190 litres

Other

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV
