79 photos
Vehicles
›
Make
›
Toyota
›
Model
›
Avensis

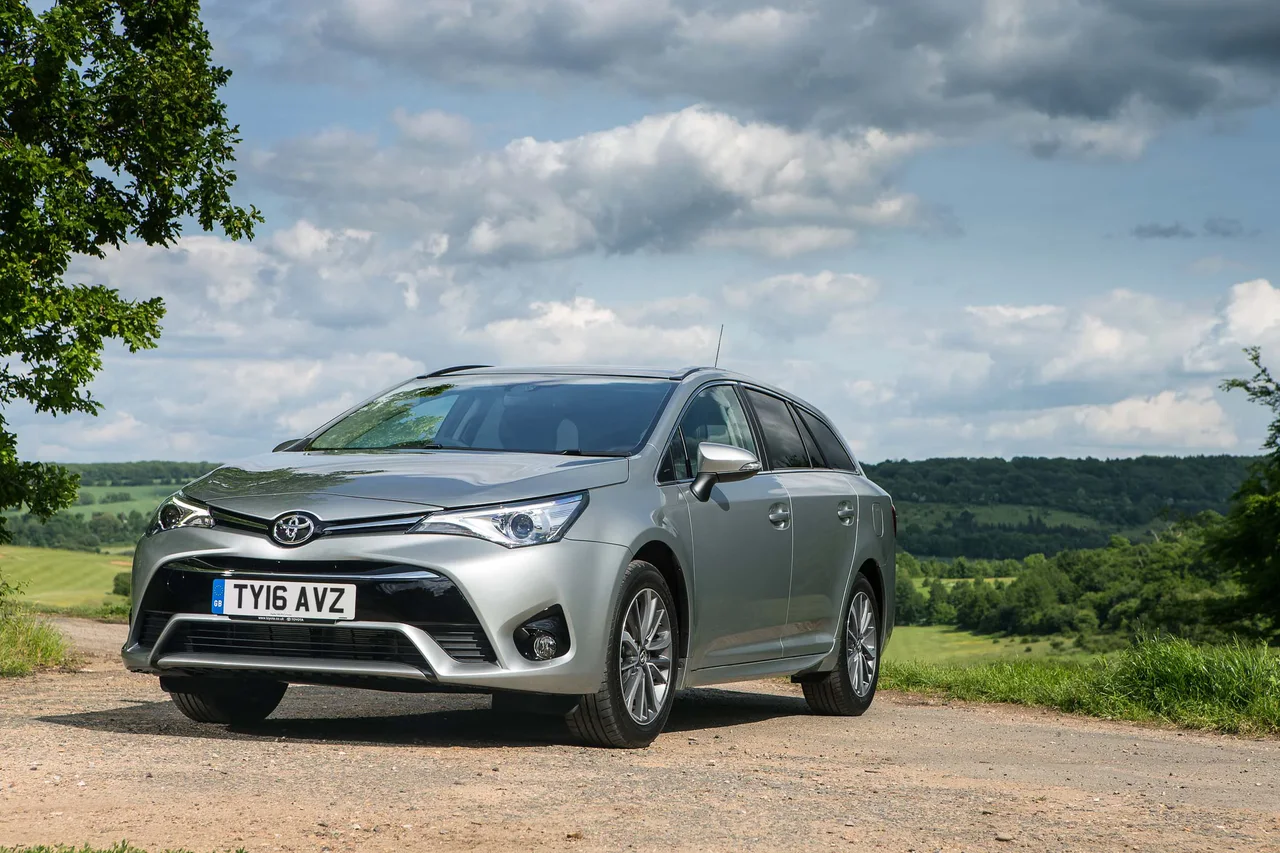

2017 Toyota Avensis
Japan
Gasoline
FWD
Wagon
Updated Sep 11, 2026
79 photos
79 photos
Photos
Specifications
Vehicle Details
Powertrain
Dimensions
Engine & Performance
Dimensions & Weight
Exterior
Interior
Features
Safety & Security
Other
Vehicle Details
Year
2017
Make
Toyota
Model
Avensis
Body Style
Wagon
Generation
T27 2nd Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic Continuously variable
Manual, 6-speed
Powertrain
Engine Name
2.0
Engine Configuration
Inline
Power (hp)
152 hp
Power (kW)
112 kW
Torque
196 Nm (145 lb-ft)
Top speed
200 km/h
(124 mph)
0–60 mph
8.9 seconds (estimated)
0–100 km/h
9.3 seconds
Displacement
Dimensions
Length
4,780 mm
(188.2 in)
Width
1,810 mm
(71.3 in)
Height
1,480 mm
(58.3 in)
Wheelbase
2,700 mm
(106.3 in)
Curb weight
1,430 kg
(3,153 lb)
Engine & Performance
Engine
Engine Specification
Rev. at Max Power
6,200 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
0W-30
5W-20
5W-30
Semi-synthetic Oil (viscosity)
5W-30
1,987 cc
Engine Oil, Volume
4.2 litres
Engine Configuration
Bore
80.5 mm
(3.2 in)
Stroke
97.6 mm
(3.8 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
90,000 km
(55,923 mi)
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
90,000 km
(55,923 mi)
Interior Filter
30,000 km
(18,641 mi)
Transmission & Drivetrain
Transmission
Automatic Continuously variable
Manual, 6-speed
Brakes
Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Fuel
General
Tank Volume
60 litres
Fuel Consumption NEDC
City
9.2 – 9.3 litres / 100 km
Highway
5.6 – 5.8 litres / 100 km
Combined
7 litres / 100 km
Emission NEDC
CO₂, Combined
162 g/km
Dimensions & Weight
Exterior
Track, Front
1,560 mm
(61.4 in)
Track, Rear
1,560 mm
(61.4 in)
Turning Circle
10.8 m
Ground Clearance
140 mm
(5.5 in)
Interior
Exterior
Chassis & Body
Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Interior
Equipment
Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Oil Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Features
Comfort Features
Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Cameras: Camera Position
Rear
Other Features
GPS
Optional
Safety & Security
Seat Belt
Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Driver
Passenger
Rear
Seat Belt Reminder
Driver
Other
Warranty
Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
Toyota
1,036 vehicles
Head Room (est.), Rear
950 - 960 mm
(37.4 - 37.8 in)
Leg Room (est.), Rear
920 - 950 mm
(36.2 - 37.4 in)
Weight
Gross Weight
2020 – 2050 kg
(4,453 – 4,519 lb)
Cargo Capacity
575 – 590 - 575 kg
(1,301 - 1,268 lb)
Max Roof Load
103 kg
(227 lb)
Max Towbar Download
75 kg
(165 lb)
Toyota Platform
MC Platform (New MC)
Equipment
Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Speed Sensing Intermittent
Lights
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Auxiliary Lights
Spot Light
Special Features
Main Beam Assist
Fog Lights
Front
Yes
Special Features
Rims & Tires
Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
Buttons
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
AM
FM
RDS
Media Format
CD
MP3
WMA
Bluetooth
Phone
Audio
Connectivity › Radio
DAB
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Displays
Center Display
8"
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
6 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Light
Lockable
Armrest Hatch
Front
Back Pocket
Yes
Door
Driver Side
Passenger Side
Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
1
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Steering Wheel
Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
Tilt
Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Trunk
Rear Trunk
Yes
Light
Yes
Rear Trunk
Volume
545 litres
Volume, Back Seat Collapsed
1,610 litres
Depth
1,105 mm
(43.5 in)
Width
1,550 mm
(61.0 in)
Height
765 mm
(30.1 in)
Design
Interior Decor Material
Leather
Interior Decor Colour
Black
Seats
Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Passenger
Yes
Rear
Yes
Belt Pretensioner
Driver
Yes
Passenger
Yes
Rear
Yes
Belt Load Limiter
Driver
Yes
Passenger
Yes
Rear
Yes
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats
Outer Rear Seats
Centre Rear Seat
Assist Systems
Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Brake Systems
Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Sensors
Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional
Other Features
Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Collision Avoidance System
Yes
Active Headrests
Yes
Immobiliser
Electronic
Yes
Safety Testing
General
Test Year
2015
Adult Occupant
93 %
Child Occupant
85 %
Vulnerable Road Users
78 %
Safety Assist
81 %
Overall
5/5 stars
Adult Occupant
Total Points
Airbags
Feature
Driver
Passenger
Rear
Frontal Airbag
Driver
Yes
Passenger
Yes
Rear
-
Side Chest Airbag
Driver
Child Protection
Isofix
Passenger: -
Rear: Yes
3 years
Identification
VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of
Car Classification
American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car
Spare Parts BETA
Bulb Types
Low Beam
HIR2
Main Beam
HIR2
Datyime Running Light
W3×16q (W21/5W)
Fog Light, Front
H16
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W3×16q (W21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
ACRISS
Type
Wagon/Estate (W)
Avensis
Model
2 variants
€67,000
MSRP · EUR
8.9
Body
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
Front
First Row
Second Row
Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Driver
Passenger
Rear
One-touch up/down
Driver
Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
Front
Rear
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Headlight Washers
Optional
Buttons
Cruise Control
Activate/Deactivate
Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
City
Yes
Inter-urban
Yes
35.4 /38
Frontal Impact
14 /16
Lateral Impact
16 /16
Rear Impact
2.4 /4
Child Occupant
Total Points
42 /49
Safety Features
7 /13
CRS Installation Check
11.7 /12
Vulnerable Road Users
Pedestrian
16.5
5.7
6
Safety Assist
Speed Assistance (points)
1.3 /3
Lane Support (points)
1 /4
Teknikens Världs Moose Test
Test Year
2017
Speed
73 km/h
(45 mph)
Yes
Passenger
Yes
Rear
-
Side Head Airbag
Driver
Yes
Passenger
Yes
Rear
Yes
Knee Airbag
Driver
Yes
Passenger
-
Rear
-
Airbag cut-off Switch
Driver
-
Passenger
Yes
Rear
-
WX3×16d (WY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Trunk
SV8.5 (C5W)
License Plate Light
W2.1×9.5d (W5W)
Wagon
Variant
Avensis Standard
1998–2018
Avensis Wagon Generations
6 of 6
T27 2nd Facelift
2015–2018
Year
2017
Powertrain
2.0
Horsepower
152 hp
Drivetrain
FWD
Fuel
Transmission
Automatic Continuously variable | Manual, 6-speed
Gasoline
Wagon
FWD
Automatic Continuously variable | Manual, 6-speed
Gasoline
