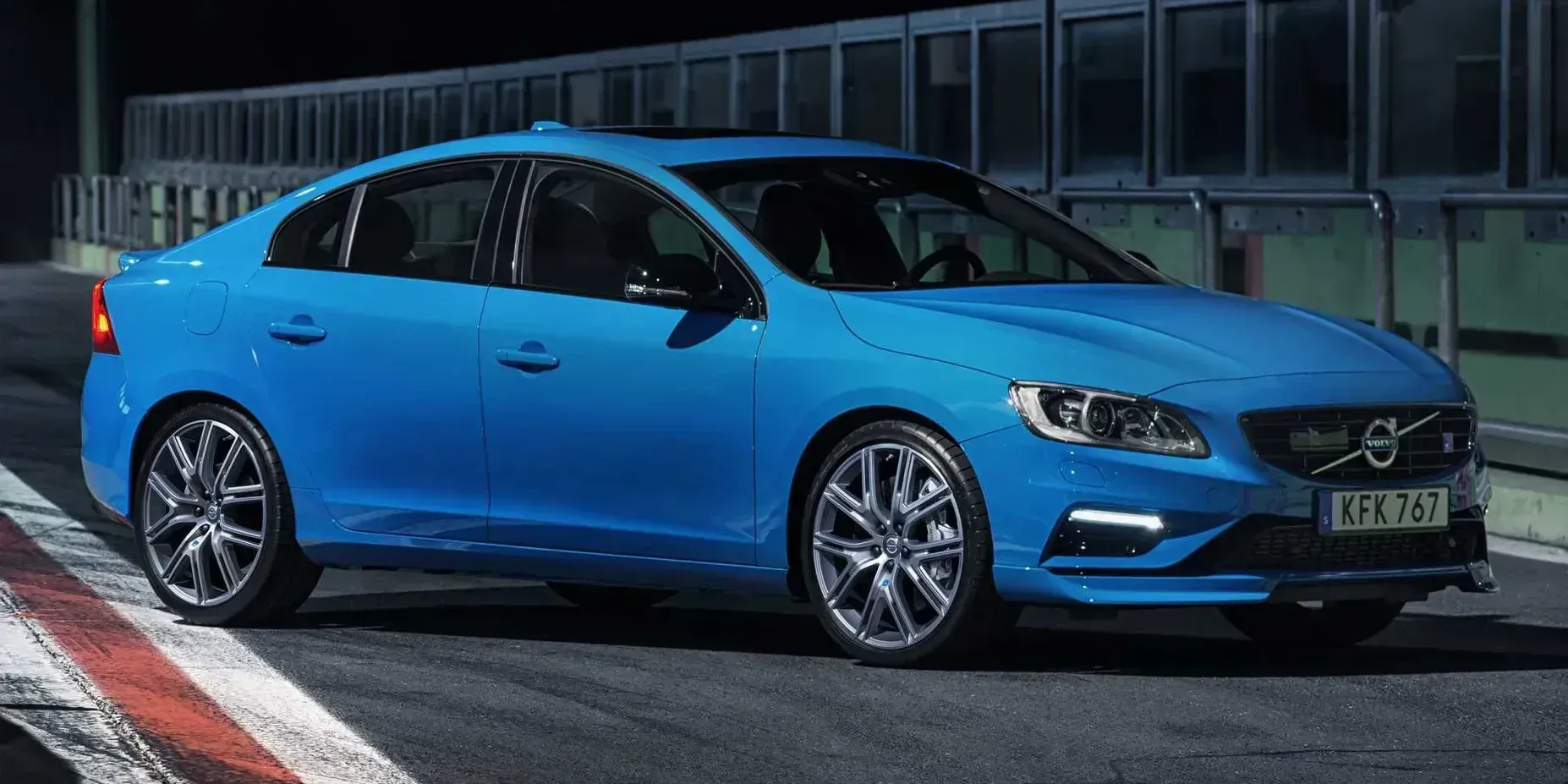

2017 Volvo S60 Polestar T6

SwedenGasoline2WDSedan

Photos

Specifications

Vehicle Details

Year
2017
Make
Volvo
Model
S60
Variant
Polestar T6
Body Style
Sedan
Generation
Y20 Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
2WD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
Polestar T6 Geartronic
Power (hp)
408 hp
Power (kW)
300 kW
Displacement
1,969 cc

Dimensions

Length
4,635 mm (182.5 in)
Width
1,865 mm (73.4 in)
Height
1,484 mm (58.4 in)
Wheelbase
2,776 mm (109.3 in)

Engine & Performance

Engine

Car Battery
Voltage
12 V
Cold Start Power
520 - 800 A
Engine Configuration
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Fuel

General
Tank Volume
67.5 litres
General › Fuel Cap Position
Rear
Right

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
371 mm (14.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
320 mm (12.6 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Sports Suspension
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Yes

Dimensions & Weight

Exterior

Width, with Mirrors
2,097 mm (82.6 in)
Track, Front
1,588 mm (62.5 in)
Track, Rear
1,585 mm (62.4 in)
Overhang, Front
943 mm (37.1 in)
Overhang, Rear
916 mm (36.1 in)
Turning Circle
11.3 m
Ground Clearance
124 mm (4.9 in)

Interior

Head Room, Front
999 mm (39.3 in)
Head Room, Rear
951 mm (37.4 in)
Leg Room, Front
1,064 mm (41.9 in)
Leg Room, Rear
852 mm (33.5 in)
Hip Room, Front
1,395 mm (54.9 in)
Hip Room, Rear
1,359 mm (53.5 in)
Shoulder Room, Front
1,447 mm (57.0 in)
Shoulder Room, Rear
1,401 mm (55.2 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
EUCD Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Yes
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Number of Exhaust Pipes
2
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon
Rear Lights
Halogen
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Headlight Washers
Fog Lights
Front
Halogen
Fog Lights › Front
Cornering Lights
Yes
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • Internet Radio
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
  • Phone
  • Audio
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Displays
Center Display
7"
Center Display Controls
  • Buttons
  • Rotary Dial
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
8"
Speakers
Total Number of Speakers
12 pcs
Speaker Brand
harman/kardon
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual | Electrical)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

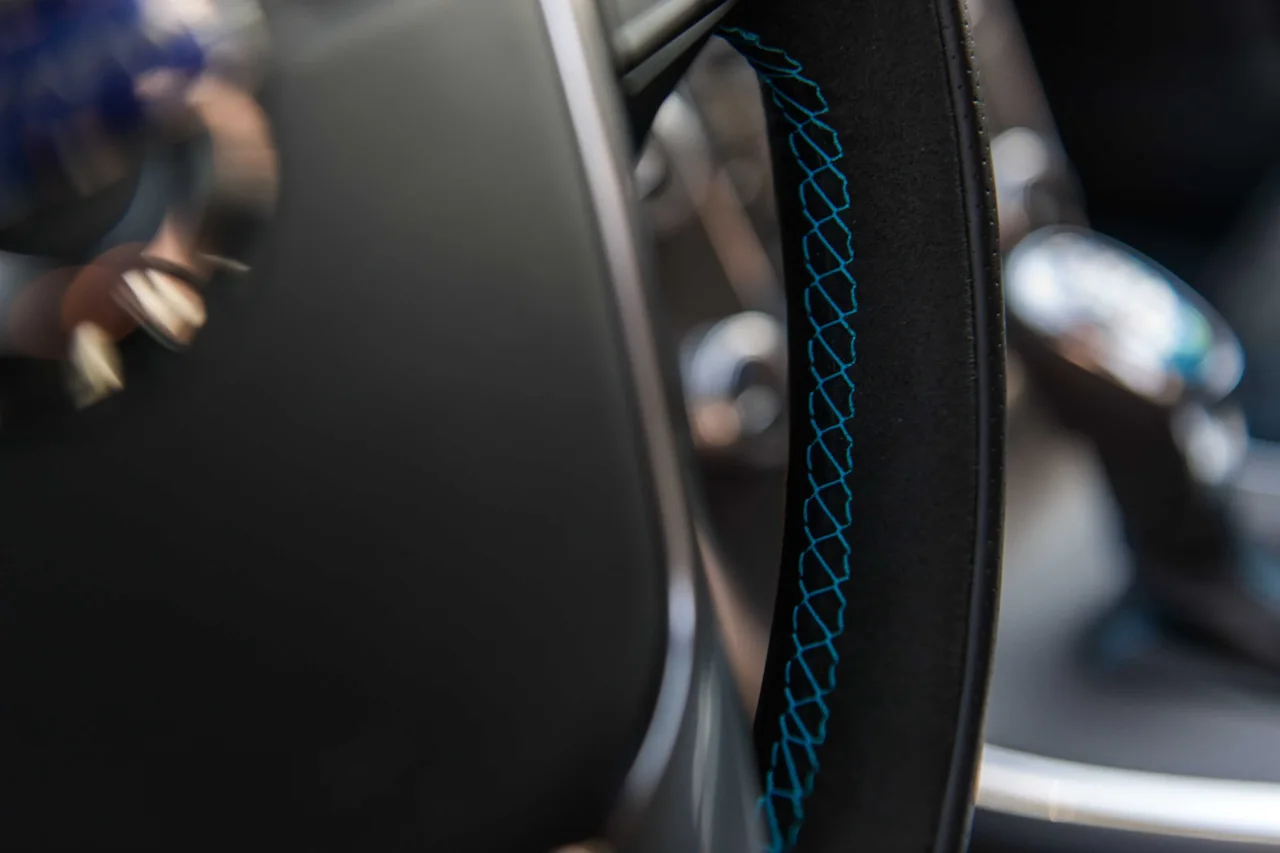

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Privacy Lock
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Optional
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Optional
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
380 litres
Depth
965 mm (38.0 in)
Depth, Back Seat Collapsed
1,749 mm (68.9 in)
Width
919 mm (36.2 in)
Sill Height
660 mm (26.0 in)
Carpet
Rubber
Optional

Design

Accent
Aluminium
Transmission Knob Material
Leather
Transmission Knob Material
Black
Optional
Brown
Optional

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Driver
Armrest
Middle
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Heated Seats
Areas
Cushion
Second Seat Row
Armrest
Yes
Collapsible
Manual
Features
Heated Seats
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Outer Seats
Foldable
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Rear
Voice Control
  • Media
  • Navigation
  • Phone
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Dynamic
  • Eco
Smartphone App
Optional
Horn
Dual Note
GPS
Map-update
USB

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Yes
Trailer Stability Assist (TSA)
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
City
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Yes
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
  • Manual
  • Electrical
Emergency Call
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
94 %
Child Occupant
82 %
Vulnerable Road Users
64 %
Safety Assist
100 %
Overall
5/5 stars
Test Year
2011
Overall Score
36.34
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.34
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Pedestrian
Protection (Assessment)
Acceptable
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
10 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Right
  • C-Pillar, Right
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H9
Fog Light, Rear
BAY9s (H21W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BAY9s (H21W)
Turn Indicators, Front
PGU20 (PGU20/4 - PY24W)
Turn Indicators, Side
PGU20 (PGU20/4 - PY24W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
SV8.5 (C5W)
Make-up Mirrors
W2×4.6d (W2.3W)
Trunk
SV8.5 (C5W)
Entry Light
W2.1×9.5d
License Plate Light
SV8.5 (C5W)

ACRISS

Type
4-5 Doors (D)

Production

Statistics › Production Number (Model)
1st Generation
611,227
2nd Generation
331,829
Statistics › Production Number (Year)
2000
92,513
2001
110,158
2002
52,593
2003
100,211
2004
68,367
2005
62,157
2006
53,361
2007
39,432
2008
26,148
2009
20,085
2010
20,085
2011
68,330
2012
64,746
2013
61,579
2014
44,255
2015
35,962
2016
24,458
2017
18,701
2018
15,136

Similar sedans

Suggested vehicles
