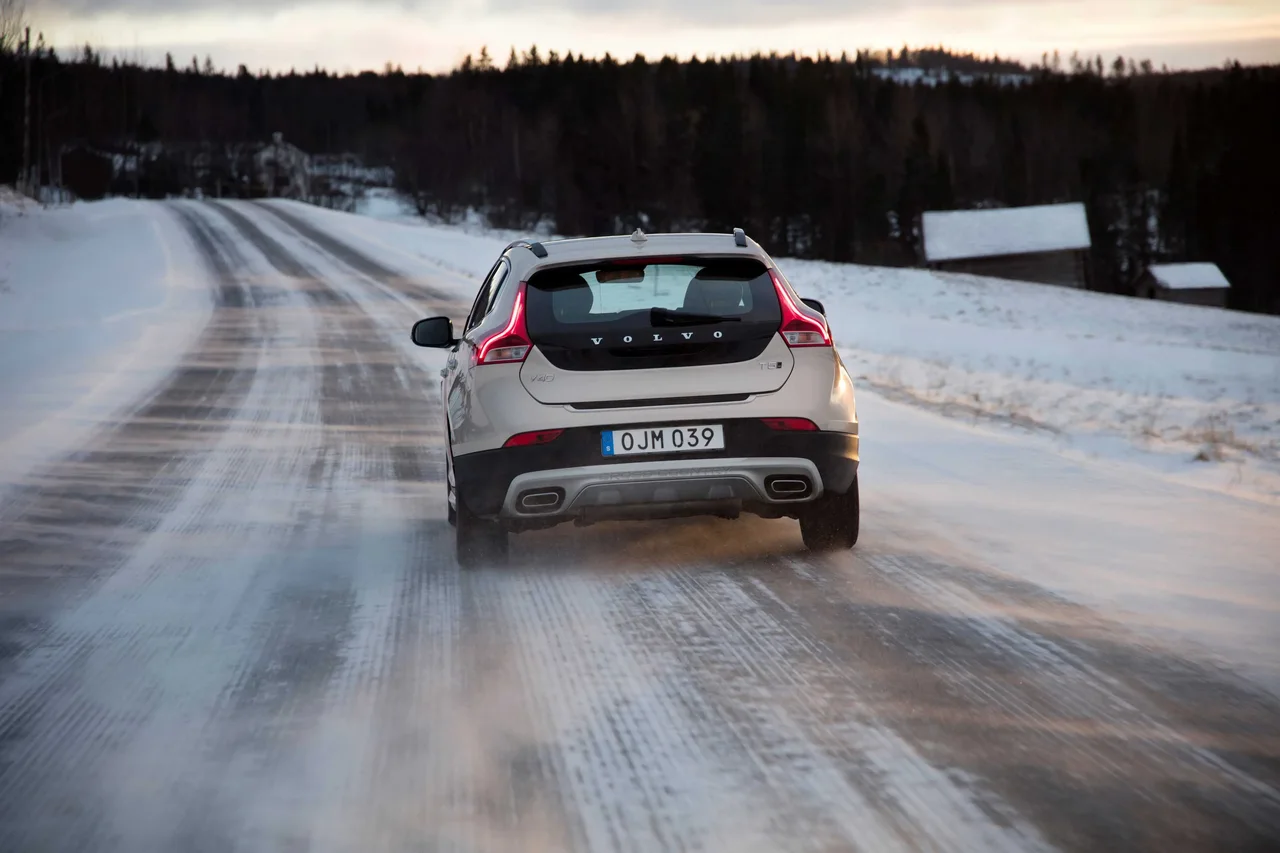

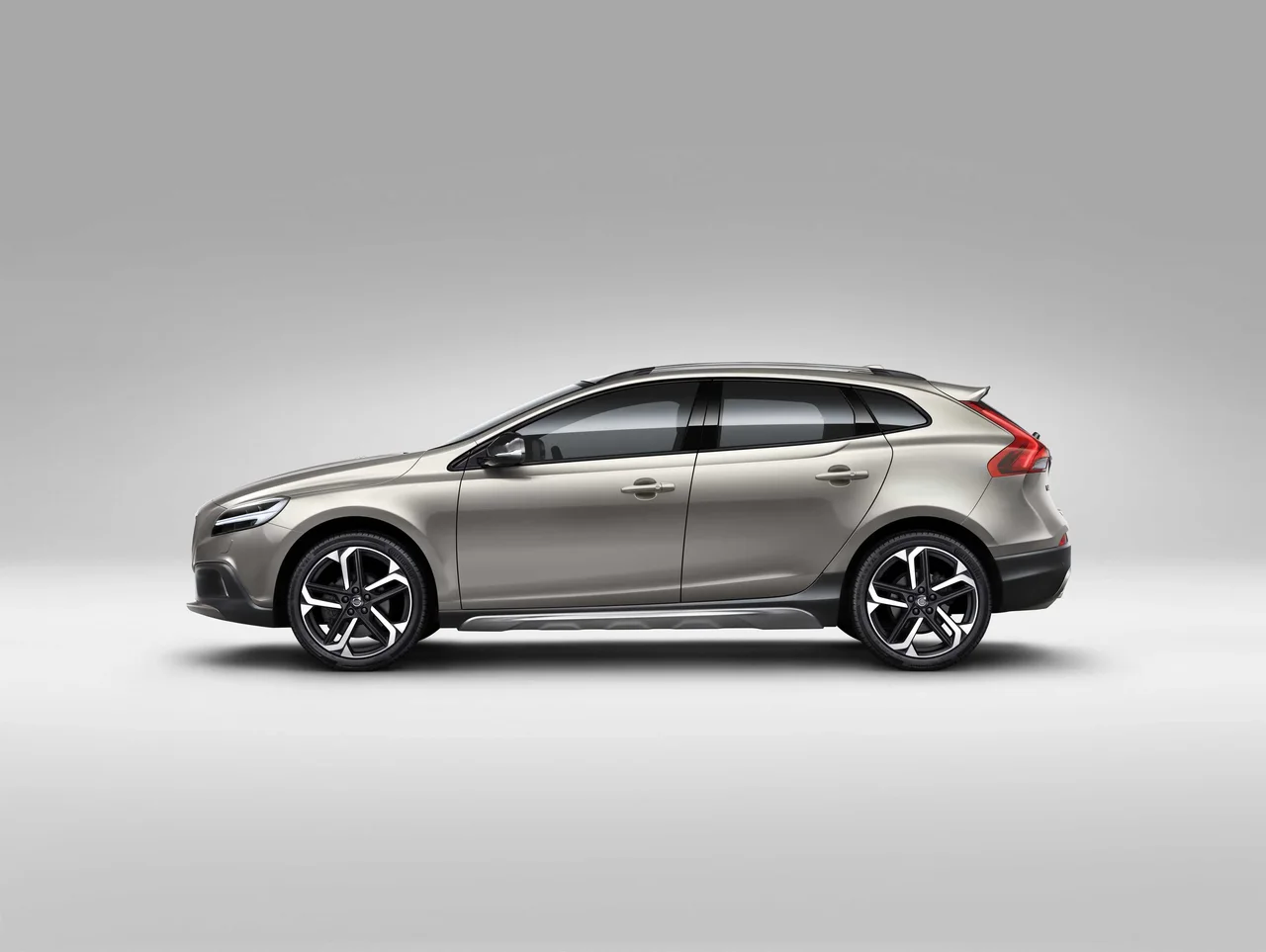

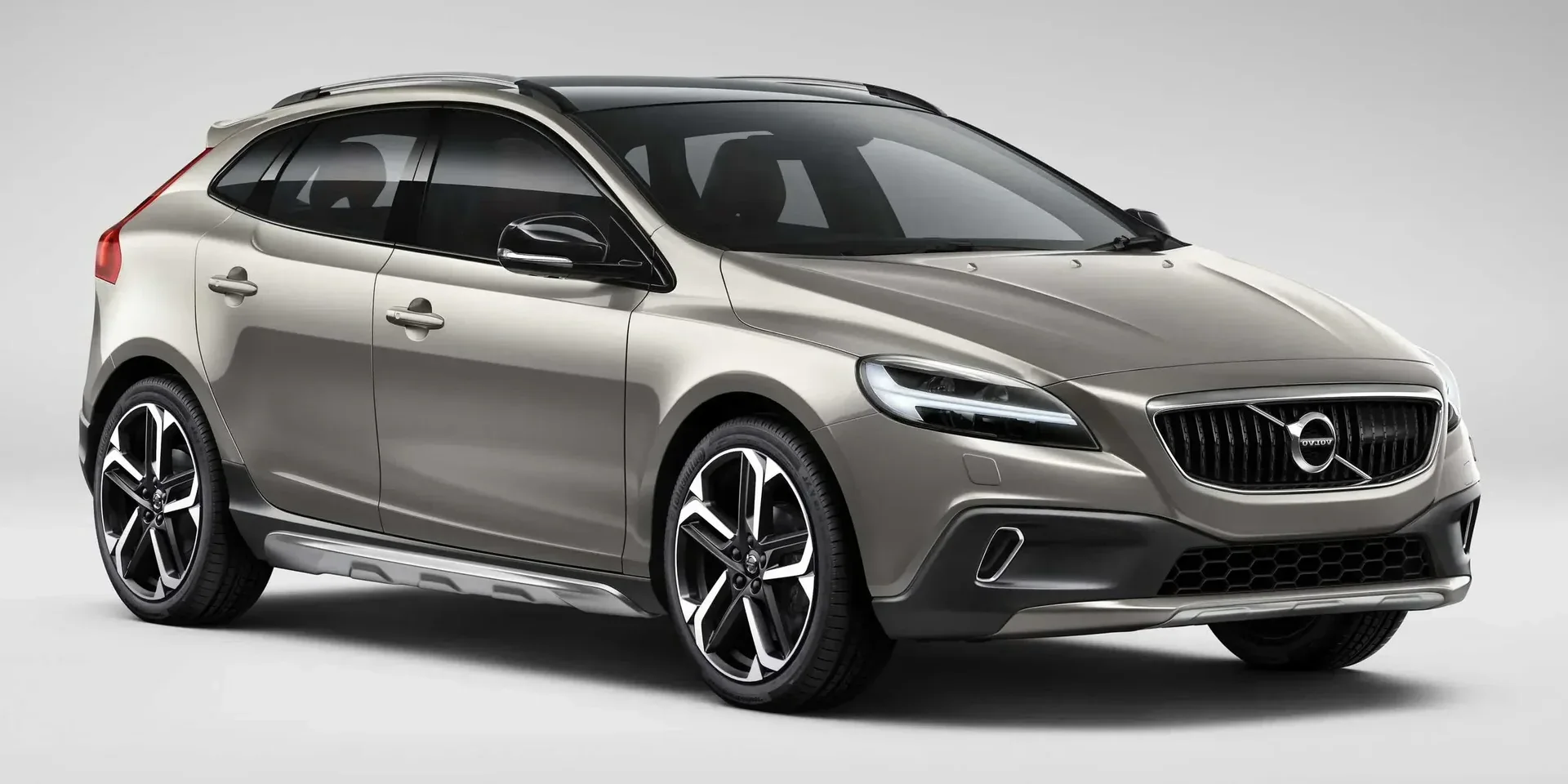

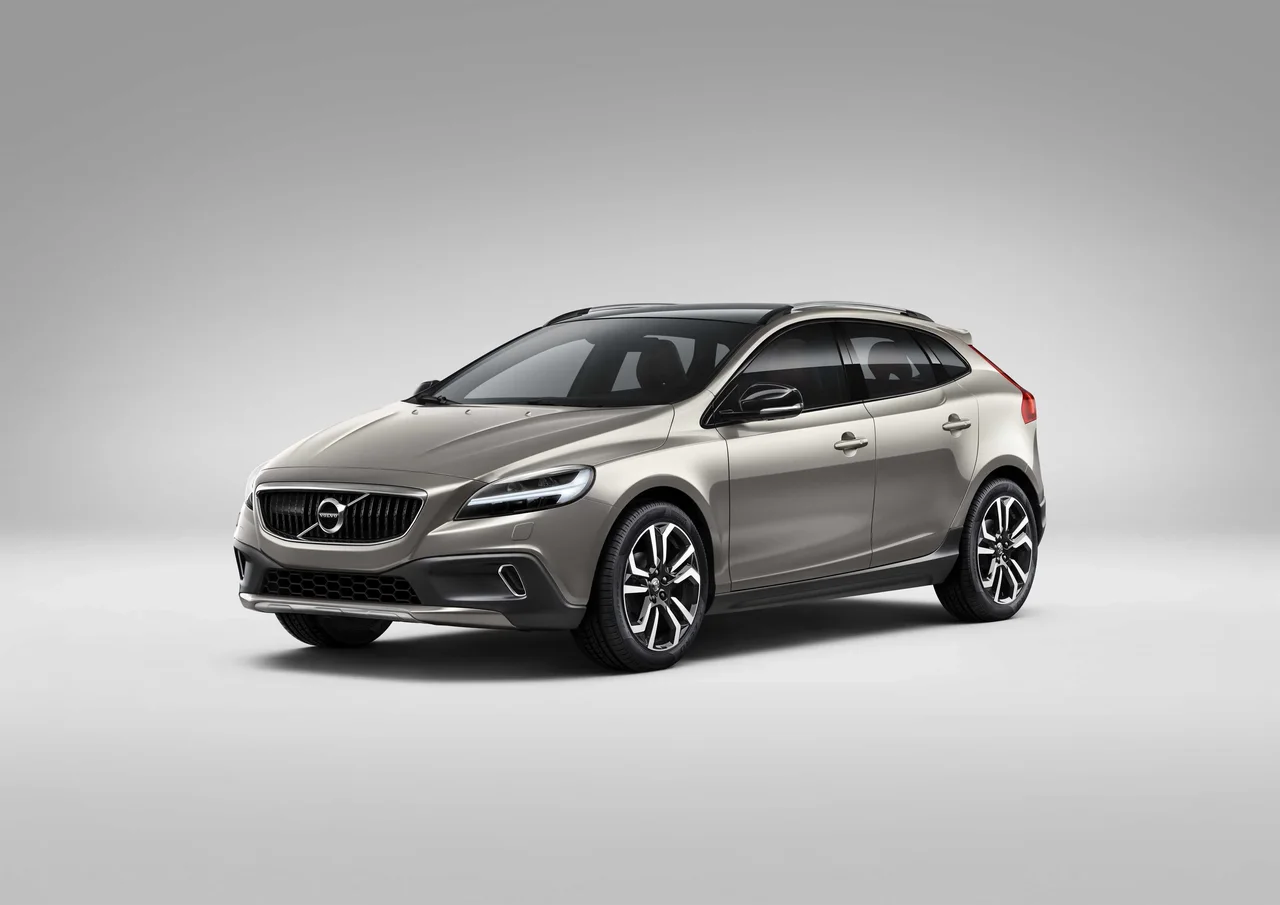

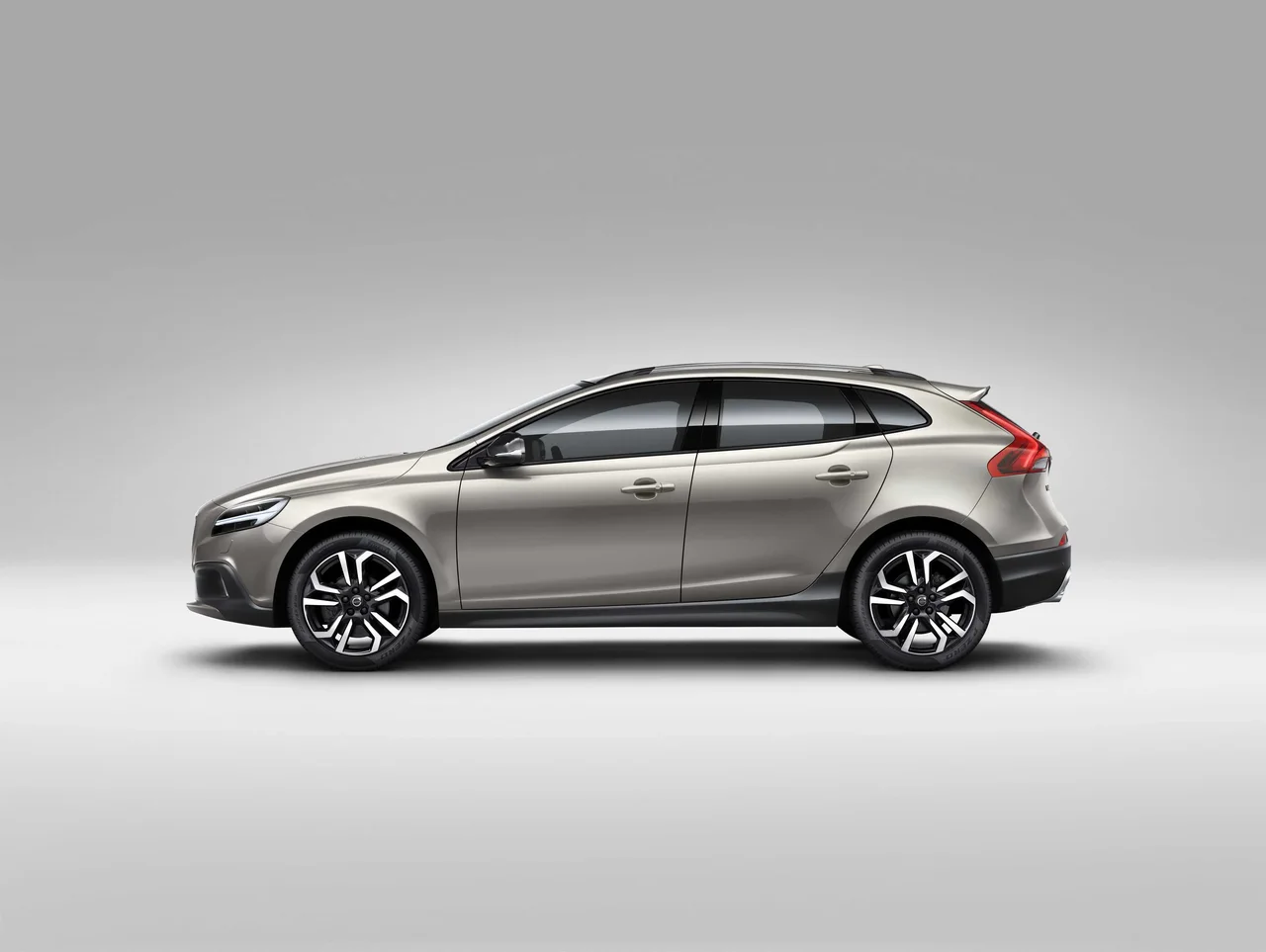

2017 Volvo V40 Cross Country

SwedenGasolineAWDHatchback

Photos

Specifications

Vehicle Details

Year
2017
Make
Volvo
Model
V40
Variant
Cross Country
Body Style
Hatchback
Generation
P1 Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
T5 AWD Geartronic
Engine Configuration
Inline
Power (hp)
245 hp
Power (kW)
180 kW
Torque
350 Nm (258 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
5.8 seconds (estimated)
0–100 km/h
6.1 seconds
Displacement
1,969 cc

Dimensions

Length
4,370 mm (172.0 in)
Width
1,857 mm (73.1 in)
Height
1,470 mm (57.9 in)
Wheelbase
2,646 mm (104.2 in)
Curb weight
1,643 kg (3,622 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,500 - 4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
5.9 litres
Car Battery
Voltage
12 V
Cold Start Power
720 A
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
93.2 mm (3.7 in)
Compression Ratio
10.8 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Service Intervals
Timing Interval
240,000 km / 10 years
Air Filter
60,000 km (37,282 mi)
Spark Plug
60,000 km (37,282 mi)
Brake Fluid
1 years
Oil Change & Engine Filter
30,000 km / 1 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
278 - 300 mm (10.9 - 11.8 in)
Width
25 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)
Width
11 mm (0.4 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
57 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
8.5 litres / 100 km
Highway
5.2 litres / 100 km
Combined
6.4 litres / 100 km
Emission NEDC
CO₂, Combined
149 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,041 mm (80.4 in)
Track, Front
1,552 mm (61.1 in)
Track, Rear
1,540 mm (60.6 in)
Overhang, Front
908 mm (35.7 in)
Overhang, Rear
815 mm (32.1 in)
Turning Circle
10.9 m
Ground Clearance
145 mm (5.7 in)

Interior

Head Room, Front
984 mm (38.7 in)
Head Room, Rear
932 mm (36.7 in)
Leg Room, Front
1,073 mm (42.2 in)
Leg Room, Rear
847 mm (33.3 in)
Shoulder Room, Front
1,396 mm (55.0 in)
Shoulder Room, Rear
1,349 mm (53.1 in)

Weight

Gross Weight
2,055 kg (4,530 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Cargo Capacity
412 – 487 - 412 kg (1,074 - 908 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
C1 Platform (Global C Platform)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Yes
Turning Signal
Yes
Windscreen Wipers
Rear Wiper
Yes
Windscreen Wipers: Connector type, Front
Push Button
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
Front
Tinted Windows
Optional
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
Halogen
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Rear
Halogen
Special Features
Dynamic Cornering Lights
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Tightening Torque
110 - 130 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
  • Analogue
  • Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Yes
Bluetooth
Optional
Cellular Network
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Internet Radio
Optional
Connectivity › Media Format
DVD
Optional
Hard Drive
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
5 - 7"
Center Display Controls
  • Buttons
  • Rotary Dial
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
4 - 8 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Sunglass Compartment
Optional
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Lockable
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Yes
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Privacy Lock
Optional
Cover
Foldable
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Second Trunk Compartment
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
324 litres
Volume, Back Seat Collapsed
1,500 litres
Depth
684 mm (26.9 in)
Depth, Back Seat Collapsed
1,508 mm (59.4 in)
Width
960 mm (37.8 in)
Height
760 mm (29.9 in)
Carpet
Rubber/Rug
Optional

Design

Accent
Aluminium
Transmission Knob Material
Leather
Entry Guard Material
Aluminium
Entry Guard Material
Brown
Optional

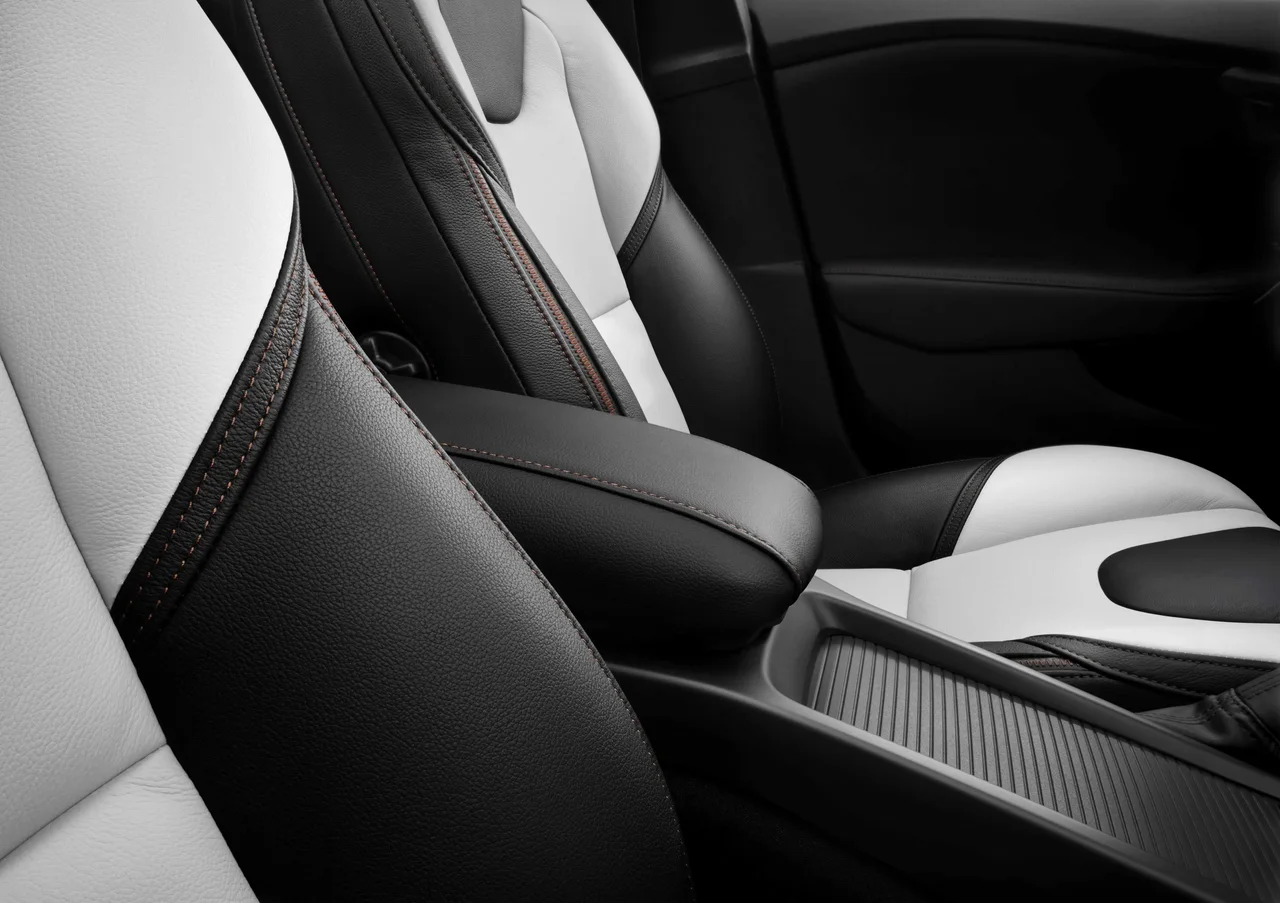

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Height
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Collapsible
Optional
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Armrest
Middle
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Outer Seats
Foldable
Manual

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Yes
Cameras
Optional
Rear Camera Preparation
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Parking Heater
Remote
Optional
Parking Heater › Remote
Timer
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Optional
Smartphone App
Optional
Horn
Dual Note
GPS
Internet
Optional
GPS › Internet
DVD
Optional
Driving Mode Selection
Comfort
Optional
Dynamic
Optional
Eco
Optional

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Airbags

Other Airbags
Pedestrian Airbag
Yes
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Airbag cut-off Switch

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Stability Assist (TSA)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
City
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Optional
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2012
Adult Occupant
98 %
Child Occupant
75 %
Vulnerable Road Users
88 %
Safety Assist
100 %
Overall
5/5 stars
Test Year
2013
Overall Score
36.67
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.67
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Acceptable
Pedestrian
Protection (Assessment)
Good
Safety Assist
Seat Belt Reminders
3

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H9
Datyime Running Light
WP3.3×14.5 (PW19W)
Fog Light, Rear
BAY9s (H21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAW9s (HY21W)
Turn Indicators, Side Mirrors
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
Make-up Mirrors
W2×4.6d (W2.3W)

Production

Statistics › Production Number (Year)
2012
244
2013
21,604
2014
26,093
2015
23,274
2016
21,281
2017
21,546
2018
17,126

Similar hatchbacks

Suggested vehicles
