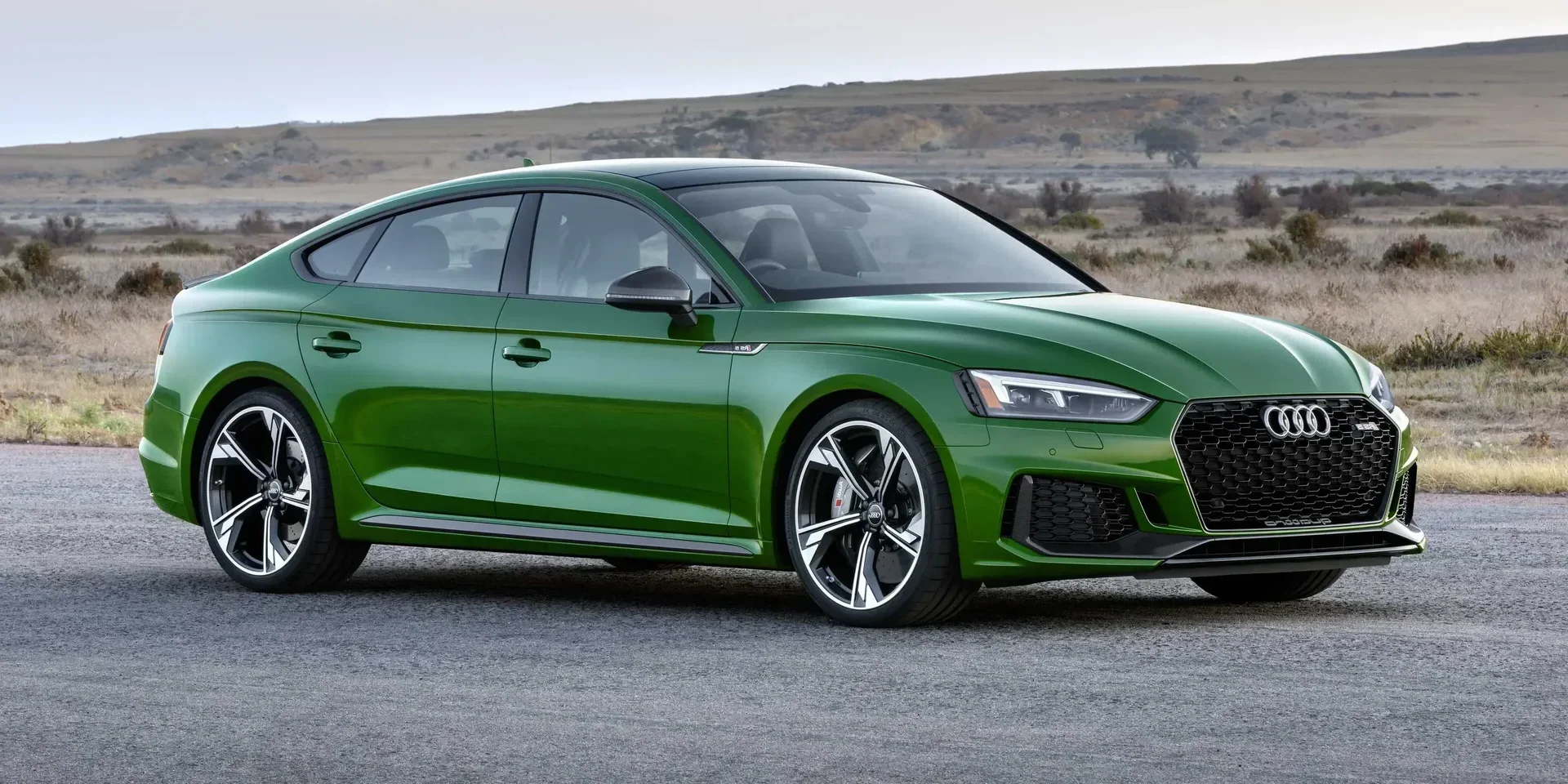

2018 Audi A5 RS

GermanyGasolineAWDHatchback

Photos

Specifications

Vehicle Details

Year
2018
Make
Audi
Model
A5
Variant
RS
Body Style
Hatchback
Generation
F5
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
RS 5 Sportback TipTronic
Engine Configuration
V
Power (hp)
450 hp
Power (kW)
331 kW
Torque
600 Nm (443 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
3.7 seconds (estimated)
0–100 km/h
3.9 seconds
Displacement
2,894 cc

Dimensions

Length
4,783 mm (188.3 in)
Width
1,866 mm (73.5 in)
Height
1,386 mm (54.6 in)
Wheelbase
2,824 mm (111.2 in)
Curb weight
1,795 kg (3,957 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,700 - 6,700 rpm
Rev. at Max Torque
1,900 - 5,000 rpm
Engine Configuration
Bore
84.5 mm (3.3 in)
Stroke
86 mm (3.4 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km (55,923 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
3 years
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Brake Caliper Colour
Black
Front Brakes
Diameter
375 mm (14.8 in)
Cooling
  • Ventilated
  • Perforated
Rear Brakes
Diameter
330 mm (13.0 in)
Cooling
Ventilated
Brakes Material
Carbon Ceramic
Optional
Brake Caliper Colour
Red
Optional
Silver
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
58 litres
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
E
Emission Control
Catalyst
WLTP Consumption
Low (l/100km) (WLTP)
14.6 litres / 100 km
Medium (l/100km)
9.7 litres / 100 km
High (l/100km)
8.2 litres / 100 km
Extra High (l/100km)
8.3 litres / 100 km
Combined (l/100km)
9.4 litres / 100 km
Fuel Consumption NEDC
City
12.4 litres / 100 km
Highway
7.1 litres / 100 km
Combined
9.1 litres / 100 km
Emission WLTP
CO₂, Combined
212 g/km
Emission NEDC
CO₂, Combined
206 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,029 mm (79.9 in)
Track, Front
1,598 mm (62.9 in)
Track, Rear
1,588 mm (62.5 in)
Overhang, Front
918 mm (36.1 in)
Overhang, Rear
1,039 mm (40.9 in)
Turning Circle
11.7 m
Ground Clearance
114 - 120 mm (4.5 - 4.7 in)

Interior

Head Room, Front
1,015 mm (40.0 in)
Head Room, Rear
945 mm (37.2 in)
Leg Room, Front
1,050 mm (41.3 in)
Leg Room, Rear
892 mm (35.1 in)
Hip Room, Front
1,477 mm (58.1 in)
Hip Room, Rear
1,448 mm (57.0 in)
Shoulder Room, Front
1,414 mm (55.7 in)
Shoulder Room, Rear
1,385 mm (54.5 in)

Weight

Gross Weight
2,320 kg (5,115 lb)
Cargo Capacity
525 kg (1,157 lb)
Max Roof Load
90 kg (198 lb)

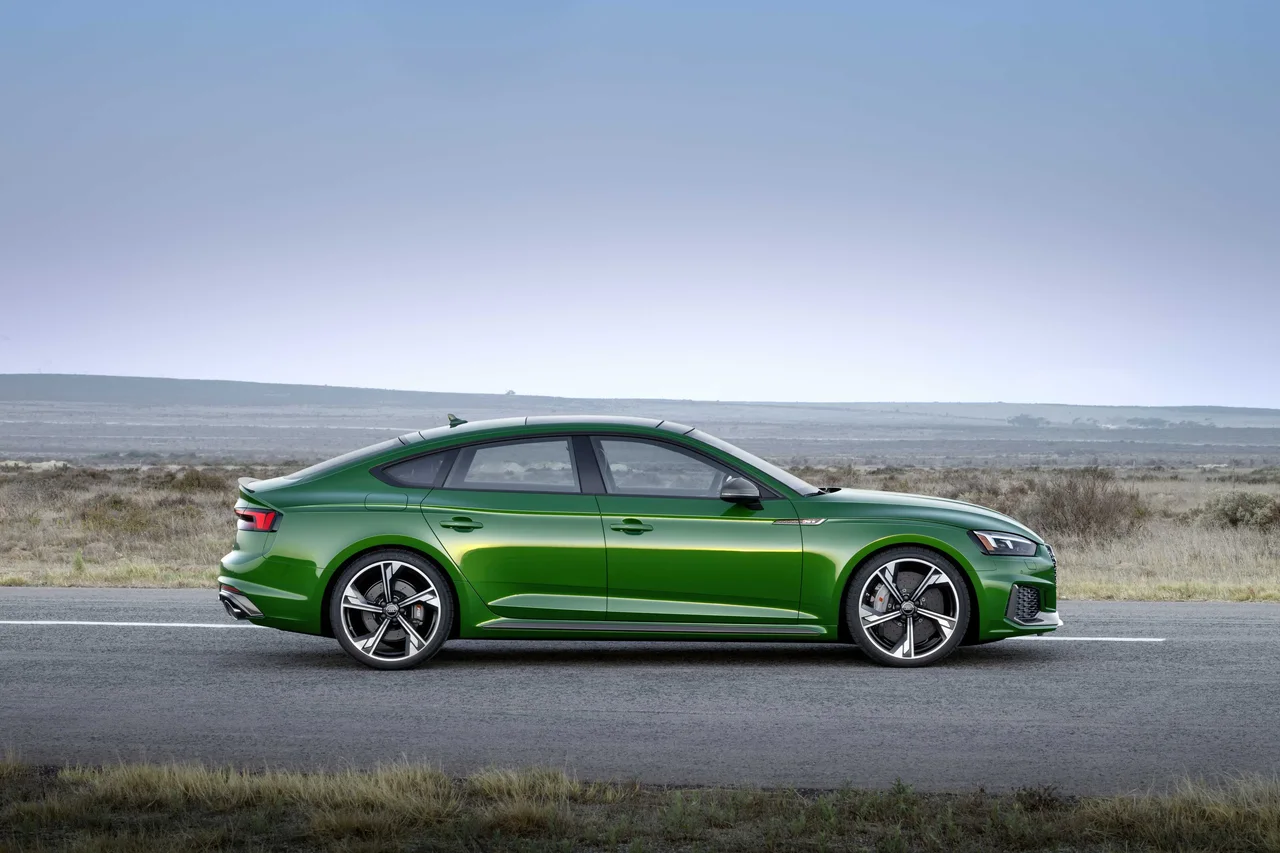

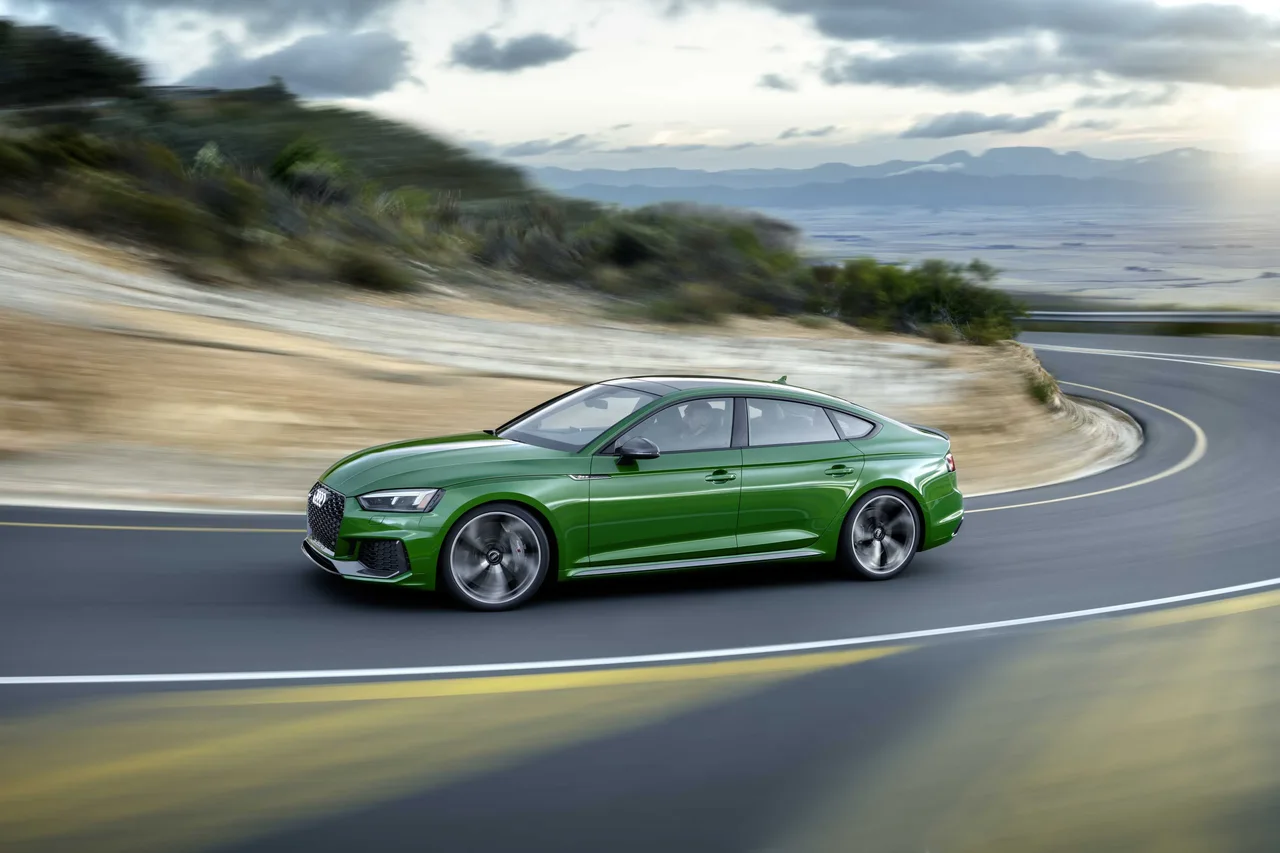

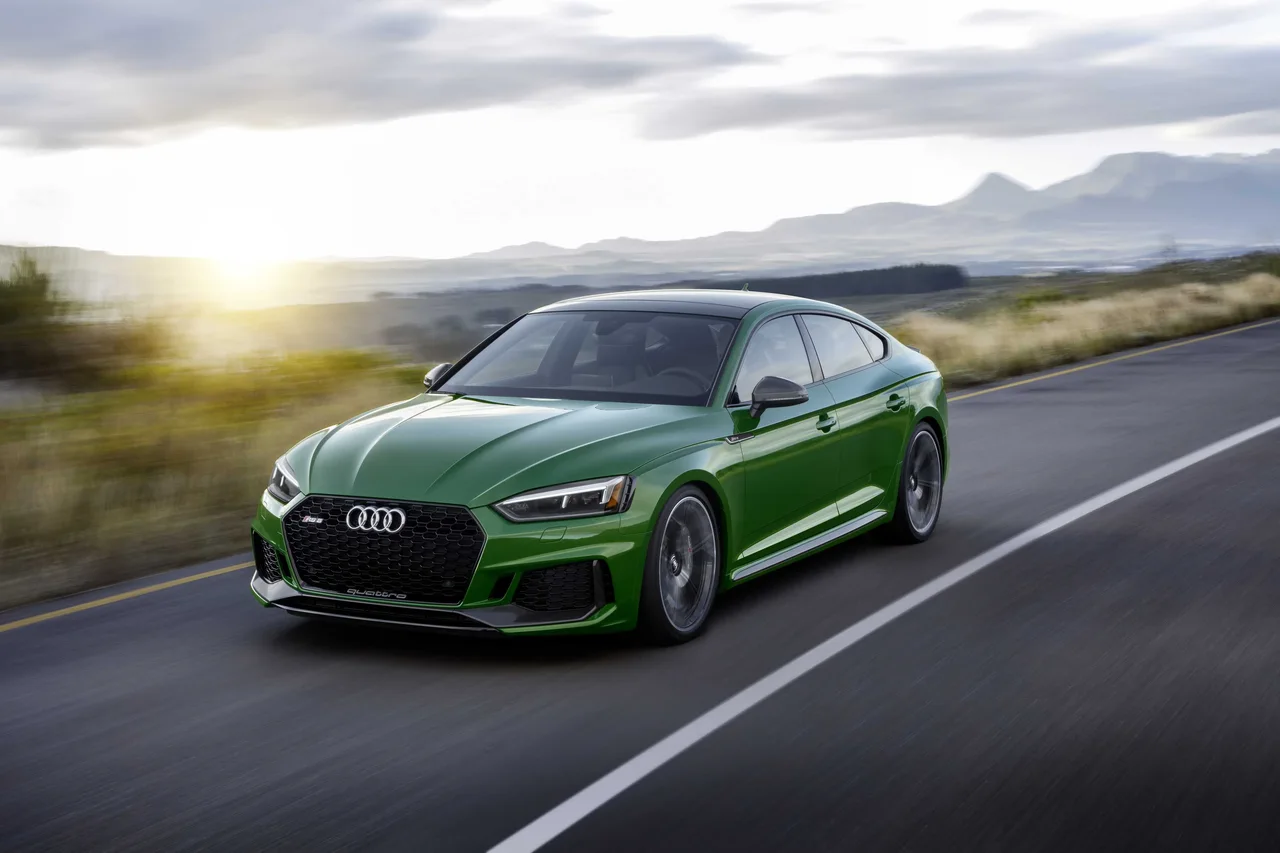

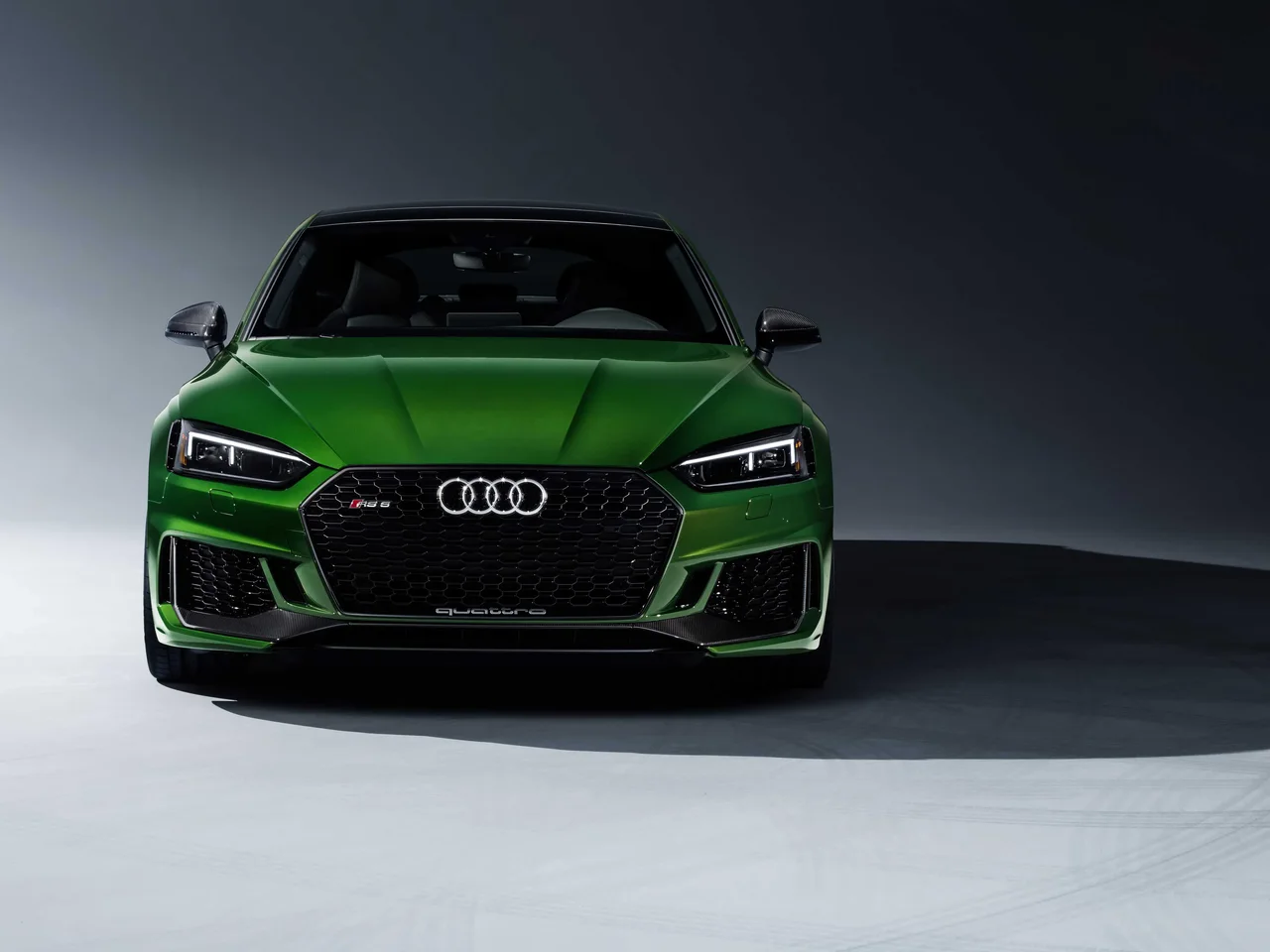

Exterior

Chassis & Body

Chassis
Chassis
Hatchback (Liftback)
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Volkswagen Group
MLBevo

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Slim Push Button
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Frameless Windows
  • First Row
  • Second Row
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin
Number of Exhaust Pipes
2
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Dynamic Cornering Lights
  • Headlight Washers
Cornering Lights
Yes
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Come Home/Leaving Lights
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

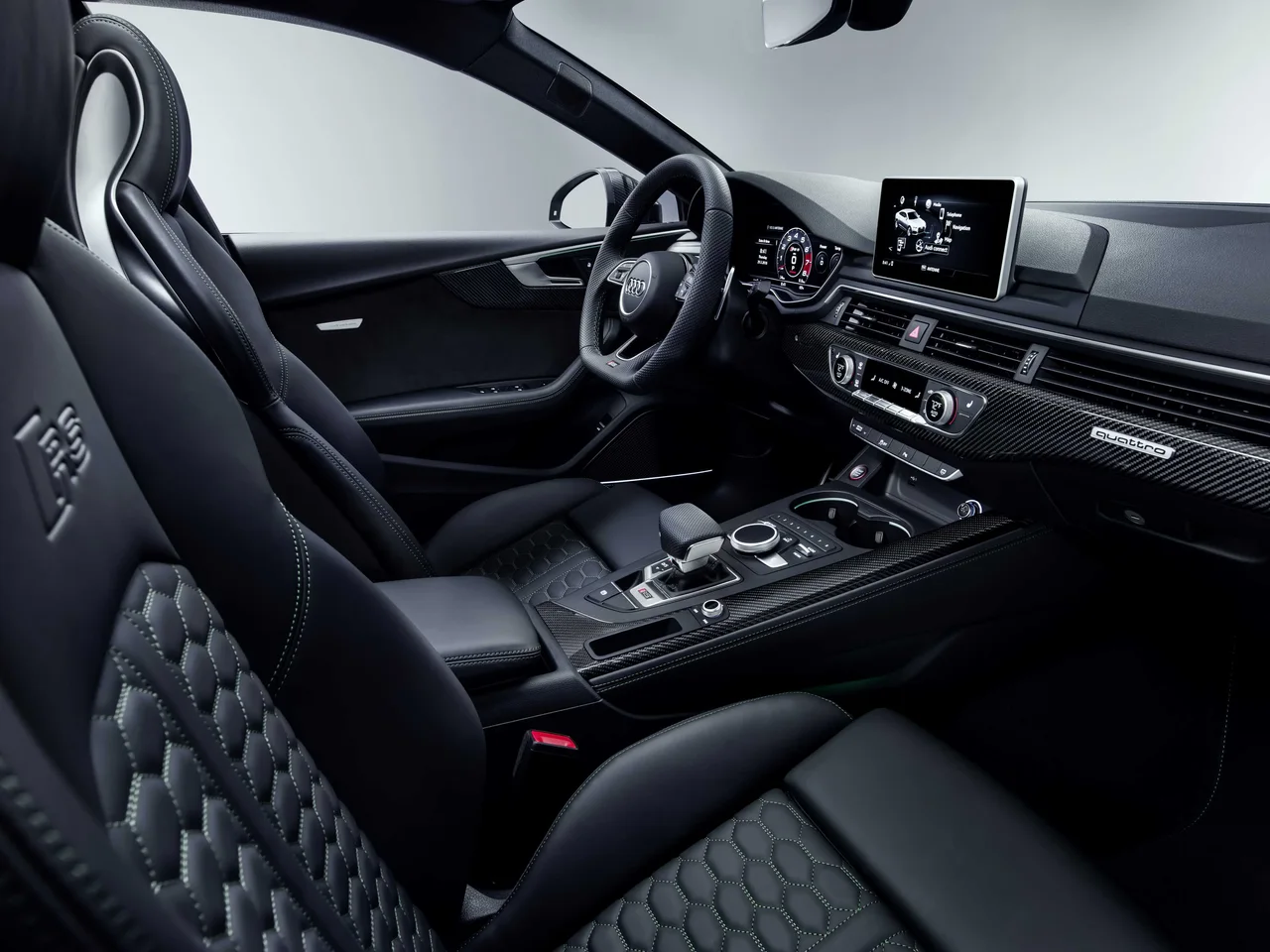

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
7 - 12.3"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • CD
  • AAC
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
DVD
Optional
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › Media Inputs › USB
Number of Ports
1 - 2 pcs
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
7 - 8.3"
Center Display Controls
Rotary Dial
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Touchscreen
Optional
Speakers
Total Number of Speakers
8 pcs
Speakers Max. Watt
755 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Optional
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Lockable
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Material
  • Rubber
  • Textile
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
  • User Memory
Sport
Yes
Colour
Black
Steering Ratio
15.9 :1
Steering Mechanism
Rack and Pinion
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
Automatic Close
Yes
Cover
Foldable
Barrier Net/Grid
Optional
Cargo Hooks
Optional
Flat Surface
Yes
Soft Close
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
480 litres
Depth
1,072 mm (42.2 in)
Width
1,000 mm (39.4 in)
Opening Width
951 mm (37.4 in)
Sill Height
660 mm (26.0 in)
Automatic Open
Motion Activated
Optional

Design

Pedals
Stainless Steel

Seats

Colour & Material
Upholstery
  • Alcantara
  • Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Optional
Headrest, Tilt
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Optional
Headrest, Tilt
Optional
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Massage
  • Driver
  • Passenger
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Adjustments
  • Seat Depth
  • Cushion Edge
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Optional
Speed Limiter
Yes
Cameras
Optional
Wireless Phone Connection with Antenna
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Dynamic
  • Individual
  • Sport
  • Auto
Smartphone App
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Emergency Locking Retractor
Yes
Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Optional
Hill Descent Control (HDC)
Optional
Parking Assist
Optional
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional
Emergency Call
Keycards (NFC)
Optional
Smartphone as a Key
Optional

Safety Testing

General
Test Year
2015
Adult Occupant
89 %
Child Occupant
87 %
Vulnerable Road Users
75 %
Safety Assist
75 %
Overall
5/5 stars
Test Year
2015
ANCAP Safety Rating
5
Adult Occupant
Total Points
34 /38
Lateral Impact
14.5 /16
Rear Impact
2.4 /4
Protection
89 %
Protection
34
Full Width
7.04
Frontal Offset
7.1
Side Impact
8
Pole
6.51
Whiplash Protection (Front)
2.35
AEB (City)
3
Child Occupant
Total Points
43 /49
Safety Features
7 /13
CRS Installation Check
12 /12
Protection
87 %
Protection
43
Vulnerable Road Users
Total Points
27.4 /49
Pedestrian
  • 16.6
  • 5.5
  • 5.3
Safety Assist
Speed Assistance (points)
1.3 /3
Lane Support (points)
0 /4
Safety Assist
75 %
Safety Assist
9.9
Speed Assistance System
1.3
ESC
3
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
2.5
Pedestrian
Protection
75 %
Protection
27.4
IIHS
Test Year
2017
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Front Crash Prevention: Vehicle-to-pedestrian
Superior
Headlight
Marginal
Latch Ease of Use
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Trunk
on Floor
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
  • Medium Executive Car
  • Sports Car

Spare Parts BETA

Bulb Types
Low Beam
D5S (xenon)
Bi-Xenon
D5S
Glove Compartment
W2.1×9.5d (W3W)

ACRISS

Type
4-5 Doors (D)

Similar hatchbacks

Suggested vehicles
