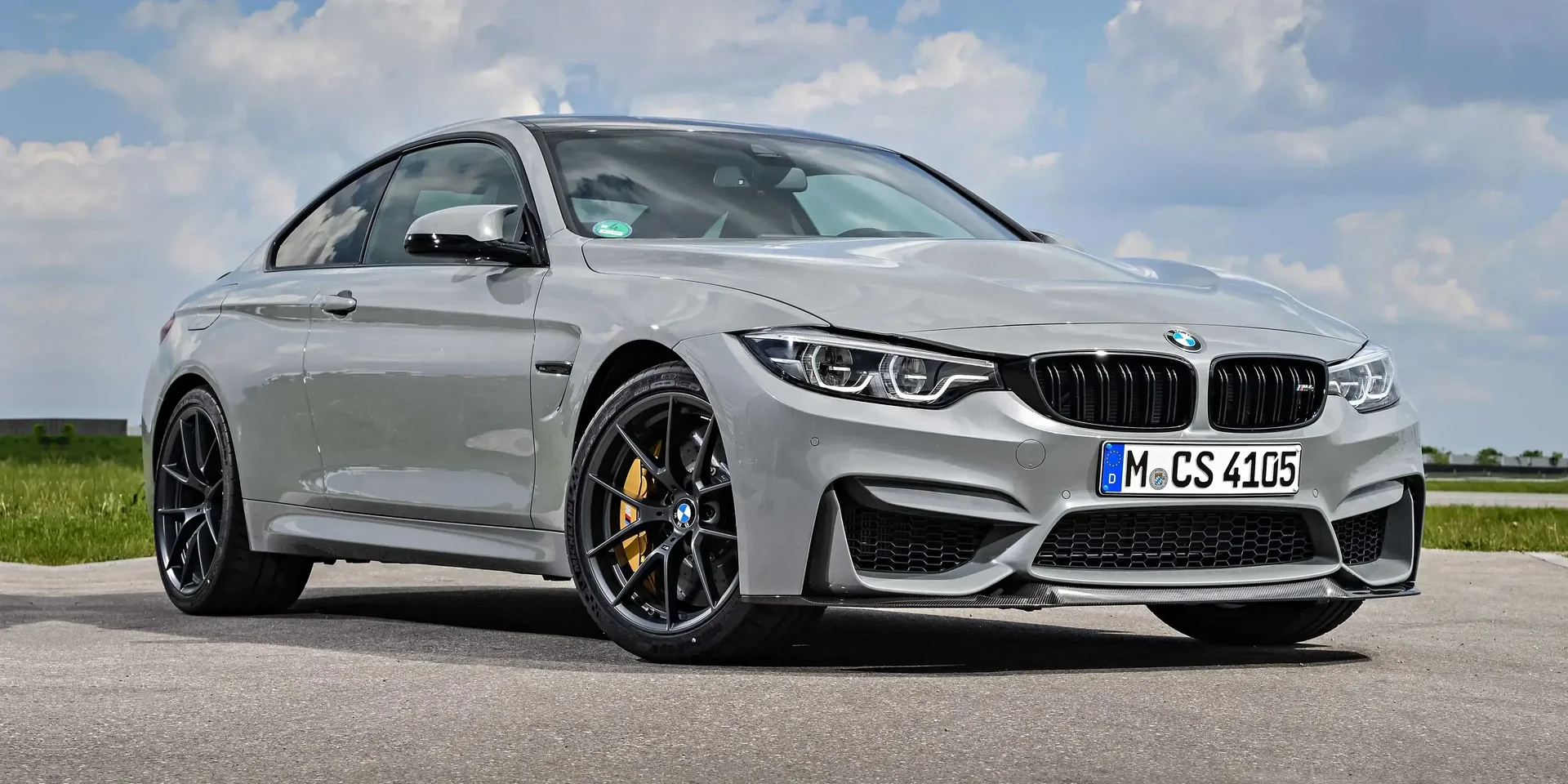

2018 BMW 4 Series M4 CS

GermanyGasolineRWDCoupe

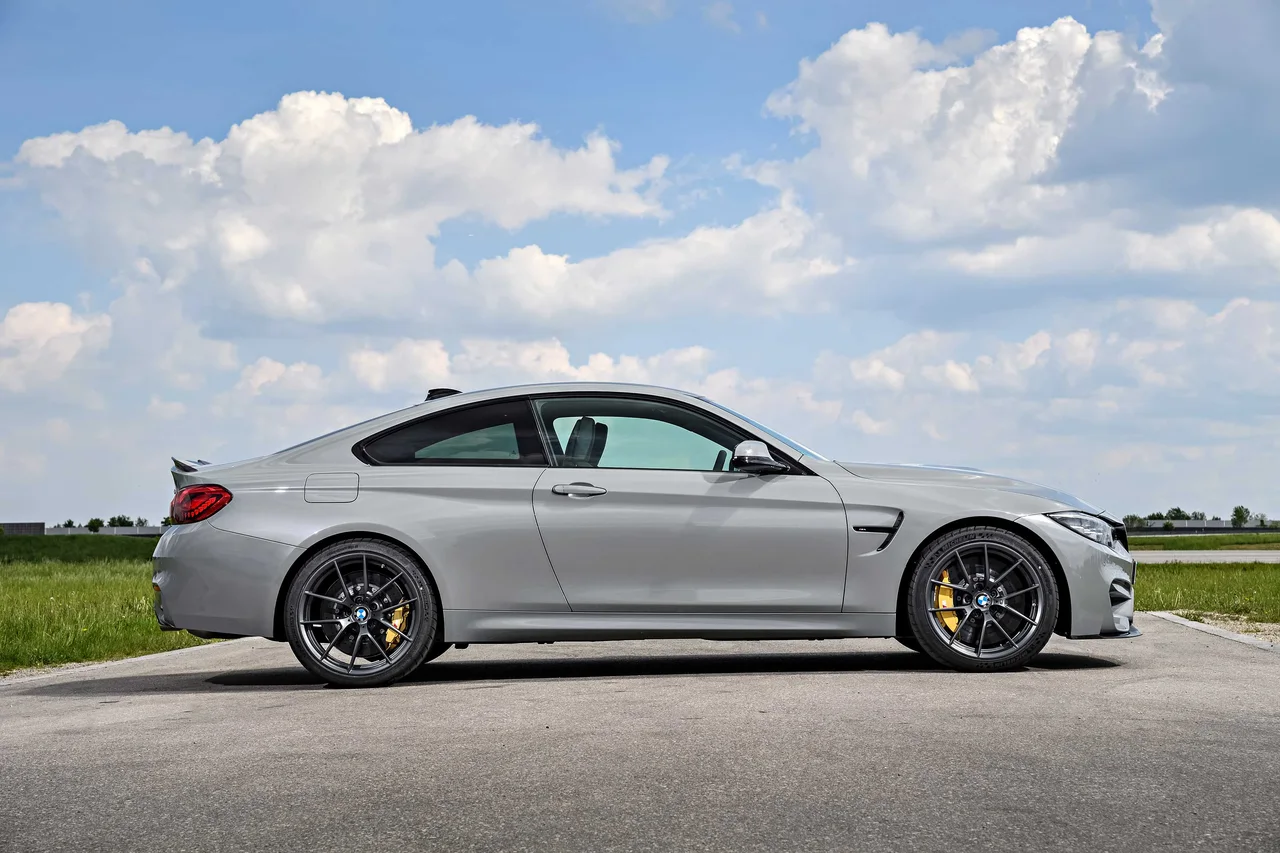

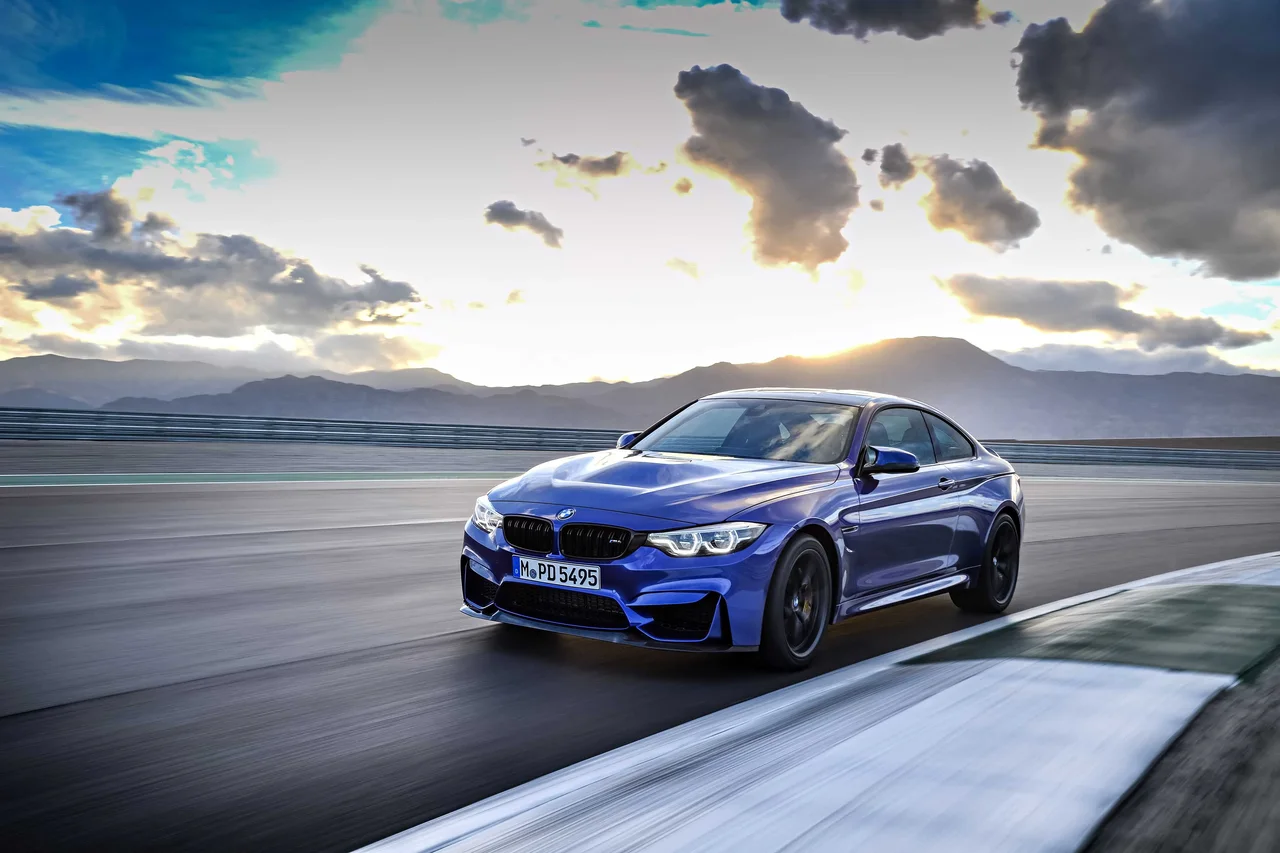

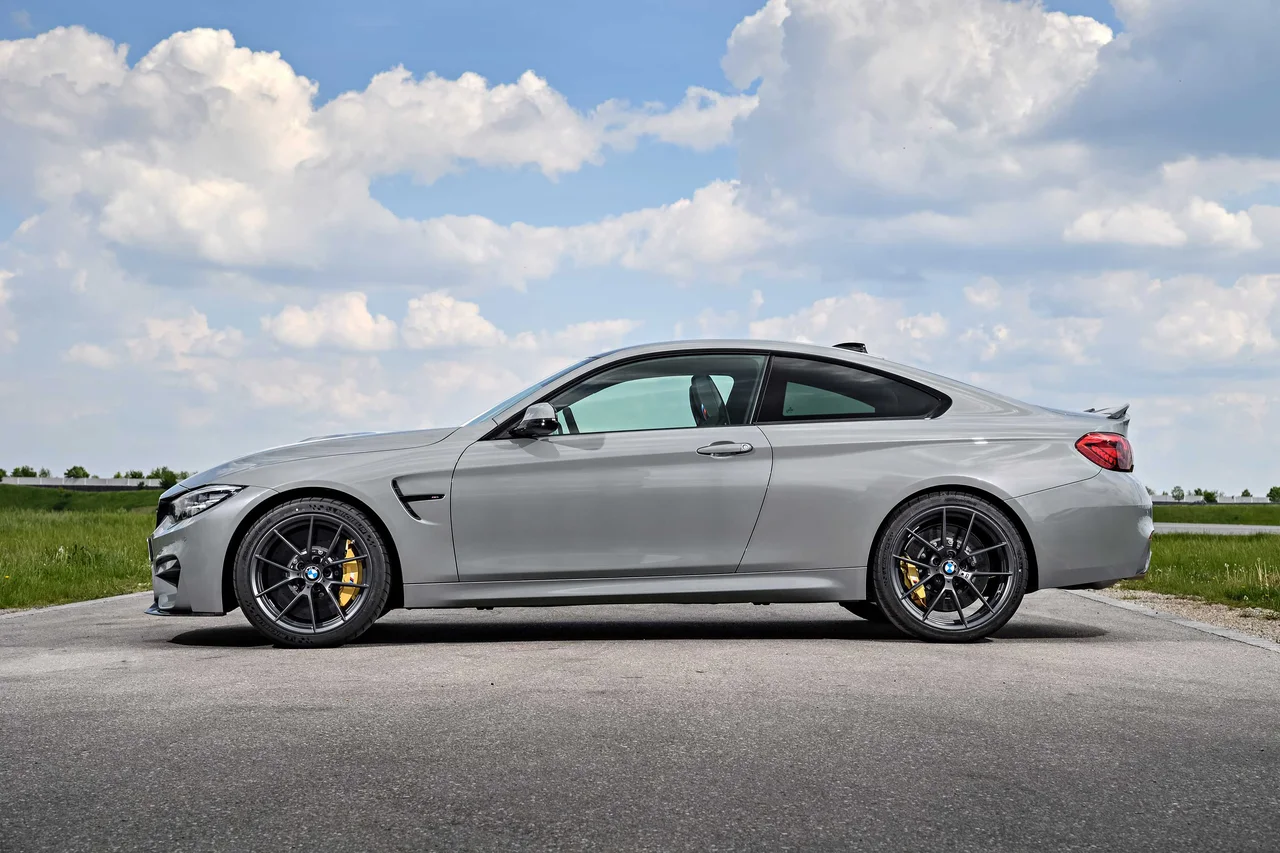

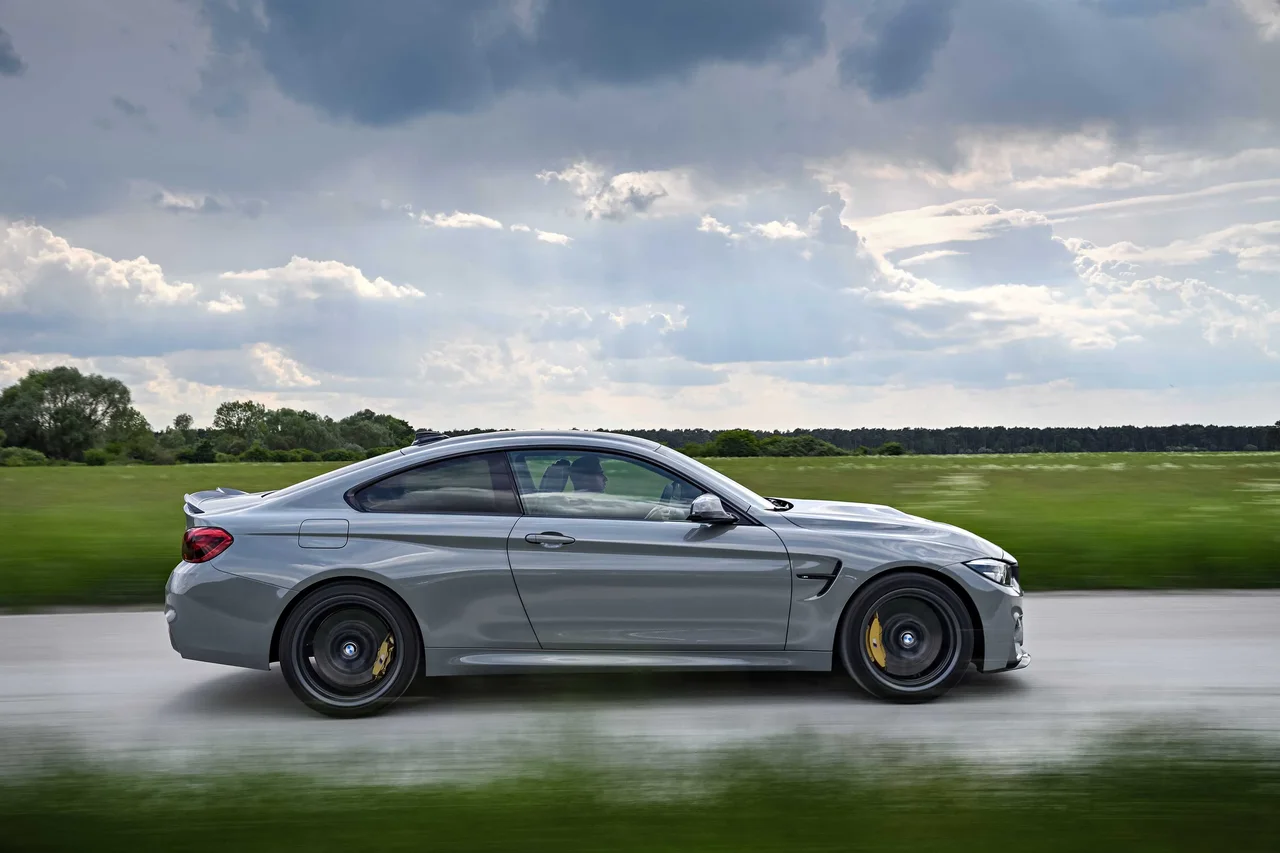

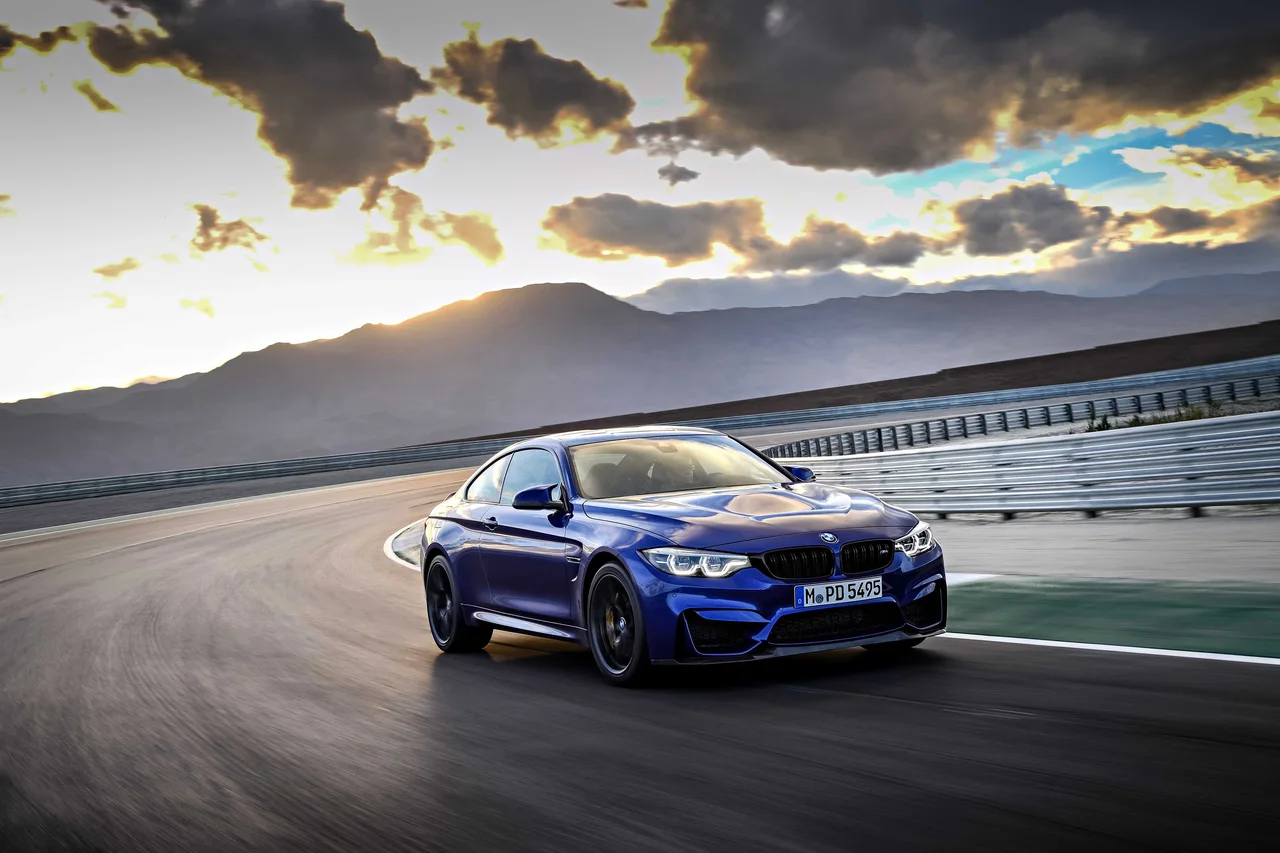

Photos

Specifications

Vehicle Details

Year
2018
Make
BMW
Model
4 Series
Variant
M4 CS
Body Style
Coupe
Generation
F32 LCI
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
M4 CS Drivelogic
Engine Configuration
Inline
Power (hp)
460 hp
Power (kW)
338 kW
Torque
600 Nm (443 lb-ft)
Top speed
280 km/h (174 mph)
0–60 mph
3.7 seconds (estimated)
0–100 km/h
3.9 seconds
Displacement
2,979 cc

Dimensions

Length
4,672 mm (183.9 in)
Width
1,870 mm (73.6 in)
Height
1,392 mm (54.8 in)
Wheelbase
2,812 mm (110.7 in)
Curb weight
1,655 kg (3,649 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,250 rpm
Rev. at Max Torque
4,000 - 5,380 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Engine Oil, Volume
6.5 litres
Engine Configuration
Bore
89.6 mm (3.5 in)
Stroke
84 mm (3.3 in)
Compression Ratio
10.2 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
  • Alcantara
  • Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Brakes Material
Carbon Ceramic
Brake Caliper Colour
Yellow
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
60 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
11.2 litres / 100 km
Highway
6.8 litres / 100 km
Combined
8.4 litres / 100 km
Emission NEDC
CO₂, Combined
197 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,017 mm (79.4 in)
Track, Front
1,579 - 1,545 mm (62.2 - 60.8 in)
Track, Rear
1,604 - 1,594 mm (63.1 - 62.8 in)
Overhang, Front
787 mm (31.0 in)
Overhang, Rear
1,041 mm (41.0 in)
Turning Circle
12.2 - 11.3 m
Ground Clearance
121 mm (4.8 in)

Interior

Head Room, Front
1,011 mm (39.8 in)
Head Room, Rear
917 mm (36.1 in)
Hip Room, Front
1,465 mm (57.7 in)
Hip Room, Rear
1,400 mm (55.1 in)

Weight

Gross Weight
2,040 kg (4,497 lb)
Cargo Capacity
460 kg (1,014 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Door Handles
Pull-up

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
Driver side
Heated
Yes
Automatic Tilt Down
Yes
Turning Signal
Yes
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Normal Roof
Yes
Spoiler
Optional
Antenna
Glass-integrated
Mud Flaps
  • Front
  • Rear
Other Equipment › Spoiler
Fixed
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Cornering Lights
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Automatic

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
  • Buttons
  • Rotary Dials
Back Seat Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • CD
  • DVD
  • Hard Drive
  • MP3
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 5G
  • 4G
  • 3G
WiFi
Yes
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Inputs
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
8.8"
Center Display Controls
  • Rotary Dial
  • Touchpad
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Buttons
Yes
Displays › Center Display Controls › Buttons
Buttons Middle Console
7 pcs
Speakers
Total Number of Speakers
9 - 16 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Back Pocket
Yes
Door
Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Footwell (Front)
  • Side Mirrors
  • Door Handles (Exterior | Interior)
  • Bottom of the Doors
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • Key Button
Automatic Close
Yes
Barrier Net/Grid
Yes
Hatch Through Rear Seats
Yes
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
445 litres
Automatic Open
Motion Activated
Optional

Design

Pedals
  • Stainless Steel
  • Sport

Seats

Colour & Material
Upholstery
  • Alcantara
  • Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Type of Seat
Sport Seats
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Cameras
Optional
Voice Control
  • Media
  • Navigation
Wireless Phone Charger
Front
Cruise Control
Active Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Sport
Smartphone App
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Location Tracking
Yes
Central Locking
Remote
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
97 %
Child Occupant
83 %
Vulnerable Road Users
93 %
Safety Assist
72 %
Overall
5/5 stars
Adult Occupant
Total Points
37.1 /38
Lateral Impact
16 /16
Rear Impact
1.6 /4
Child Occupant
Total Points
41.1 /49
Crash Test Performance
  • 15.8
  • 8 /16
Safety Features
6 /13
CRS Installation Check
11.3 /12
Vulnerable Road Users
Total Points
44.8 /49
Pedestrian
  • 22.3
  • 6
  • 6
AEB Vulnerable Road Users
10.5 /18
AEB Pedestrian
5.3 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
5.1 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Seat Belt Reminder (assesment)
Good
Lane Support (points)
1.8 /4
Lane Support (assesment)
Marginal
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
  • Medium Executive Car
  • Sports Car

Spare Parts BETA

Bulb Types
Low Beam
D1S (xenon)
Bi-Xenon
D1S
Fog Light, Front
H8
Fog Light, Rear
BAY9s (H21W)
Rear/Brake Light
BAY9s (H21W)
Turn Indicators, Rear
BA15s (P21W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
W2.1×9.5d (W5W)

ACRISS

Type
Coupe (E)

Similar coupes

Suggested vehicles
