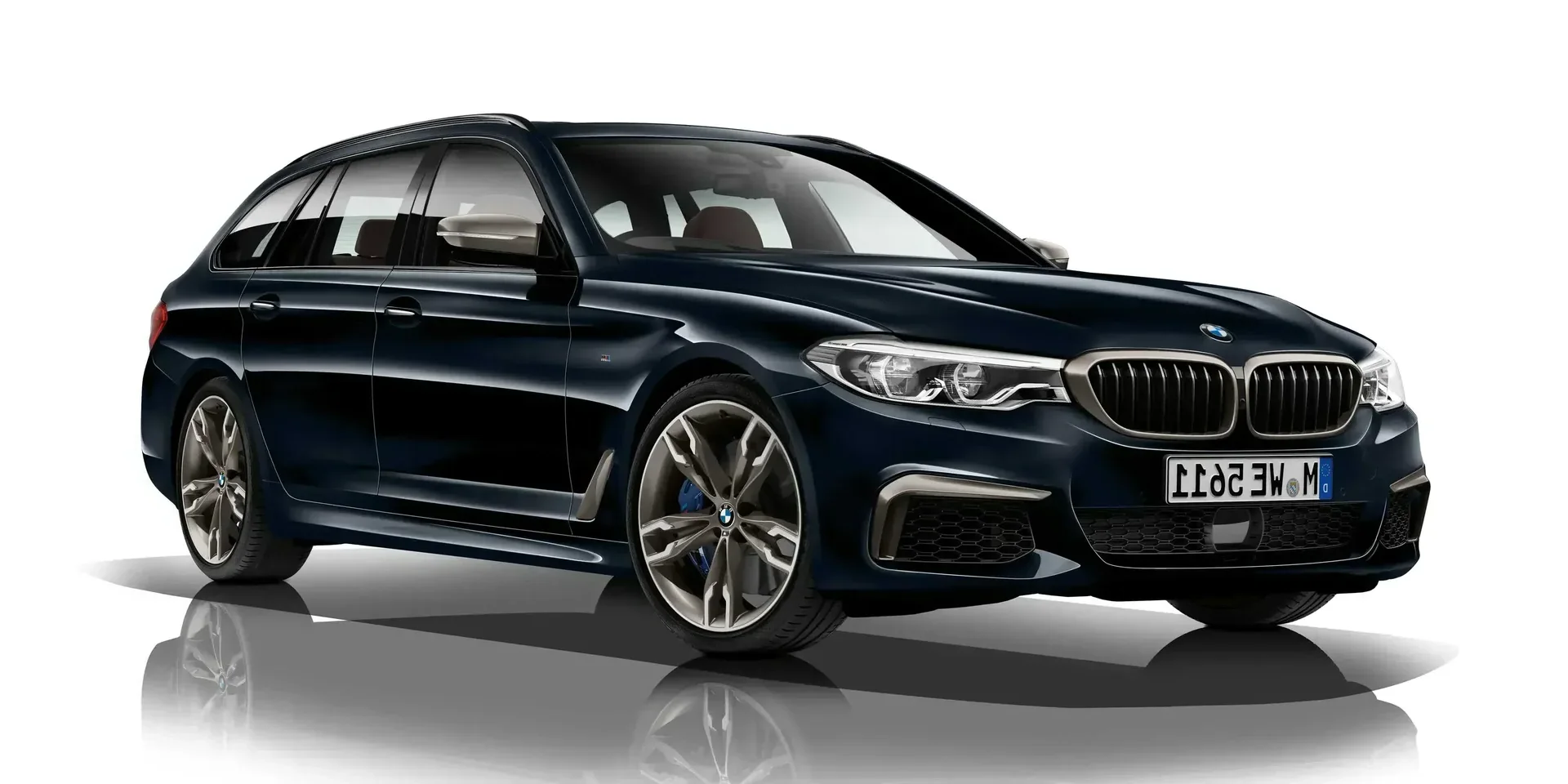

2018 BMW 5 Series M550d xDrive

Germany Diesel AWD Wagon

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2018
Make: BMW
Model: 5 Series
Variant: M550d xDrive

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2018
Make: BMW
Model: 5 Series
Variant: M550d xDrive

Body Style

Wagon

Generation

G30

Seats

5

Doors

5

Fuel

Diesel

Drivetrain

AWD

Transmission

Automatic (Manumatic), 8-speed

Powertrain

Engine Name: M550d xDrive Touring Steptronic
Engine Configuration: Inline
Power (hp): 400 hp
Power (kW): 294 kW
Torque: 760 Nm (561 lb-ft)
Top speed: 250 km/h (155 mph)
0–60 mph: 4.4 seconds (estimated)
0–100 km/h: 4.6 seconds

Dimensions

Length: 4,943 mm (194.6 in)
Width: 1,868 mm (73.5 in)
Height: 1,498 mm (59.0 in)
Wheelbase: 2,975 mm (117.1 in)
Curb weight: 2,030 kg (4,475 lb)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 4,400 rpm
Rev. at Max Torque: 2,000 - 3,000 rpm

Engine Fluids

Synthetic Oil (viscosity): 0W-30
0W-40
5W-30
5W-40

Engine Configuration

Similar wagons

Suggested vehicles

View all

2018 Alpina 5 Series D5 S

Displacement

2,993 cc

Bore

84 mm (3.3 in)

Stroke

90 mm (3.5 in)

Compression Ratio

16 :1

Engine Configuration

Inline

Turbocharger

Quad-turbo

Synchronization

Timing Chain

Engine Placement

Front

Type of Combustion Engine

Piston

Service Intervals

Air Filter: 60,000 km / 4 years
Fuel Filter: 60,000 km / 4 years
Brake Fluid: 2 years
Oil Change & Engine Filter: 30,000 km / 2 years
Interior Filter: 30,000 km / 1 years
Accessory Belt: 100,000 km (62,137 mi)

Transmission & Drivetrain

Transmission: Automatic (Manumatic), 8-speed

Brakes

Parking Brake: Electric
Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes

Front Brakes

Cooling: Ventilated

Rear Brakes

Cooling: Ventilated

Suspensions

Spring, Front: Coil
Spring, Rear: Pneumatic Air

Suspension, Front

Independent: Yes

Suspension, Rear

Independent: Multi-link

Fuel

General

Tank Volume: 66 litres
Lockable Fuel Cap: Yes

General › Fuel Cap Position

Rear: Right

Emission

Emission Standard: Euro 6d

WLTP Consumption

Dimensions & Weight

Exterior

Width, with Mirrors: 2,126 mm (83.7 in)
Track, Front: 1,605 mm (63.2 in)
Track, Rear: 1,630 mm (64.2 in)
Overhang, Front: 862 mm (33.9 in)
Overhang, Rear: 1,105 mm (43.5 in)
Turning Circle

Exterior

Chassis & Body

Chassis

Chassis: Station Wagon
Pillars: A-D
Chassis Construction: Unibody

Doors

Front Doors: Conventional
Rear Doors: Conventional

Interior

Equipment

Instrument Cluster

Trip Computer: Yes
Head-up Display (HUD): Optional

Instrument Cluster › Trip Computer

Display: Yes

Instrument Cluster › Trip Computer › Display

Type

Features

Comfort Features

Keyless Entry: Optional
Keyless Start: Yes
Cruise Control: Active Cruise Control
Speed Limiter: Yes
Parking Heater: Optional
Cameras: Optional
Voice Control

Safety & Security

Seat Belt

Height Adjustable Retractor: Yes
Seat Belt Colour: Black

Feature

Driver

Passenger

Rear

Seat Belt Reminder

Driver

Other

Warranty

Manufacturer: 2 years

Identification

VIN Location

Engine Compartment, Front Panel: Yes
Left Side Casing of Window: Yes
Pillar: B-Pillar, Right

Combined (l/100km): 7.8 litres / 100 km

Fuel Consumption NEDC

City: 7.6 litres / 100 km
Highway: 5.9 - 6 litres / 100 km
Combined: 6.5 - 6.6 litres / 100 km

Emission WLTP

CO₂, Combined: 203 g/km

Emission NEDC

CO₂, Combined: 172 - 174 g/km

12.05 m

Ground Clearance

140 mm (5.5 in)

Interior

Head Room, Front: 1,034 mm (40.7 in)
Head Room, Rear: 996 mm (39.2 in)
Shoulder Room, Front: 1,523 mm (60.0 in)
Shoulder Room, Rear: 1,487 mm (58.5 in)

Weight

Gross Weight: 2,620 kg (5,776 lb)
Max Trailer Load, braked 12%: 2,000 kg (4,409 lb)
Max Trailer Load, braked 8%: 2,000 kg (4,409 lb)
Max Trailer Load, unbraked: 750 kg (1,653 lb)
Cargo Capacity: 665 kg (1,466 lb)
Max Roof Load: 100 kg (220 lb)
Max Towbar Download

Soft Close

Optional

Platform

BMW Platform: CLAR Platform

Equipment

Side Mirrors

Mirror Type: Conventional
Folding: Electrical
Turning Signal: Yes
House Colour: Same as Car

Windscreen Wipers

Heated Washer Nozzles: Optional
Speed Sensing Intermittent: Yes
Intermittent Control

Lights

Main Beam: LED
Low Beam: LED
Rear Lights: LED
Daytime Running Light: LED
Fog Lights: Yes
Special Features: Automatic Headlight Activation
Adaptive Headlights

Fog Lights

Front

Rims & Tires

Tire Pressure Monitoring System (TPMS): Direct
Number of Bolts: 5 pcs
Bolt Distance: 112
Nut/Bolt Dimensions: M14x1.25
Central Bore (CB), front: 66.6
Central Bore (CB), rear: 66.6
Fastening Type: Lug Bolts
Tightening Torque: 140 Nm

Colour

Climate Control

Climate Control: Automatic
Air Condition: Yes
Micro Filter: Yes
Pollen Filter: Yes
Outside Temperature Indicator: Yes
Auto Defog System: Optional
Number of Vents, Front: 4 pcs
Controls: Buttons
Back Seat Controls

Climate Control › Air Condition

Refrigerant: R1234yf
R134A

Climate Control › Back Seat Controls

Buttons: Optional

Connectivity

Radio: Yes
Media Format: CD
App-Connect: Yes
Optional
Bluetooth: Optional

Connectivity › Media Format

DVD: Optional
Blu-Ray: Optional

Connectivity › Media Inputs

AUX: Yes
USB: Optional

Connectivity › App-Connect

Apple CarPlay: Optional

Displays

Center Display: Yes

Displays › Center Display

Touchscreen: Optional

Rear-view Mirror

Adjustments: Mechanical
Anti-glare: Automatic
Rear-view Mirror: Mirror Type: Standard

Interior Storage › Storage Compartments

Glove Compartment: Cooled
Light
Lockable
Armrest Hatch: Front
Back Pocket: Yes
Sunglass Compartment: Yes
Coin Holder: Yes
Card Holder: Yes
Door: Driver Side
Passenger Side
Rear

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2
Rear: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Interior Storage › Cup Holders › Rear

Placement: Armrest

Lights

Read Light: Front
Rear
Guide Light: Entry Guard
Ambient Light: Yes
Selectable Light Colour: Yes

Lights › Guide Light

Footwell: Optional
Side Mirrors: Optional
Door Handles: Optional

Other Equipment

Make-up Mirror: Driver Side
Passenger Side
Clock: Yes
12V Outlet: Front
Trunk
Carpets: Optional

Other Equipment › Make-up Mirror

Make-up Light: Driver
Passenger

Other Equipment › Clock

Digital: Center Display
Instrument Cluster

Steering Wheel

Multifunction Steering Wheel: Yes
Heated: Optional
Power Steering: Electric
Adjustments: Tilt
Telescope
Sport: Yes
Material: Leather
Steering Mechanism: Rack and Pinion
Voice Command: Yes

Trunk

Rear Trunk: Yes
Cargo Hooks: Yes
Flat Surface: Yes
Light: Yes
Hatch Opening Type: From Roof

Rear Trunk

Volume: 570 litres
Volume, Back Seat Collapsed: 1,700 litres

Seats

Front Seats › Adjustments, Driver

Seat Depth: Powered
Seat Height: Powered
Cushion Edge: Yes
Backrest Angle: Powered
Lumbar Support: Yes
Headrest, Height: Yes
Headrest, Tilt: Yes

Front Seats › Adjustments, Passenger

Climate Control
Media
Phone

Wireless Phone Charger

Optional

Cruise Control

Adaptive Cruise Control: Optional

Parking Heater

Cabin Heater: Optional

Parking Heater › Cabin Heater

Engine Heater: Optional
Remote: Optional
Timer: Optional

Cameras

Front: Optional

Cameras › Front

Sides: Optional
Rear: Optional

Voice Control

Navigation: Optional

Wireless Phone Charger

Front: Optional

Other Features

GPS: Optional
Start & Stop: Yes
Driving Mode Selection: Comfort
Eco
Normal
Sport
Auto
Dynamic Chassis Control (DCC): Yes
Horn: Dual Note

Accessories

Tire Repair Kit: Yes
Compressor: Optional
Fire Extinguisher: Optional
Warning Triangle: Yes
First Aid Kit: Optional
Bicycle Holder: Optional
Coat Hanger: Optional
Portable Cooling Box: Optional

Yes

PassengerYes

RearYes

Belt Pretensioner

DriverYes

PassengerYes

RearYes

Belt Load Limiter

DriverYes

PassengerYes

RearYes

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats
Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC): Yes
Dynamic Steering Response (DSR): Yes
Dynamic Torque Vectoring (DTV): Yes
Forward Collision Warning (FCW): Optional
Front Cross-Traffic Alert (FCTA): Optional
Rear Cross-Traffic Alert (RCTA): Optional
Lane Assist System: Optional
Speed Assist: Yes

Brake Systems

Autonomous Emergency Brake System (AEB): Yes
Power Brakes: Yes
Anti-lock Braking System (ABS): Four-channel
Traction Control System (TCS): Yes
Electronic Brakeforce Distribution (EBD): Yes
Brake Energy Regeneration: Yes
Electronic Brake Assist (BA/EBA): Yes
Brake Pad Wear Indicator: Yes

Sensors

Parking Sensors: Optional
Blind Spot Detection (BLIS): Optional
Driver Alertness Warning (DAW): Yes
Light Sensor: Yes
Rain Sensors: Yes
Night Vision: Optional

Parking Sensors

Front: Optional

Other Features

Immobiliser: Yes
Anti-theft Alarm: Yes
Central Locking: Remote
Child Safety Locks: Electrical
Active Bonnet: Yes
Emergency Call: Optional
Speed Sensitive: Yes

Immobiliser

Safety Testing

General

Test Year: 2017
Adult Occupant: 91 %
Child Occupant: 85 %
Vulnerable Road Users: 81 %
Safety Assist: 59 %
Overall: 5/5 stars
Test Year: 2017
ANCAP Safety Rating

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

Rear-

Side Chest Airbag

Driver

Child Protection

Isofix: Passenger: -
Rear: Yes

On-board Diagnostic, Port Location

Steering Wheel, Lower Left

Car Classification

British Classification: Executive Car
Australian Classification: Large Car
European Segment: E-Segment
Car.info Classification: Executive Car

Spare Parts BETA

Bulb Types

Reversing Light: BAY9s (H21W)
Turn Indicators, Front: BAU15s (PY21W)

ACRISS

Type: Wagon/Estate (W)

5 Series

8.9

€67,000

MSRP · EUR

Body

90 kg (198 lb)

Yes

Heated Water Tank

Optional

Rear Wiper

Yes

Rear Washer System

Yes

Windscreen Wipers: Connector type, Front

Push Button

Number of Windscreen Wipers, Front

2

Windows

Window Lifts, Front: Powered
Window Lifts, Rear: Powered (Safety Lock)
Heated Windows: Rear
Heat-Insulating Windows: Front
First Row
Second Row
Rear
Noise Reducing Windows: Optional
Sun Visors: Optional
Tinted Windows: Yes
Safety Glass: Yes

Windows › Window Lifts, Features

Pinch Protection: Driver
Passenger
Rear
One-touch up/down: Driver
Passenger
Rear

Windows › Heated Windows

Front: Optional

Windows › Noise Reducing Windows

Front: Optional
First Row: Optional
Second Row: Optional

Windows › Tinted Windows

Second Row: Optional
Rear Window: Optional

Windows › Safety Glass

Front: Laminated
Side: Tempered
Rear: Tempered

Other Equipment

Sunroof: Optional
Tow Hook: Front
Rear
Roof Railing: Yes
Antenna: Yes
Mud Flaps: Optional
Electric: Optional

Other Equipment › Sunroof

Sun Blind: Optional

Other Equipment › Sunroof › Sun Blind

Tinted Glass: Optional

Other Equipment › Roof Railing

Roof Railing Type: Flush Rails (Closed Rails)

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Yes

Rear

LED

Special Features

Main Beam Assist: Optional
Dynamic Turn Signal: Optional
Dynamic Cornering Lights: Optional
Come Home/Leaving Lights: Optional
Headlight Washers: Optional
Headlight Range Adjustment: Automatic (Dynamic)

Rim Material

Alloy

Rim Type

Disc Wheel

Optional

Air Ionizer

Optional

Fragrance System

Optional

Answer Phone

Yes

Channels

Yes

Volume

Yes

Mute Audio

Yes

Multifunction Steering Wheel

Menu Navigation: Yes
Cruise Control: Yes

Seat Depth

Powered

Seat Height

Powered

Cushion Edge

Yes

Backrest Angle

Powered

Lumbar Support

Yes

Headrest, Height

Yes

Headrest, Tilt

Yes

Front Seats

Power Seat, Driver: Yes
Power Seat, Passenger: Yes
Heated Seats: Optional
Armrest: Middle (Heated)
Massage: Optional
Ventilated Seats: Optional
Type of Seat: Sport Seats
Easy Entry: Optional

Front Seats › Power Seat, Driver

Semi-Powered: Yes

Front Seats › Power Seat, Passenger

Semi-Powered: Yes

Front Seats › Heated Seats

Cushion: Optional

Front Seats › Heated Seats › Cushion

Backrest: Optional

Front Seats › Massage

Driver: Optional
Passenger: Optional

Front Seats › Ventilated Seats

Driver: Optional
Passenger: Optional

Second Seat Row

Collapsible: Manual
Number of Seats: 3
Type of Seat: Adult

Second Seat Row › Collapsible

Backrest Release: On Top of Backrest
Heated Seats: Optional

Second Seat Row › Headrests

Outer Seats: Height Adjustment

Ski/Snowboard-bag

Optional

Hill Start Assist (HSA)

Yes

Parking Assist

Optional

Sign Assist

Optional

Trailer Assist

Optional

Trailer Stability Assist (TSA)

Optional

Emergency Stop Signal (ESS)

Yes

Crosswind Assist

Optional

Autonomous Emergency Brake System (AEB)

Pedestrian: Yes
City: Yes
Inter-urban: Yes

Rear

Optional

Electronic

Yes

Anti-theft Alarm

Interior Monitoring: Yes

5

Adult Occupant

Total Points: 34.8 /38
Lateral Impact: 15.8 /16
Rear Impact: 2.7 /4
Protection: 91 %
Protection: 34.8
Full Width: 7
Frontal Offset: 6.32
Side Impact: 8
Pole: 7.8

Child Occupant

Total Points: 42 /49
Crash Test Performance: 15
8 /16
Safety Features: 7 /13
CRS Installation Check: 12 /12
Protection: 85 %
Protection: 42

Vulnerable Road Users

Total Points: 34.1 /49
Pedestrian: 22.7
0
6
AEB Pedestrian: 5.3 /9

Safety Assist

Speed Assistance (points): 1.5 /3
Lane Support (points): 0 /4
Safety Assist: 59 %
Safety Assist: 7.1
Speed Assistance System: 1.5
Seat Belt Reminders: 3
Lane Support System: 0
AEB (Interurban): 2.6

Pedestrian

Protection: 81 %
Protection: 34.1

Yes

PassengerYes

Rear-

Side Head Airbag

DriverYes

PassengerYes

RearYes

Side Pelvis Airbag

DriverYes

PassengerYes

Rear-

Knee Airbag

DriverYes

Passenger-

Rear-

Curtain Airbag

DriverYes

PassengerYes

RearYes

Airbag cut-off Switch

Driver-

PassengerYes

Rear-

Wagon

Variant

5 Series M550d Wagon Generations3 of 3

Year

Powertrain

M550d xDrive Touring Steptronic

Horsepower

400 hp

Drivetrain

AWD

Fuel

Diesel

Transmission

Automatic (Manumatic), 8-speed

Whiplash Protection (Front)

2.7

AEB (City)

3

Similar wagons

Suggested vehicles

View all

2018 Alpina 5 Series D5 S

2017–2020

2018 Alpina 5 Series D5 S

2019 Volvo V60

2019–2020

2017 Jaguar XF S Sportbrake AWD

2017–2020

2020 Alpina 3 Series D3 S

2020–2022

2019 Audi A6

2019–2021

2021 Volvo V90

2021–2022

2017 Audi A4 RS

2016–2019

2020 Mercedes-Benz E-Class AMG E

2020–2023

2021 Porsche Taycan

2021–2024

2020 Peugeot 508

2018–2023

2019 Porsche Panamera

2019–2020

2022 Mercedes-Benz C-Class AMG C

2022–2026
