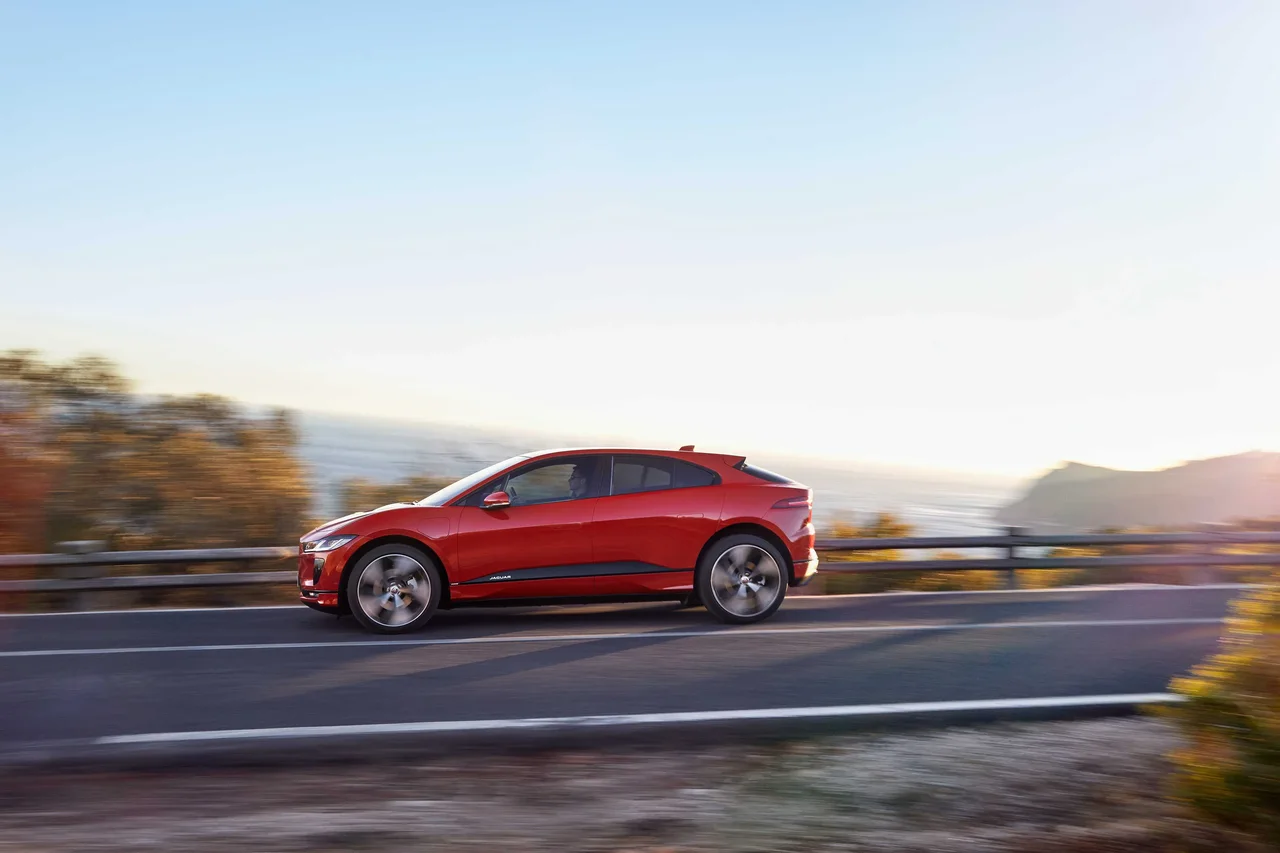

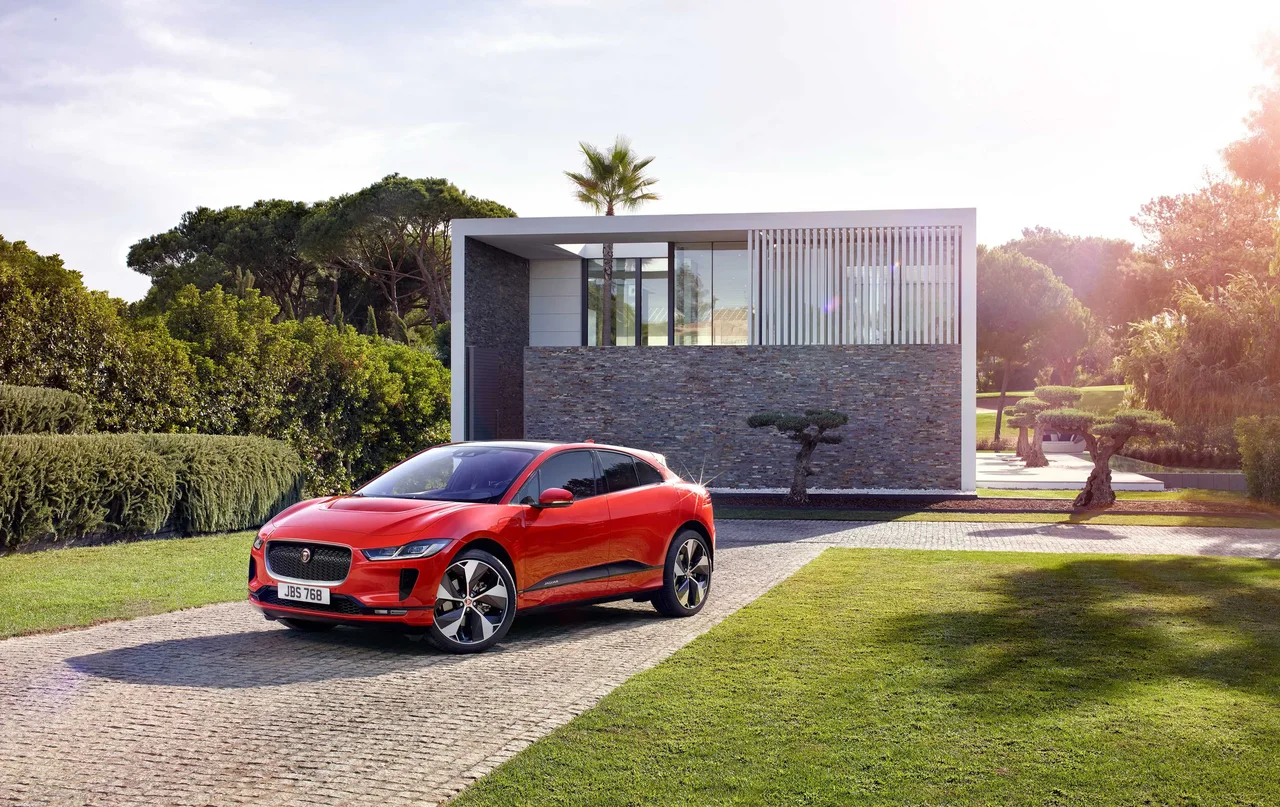

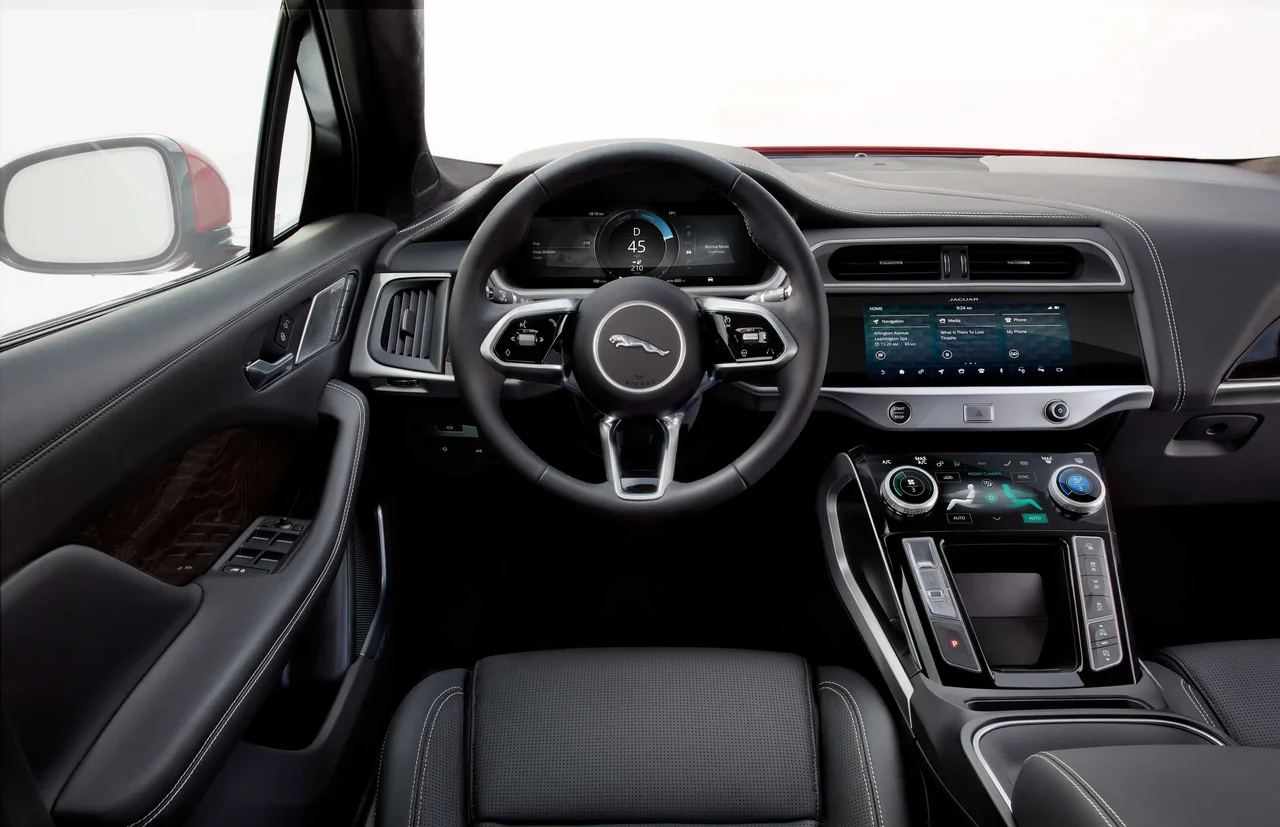

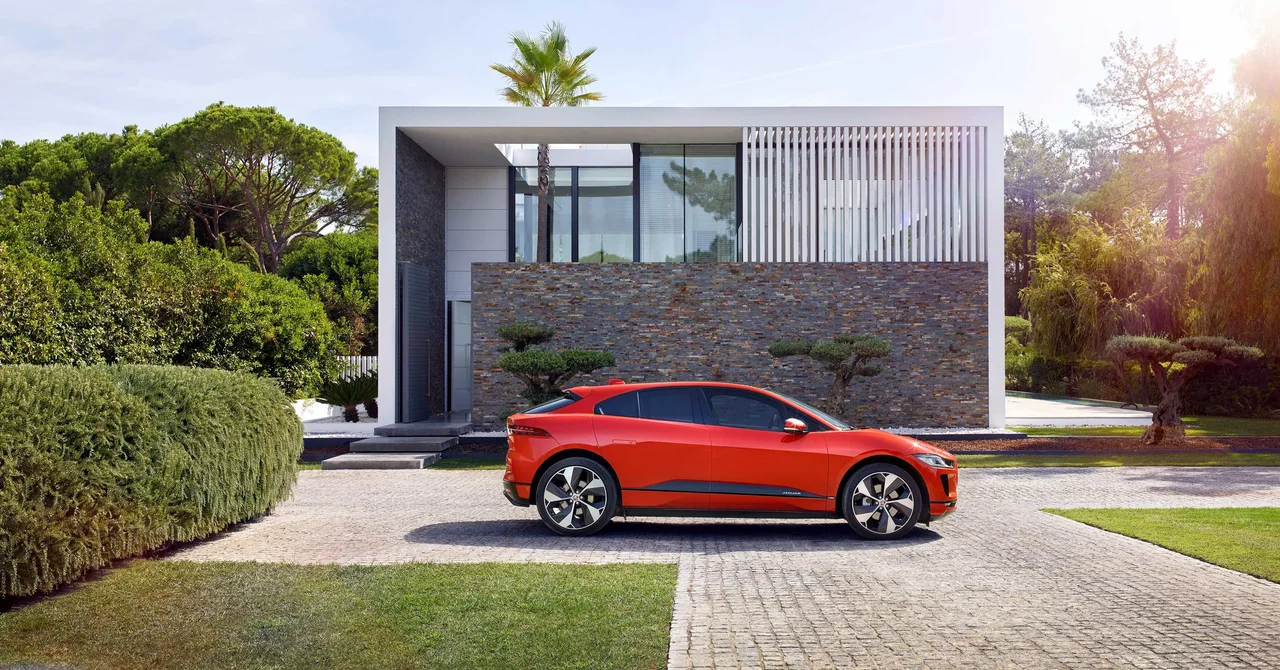

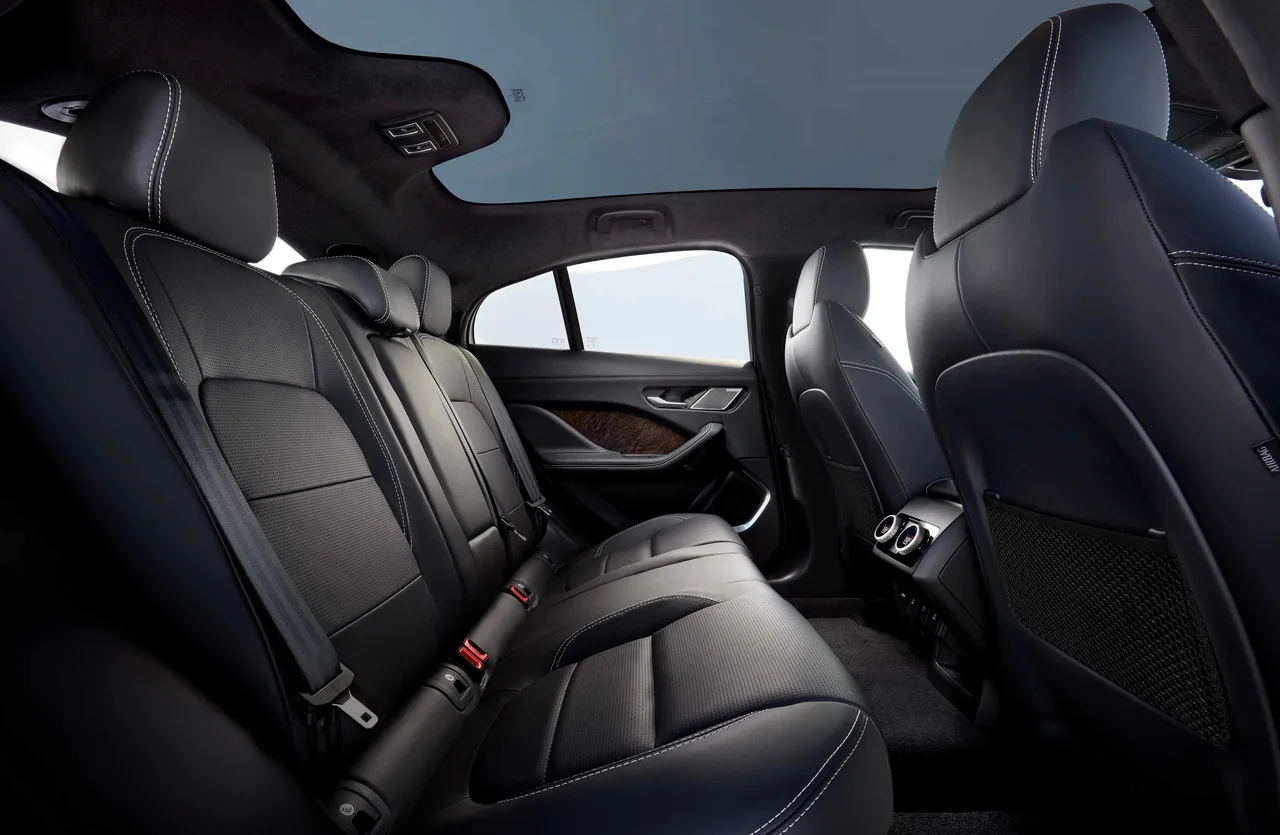

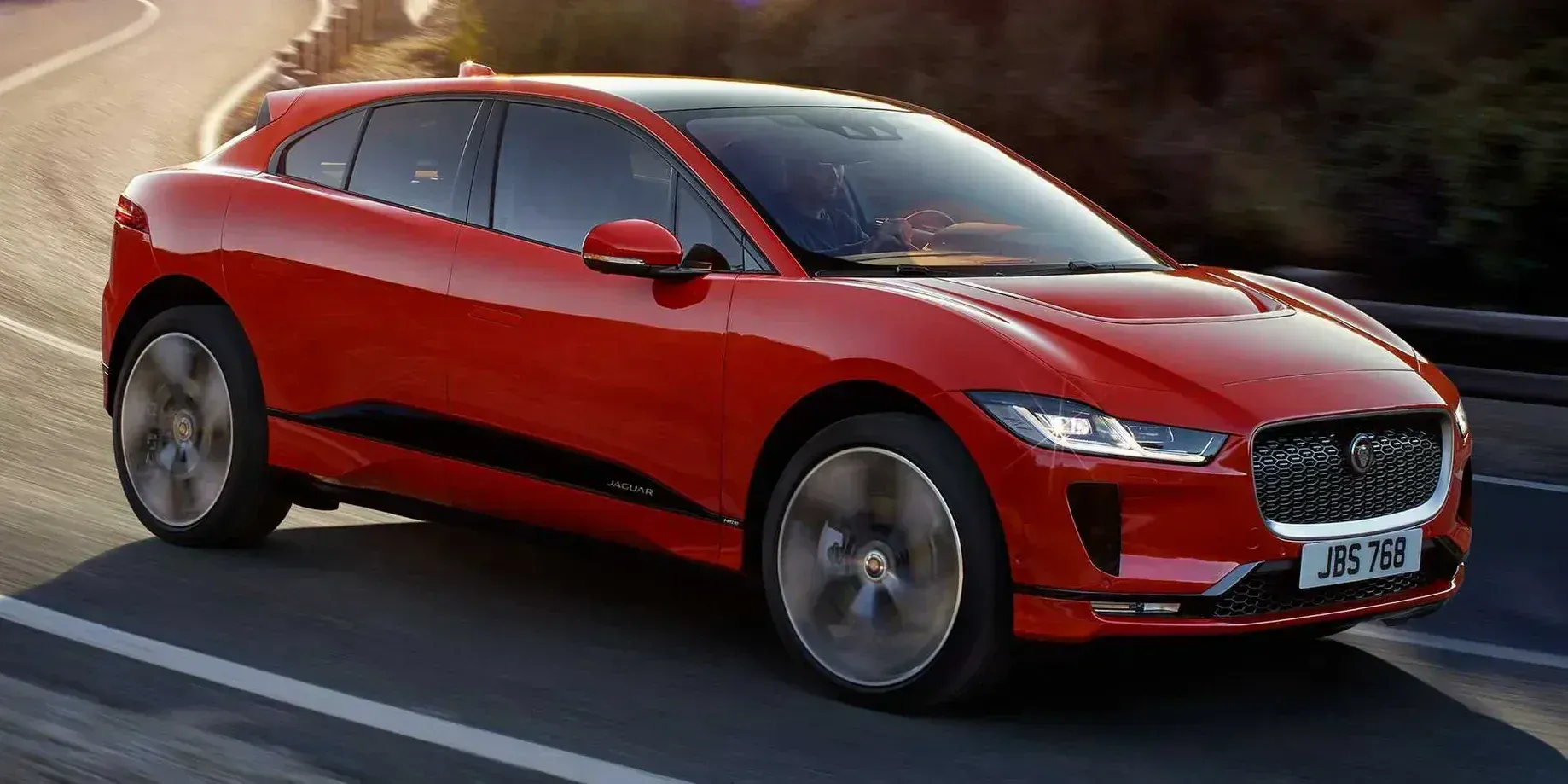

2018 Jaguar I-Pace EV400

United KingdomElectricAWDSUV

Photos

Specifications

Vehicle Details

Year
2018
Make
Jaguar
Model
I-Pace
Variant
EV400
Body Style
SUV
Generation
1st Generation
Seats
5
Doors
5
Fuel
Electric
Drivetrain
AWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
EV400 Single Speed
Engine Configuration
Electric
Power (hp)
400 hp
Power (kW)
294 kW
Torque
696 Nm (513 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
4.5 seconds
0–100 km/h
4.8 seconds
Electric range
470 km (292 mi)
Battery
90 kWh

Dimensions

Length
4,682 mm (184.3 in)
Width
1,895 mm (74.6 in)
Height
1,565 mm (61.6 in)
Wheelbase
2,990 mm (117.7 in)
Curb weight
2,208 kg (4,868 lb)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
294 kW
Electric Engine Horsepower (Metric)
400 hp
Torque
696 Nm (513 lb-ft)
Front Engines
Yes
Rear Engines
Yes
Battery Capacity, Gross
90 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2 (CCS)
Engine Configuration › Front Engines
Power (kW)
147 kW
Horsepower
200 hp
Number of Engines
1
Engine Configuration › Rear Engines
Electric Power (kW)
147 kW
Horsepower
200 hp
Number of Engines
1
Engine Configuration › Charge AC
Charge Time
8.6 h / 520 min
Charge Power
11 kW
Engine Configuration › Charge DC
Charge Time, to 80%
40 min
Charge Power
100 kW

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
350 mm (13.8 in)
Cooling
Ventilated
Rear Brakes
Diameter
325 mm (12.8 in)
Cooling
Ventilated

Energy & Range

Emission
Emission Class
A+
WLTP Consumption
Energy consumption
22 - 24.8 kWh/100km
Electric Range
470 km (292 mi)
Fuel Consumption NEDC
Combined
0 litres / 100 km
Emission WLTP
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,139 mm (84.2 in)
Track, Front
1,624 mm (63.9 in)
Track, Rear
1,647 mm (64.8 in)
Turning Circle
12.4 m
Ground Clearance
142 mm (5.6 in)

Interior

Head Room, Front
994 - 1,013 mm (39.1 - 39.9 in)
Head Room, Rear
961 - 968 mm (37.8 - 38.1 in)
Leg Room, Front
1,040 mm (40.9 in)
Leg Room, Rear
890 mm (35.0 in)

Weight

Gross Weight
2,670 kg (5,886 lb)
Cargo Capacity
462 kg (1,019 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Jaguar Land Rover Platforms
D7e

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Shark Fin

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes
Special Features
Automatic Headlight Activation
Optional
Headlight Range Adjustment
Automatic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
115 - 135 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Phone
Connectivity › Radio
DAB
Optional
Displays
Center Display
Yes
Speakers
Speaker Brand
Meridian
Subwoofer
Yes
Interior Storage › Storage Compartments
Glove Compartment
Yes
Sunglass Compartment
Yes
Door
Yes
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Sport
Yes
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Total Trunk Volume
683 litres
Rear Trunk
Yes
Front Trunk
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
656 litres
Depth
967 mm (38.1 in)
Width
1,244 mm (49.0 in)
Height
732 mm (28.8 in)
Front Trunk
Volume
27 litres
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Type of Seat
Sport Seats
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Cruise Control
Adaptive Cruise Control
Optional
Cameras
360° Camera
Yes

Other Features

GPS
Navigation

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes
Active Bonnet
Yes

Safety Testing

General
Test Year
2018
Adult Occupant
91 %
Child Occupant
81 %
Vulnerable Road Users
73 %
Safety Assist
81 %
Overall
5/5 stars
Test Year
2018
ANCAP Safety Rating
5
Adult Occupant
Protection
91 %
Protection
34.8
Full Width
7.61
Frontal Offset
5.78
Side Impact
8
Pole
8
Whiplash Protection (Front)
1.19
Whiplash Protection (Rear)
0.19
AEB (City)
4
Child Occupant
Protection
81 %
Protection
39.9
Dynamic (Front)
13.04
Dynamic (Side)
8
Child Restraint Installation
11.81
On-Board Features
7
Pedestrian
Protection
73 %
Protection
35.3
Head Impact
16.74
Upper Leg Impact
5.33
Lower Leg Impact
6
AEB VRU (Pedestrian)
4.34
AEB VRU (Cyclist)
2.93
Safety Assist
Safety Assist
77 %
Safety Assist
10.1
Speed Assistance System
2
Seat Belt Reminders
2.5
Lane Support System
3
AEB (Interurban)
2.59

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
160,000 km / 8 years
Roadside Assistance
Yes

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

ACRISS

Category
Luxury Elite (W)
Type
Crossover (G)

Awards

World
Car of the Year
2019
Green Car
2019
Car Design of the Year
2019
Golden Steering Wheel
Medium SUV
2019

Tests

Autotest
Body/Trunk
2.7
Interior
2.2
Comfort
2
Motor/Drivetrain
0.9
Driving Characteristics
2.5
Environment/EcoTest
2
Security
1.9
Judgment Technology/Environment
2
Judgment Technology/Environment
Good
Judgment Car Cost
4.2
Judgment Car Cost
Enough
