2018 Kia Optima

South KoreaPlug In Hybrid GasolineFWDSedan

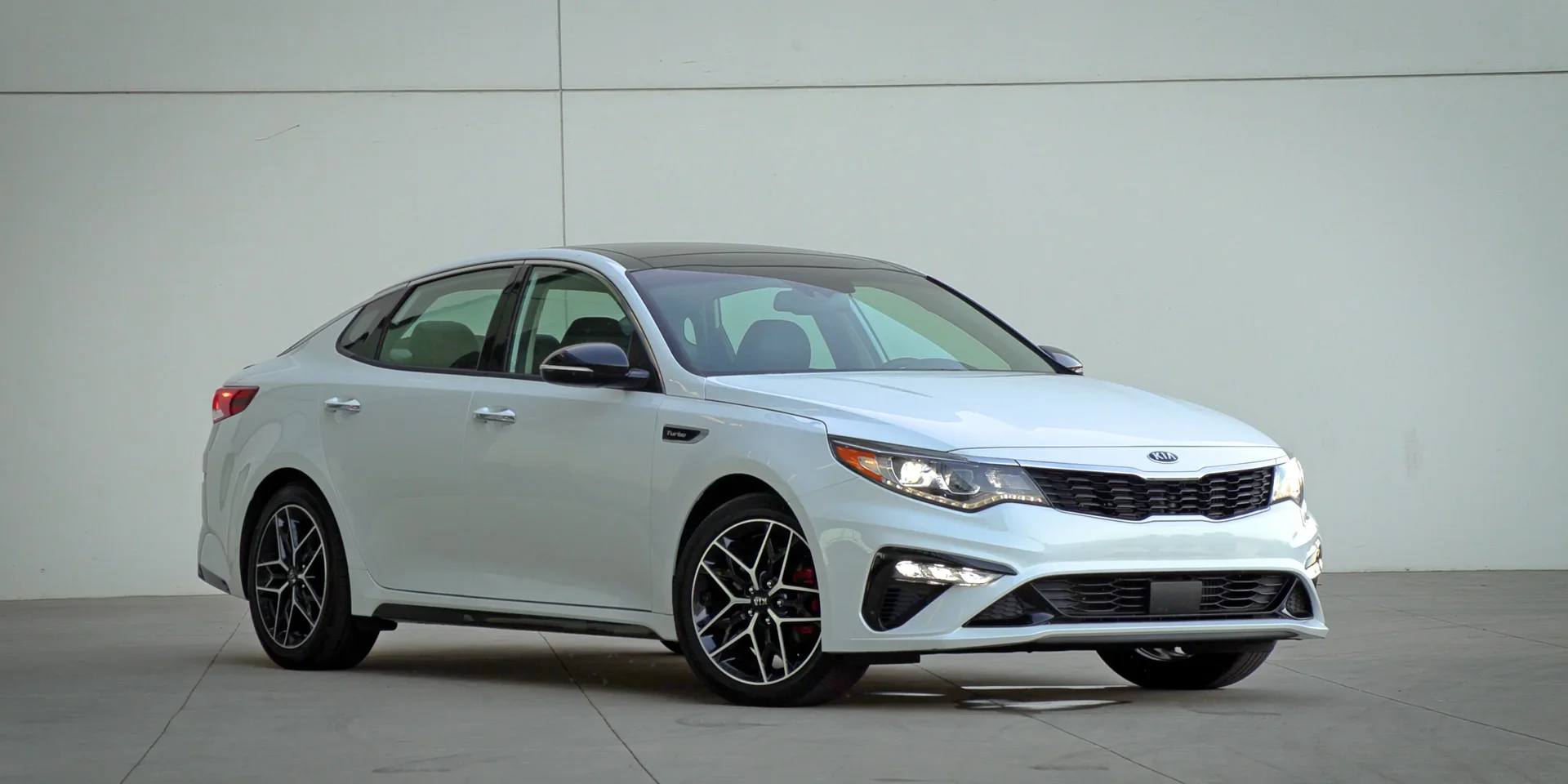

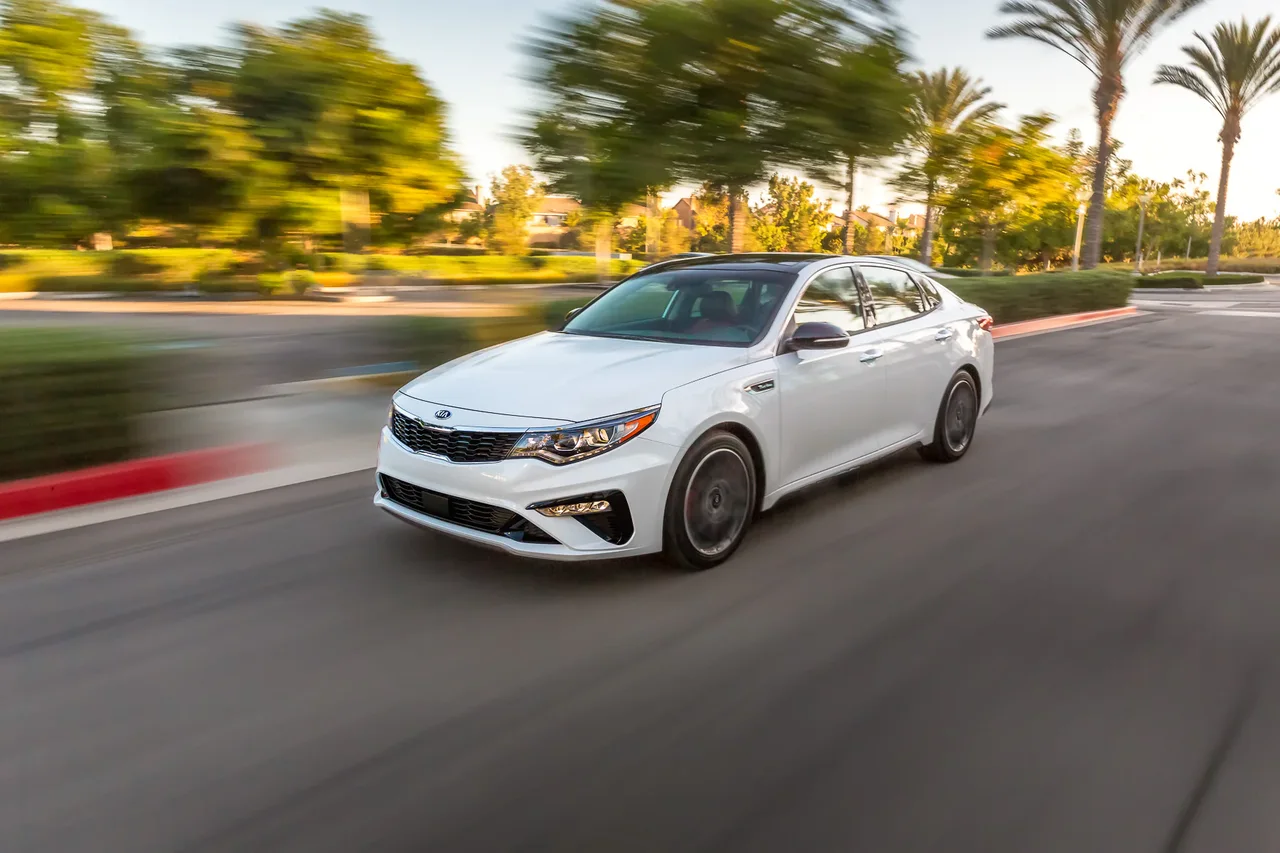

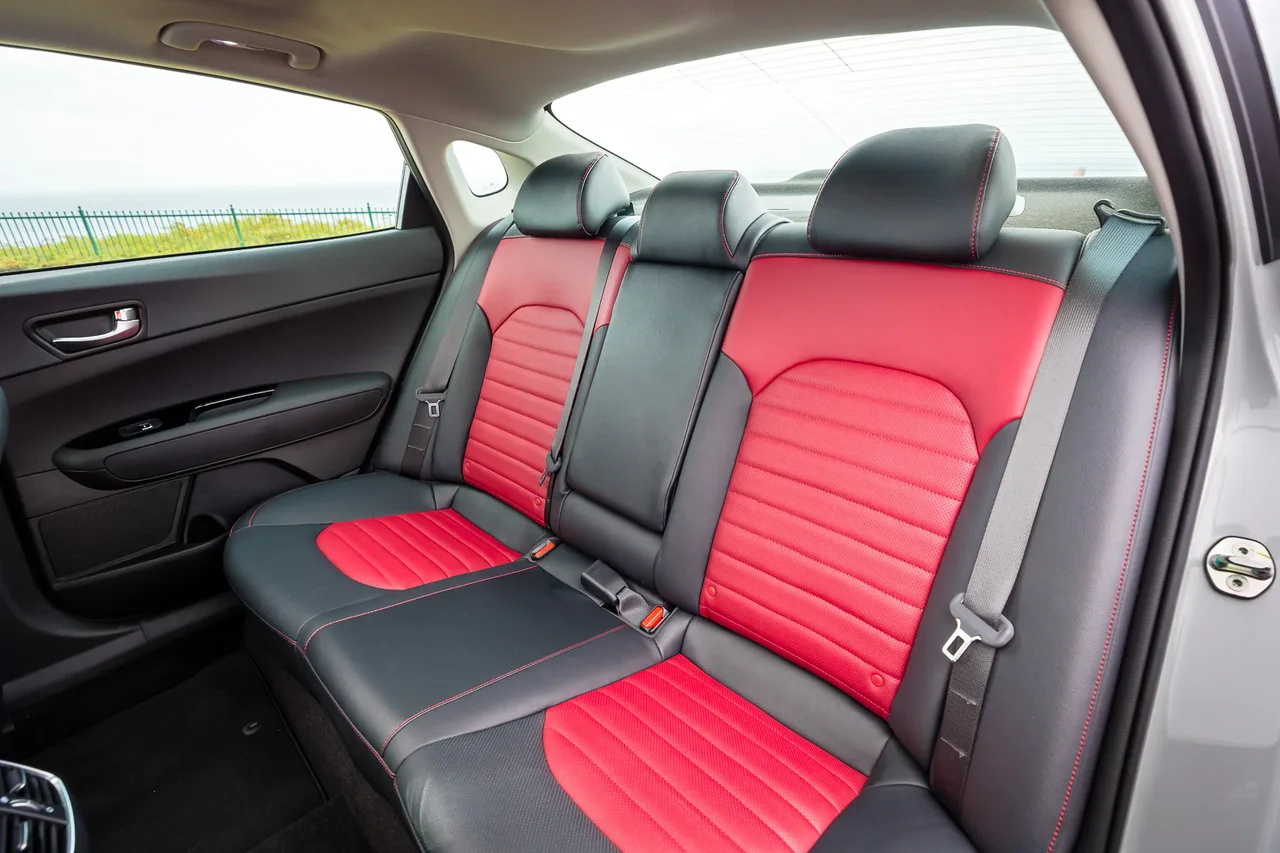

Photos

Specifications

Vehicle Details

Year
2018
Make
Kia
Model
Optima
Body Style
Sedan
Generation
JF Facelift
Seats
5
Doors
4
Fuel
Plug In Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
Plug-in Hybrid Automatic
Engine Configuration
Inline
Power (hp)
205 hp
Power (kW)
151 kW
Torque
375 Nm (277 lb-ft)
Top speed
192 km/h (119 mph)
0–60 mph
9.0 seconds (estimated)
0–100 km/h
9.4 seconds
Electric range
54 km (34 mi)
Battery
9.8 kWh
Displacement
1,999 cc

Dimensions

Length
4,905 mm (193.1 in)
Width
1,860 mm (73.2 in)
Height
1,445 mm (56.9 in)
Wheelbase
2,850 mm (112.2 in)
Curb weight
1,780 kg (3,924 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
5,000 rpm
Configuration Combustion
Bore
81 mm (3.2 in)
Stroke
97 mm (3.8 in)
Compression Ratio
13.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
49 kW
Electric Engine Horsepower (Metric)
67 hp
Torque
375 Nm (277 lb-ft)
Battery Capacity, Gross
9.8 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
300 mm (11.8 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)

Fuel

General
Tank Volume
55 litres
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
A+
Emission WLTP
CO₂, Weighted, Combined
35 g/km
Emission NEDC
CO₂, Combined
37 g/km
Fuel Consumption NEDC
Combined
1.6 litres / 100 km
Combined
12.2 kWh/100km
Electric Range
54 km (34 mi)

Dimensions & Weight

Exterior

Track, Front
1,610 mm (63.4 in)
Track, Rear
1,620 mm (63.8 in)
Overhang, Front
965 mm (38.0 in)
Overhang, Rear
1,085 mm (42.7 in)
Turning Circle
10.9 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room, Front
1,155 mm (45.5 in)
Head Room, Rear
905 mm (35.6 in)
Leg Room, Front
1,155 mm (45.5 in)
Leg Room, Rear
905 mm (35.6 in)
Hip Room, Front
1,423 mm (56.0 in)
Hip Room, Rear
1,422 mm (56.0 in)
Shoulder Room, Front
1,475 mm (58.1 in)
Shoulder Room, Rear
1,432 mm (56.4 in)

Weight

Gross Weight
2,200 kg (4,850 lb)
Cargo Capacity
420 kg (926 lb)
Max Roof Load
100 kg (220 lb)

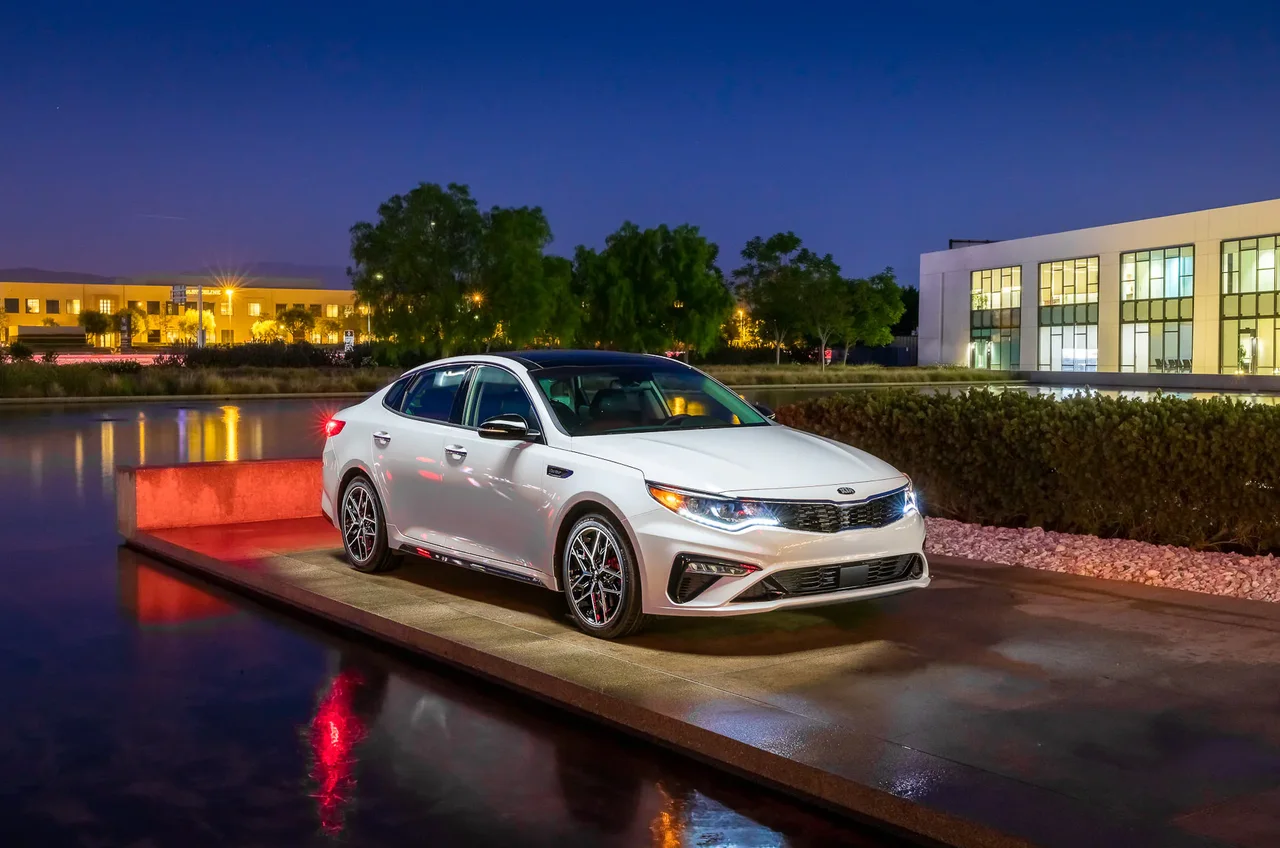

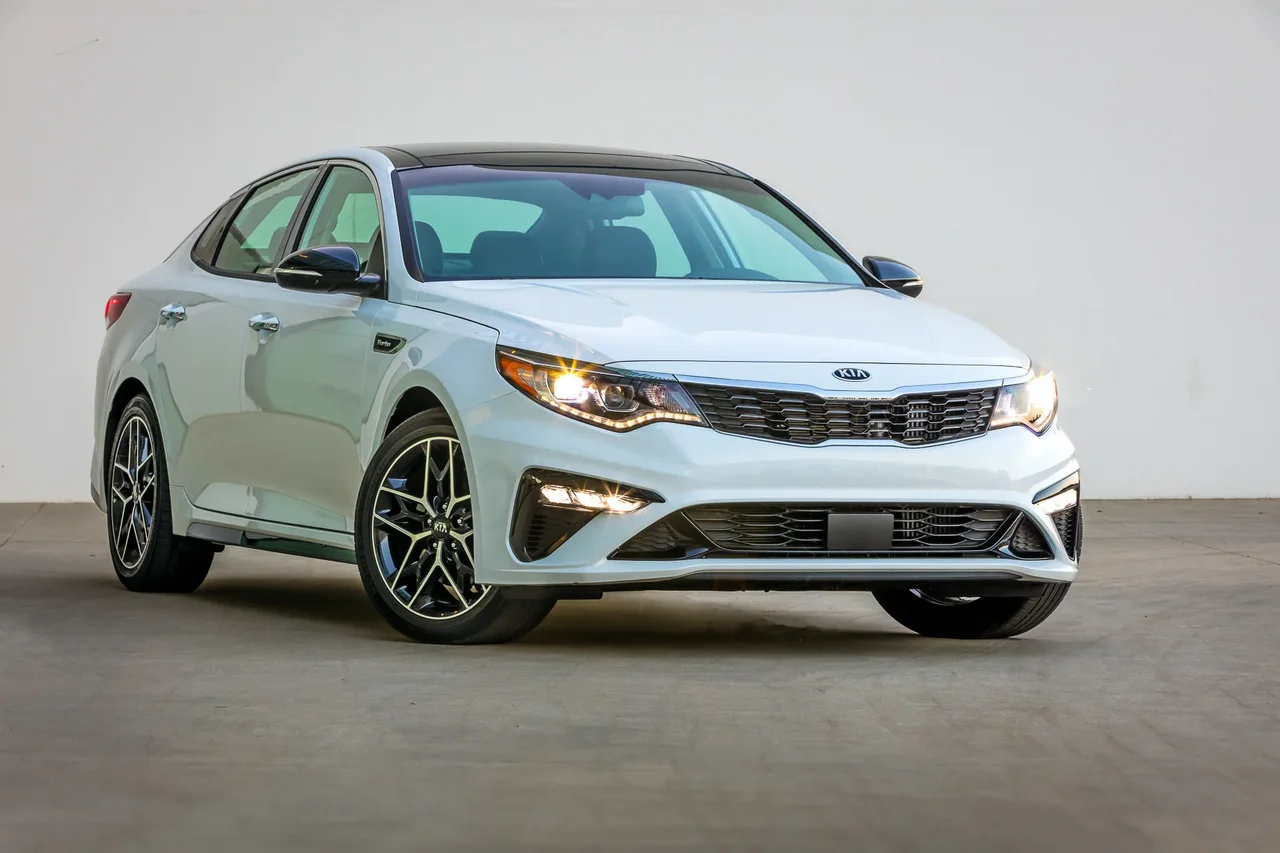

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Hyundai-Kia Platforms
Y Platform (Y7)

Equipment

Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear

Lights

Special Features
Come Home/Leaving Lights
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Tightening Torque
107 - 127 Nm

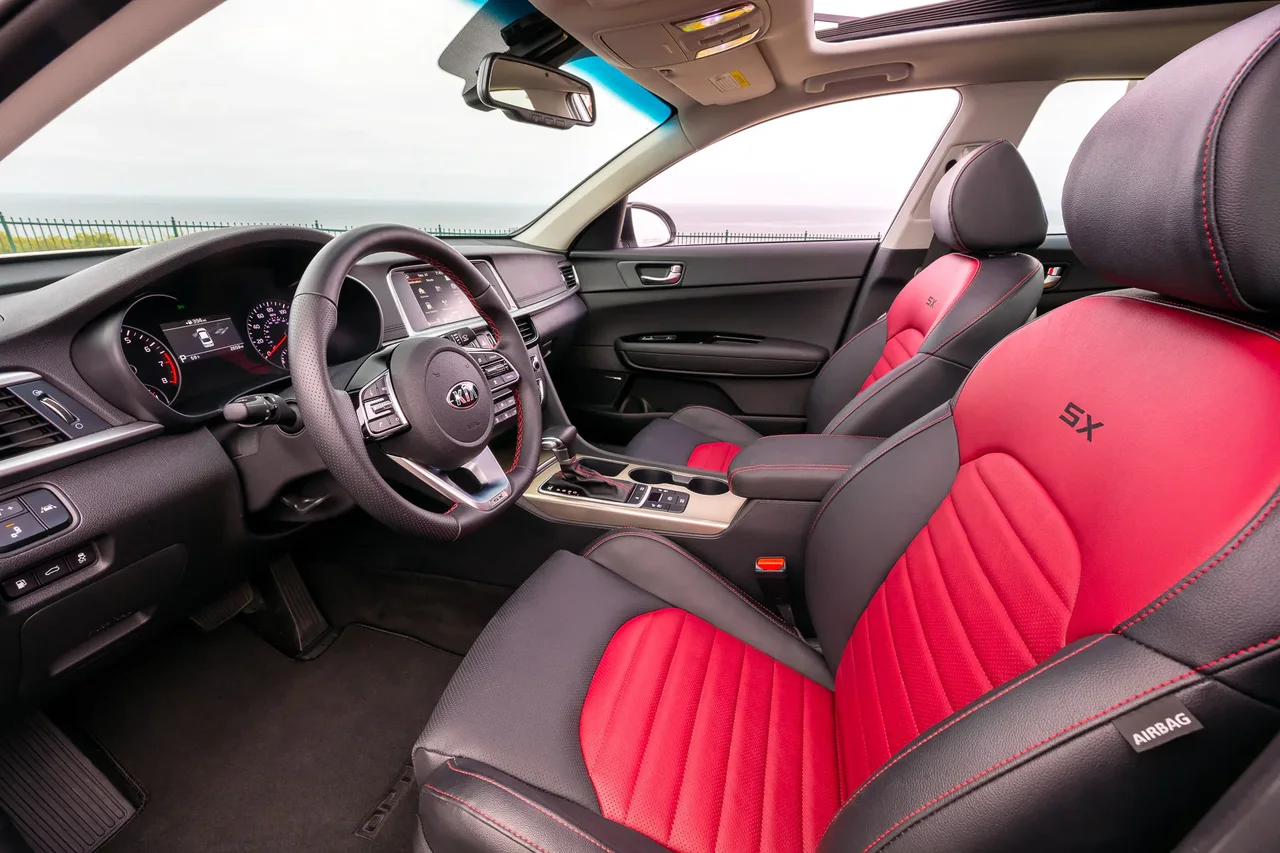

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Ashtray
Yes
Cigarette Lighter
Yes
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Release Button
Yes
Cover
Sliding (Manual)
Barrier Net/Grid
Yes
Carpet
Rubber
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
510 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Armrest
Middle

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Front Seats
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Obstacle Detection Sensor
Optional
Driver Alertness Warning (DAW)
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Remote
Child Safety Locks
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
89 %
Child Occupant
86 %
Vulnerable Road Users
67 %
Safety Assist
71 %
Overall
5/5 stars
IIHS
Test Year
2016
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
  • Good
  • Poor

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km / 5 years
Rust Damage
150,000 km / 7 years
EV Battery
160,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km / 7 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of
On-board Diagnostic, Port Type
OBD-II

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
  • H7
  • HB3
Bi-Xenon
D3S
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Trunk
SV8.5 (C5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Type
4-5 Doors (D)
