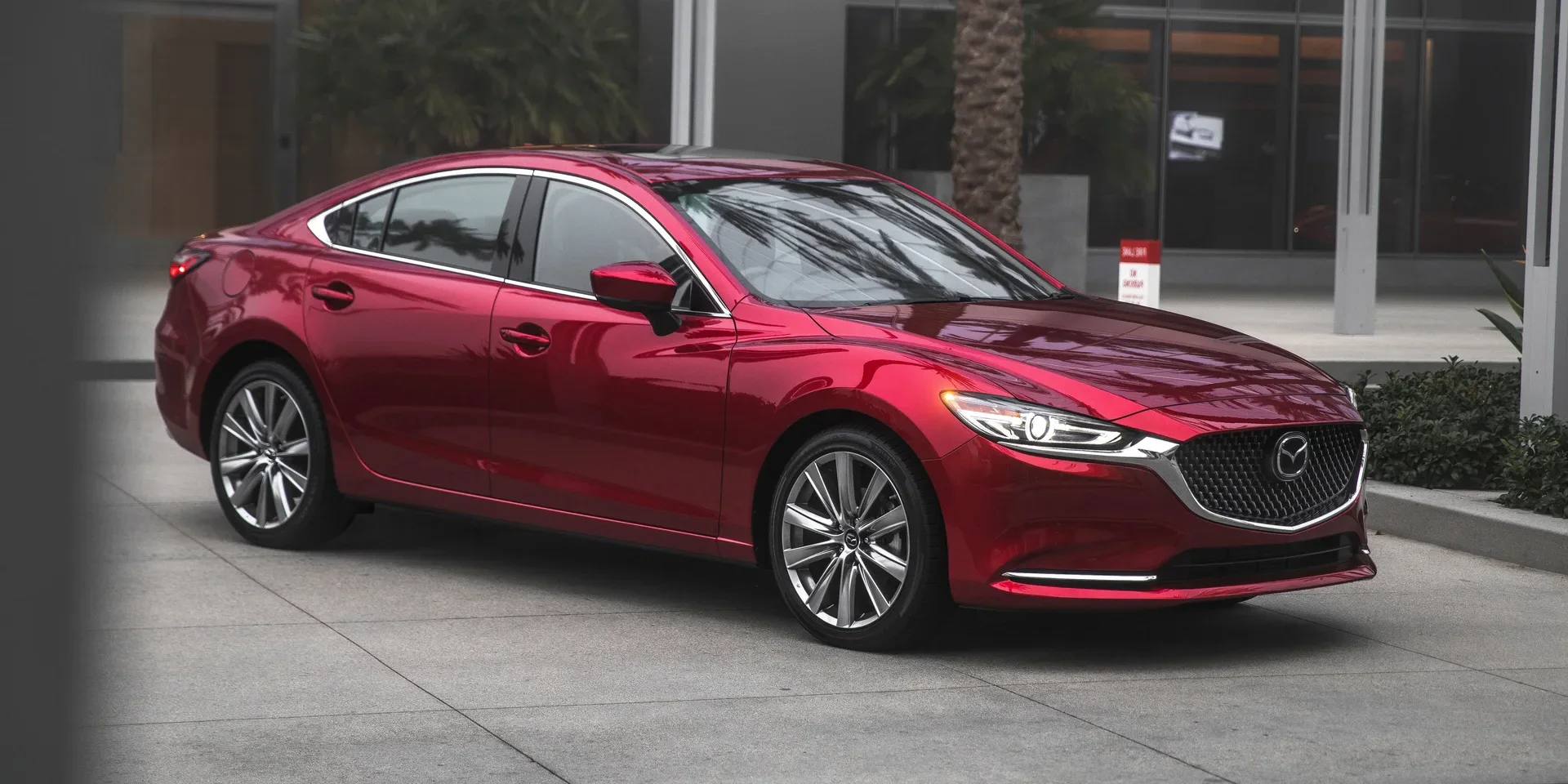

2018 Mazda 6

JapanGasolineFWDSedan

Photos

Specifications

Vehicle Details

Year
2018
Make
Mazda
Model
6
Body Style
Sedan
Generation
GL Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
2.0 SKYACTIV-G Manual
Engine Configuration
Inline
Power (hp)
145 hp
Power (kW)
107 kW
Torque
210 Nm (155 lb-ft)
Top speed
208 km/h (129 mph)
0–60 mph
9.9 seconds
0–100 km/h
9.9 seconds
Displacement
1,998 cc

Dimensions

Length
4,870 mm (191.7 in)
Width
1,840 mm (72.4 in)
Height
1,450 mm (57.1 in)
Wheelbase
2,830 mm (111.4 in)
Curb weight
1,466 kg (3,232 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
Engine Oil, Volume
4.2 litres
Engine Configuration
Bore
83.5 mm (3.3 in)
Stroke
91.2 mm (3.6 in)
Compression Ratio
13 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Service Intervals
Air Filter
60,000 km / 3 years
Spark Plug
120,000 km (74,565 mi)
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Engine Coolant
100,000 km / 5 years
Transmission, Fluid
180,000 km (111,847 mi)
Interior Filter
40,000 km / 2 years

Transmission & Drivetrain

Gear Ratio
1st Gear
3.7 :1
2nd Gear
1.95 :1
3rd Gear
1.3 :1
4th Gear
1.03 :1
5th Gear
0.84 :1
6th Gear
0.68 :1
Final Drive
3.85 :1
Reverse
3.72 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
297 mm (11.7 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
278 mm (10.9 in)
Cooling
Solid

Performance

Drag Coefficient
0.3

Fuel

General
Tank Volume
62 litres
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
C
WLTP Consumption
Combined (l/100km)
6.7 litres / 100 km
Fuel Consumption NEDC
City
7.7 litres / 100 km
Highway
5.3 litres / 100 km
Combined
6.2 litres / 100 km
Emission WLTP
CO₂, Combined
152 g/km
Emission NEDC
CO₂, Combined
142 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,090 mm (82.3 in)
Track, Front
1,585 mm (62.4 in)
Track, Rear
1,575 mm (62.0 in)
Overhang, Front
950 mm (37.4 in)
Overhang, Rear
1,085 mm (42.7 in)
Turning Circle
11.2 m
Ground Clearance
165 mm (6.5 in)

Interior

Head Room, Front
975 mm (38.4 in)
Head Room, Rear
942 mm (37.1 in)
Leg Room, Front
1,073 mm (42.2 in)
Leg Room, Rear
984 mm (38.7 in)
Shoulder Room, Front
1,420 mm (55.9 in)
Shoulder Room, Rear
1,400 mm (55.1 in)

Weight

Gross Weight
2,005 kg (4,420 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,700 kg (3,748 lb)
Max Trailer Load, unbraked
680 kg (1,499 lb)
Cargo Capacity
475 - 539 kg (1,047 - 1,188 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Spoiler
Optional
Antenna
Roof-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Spoiler
Fixed
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Adaptive Headlights
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
108 - 147 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Yes
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
Memory Card Reader
Media Inputs
USB
App-Connect
Optional
Connectivity › Media Format
CD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
8"
Center Display Controls
  • Rotary Dial
  • Joystick
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Buttons
Yes
Displays › Center Display Controls › Buttons
Buttons Middle Console
5 pcs
Speakers
Total Number of Speakers
6 - 11 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
480 litres
Depth
1,190 mm (46.9 in)
Depth, Back Seat Collapsed
1,961 mm (77.2 in)
Width
1,422 mm (56.0 in)
Width, Between Wheel Arches
1,022 mm (40.2 in)
Sill Height
719 mm (28.3 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Collapsible › Backrest Release
From Trunk
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2018
Adult Occupant
95 %
Child Occupant
91 %
Vulnerable Road Users
66 %
Safety Assist
73 %
Overall
5/5 stars
IIHS
Test Year
2016
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
  • Acceptable
  • Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
1 years

Identification

VIN Location
Left Side Casing of Window
Yes
Passenger Seat
in Front of

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

Spare Parts BETA

Bulb Types
Positioning-/Parking Lights, Front
W3×16q (W21/5W)

Similar sedans

Suggested vehicles
