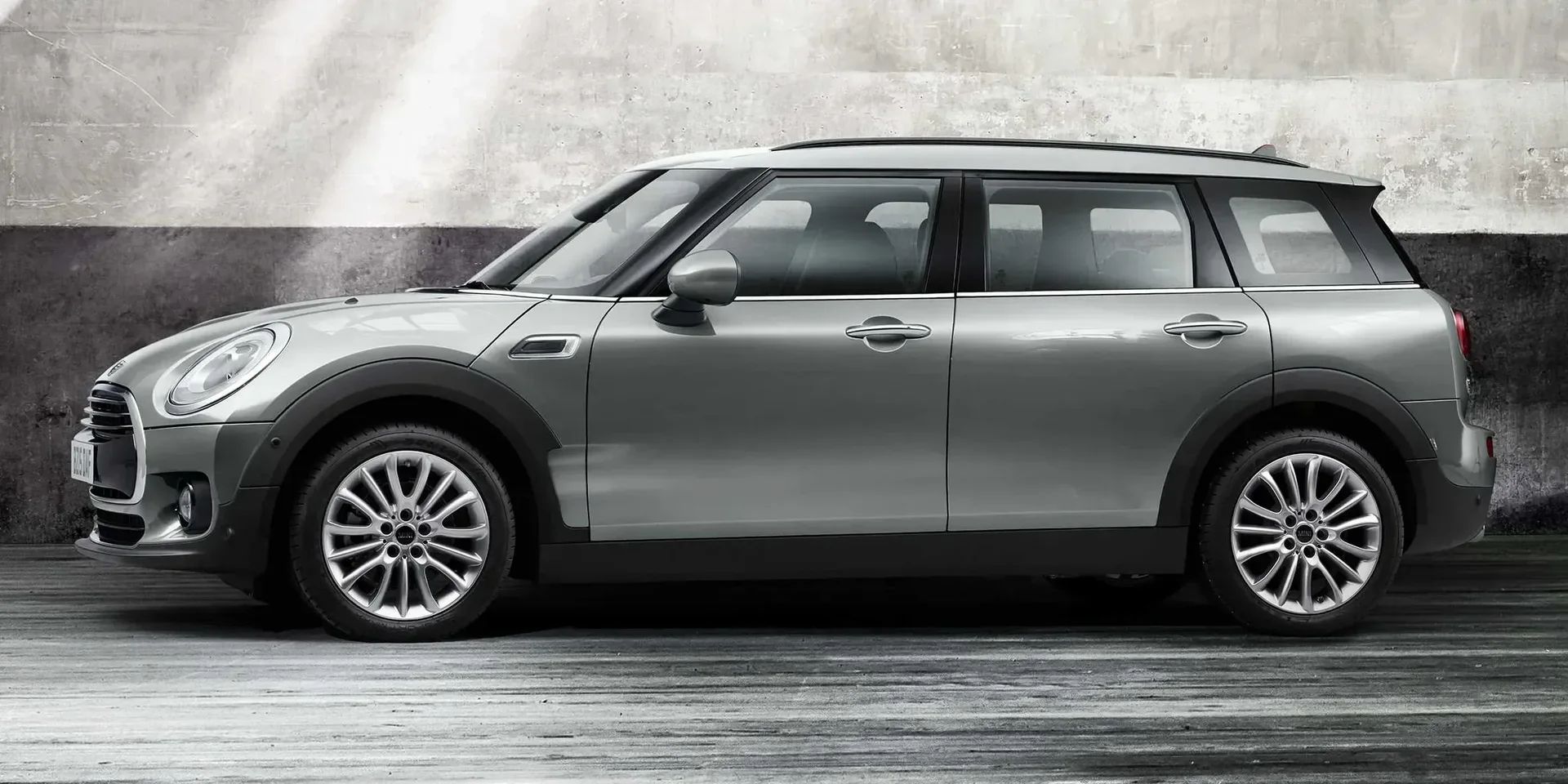

2018 Mini Clubman Cooper D Clubman

United KingdomDieselFWDWagon

Photos

Specifications

Vehicle Details

Year
2018
Make
Mini
Model
Clubman
Variant
Cooper D Clubman
Body Style
Wagon
Generation
F54
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6
  • 8-speed

Powertrain

Engine Name
Cooper D Clubman
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
330 Nm (243 lb-ft)
Top speed
212 km/h (132 mph)
0–60 mph
8.1 seconds (estimated)
0–100 km/h
8.5 seconds
Displacement
1,995 cc

Dimensions

Length
4,253 mm (167.4 in)
Width
1,800 mm (70.9 in)
Height
1,441 mm (56.7 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,320 kg (2,910 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
50,000 km / 4 years
Fuel Filter
75,000 km / 6 years
Brake Fluid
2 years
Oil Change & Engine Filter
25,000 km / 2 years
Engine Coolant
4 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6
  • 8-speed
Gear Ratio
1st Gear
3.92 – 5.25 :1
2nd Gear
2.13 – 3.03 :1
3rd Gear
1.27 – 1.95 :1
4th Gear
0.92 – 1.45 :1
5th Gear
0.75 – 1.22 :1
6th Gear
0.62 – 1 :1
7th Gear
0.81 :1
8th Gear
0.67 :1
Final Drive
2.84 – 3.39 :1
Reverse
3.53 – 4.01 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Colour
Grey
Front Brakes
Diameter
294 - 307 mm (11.6 - 12.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
259 mm (10.2 in)
Cooling
Solid
Brake Caliper Colour
Red
Optional

Suspensions

Spring, Front
Coil
Anti-roll Bar
  • Front
  • Rear
Sports Suspension
Optional
Electronic Damper Control (EDC)
Optional
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
48 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
A
Emission Control
  • Catalyst
  • Particle Filter
Fuel Consumption NEDC
City
4.7 – 4.8 - 4.9 – 5.1 litres / 100 km
Highway
3.7 – 3.8 - 4 – 4.1 litres / 100 km
Combined
4.1 - 4.4 litres / 100 km
Emission NEDC
CO₂, Combined
109 - 115 g/km

Performance

Drag Coefficient
0.31

Dimensions & Weight

Exterior

Width, with Mirrors
2,022 mm (79.6 in)
Track, Front
1,564 mm (61.6 in)
Track, Rear
1,565 mm (61.6 in)
Overhang, Front
788 mm (31.0 in)
Overhang, Rear
795 mm (31.3 in)
Turning Circle
11.3 m
Ground Clearance
141 mm (5.6 in)

Interior

Head Room, Front
1,021 mm (40.2 in)
Head Room, Rear
965 mm (38.0 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
820 mm (32.3 in)
Shoulder Room, Front
1,389 mm (54.7 in)
Shoulder Room, Rear
1,341 mm (52.8 in)

Weight

Gross Weight
1910 – 1945 kg (4,211 – 4,288 lb)

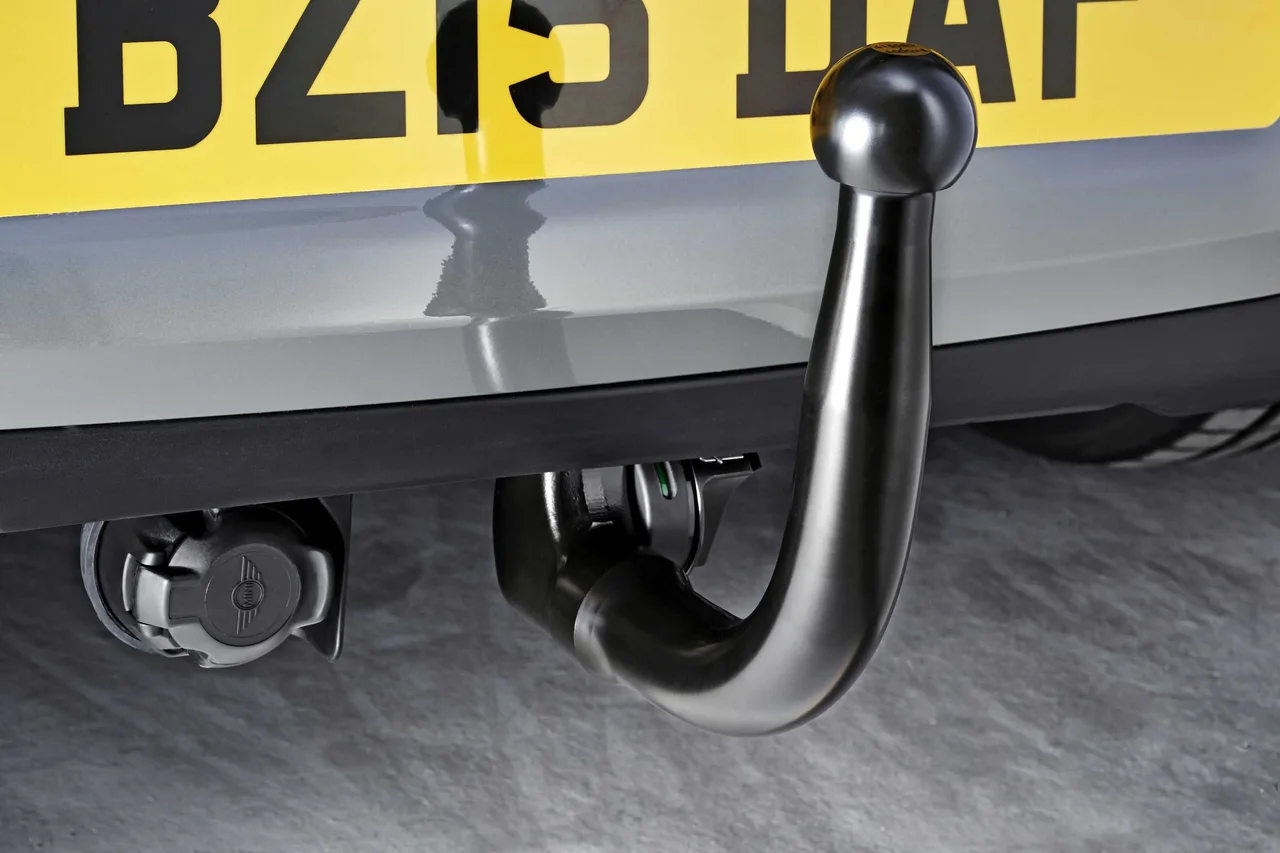

Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Max Trailer Load, unbraked
710 kg (1,565 lb)
Cargo Capacity
530 kg (1,168 lb)
Max Roof Load
75 kg (165 lb)
Permitted Axle Load, front
1010 – 1045 kg (2,227 – 2,304 lb)
Permitted Axle Load, rear
910 – 940 kg (2,006 – 2,072 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
BMW Platform
UKL Platform (UKL2)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Spoiler
Fixed
Antenna
Shark Fin
Number of Exhaust Pipes
1
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Rear
Halogen
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional

Colour

Door Handles
Chrome

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.5
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
  • Analogue
  • Digital
Tachometer
Analogue
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Number of Vents, Rear
0 pcs
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
App-Connect
Optional
Bluetooth
Phone
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Hard Drive
20 GB
Connectivity › Media Inputs
AUX
Front
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Amazon Alexa
Optional
Apple CarPlay
Optional
Displays
Center Display
4 - 8.8"
Center Display Controls
  • Buttons
  • Rotary Dial
Equalizer
Optional
Displays › Center Display Controls
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 12 pcs
Tweeters
0 - 5 pcs
Midrange Speakers
4 - 5 pcs
Bass Speakers
2 pcs
Speakers Max. Watt
100 - 410 W
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Bottom of the Doors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Center Display
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

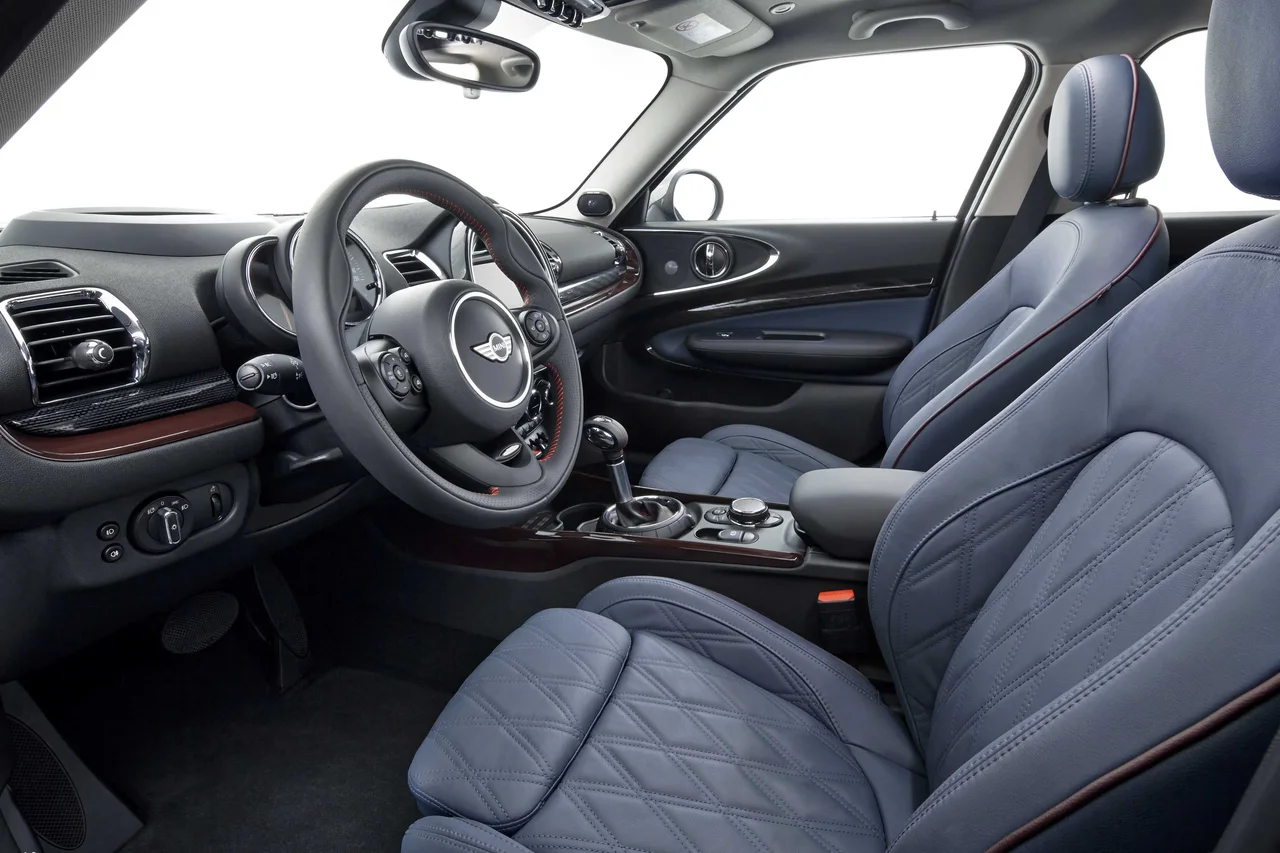

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electro-hydraulic
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Ratio
14.2 :1
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Cover
Foldable
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Optional
Light
Yes

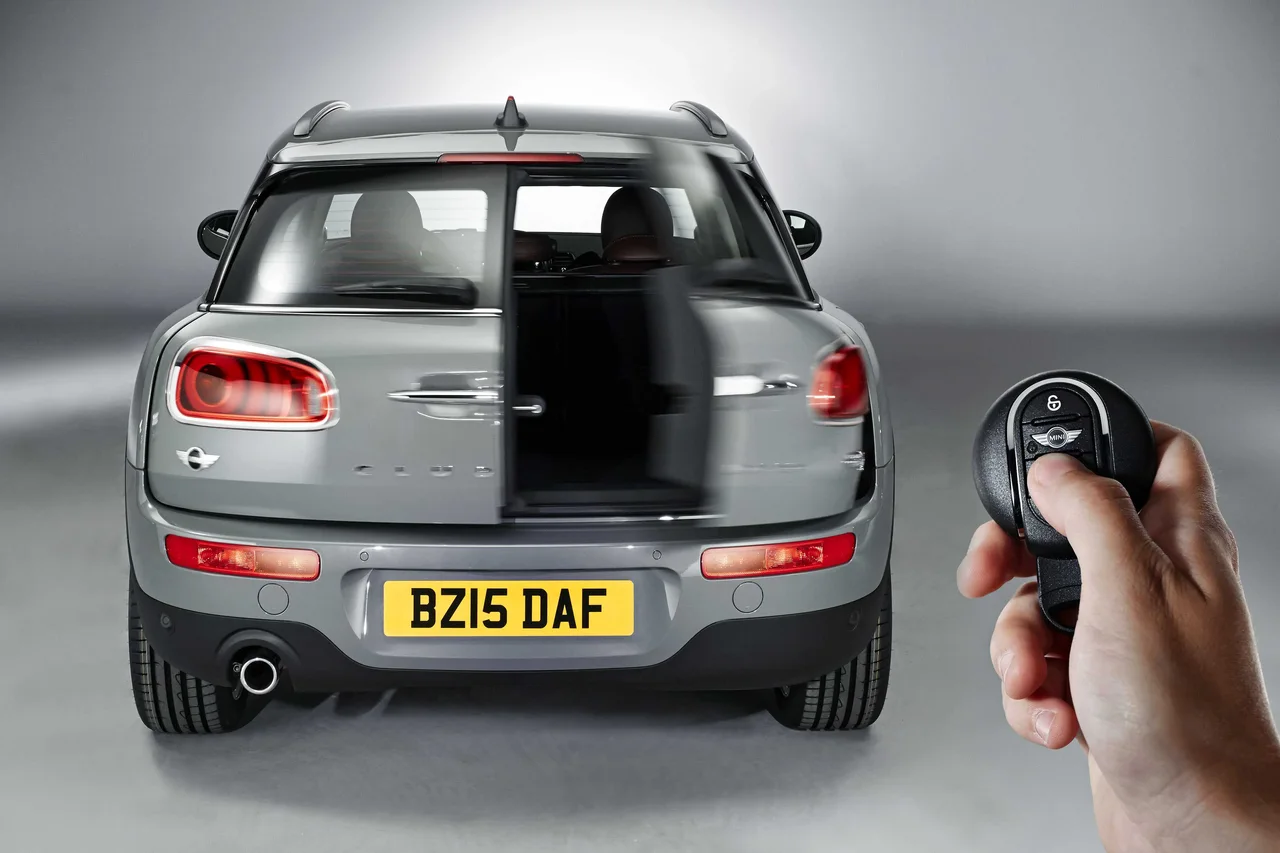

Hatch Opening Type
Two-parted Doors
Rear Trunk
Volume
360 litres
Volume, Back Seat Collapsed
1,250 litres
Automatic Open
Motion Activated
Optional
Carpet
Rubber
Optional

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Pedals
Standard
Pedals
Stainless Steel
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Optional
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Cushion Tilt
Optional
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats

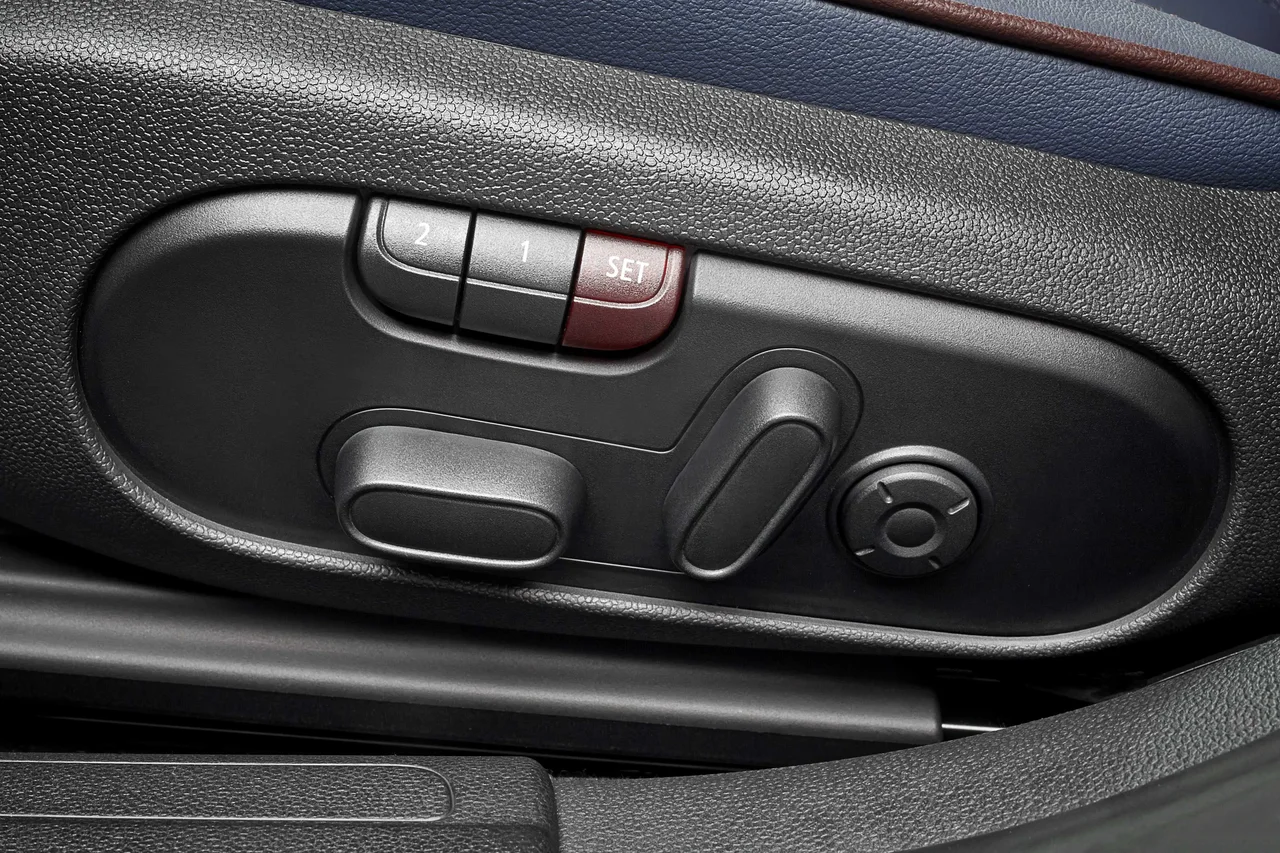

Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional

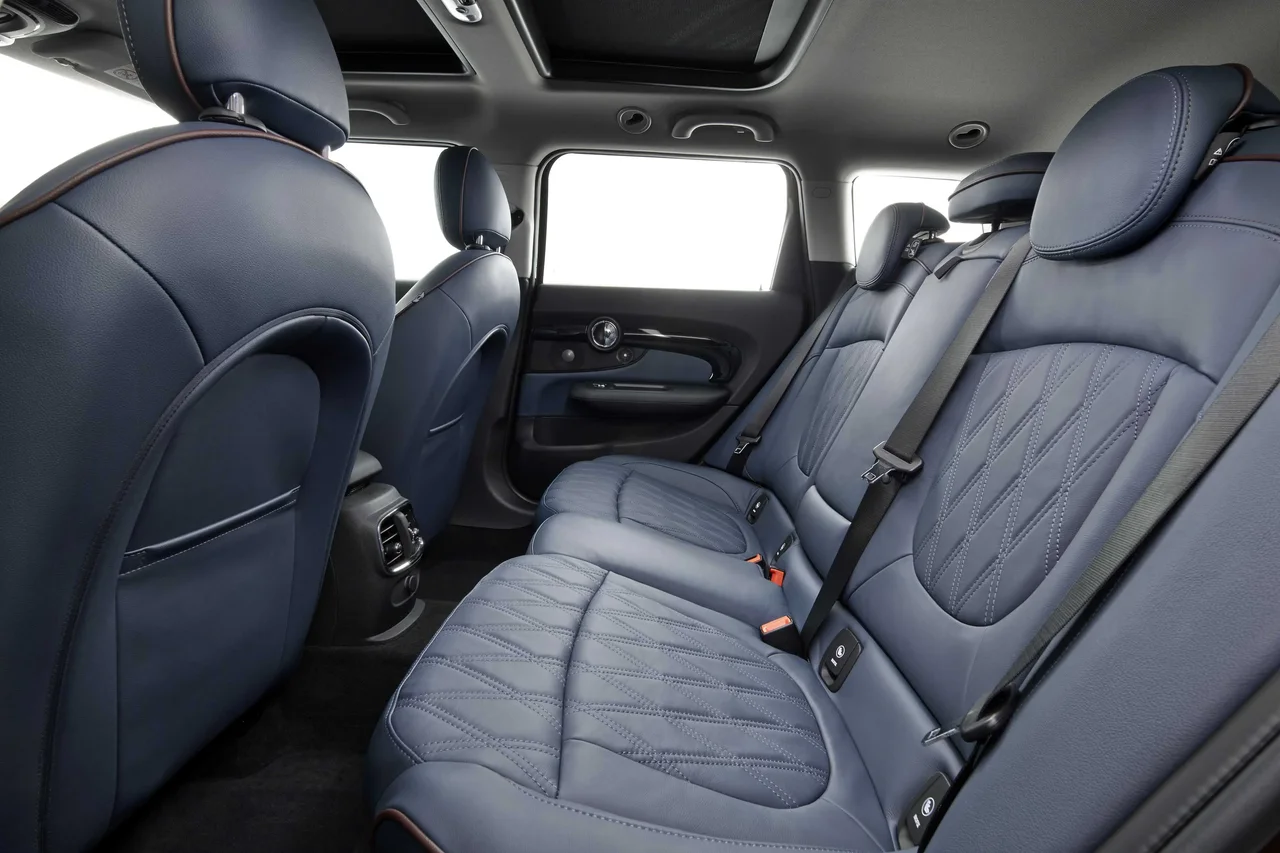

Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Optional
Speed Limiter
Optional
Cameras
Optional
Voice Control
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Optional
Horn
Dual Note
Driving Mode Selection
Eco
Optional
Normal
Optional
Sport
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Traffic Light Recognition
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
City
Yes

Sensors

Parking Sensors
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Manual
Emergency Call
Yes
Reversing Alarm
Optional
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
90 %
Child Occupant
68 %
Vulnerable Road Users
68 %
Safety Assist
67 %
Overall
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Datyime Running Light
PG20 (PSX24W)
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Rear
  • BA15s (P21W)
  • PG20 (PG20-3 - PS24W)
Glove Compartment
W2.1×9.5d (W5W)

ACRISS

Category
Compact (C)
Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
