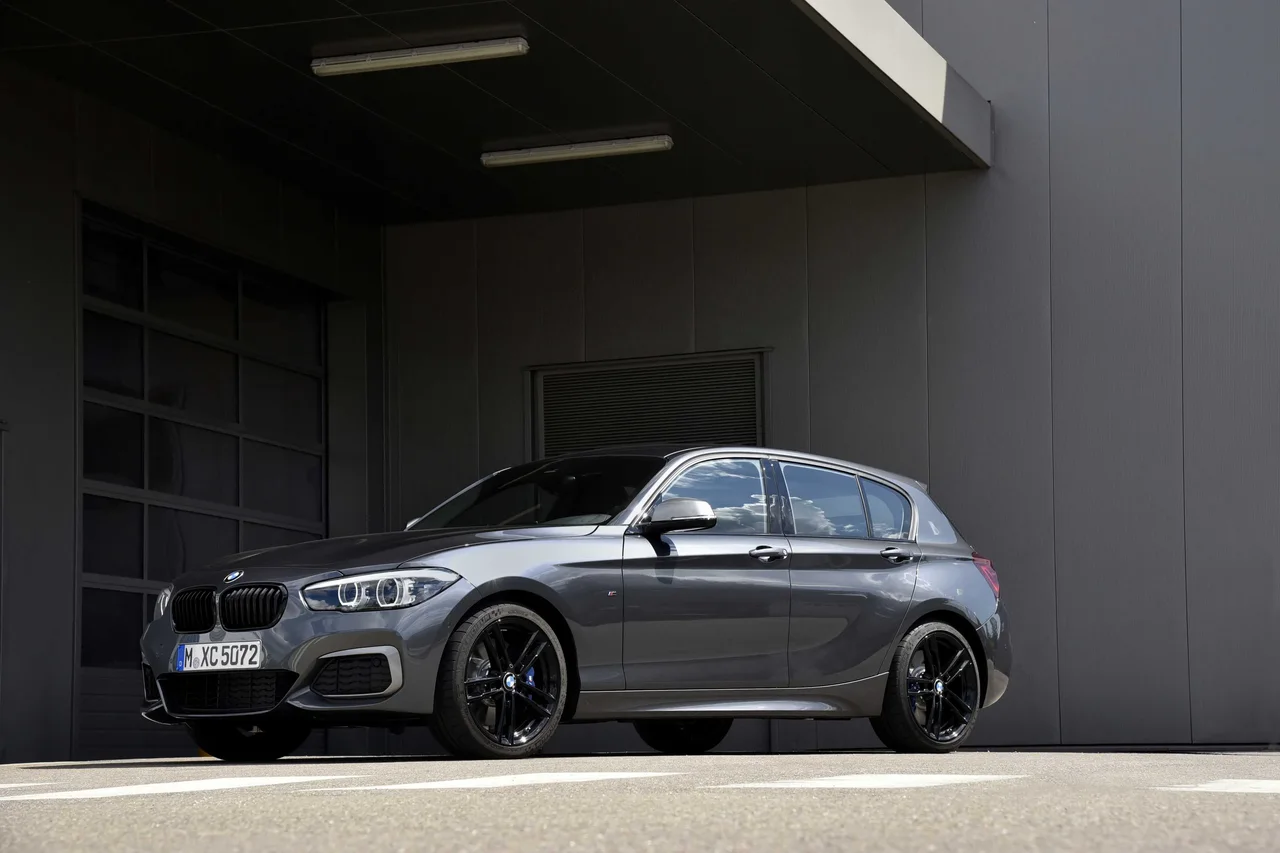

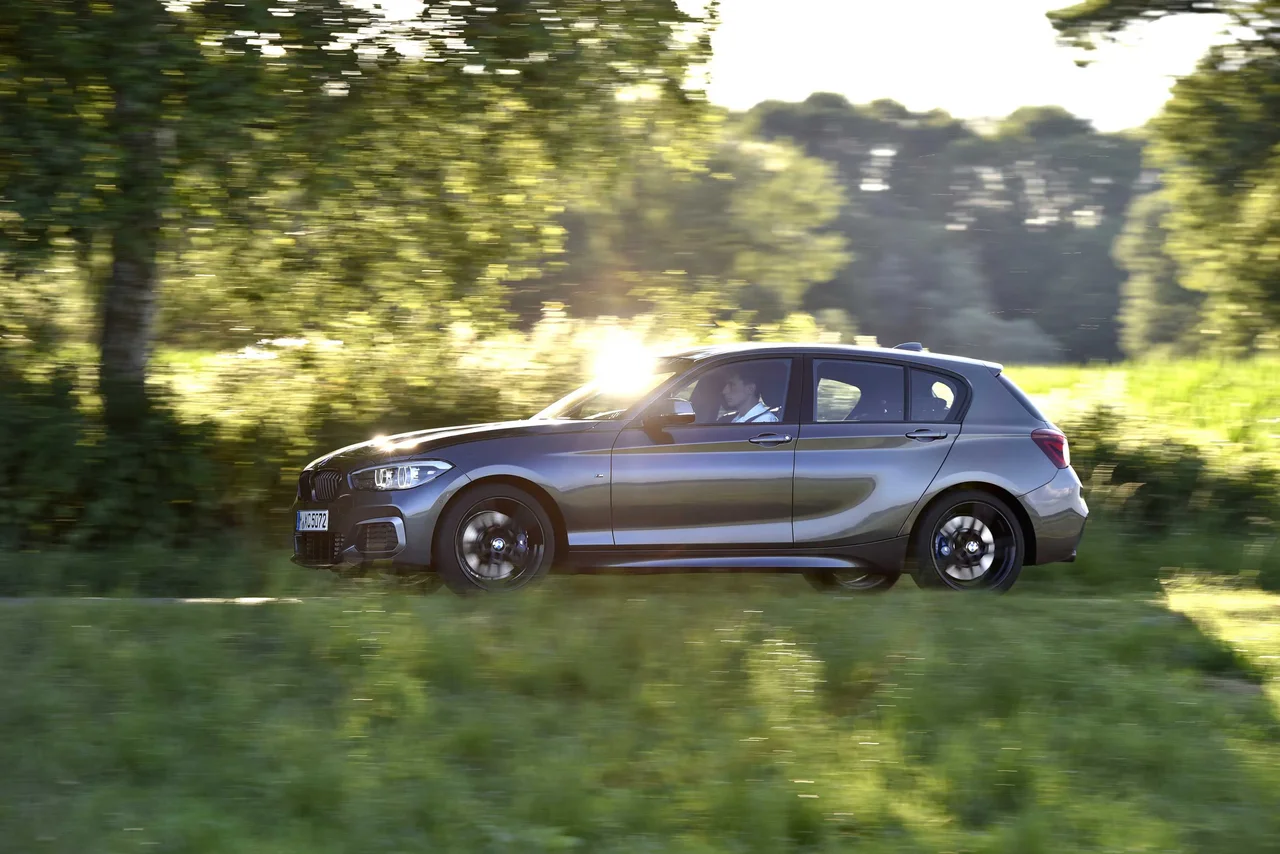

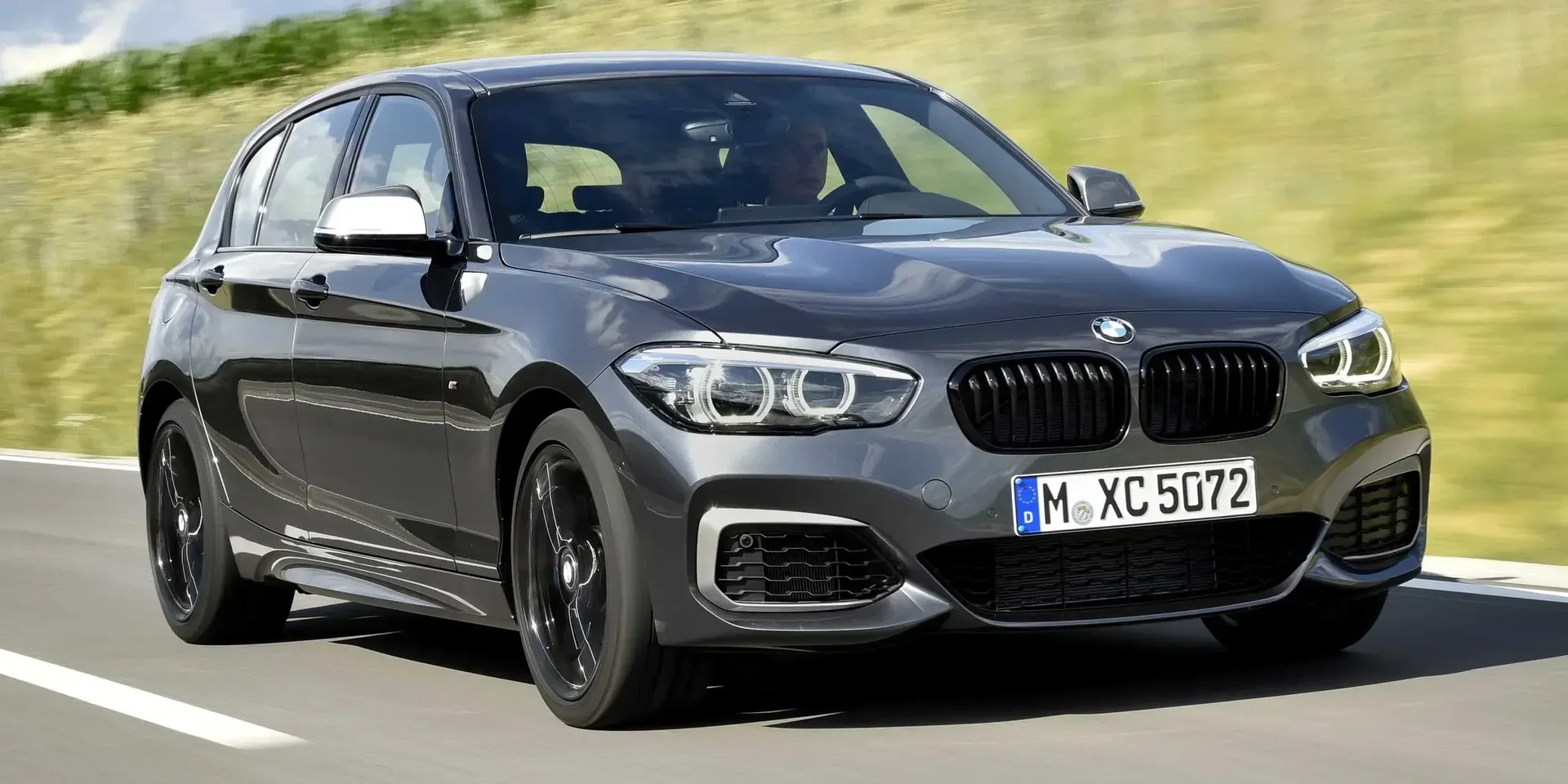

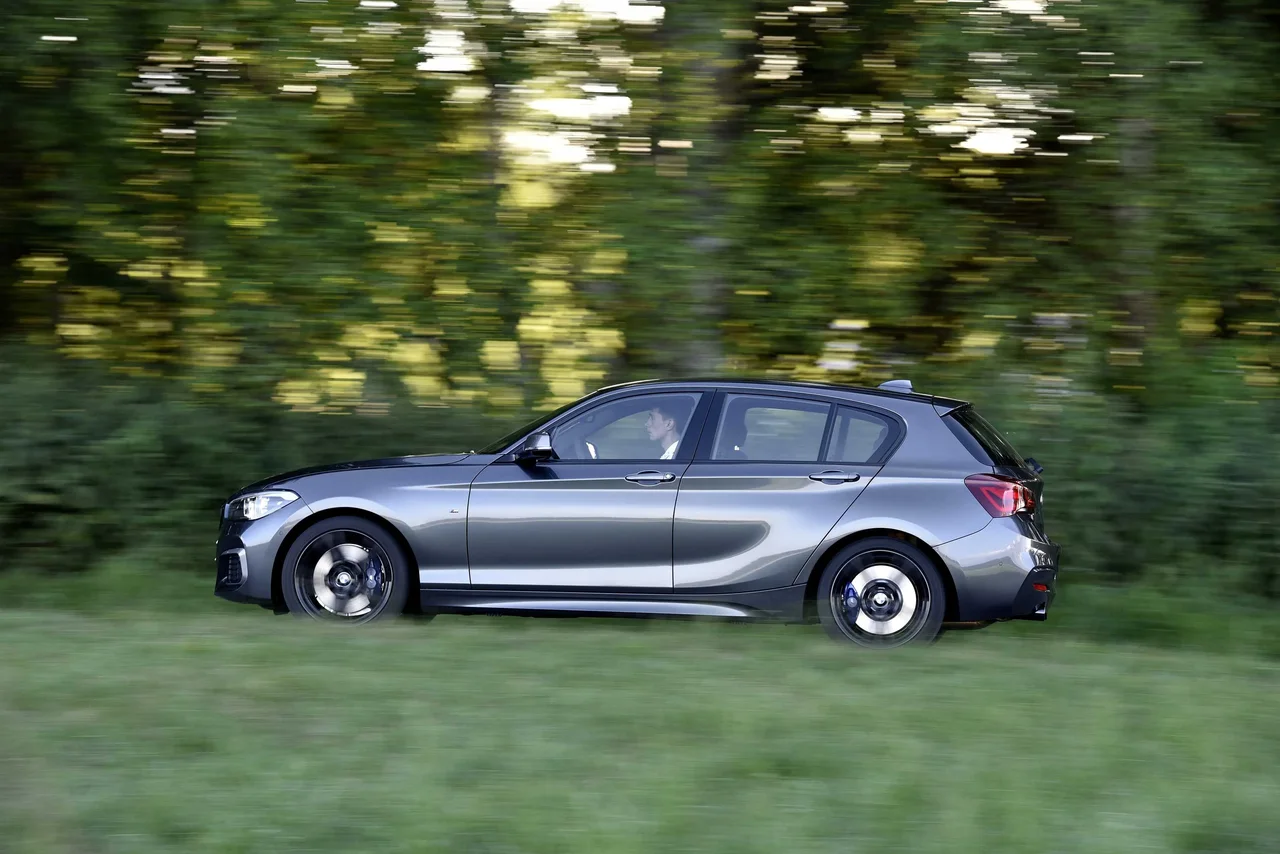

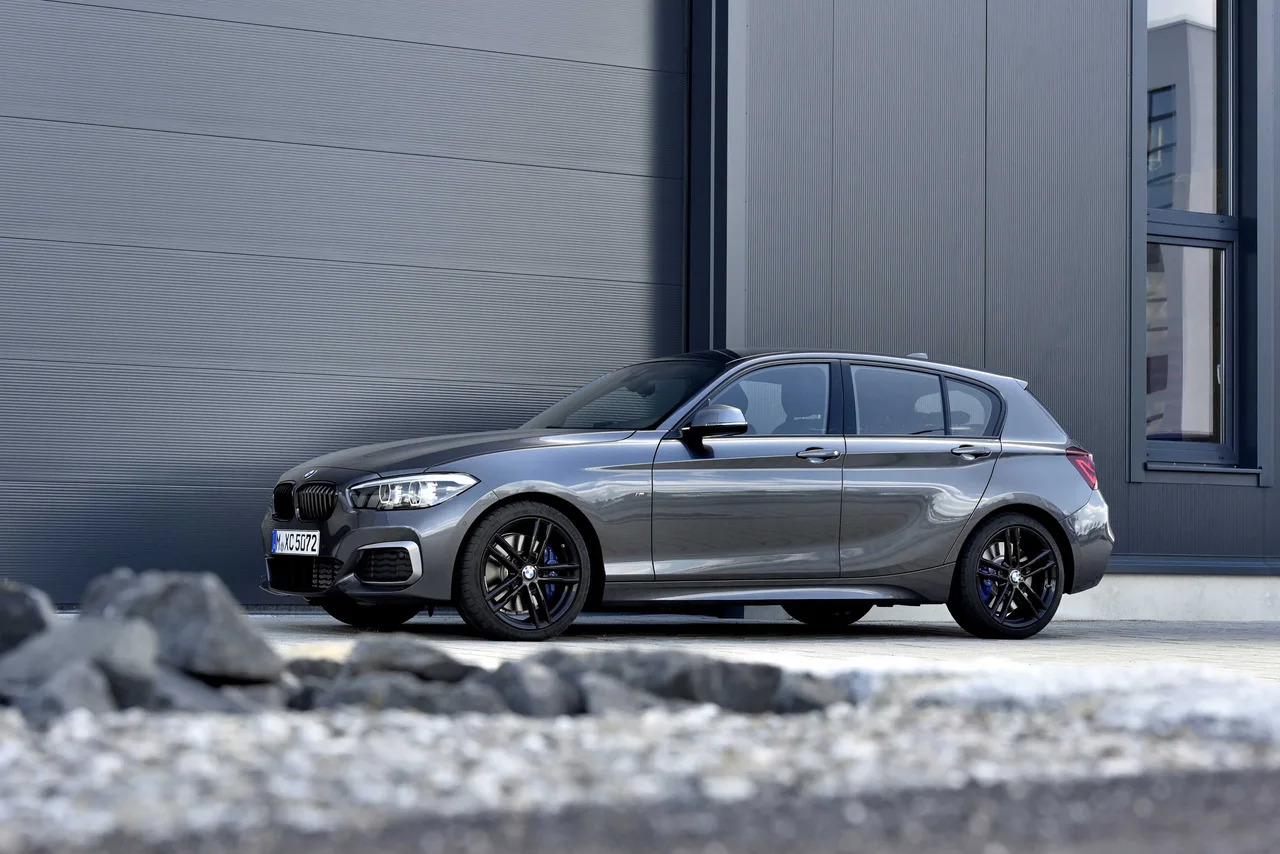

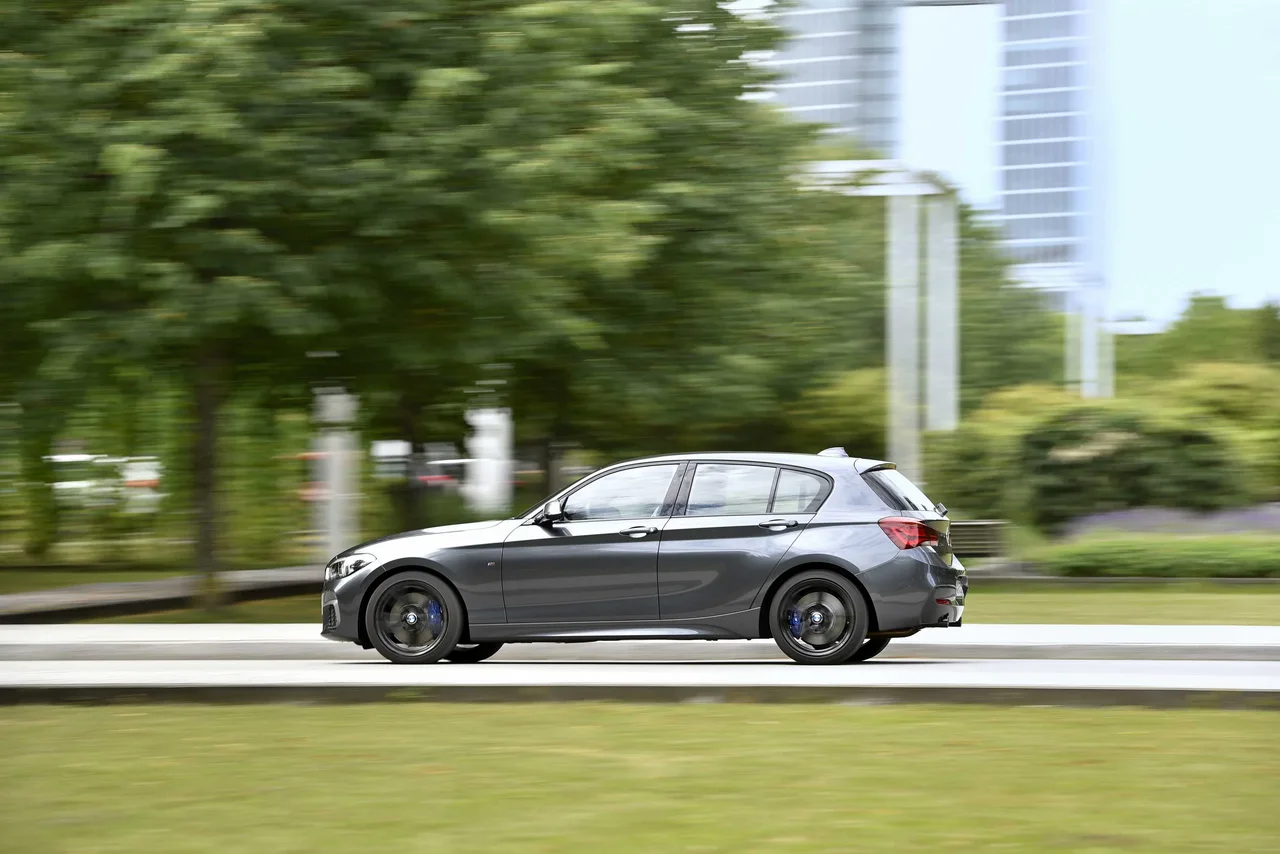

2019 BMW 1 Series M140i xDrive

GermanyGasolineAWDHatchback

Photos

Specifications

Vehicle Details

Year
2019
Make
BMW
Model
1 Series
Variant
M140i xDrive
Body Style
Hatchback
Generation
F20 2nd LCI
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
M140i xDrive 5-door Steptronic
Engine Configuration
Inline
Power (hp)
340 hp
Power (kW)
250 kW
Torque
500 Nm (369 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.2 seconds (estimated)
0–100 km/h
4.4 seconds
Displacement
2,998 cc

Dimensions

Length
4,324 mm (170.2 in)
Width
1,765 mm (69.5 in)
Height
1,411 mm (55.6 in)
Wheelbase
2,690 mm (105.9 in)
Curb weight
1,615 kg (3,560 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,520 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
Engine Oil, Volume
6.5 litres
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
11 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Fuel Filter
60,000 km / 4 years
Spark Plug
20,000 km / 1 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Gear Ratio
1st Gear
5 :1
2nd Gear
3.2 :1
3rd Gear
2.14 :1
4th Gear
1.72 :1
5th Gear
1.31 :1
6th Gear
1 :1
7th Gear
0.82 :1
8th Gear
0.64 :1
Final Drive
2.81 :1
Reverse
3.46 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (4)
  • Rear (2)
Front Brakes
Diameter
340 mm (13.4 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
345 mm (13.6 in)
Width
24 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Sports Suspension
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
52 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
D
Emission › Emission Control
Selective Catalyst Reduction (SCR)
Yes
Emission › Emission Control › Selective Catalyst Reduction (SCR)
Tank Volume (DEF)
9.5 litres
WLTP Consumption
Combined (l/100km)
9.4 litres / 100 km
Fuel Consumption NEDC
City
9.9 - 10.1 litres / 100 km
Highway
6.7 - 6.8 litres / 100 km
Combined
7.9 - 8 litres / 100 km
Emission WLTP
CO₂, Combined
212 g/km
Emission NEDC
CO₂, Combined
180 - 183 g/km

Dimensions & Weight

Exterior

Track, Front
1,516 mm (59.7 in)
Track, Rear
1,534 mm (60.4 in)
Overhang, Front
765 mm (30.1 in)
Overhang, Rear
869 mm (34.2 in)
Turning Circle
10.9 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room, Front
1,018 mm (40.1 in)
Head Room, Rear
972 mm (38.3 in)
Shoulder Room, Front
1,400 mm (55.1 in)
Shoulder Room, Rear
1,417 mm (55.8 in)

Weight

Gross Weight
2,090 kg (4,608 lb)
Cargo Capacity
550 kg (1,213 lb)
Max Roof Load
75 kg (165 lb)
Permitted Axle Load, front
1,040 kg (2,293 lb)
Permitted Axle Load, rear
1,120 kg (2,469 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Daytime Running Light
Main Beam Assist
Optional
Adaptive Headlights
Optional
Headlight Range Adjustment
Optional

Colour

Finish
Metallic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
6.5"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
App-Connect
Optional
Bluetooth
Yes
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
6.5 - 8.8"
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 12 pcs
Speakers Max. Watt
205 - 360 W
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Material
  • Rubber
  • Textile
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Light
Optional
Rear Trunk
Volume
360 litres
Volume, Back Seat Collapsed
1,200 litres

Seats

Colour & Material
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Yes
Type of Seat
Sport Seats
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Second Seat Row › Headrests
Outer Seats
  • Height Adjustment
  • Tilt Adjustment
  • Foldable

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Eco
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Sign Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Emergency Call
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
91 %
Child Occupant
83 %
Vulnerable Road Users
63 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2011
Overall Score
36.33
ANCAP Safety Rating
5
Adult Occupant
Total Points
32.9 /38
Frontal Impact
15.4 /16
Lateral Impact
14.4 /16
Rear Impact
3 /4
Frontal Offset
15.45
Side Impact
15.88
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
40.8 /49
Safety Features
5 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
22.6 /49
Pedestrian
  • 16.6
  • 0
  • 6
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
0 /4
Seat Belt Reminders
3
Pedestrian
Protection (Assessment)
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

ACRISS

Category
Compact Elite (D)
Type
4-5 Doors (D)

Similar hatchbacks

Suggested vehicles
