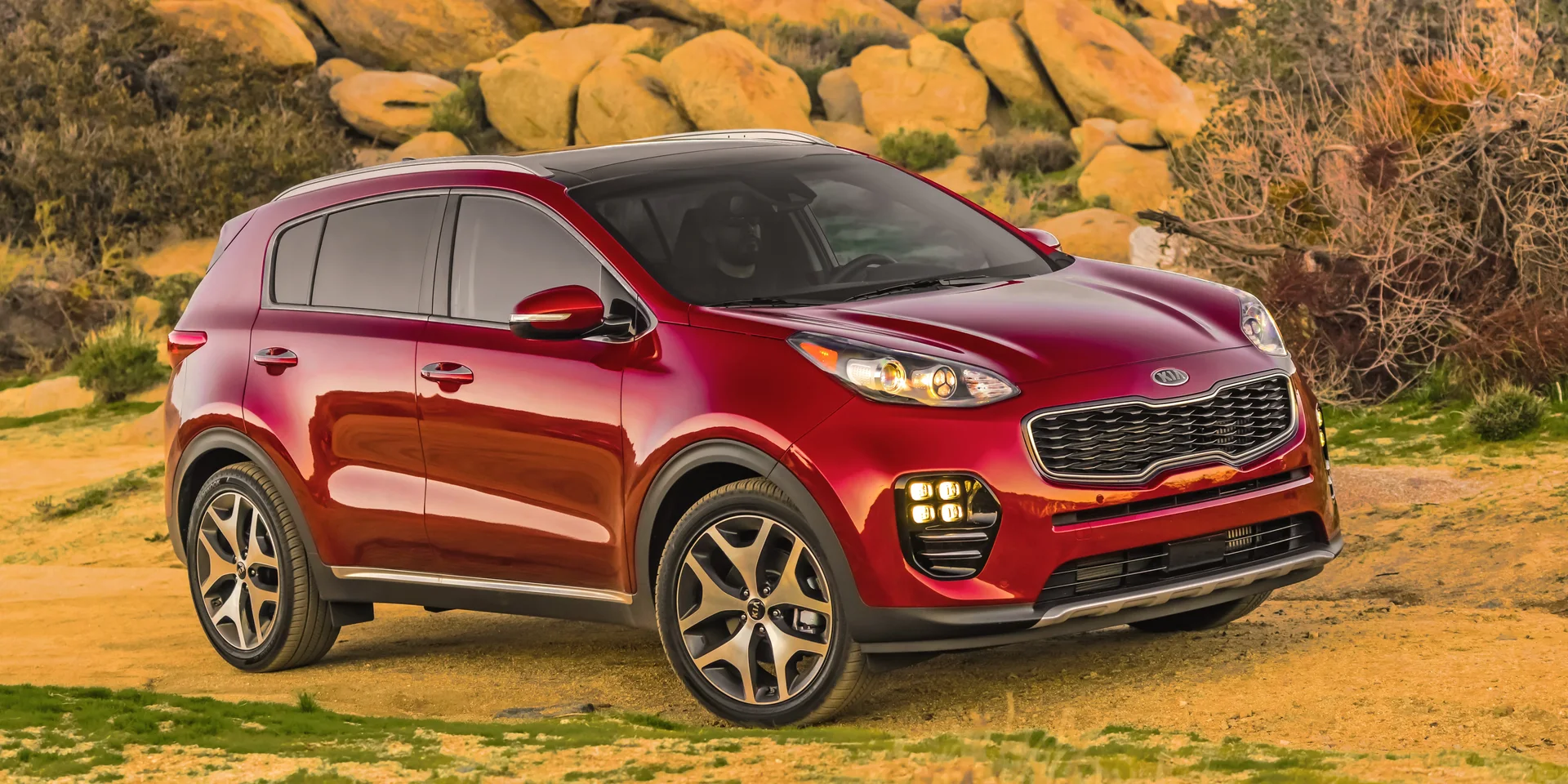

2019 Kia Sportage

South KoreaGasolineFWDCrossover

Photos

Specifications

Vehicle Details

Year
2019
Make
Kia
Model
Sportage
Body Style
Crossover
Generation
QL
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
1.6 GDI
Engine Configuration
Inline
Power (hp)
132 hp
Power (kW)
97 kW
Torque
161 Nm (119 lb-ft)
Top speed
182 km/h (113 mph)
0–60 mph
11.0 seconds (estimated)
0–100 km/h
11.5 seconds
Displacement
1,591 cc

Dimensions

Length
4,480 mm (176.4 in)
Width
1,850 mm (72.8 in)
Height
1,640 mm (64.6 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,397 kg (3,080 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,300 rpm
Rev. at Max Torque
4,850 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Configuration
Bore
77 mm (3.0 in)
Stroke
85.4 mm (3.4 in)
Compression Ratio
11 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Spark Plug
150,000 km / 10 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
210,000 km / 10 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
MacPherson Strut

Fuel

General
Tank Volume
62 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6
Emission Class
C
Emission Control
Catalyst
Fuel Consumption NEDC
City
7.5 – 7.9 litres / 100 km
Highway
5.4 – 5.8 litres / 100 km
Combined
6.3 – 6.4 litres / 100 km
Emission NEDC
CO₂, Combined
147 – 156 g/km

Dimensions & Weight

Exterior

Track, Front
1,620 mm (63.8 in)
Track, Rear
1,620 mm (63.8 in)
Turning Circle
11 m
Ground Clearance
170 mm (6.7 in)

Interior

Head Room, Front
954 - 997 mm (37.6 - 39.3 in)
Head Room, Rear
962 - 993 mm (37.9 - 39.1 in)
Leg Room, Front
1,129 mm (44.4 in)
Leg Room, Rear
970 mm (38.2 in)
Hip Room, Front
1,379 mm (54.3 in)
Hip Room, Rear
1,300 mm (51.2 in)
Shoulder Room, Front
1,450 mm (57.1 in)
Shoulder Room, Rear
1,400 mm (55.1 in)

Weight

Gross Weight
1,895 kg (4,178 lb)
Max Trailer Load, braked 12%
1,400 kg (3,086 lb)
Max Trailer Load, unbraked
650 kg (1,433 lb)
Cargo Capacity
325 – 498 - 325 kg (1,098 - 717 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Hyundai-Kia Platforms
J Platform (J6)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Optional
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Optional
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
107 - 127 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel

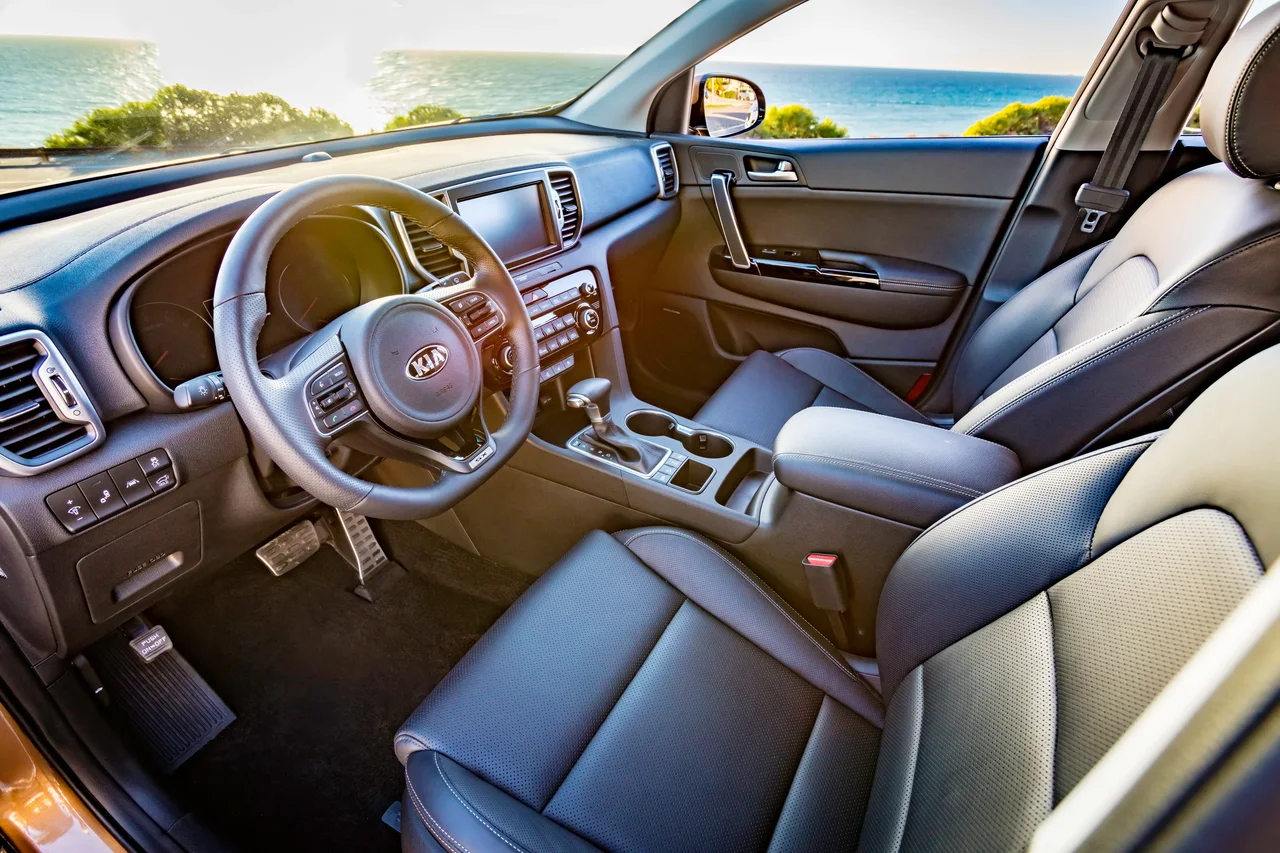

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
  • Analogue
  • Digital
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
3.5 - 4.2"
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Media Inputs
USB
App-Connect
  • Yes
  • Optional
Bluetooth
Phone
Connectivity › Media Format
CD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
8"
Center Display Controls
Touchscreen
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
  • Front
  • Back
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
Front
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
Carpets
Yes
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
Activate/Deactivate
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof

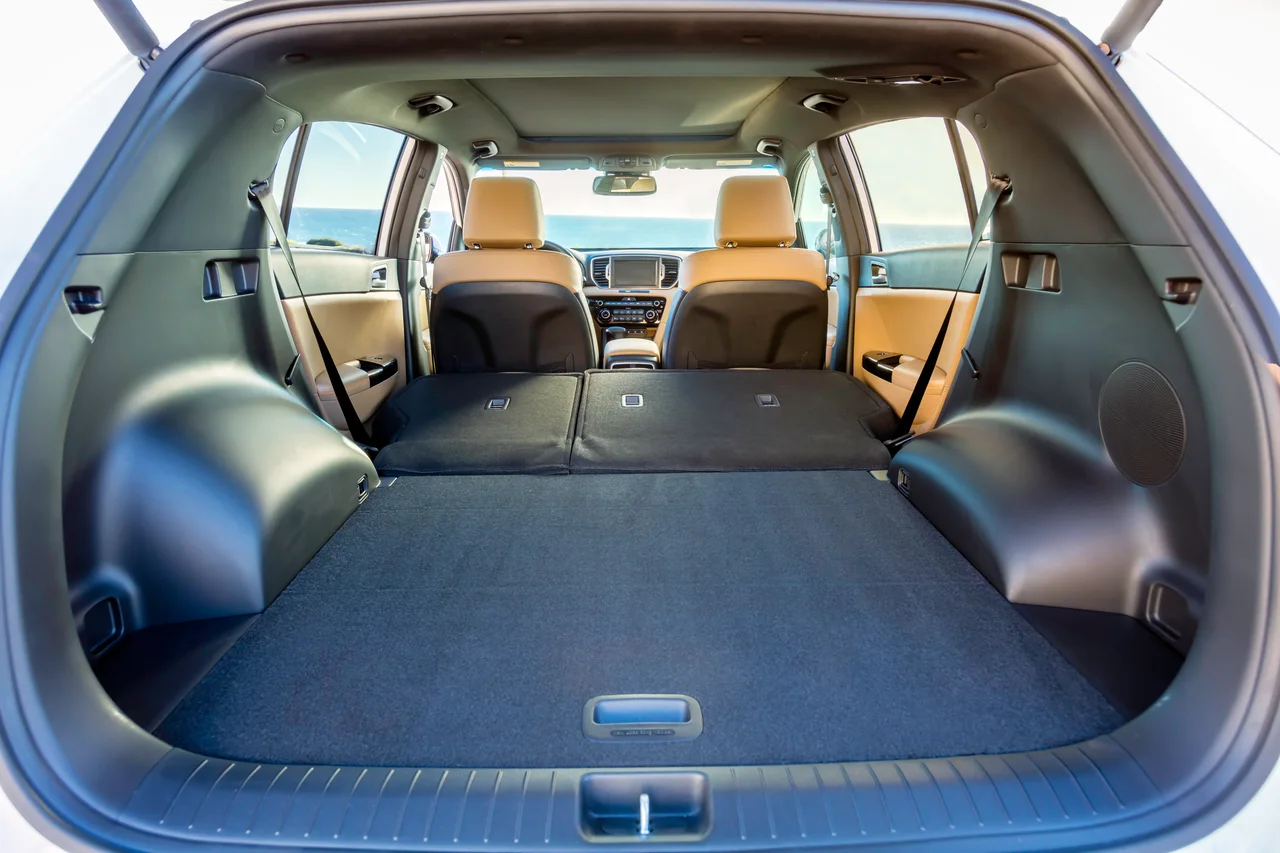

Rear Trunk
Volume
565 litres
Volume, Back Seat Collapsed
1,350 litres

Design

Transmission Knob Material
Leather

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Parking Heater
Cabin Heater
Optional

Other Features

GPS
Optional
Horn
Dual Note

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
90 %
Child Occupant
83 %
Vulnerable Road Users
66 %
Safety Assist
71 %
Overall
5/5 stars
ANCAP Safety Rating
5
Adult Occupant
Protection
34.62 %
Frontal Offset
13.62
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
17.4 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2016
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km / 5 years
Rust Damage
150,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km / 7 years

Identification

VIN Location
Left Side Casing of Window
Yes
Right Side Casing of Window
Yes
Passenger Seat
in Front of
On-board Diagnostic, Port Type
OBD-II

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • HB3
Main Beam
HB3
Bi-Xenon
D3S
Datyime Running Light
BAY15d (P21/5W)
Fog Light, Front
HB4
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Category
Intermediate (I)
Type
Crossover (G)

Similar crossovers

Suggested vehicles
