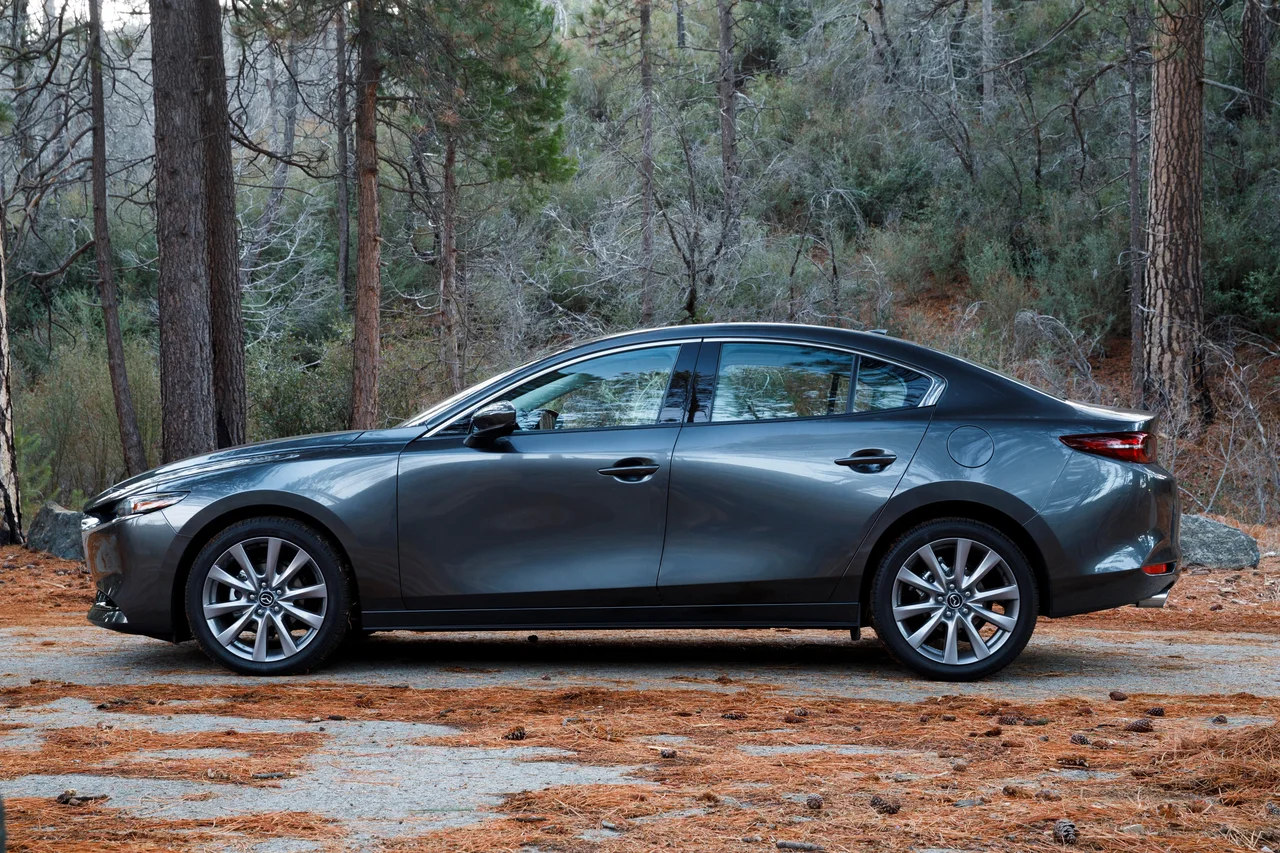

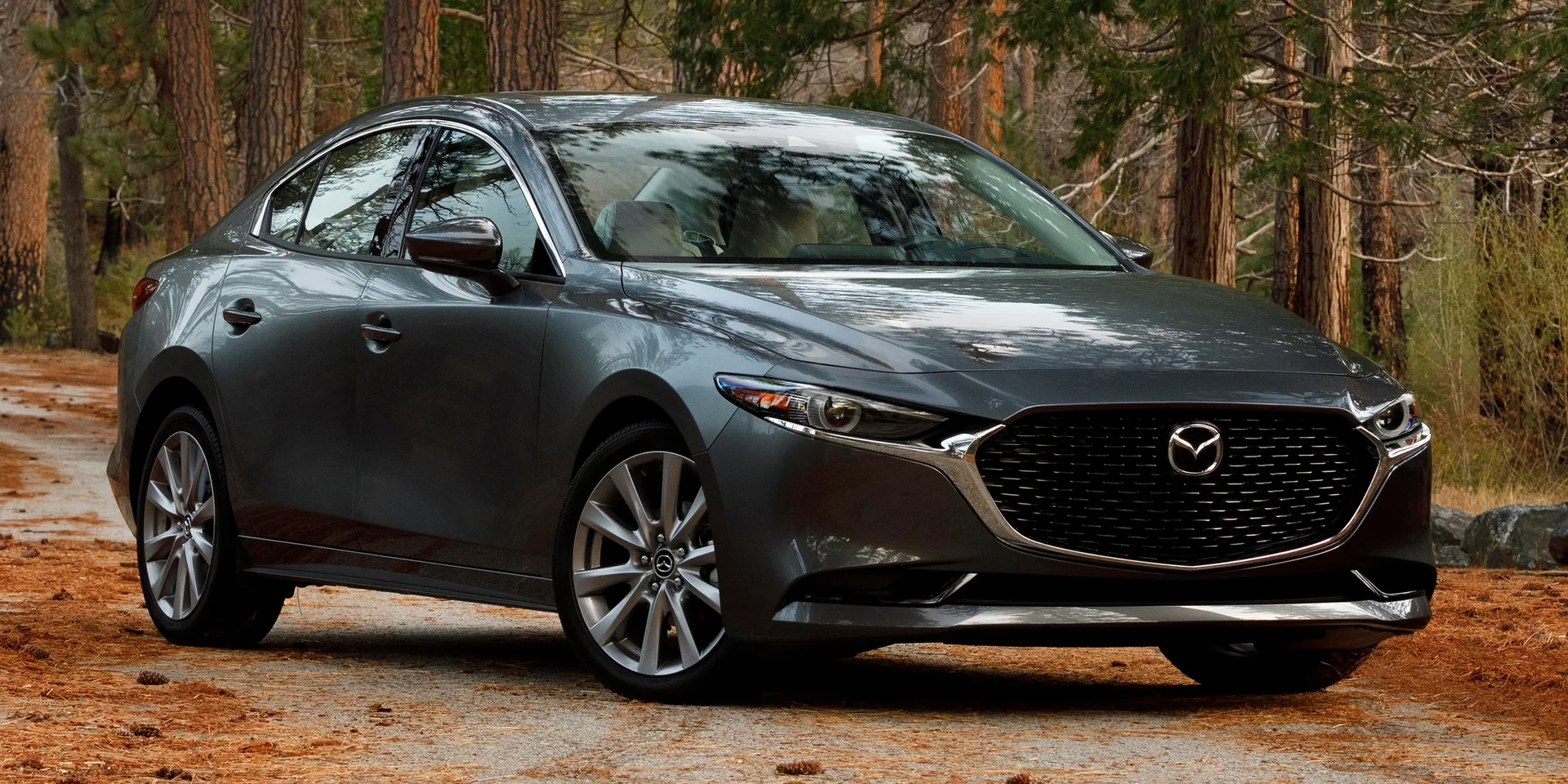

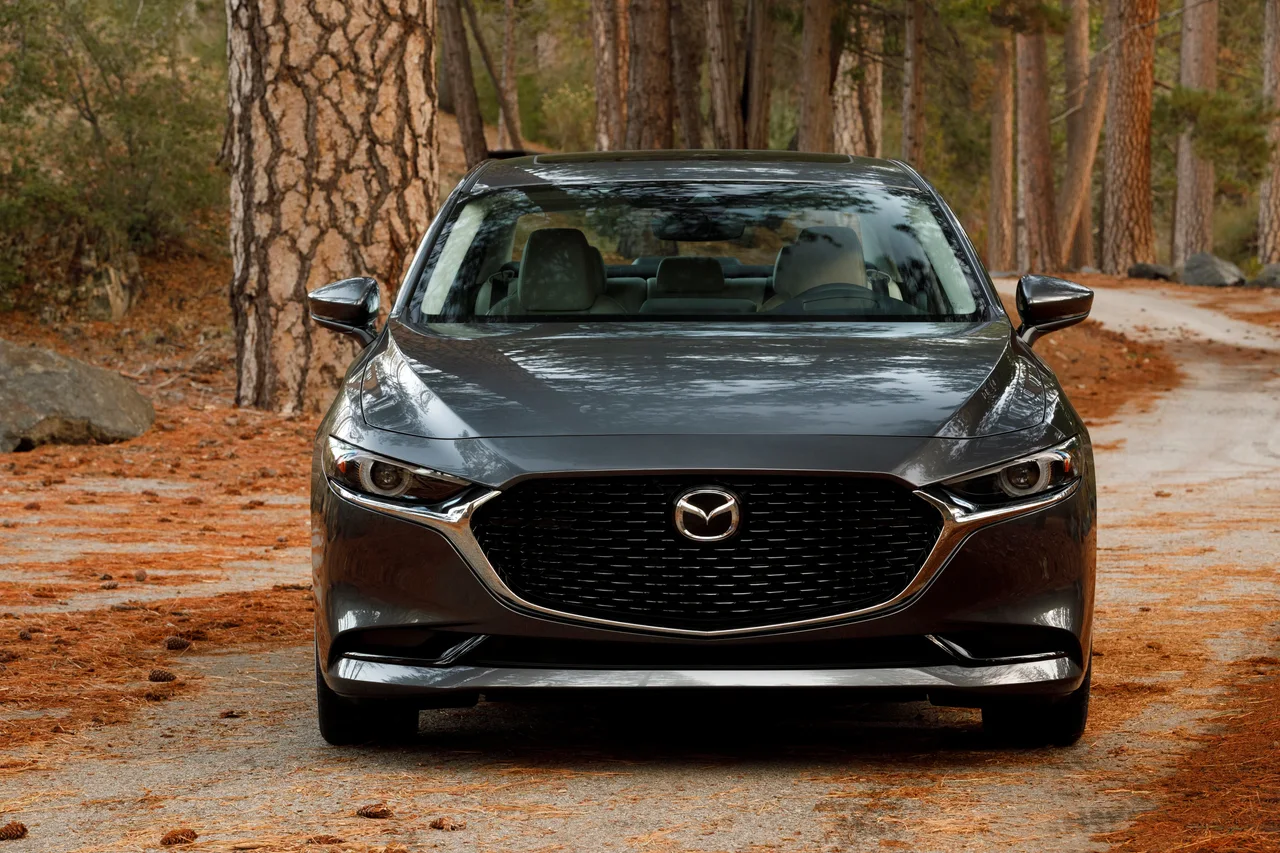

2019 Mazda 3

JapanDieselFWDSedan

Photos

Specifications

Vehicle Details

Year
2019
Make
Mazda
Model
3
Body Style
Sedan
Generation
BP
Seats
5
Doors
4
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
1.8 SKYACTIV-D
Engine Configuration
Inline
Power (hp)
116 hp
Power (kW)
85 kW
Torque
270 Nm (199 lb-ft)
Top speed
199 km/h (124 mph)
0–60 mph
9.8 seconds (estimated)
0–100 km/h
10.3 seconds
Displacement
1,759 cc

Dimensions

Length
4,660 mm (183.5 in)
Width
1,795 mm (70.7 in)
Height
1,440 mm (56.7 in)
Wheelbase
2,725 mm (107.3 in)
Curb weight
1,299 kg (2,864 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,600 - 2,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
Car Battery
Voltage
12 V
Battery Capacity
60 Ah
Cold Start Power
500 A
Alternator Charge Current
150 A
Alternator Voltage
14 V
Engine Configuration
Bore
79 mm (3.1 in)
Stroke
89.7 mm (3.5 in)
Compression Ratio
14.8 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Fuel Filter
40,000 km / 2 years
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Engine Coolant
100,000 km / 5 years
Transmission, Fluid
180,000 km (111,847 mi)
Interior Filter
40,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed
Gear Ratio
1st Gear
3.55 – 3.7 :1
2nd Gear
1.95 – 2.02 :1
3rd Gear
1.3 – 1.35 :1
4th Gear
0.92 – 1 :1
5th Gear
0.72 – 0.75 :1
6th Gear
0.58 – 0.6 :1
Final Drive
3.85 – 4.1 :1
Reverse
3.05 – 3.72 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front
Front Brakes
Diameter
295 mm (11.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
265 mm (10.4 in)
Cooling
Solid

Performance

Drag Coefficient
0.26

Fuel

General
Tank Volume
51 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
  • A
  • B
Emission Control
Particle Filter (Diesel particulate filter (DPF))
WLTP Consumption
Low (l/100km) (WLTP)
4.9 – 6.3 - 5 – 6.5 litres / 100 km
Medium (l/100km)
4.8 – 5.7 - 4.8 – 5.8 litres / 100 km
High (l/100km)
4.1 – 4.4 - 4.2 – 4.6 litres / 100 km
Extra High (l/100km)
5.7 – 6 - 5.7 – 6.3 litres / 100 km
Combined (l/100km)
4.8 – 5.5 - 5 – 5.7 litres / 100 km
Fuel Consumption NEDC
City
4.6 – 5.1 - 4.7 – 5.3 litres / 100 km
Highway
3.8 – 4.2 - 3.9 – 4.4 litres / 100 km
Combined
4.1 – 4.6 - 4.2 – 4.8 litres / 100 km
Emission WLTP
CO₂, Combined
130 – 146 - 132 – 149 g/km
Emission NEDC
CO₂, Combined
106 – 120 - 108 – 126 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,028 mm (79.8 in)
Track, Front
1,570 mm (61.8 in)
Track, Rear
1,580 mm (62.2 in)
Overhang, Front
915 mm (36.0 in)
Overhang, Rear
1,020 mm (40.2 in)
Turning Circle
10.6 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
965 mm (38.0 in)
Head Room, Rear
947 mm (37.3 in)
Leg Room, Front
1,075 mm (42.3 in)
Leg Room, Rear
891 mm (35.1 in)
Hip Room, Front
1,387 mm (54.6 in)
Hip Room, Rear
1,292 mm (50.9 in)
Shoulder Room, Front
1,414 mm (55.7 in)
Shoulder Room, Rear
1,359 mm (53.5 in)

Weight

Gross Weight
1894 – 1914 kg (4,176 – 4,220 lb)
Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Max Trailer Load, braked 8%
1,300 kg (2,866 lb)
Max Trailer Load, unbraked
600 kg (1,323 lb)
Cargo Capacity
594 – 595 kg (1,310 – 1,312 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Ford Motor Company
C1 Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Glass-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Adaptive Headlights
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Dynamic Turn Signal
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
108 - 147 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
Connectivity › Media Inputs
AUX
Yes
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Carpet
Optional
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
450 litres
Volume, Back Seat Collapsed
1,138 litres
Depth
1,105 mm (43.5 in)
Width
1,388 mm (54.6 in)
Width, Between Wheel Arches
1,012 mm (39.8 in)
Opening Width
949 mm (37.4 in)
Height, to Trunk Cover
431 mm (17.0 in)
Carpet
Rubber
Optional

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Normal
  • Sport
  • Auto
Dynamic Chassis Control (DCC)
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Airbags

Total Number of Airbags
13
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Sign Assist
Optional
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
98 %
Child Occupant
87 %
Vulnerable Road Users
81 %
Safety Assist
73 %
Overall
5/5 stars
IIHS
Test Year
2020
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Good

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
1 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car
UNECE Category
M1

ACRISS

Type
4-5 Doors (D)

Awards

Women´s World Car of the Year
2019

Similar sedans

Suggested vehicles
