2019 Mazda MX-5 RF

JapanGasolineRWDConvertible

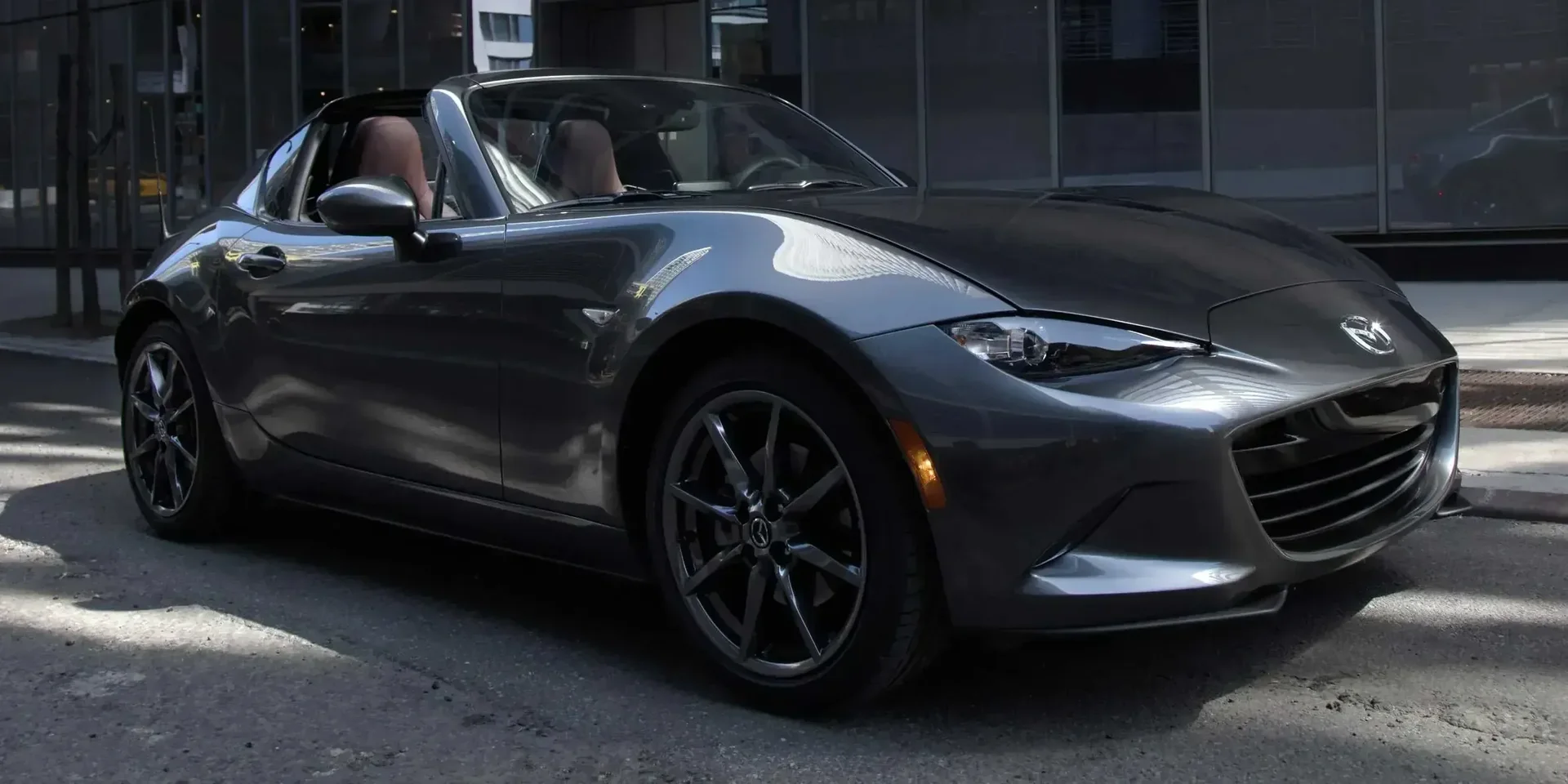

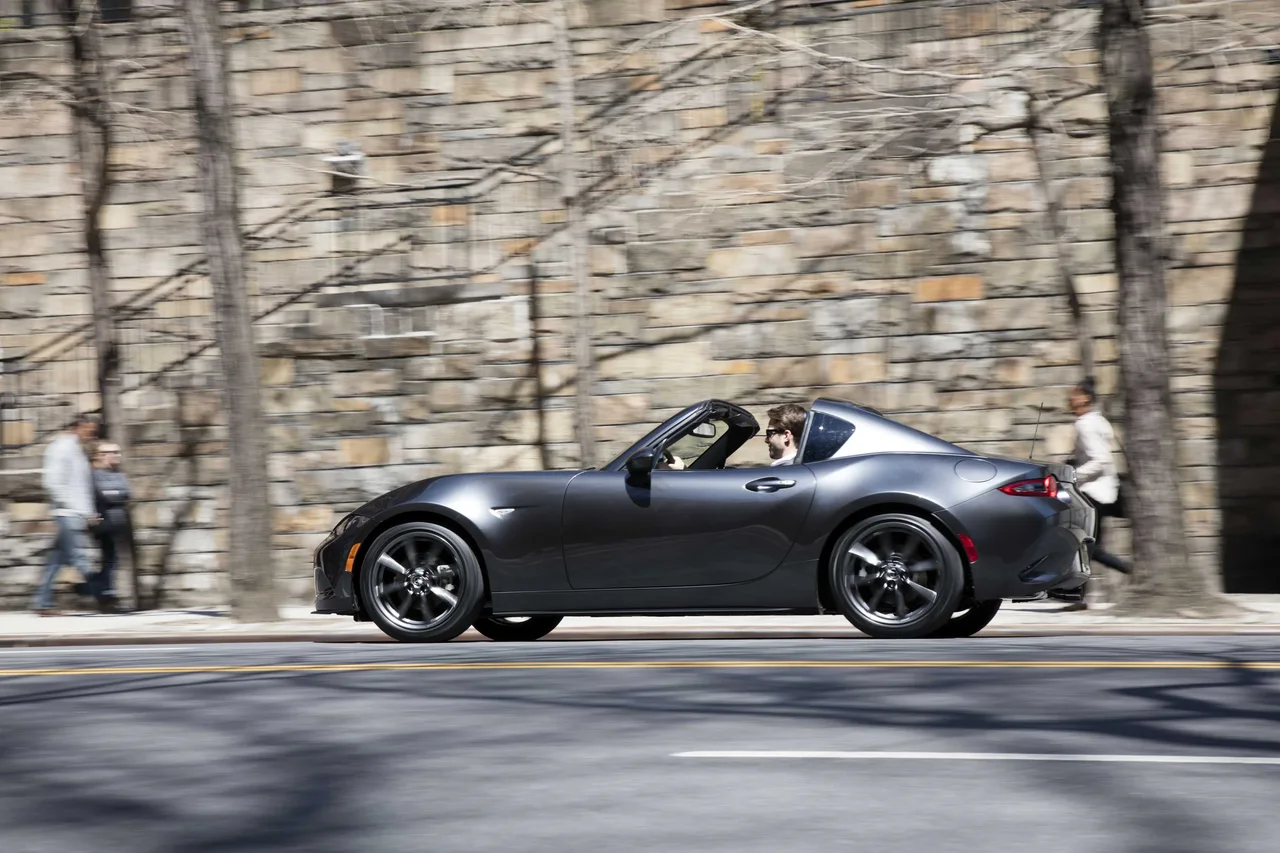

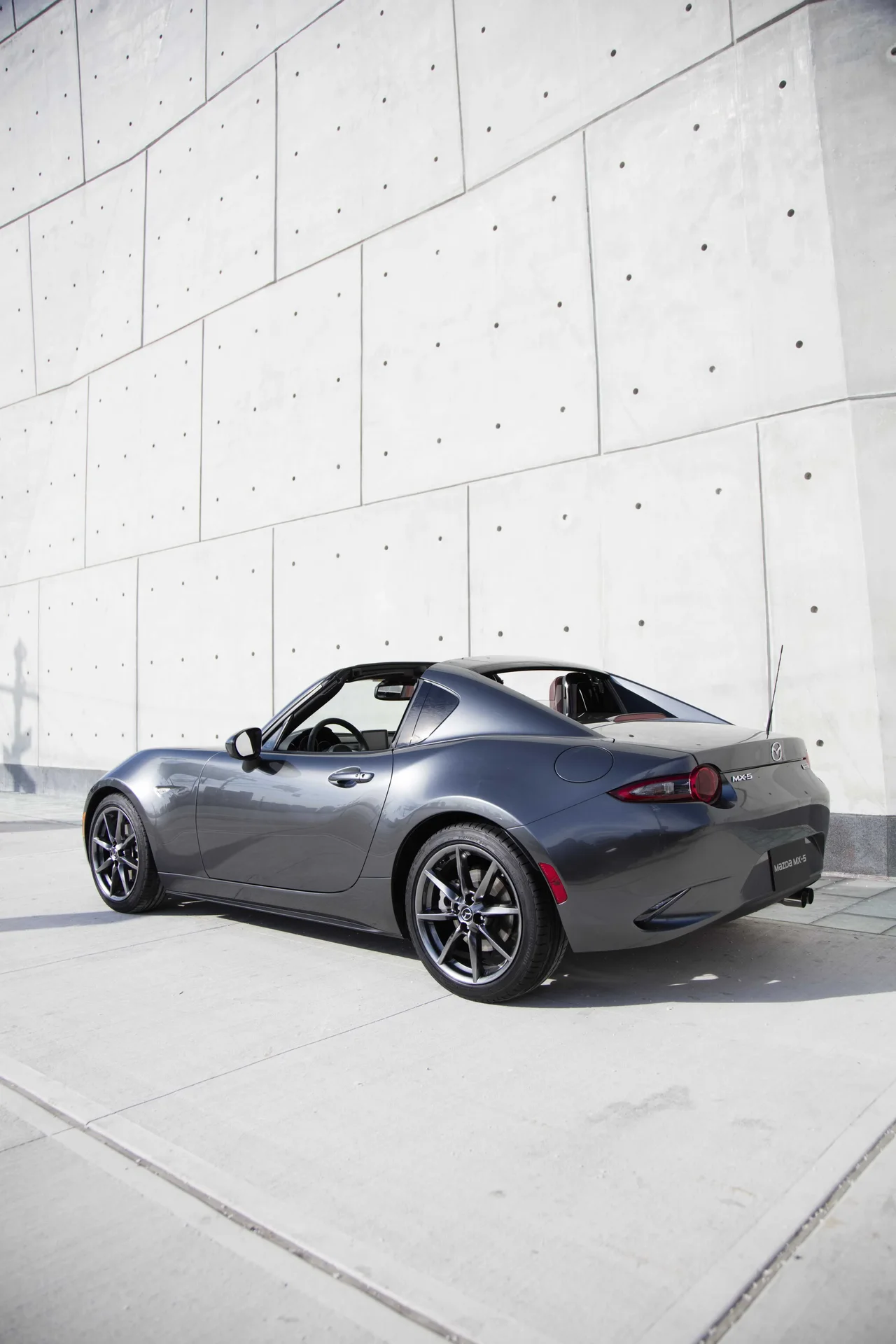

Photos

Specifications

Vehicle Details

Year
2019
Make
Mazda
Model
MX-5
Variant
RF
Body Style
Convertible
Generation
ND2
Seats
2
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.5 SKYACTIV-G Manual
Engine Configuration
Inline
Power (hp)
132 hp
Power (kW)
97 kW
Torque
152 Nm (112 lb-ft)
Top speed
204 km/h (127 mph)
0–60 mph
7.9 seconds (estimated)
0–100 km/h
8.3 seconds
Displacement
1,496 cc

Dimensions

Length
3,915 mm (154.1 in)
Width
1,735 mm (68.3 in)
Height
1,230 mm (48.4 in)
Wheelbase
2,310 mm (90.9 in)
Curb weight
1,105 kg (2,436 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
7,000 rpm
Rev. at Max Torque
4,500 rpm
Engine Configuration
Bore
74.5 mm (2.9 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
13 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Service Intervals
Air Filter
60,000 km / 3 years
Spark Plug
120,000 km (74,565 mi)
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Engine Coolant
100,000 km / 5 years
Transmission, Fluid
100,000 km / 5 years

Transmission & Drivetrain

Gear Ratio
1st Gear
5.09 :1
2nd Gear
2.99 :1
3rd Gear
2.04 :1
4th Gear
1.59 :1
5th Gear
1.29 :1
6th Gear
1 :1
Final Drive
2.87 :1
Reverse
4.7 :1

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
258 mm (10.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
255 mm (10.0 in)
Cooling
Solid

Fuel

General
Tank Volume
45 litres
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
E
WLTP Consumption
Low (l/100km) (WLTP)
8.8 litres / 100 km
Medium (l/100km)
6 litres / 100 km
High (l/100km)
5.5 litres / 100 km
Extra High (l/100km)
6.4 litres / 100 km
Combined (l/100km)
6.3 litres / 100 km
Fuel Consumption NEDC
City
8.2 litres / 100 km
Highway
5.2 litres / 100 km
Combined
6.3 litres / 100 km
Emission WLTP
CO₂, Combined
145 g/km
Emission NEDC
CO₂, Combined
143 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,918 mm (75.5 in)
Track, Front
1,495 mm (58.9 in)
Track, Rear
1,505 mm (59.3 in)
Overhang, Front
760 mm (29.9 in)
Overhang, Rear
845 mm (33.3 in)
Turning Circle
10.4 m
Ground Clearance
141 mm (5.6 in)

Interior

Head Room, Front
940 mm (37.0 in)
Leg Room, Front
1,096 mm (43.1 in)
Hip Room, Front
1,320 mm (52.0 in)
Shoulder Room, Front
1,325 mm (52.2 in)

Weight

Gross Weight
1,265 kg (2,789 lb)
Cargo Capacity
160 kg (353 lb)
Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé-Cabriolet

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Windows
Window Lifts, Front
Powered
Heat-Insulating Windows
  • Front
  • First Row

Lights

Main Beam
LED
Low Beam
LED
Daytime Running Light
LED
Special Features
Come Home/Leaving Lights
Special Features
Adaptive Headlights
Optional
Headlight Range Adjustment
Automatic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
54.1
Central Bore (CB), rear
54.1
Fastening Type
Lug Nuts
Tightening Torque
108 - 147 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • DAB
Media Inputs
USB
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
7"
Center Display Controls
Rotary Dial
Speakers
Total Number of Speakers
6 - 9 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Yes
Interior Storage
Cup Holders
Yes
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
127 litres
Depth
640 mm (25.2 in)
Width
1,100 mm (43.3 in)
Opening Width
769 mm (30.3 in)
Sill Height
816 mm (32.1 in)

Design

Interior Decor Material
Leather
Transmission Knob Material
Leather

Seats

Colour & Material
Upholstery
Leather
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Front Seats
Heated Seats
Yes

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Cameras
Rear
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Smartphone App
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Remote
Active Bonnet
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
84 %
Child Occupant
80 %
Vulnerable Road Users
93 %
Safety Assist
64 %
Overall
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: -

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Roadster
British Classification
Roadster
Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

ACRISS

Category
Intermediate (I)
Type
Roadster (N)
