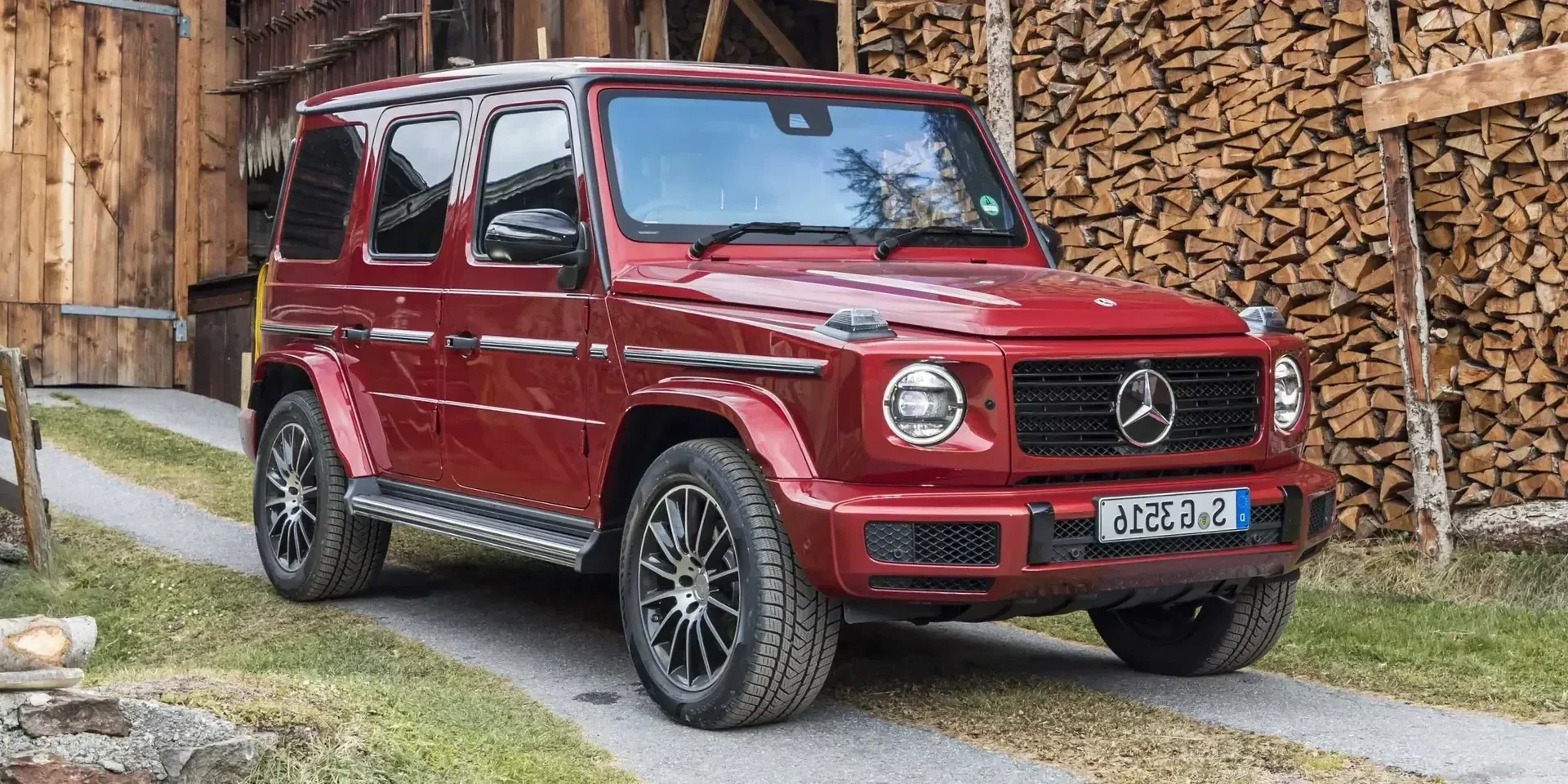

2019 Mercedes-Benz G-Class

GermanyDieselAWDSUV

Photos

Specifications

Vehicle Details

Year
2019
Make
Mercedes-Benz
Model
G-Class
Body Style
SUV
Generation
W463 2nd Generation
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
G 350 d 9G-Tronic
Engine Configuration
V
Power (hp)
286 hp
Power (kW)
210 kW
Torque
600 Nm (443 lb-ft)
Top speed
199 km/h (124 mph)
0–60 mph
7.0 seconds (estimated)
0–100 km/h
7.4 seconds
Displacement
2,925 cc

Dimensions

Length
4,669 mm (183.8 in)
Width
1,984 mm (78.1 in)
Height
1,969 mm (77.5 in)
Wheelbase
2,890 mm (113.8 in)
Curb weight
2,489 kg (5,487 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,400 - 4,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
Engine Oil, Volume
8.5 litres
Engine Configuration
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Mount
Longitudinally
Service Intervals
Air Filter
60,000 km / 4 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km / 15 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
100 litres
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
C
Fuel Consumption NEDC
City
11 litres / 100 km
Highway
9.2 litres / 100 km
Combined
9.8 litres / 100 km
Emission NEDC
CO₂, Combined
252 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,187 mm (86.1 in)
Track, Front
1,660 mm (65.4 in)
Track, Rear
1,660 mm (65.4 in)
Overhang, Front
877 mm (34.5 in)
Overhang, Rear
847 mm (33.3 in)
Turning Circle
13.6 m
Ground Clearance
241 mm (9.5 in)

Interior

Head Room, Front
1,064 mm (41.9 in)
Head Room, Rear
1,029 mm (40.5 in)
Leg Room, Front
983 mm (38.7 in)
Leg Room, Rear
1,003 mm (39.5 in)
Shoulder Room, Front
1,468 mm (57.8 in)
Shoulder Room, Rear
1,458 mm (57.4 in)

Weight

Gross Weight
3,150 kg (6,945 lb)
Max Trailer Load, braked 12%
3,500 kg (7,716 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
661 kg (1,457 lb)
Max Roof Load
150 kg (331 lb)
Max Towbar Download
140 kg (309 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Chassis Construction
Body-on-Frame

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Xenon
Low Beam
Xenon
Rear Lights
LED
Daytime Running Light
LED

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
130
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
84.1
Central Bore (CB), rear
84.1
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Connectivity
Radio
Yes
Media Inputs
USB
Bluetooth
  • Phone
  • Audio
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
Tilt
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
667 litres
Volume, Back Seat Collapsed
1,941 litres
Depth
758 mm (29.8 in)
Depth, Back Seat Collapsed
1,740 mm (68.5 in)
Sill Height
754 mm (29.7 in)

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Heated Seats
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Collapsible
Manual
Features
Heated Seats
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Yes
Speed Assist
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
90 %
Child Occupant
83 %
Vulnerable Road Users
78 %
Safety Assist
72 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Rust Damage
30 years

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H4
Main Beam
H4
Bi-Xenon
D1S
Fog Light, Front
  • H3
  • H11
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
  • BA15s (P21W)
  • BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
  • BA15s (P21W)
  • BAU15s (PY21W)
Read Light
SV8.5 (C10W)
License Plate Light
SV8.5 (C5W)

ACRISS

Category
Special (X)
