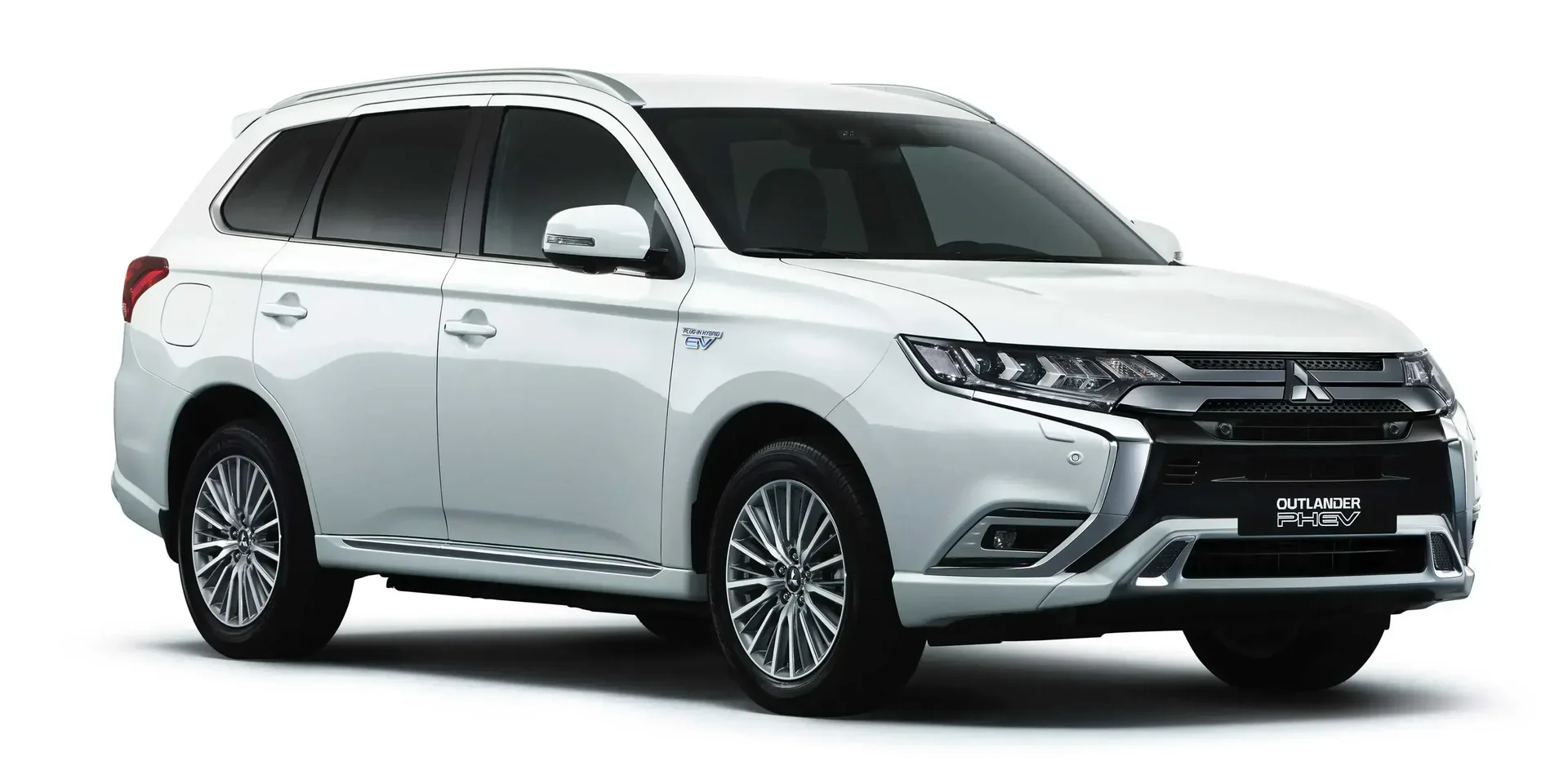

2019 Mitsubishi Outlander PHEV

JapanPlug In Hybrid GasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2019
Make
Mitsubishi
Model
Outlander
Variant
PHEV
Body Style
SUV
Generation
GF0 2nd Facelift
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
PHEV CVT
Engine Configuration
Inline
Power (hp)
224 hp
Power (kW)
165 kW
Torque
211 Nm (156 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
10.0 seconds (estimated)
0–100 km/h
10.5 seconds
Electric range
45 km (28 mi)
Battery
13.8 kWh
Displacement
2,360 cc

Dimensions

Length
4,695 mm (184.8 in)
Width
1,810 mm (71.3 in)
Height
1,710 mm (67.3 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,880 kg (4,145 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,500 rpm
Rev. at Max Torque
4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 15W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 10W-60
  • 15W-40
  • 15W-50
  • 20W-50
Mineral Oil (viscosity)
  • 15W-40
  • 15W-50
  • 20W-50
Engine Oil, Volume
4.6 litres
Configuration Combustion
Bore
88 mm (3.5 in)
Stroke
97 mm (3.8 in)
Compression Ratio
12 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
130 kW
Electric Engine Horsepower (Metric)
177 hp
Torque
211 Nm (156 lb-ft)
Front Engines
Yes
Rear Engines
Yes
Battery Capacity, Gross
13.8 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
  • CHAdeMO
  • Type 2
Vehicle to Load (V2L)
Yes
Configuration Electric › Front Engines
Power (kW)
60 kW
Horsepower
82 hp
Number of Engines
1
Configuration Electric › Rear Engines
Electric Power (kW)
70 kW
Horsepower
95 hp
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
3.5 h / 210 min
Charge Ampere
16 A
Configuration Electric › Charge DC
Charge Time, to 80%
25 min
Charge Ampere
16 A
Service Intervals
Air Filter
60,000 km / 3 years
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Interior Filter
20,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
294 mm (11.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
302 mm (11.9 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
43 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
A+
WLTP Consumption
Weighted, Combined
2 litres / 100 km
Combined
16.9 kWh/100km
Weighted, Combined
16.9 kWh/100km
Electric Range
45 km (28 mi)
Fuel Consumption NEDC
Combined
1.8 litres / 100 km
Combined
14.8 kWh/100km
Electric Range
54 km (34 mi)
Emission WLTP
CO₂, Weighted, Combined
46 g/km
Emission NEDC
CO₂, Combined
40 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,121 mm (83.5 in)
Track, Front
1,540 mm (60.6 in)
Track, Rear
1,540 mm (60.6 in)
Overhang, Front
990 mm (39.0 in)
Overhang, Rear
1,035 mm (40.7 in)
Ground Clearance
215 mm (8.5 in)

Interior

Head Room, Front
1,031 mm (40.6 in)
Head Room, Rear
975 mm (38.4 in)
Leg Room, Front
1,038 mm (40.9 in)
Leg Room, Rear
947 mm (37.3 in)
Hip Room, Front
1,336 mm (52.6 in)
Hip Room, Rear
1,318 mm (51.9 in)
Shoulder Room, Front
1,432 mm (56.4 in)
Shoulder Room, Rear
1,422 mm (56.0 in)

Weight

Gross Weight
2,390 kg (5,269 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
510 kg (1,124 lb)
Max Roof Load
80 kg (176 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Mitsubishi Platform
GS Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Roof Railing
Yes
Antenna
Optional
Mud Flaps
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional

Lights

Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
88 - 108 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Oil Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Bluetooth
Phone
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Rear-view Mirror
Anti-glare
Manual
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Cigarette Lighter
Yes
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Volume
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
550 litres
Volume, Back Seat Collapsed
1,681 litres
Depth
872 mm (34.3 in)
Depth, Back Seat Collapsed
1,685 mm (66.3 in)
Width
1,306 mm (51.4 in)
Width, Between Wheel Arches
974 mm (38.3 in)
Height
867 mm (34.1 in)
Sill Height
734 mm (28.9 in)

Seats

Front Seats › Adjustments, Driver
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats
Armrest
Middle
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Cruise Control
Adaptive Cruise Control

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Yes
Child Safety Locks
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
94 %
Child Occupant
83 %
Vulnerable Road Users
64 %
Safety Assist
100 %
Overall
5/5 stars
ASEAN NCAP
Test Year
2020
Overall
5/5 stars
Adult Occupant, Points
45.45
Child Occupant, Points
21.33
Safety Assist, Points
19.44
IIHS
Test Year
2014
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Roof Strength
Good
Head Restraints & Seats
Acceptable
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 5 years
Body Protection
3 years
Rust Damage
12 years
Hybrid Components
160,000 km / 8 years
EV Battery
160,000 km / 8 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
5 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Fuse Box
Yes

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV
